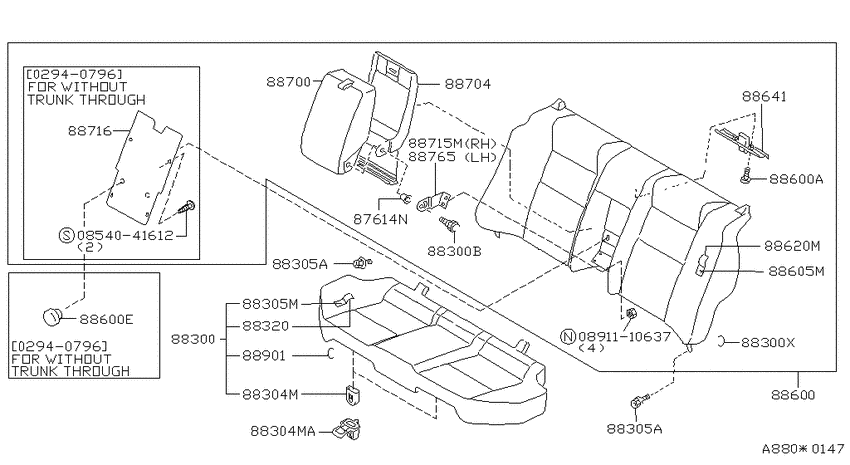

Rear seat (1994-02-01 ~ 1996-07-01; FED.S +CAL.S) Diagram Nissan MAXIMA
- Year
- 1994 - 1996
- Sales region
- U.S.A.
- Engine
- VQ30DE
- transmission
- MT
- body
- FED.S
- trim lvl
- GXE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0854041612
|
0854041612
08540-41612
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08540-41612 |
— | ||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
87614N
|
87614N
87614-0E000 BUSH-REAR SEAT1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
87614-0E000 |
US $2.02 |
||
|
88300
|
88300
88300-41U00 ｸﾂｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｼ-ﾄ1994-02-01 ~ 1995-02-01; FED.S.GXE +CAL.S.GXE; , |
88300-41U00 |
US $2,128 |
||
|
88300
|
88300
88300-41U02
Cushion assy-rear seat
1994-02-01 ~ 1995-02-01; FED.S.GXE +CAL.S.GXE; , |
88300-41U02 |
— | ||
|
88300
|
88300
88300-46U00 ｸﾂｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｼ-ﾄ1995-02-01 ~ 1996-07-01; FED.S.GXE +CAL.S.GXE; , |
88300-46U00 |
US $2,128 |
||
|
88300
|
88300
88300-46U02
Cushion assy-rear seat
1995-02-01 ~ 1996-07-01; FED.S.GXE +CAL.S.GXE; , |
88300-46U02 |
— | ||
|
88300
|
88300
88300-49U00 ｸﾂｼﾖﾝ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｼ-ﾄ1994-02-01 ~ 1996-07-01; 2*FED.S.GXE.MT +*FED.S.SE +*CAL.S.GXE.MT +*CAL.S.SE; F/SEL |
88300-49U00 |
US $2,730 |
||
|
88300
|
88300
88300-49U02
Cushion assy-rear seat
1994-02-01 ~ 1996-07-01; 2*FED.S.GXE.MT +*FED.S.SE +*CAL.S.GXE.MT +*CAL.S.SE; F/SEL |
88300-49U02 |
— | ||
|
88300
|
88300
87615-V5000 Bolt-Special1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
87615-V5000 |
US $3.60 |
||
|
88300
|
88300
8690132200 Clip1994-02-01 ~ 1995-05-01; FED.S +CAL.S; , |
8690132200 |
from US $0.22 |
||
|
88300B
|
88300B
87615-V5000 Bolt-Special1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
87615-V5000 |
US $3.60 |
||
|
88300X
|
88300X
8690132200 Clip1994-02-01 ~ 1995-05-01; FED.S +CAL.S; , |
8690132200 |
from US $0.22 |
||
|
88304M
|
88304M
88304-0M001 Hook-Cushion, Rear Seat1995-05-01 ~ 1996-07-01; 2*FED.S.GXE.MT +*FED.S.SE +*CAL.S.GXE.MT +*CAL.S.SE; F/SEL |
88304-0M001 |
US $5.81 |
||
|
88304M
|
88304M
88304-0M000 Hook-Cushion, Rear Seat1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
88304-0M000 |
from US $5.81 |
||
|
88304MA
|
88304MA
88304-0M000 Hook-Cushion, Rear Seat1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
88304-0M000 |
from US $5.81 |
||
|
88305A
|
88305A
01466-00061 SCREW1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
01466-00061 |
US $1.73 |
||
|
88305A
|
88305A
01466-00061 SCREW1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
01466-00061 |
US $1.73 |
||
|
88305M
|
88305M
88305-41U00 ﾊﾟﾂﾄﾞ & ﾌﾚ-ﾑ ｱﾂｾﾝﾌﾞﾘ-,ｸﾂｼﾖﾝ ﾘﾔ ｼ-ﾄ1994-02-01 ~ 1996-07-01; FED.S.(GXE+SE) +CAL.S.(GXE+SE); , |
88305-41U00 |
US $783.05 |
||
|
88305M
|
88305M
88305-49U00 ﾊﾟﾂﾄﾞ & ﾌﾚ-ﾑ ｱﾂｾﾝﾌﾞﾘ-,ｸﾂｼﾖﾝ ﾘﾔ ｼ-ﾄ1994-02-01 ~ 1996-07-01; 2*FED.S.GXE.MT +*FED.S.SE +*CAL.S.GXE.MT +*CAL.S.SE; F/SEL |
88305-49U00 |
US $783.05 |
||
|
88320
|
88320
88320-41U00 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｼ-ﾄ ｸﾂｼﾖﾝ1994-02-01 ~ 1995-02-01; FED.S.GXE +CAL.S.GXE; , |
88320-41U00 |
US $870.84 |
||
|
88320
|
88320
88320-41U02
Trim assy-rear seat cushion
1994-02-01 ~ 1995-02-01; FED.S.GXE +CAL.S.GXE; , |
88320-41U02 |
— | ||
|
88320
|
88320
88320-46U00 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｼ-ﾄ ｸﾂｼﾖﾝ1995-02-01 ~ 1996-07-01; FED.S.GXE +CAL.S.GXE; , |
88320-46U00 |
US $870.84 |
||
|
88320
|
88320
88320-46U02
Trim assy-rear seat cushion
1995-02-01 ~ 1996-07-01; FED.S.GXE +CAL.S.GXE; , |
88320-46U02 |
— | ||
|
88320
|
88320
88320-49U00 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｼ-ﾄ ｸﾂｼﾖﾝ1995-05-01 ~ 1996-07-01; 2*FED.S.GXE.MT +*FED.S.SE +*CAL.S.GXE.MT +*CAL.S.SE; F/SEL |
88320-49U00 |
US $1,115.81 |
||
|
88320
|
88320
88320-49U02
Trim assy-rear seat cushion
1995-05-01 ~ 1996-07-01; 2*FED.S.GXE.MT +*FED.S.SE +*CAL.S.GXE.MT +*CAL.S.SE; F/SEL |
88320-49U02 |
— | ||
|
88600
|
88600
88600-41U00
Back assy-rear seat
1994-02-01 ~ 1995-02-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88600-41U00 |
— | ||
|
88600
|
88600
88600-41U02
Back assy-rear seat
1994-02-01 ~ 1995-02-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88600-41U02 |
— | ||
|
88600
|
88600
88600-46U00
Back assy-rear seat
1995-02-01 ~ 1996-07-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88600-46U00 |
— | ||
|
88600
|
88600
88600-46U02
Back assy-rear seat
1995-02-01 ~ 1996-07-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88600-46U02 |
— | ||
|
88600
|
88600
88600-49U10 ﾊﾞﾂｸ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｼ-ﾄ1995-05-01 ~ 1996-07-01; 2*FED.S.GXE.MT +*FED.S.SE +*CAL.S.GXE.MT +*CAL.S.SE; F/SEL |
88600-49U10 |
US $3,220 |
||
|
88600
|
88600
88600-49U12
Back assy-rear seat
1995-05-01 ~ 1996-07-01; 2*FED.S.GXE.MT +*FED.S.SE +*CAL.S.GXE.MT +*CAL.S.SE; F/SEL |
88600-49U12 |
— | ||
|
88600
|
88600
01415-00011 SCREW1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
01415-00011 |
US $3.46 |
||
|
88600
|
88600
88796-31U00 ｸﾞﾛﾒﾂﾄ1994-02-01 ~ 1996-07-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88796-31U00 |
US $3.74 |
||
|
88600
|
88600
88796-31U02
Grommet
1994-02-01 ~ 1996-07-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88796-31U02 |
— | ||
|
88600A
|
88600A
01415-00011 SCREW1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
01415-00011 |
US $3.46 |
||
|
88600E
|
88600E
88796-31U00 ｸﾞﾛﾒﾂﾄ1994-02-01 ~ 1996-07-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88796-31U00 |
US $3.74 |
||
|
88600E
|
88600E
88796-31U02
Grommet
1994-02-01 ~ 1996-07-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88796-31U02 |
— | ||
|
88605M
|
88605M
88605-41U00 ﾊﾟﾂﾄﾞ & ﾌﾚ-ﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾘﾔ ｼ-ﾄ1994-02-01 ~ 1996-07-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88605-41U00 |
US $815.62 |
||
|
88605M
|
88605M
88605-49U10 ﾊﾟﾂﾄﾞ & ﾌﾚ-ﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾞﾂｸ ﾘﾔ ｼ-ﾄ1994-02-01 ~ 1995-05-01; 2*FED.S.GXE.MT +*FED.S.SE +*CAL.S.GXE.MT +*CAL.S.SE; F/LEATHER SEAT F/SEL |
88605-49U10 |
US $785.88 |
||
|
88620M
|
88620M
88620-41U00
Trim assy-rear seat back
1994-02-01 ~ 1995-02-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88620-41U00 |
— | ||
|
88620M
|
88620M
88620-41U02
Trim assy-rear seat back
1994-02-01 ~ 1995-02-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88620-41U02 |
— | ||
|
88620M
|
88620M
88620-46U00
Trim assy-rear seat back
1995-02-01 ~ 1996-07-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88620-46U00 |
— | ||
|
88620M
|
88620M
88620-46U02
Trim assy-rear seat back
1995-02-01 ~ 1996-07-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88620-46U02 |
— | ||
|
88620M
|
88620M
88620-49U10 ﾄﾘﾑ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｼ-ﾄ ﾊﾞﾂｸ1994-02-01 ~ 1995-05-01; 2*FED.S.GXE.MT +*FED.S.SE +*CAL.S.GXE.MT +*CAL.S.SE; F/LEATHER SEAT F/SEL |
88620-49U10 |
US $1,115.81 |
||
|
88620M
|
88620M
88620-49U12
Trim assy-rear seat back
1994-02-01 ~ 1995-05-01; 2*FED.S.GXE.MT +*FED.S.SE +*CAL.S.GXE.MT +*CAL.S.SE; F/LEATHER SEAT F/SEL |
88620-49U12 |
— | ||
|
88641
|
88641
88641-0E600 Lock Assy-Rear Seat1994-02-01 ~ 1996-07-01; 2*FED.S.GXE.MT +*FED.S.SE +*CAL.S.GXE.MT +*CAL.S.SE; F/SEL |
88641-0E600 |
US $37.87 |
||
|
88700
|
88700
88700-41U00
Armrest assy-rear seat
1994-02-01 ~ 1995-02-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88700-41U00 |
— | ||
|
88700
|
88700
88700-41U02
Armrest assy-rear seat
1994-02-01 ~ 1995-02-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88700-41U02 |
— | ||
|
88700
|
88700
88700-46U00
Armrest assy-rear seat
1995-02-01 ~ 1996-07-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88700-46U00 |
— | ||
|
88700
|
88700
88700-46U02
Armrest assy-rear seat
1995-02-01 ~ 1996-07-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88700-46U02 |
— | ||
|
88700
|
88700
88700-49U10 ｱ-ﾑﾚｽﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾘﾔ ｼ-ﾄ1994-02-01 ~ 1995-05-01; 2*FED.S.GXE.MT +*FED.S.SE +*CAL.S.GXE.MT +*CAL.S.SE; F/LEATHER SEAT F/SEL |
88700-49U10 |
US $482.86 |
||
|
88700
|
88700
88700-49U12
Armrest assy-rear seat
1994-02-01 ~ 1995-05-01; 2*FED.S.GXE.MT +*FED.S.SE +*CAL.S.GXE.MT +*CAL.S.SE; F/LEATHER SEAT F/SEL |
88700-49U12 |
— | ||
|
88704
|
88704
88704-41U10 ﾎﾞ-ﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｱ-ﾑﾚｽﾄ ﾘﾂﾄﾞ1994-02-01 ~ 1996-07-01; 2*FED.S.GXE.MT +*FED.S.SE +*CAL.S.GXE.MT +*CAL.S.SE; F/SEL |
88704-41U10 |
US $123.12 |
||
|
88704
|
88704
88704-41U12 ﾎﾞ-ﾄﾞ ｱﾂｾﾝﾌﾞﾘ-,ｱ-ﾑﾚｽﾄ ﾘﾂﾄﾞ1994-02-01 ~ 1996-07-01; 2*FED.S.GXE.MT +*FED.S.SE +*CAL.S.GXE.MT +*CAL.S.SE; F/SEL |
88704-41U12 |
US $123.12 |
||
|
88715M
|
88715M
88715-41U10 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ｱ-ﾑﾚｽﾄ1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
88715-41U10 |
US $9.65 |
||
|
88716
|
88716
88716-31U00
Screen assy-rear seat
1994-02-01 ~ 1996-07-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88716-31U00 |
— | ||
|
88716
|
88716
88716-31U02
Screen assy-rear seat
1994-02-01 ~ 1996-07-01; FED.S.GXE.MT +CAL.S.GXE.MT; , |
88716-31U02 |
— | ||
|
88765
|
88765
88765-41U10 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ｱ-ﾑﾚｽﾄ lh1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
88765-41U10 |
US $9.65 |
||
|
88901
|
88901
8690132200 Clip1994-02-01 ~ 1995-05-01; FED.S +CAL.S; , |
8690132200 |
from US $0.22 |
