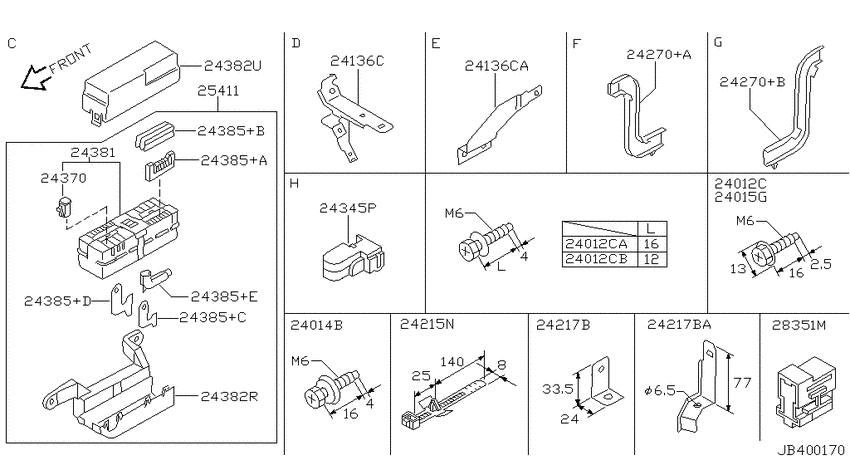

Wiring (1994-02-01 ~ 1996-07-01; ENGINE ROOM HARNESS CLIP (1); FED.S +CAL.S) Diagram Nissan MAXIMA
- Year
- 1994 - 1996
- Sales region
- U.S.A.
- Engine
- VQ30DE
- transmission
- MT
- body
- FED.S
- trim lvl
- GXE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24012C
|
24012C
0145600031 SCREW1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
0145600031 |
from US $1.11 |
||
|
24012C
|
24012C
01436-01191
SCREW
1995-05-01 ~ 1996-07-01; FED.S +CAL.S; , |
01436-01191 |
— | ||
| replacement | |||||
|
24012C
|
24012C
083686165G SCRHEX HDPP W1995-05-01 ~ 1996-07-01; FED.S +CAL.S; , |
083686165G |
from US $0.63 |
||
|
24012C
|
24012C
0143601161
SCREW
1995-05-01 ~ 1996-07-01; FED.S +CAL.S; , |
0143601161 |
— | ||
| replacement | |||||
|
24012C
|
24012C
08368-6125G ｽｸﾘﾕ-1995-05-01 ~ 1996-07-01; FED.S +CAL.S; , |
08368-6125G |
US $2.21 |
||
|
24012CA
|
24012CA
01436-01191
SCREW
1995-05-01 ~ 1996-07-01; FED.S +CAL.S; , |
01436-01191 |
— | ||
| replacement | |||||
|
24012CA
|
24012CA
083686165G SCRHEX HDPP W1995-05-01 ~ 1996-07-01; FED.S +CAL.S; , |
083686165G |
from US $0.63 |
||
|
24012CB
|
24012CB
0143601161
SCREW
1995-05-01 ~ 1996-07-01; FED.S +CAL.S; , |
0143601161 |
— | ||
| replacement | |||||
|
24012CB
|
24012CB
08368-6125G ｽｸﾘﾕ-1995-05-01 ~ 1996-07-01; FED.S +CAL.S; , |
08368-6125G |
US $2.21 |
||
|
24014B
|
24014B
01436-01471 SCREW1994-02-01 ~ 1995-05-01; FED.S +CAL.S; , |
01436-01471 |
US $2.45 |
||
|
24015G
|
24015G
0145600031 SCREW1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
0145600031 |
from US $1.11 |
||
|
24136C
|
24136C
24236-31U00 Bracket-Connector1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
24236-31U00 |
US $8.93 |
||
|
24136C
|
24136C
24236-31U10
Bracket-Connector
1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
24236-31U10 |
— | ||
|
24136CA
|
24136CA
24236-31U10
Bracket-Connector
1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
24236-31U10 |
— | ||
|
24215N
|
24215N
24222-89924 Clip-Wiring Harness1994-02-01 ~ 1994-03-01; FED.S +CAL.S; , |
24222-89924 |
US $4.18 |
||
|
24217B
|
24217B
24239-31U10 Bracket-Harness Clip1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
24239-31U10 |
US $4.46 |
||
|
24217B
|
24217B
24239-31U00 Bracket-Harness Clip1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
24239-31U00 |
US $5.47 |
||
|
24217B
|
24217B
24239-41U20
Bracket-Harness Clip
1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
24239-41U20 |
— | ||
|
24217BA
|
24217BA
24239-31U00 Bracket-Harness Clip1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
24239-31U00 |
US $5.47 |
||
|
24270+A
|
24270+A
24271-31U00 Protector-Harness1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
24271-31U00 |
US $7.20 |
||
|
24270+B
|
24270+B
24271-31U10 Protector-Harness1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
24271-31U10 |
US $7.20 |
||
|
24345P
|
24345P
2434540U05 Cover-Battery Terminak1995-05-01 ~ 1996-07-01; FED.S +CAL.S; , |
2434540U05 |
US $13.26 |
||
|
24345P
|
24345P
2434551E64 COVER-CONNECTOR1994-02-01 ~ 1995-05-01; FED.S +CAL.S; , |
2434551E64 |
US $8.05 |
||
|
24370
|
24370
2437079910 Connector Assy-Fusible Link1994-02-01 ~ 1996-07-01; FED.S +CAL.S; 100A BLUE |
2437079910 |
US $13.10 |
||
|
24370
|
24370
2437079915 Connector Assy-Fusible Link1994-02-01 ~ 1996-07-01; FED.S +CAL.S; 120A WHITE |
2437079915 |
from US $13.10 |
||
|
24370
|
24370
2437079920 Connector Assy-Fusible Link1994-02-01 ~ 1996-07-01; FED.S +CAL.S; 140A BROWN |
2437079920 |
US $13.10 |
||
|
24370
|
24370
2437089900 Connector Assy-Fusible Link1995-05-01 ~ 1996-07-01; FED.S +CAL.S; 25A BROWN |
2437089900 |
US $10.80 |
||
|
24370
|
24370
2437089905 Connector Assy-Fusible Link1995-05-01 ~ 1996-07-01; FED.S +CAL.S; 30A GREEN |
2437089905 |
from US $12.77 |
||
|
24370
|
24370
2437089910 Connector Assy-Fusible Link1995-05-01 ~ 1996-07-01; FED.S +CAL.S; 65A BLACK |
2437089910 |
from US $10.80 |
||
|
24370
|
24370
2437089920 Connector Assy-Fusible Link1995-05-01 ~ 1996-07-01; FED.S +CAL.S; 75A GRAY |
2437089920 |
from US $10.80 |
||
|
24370
|
24370
24370-89960 Conn Assy-Fusible Link1995-05-01 ~ 1996-07-01; FED.S +CAL.S; 45A RED |
24370-89960 |
US $12.20 |
||
|
24381
|
24381
24381-31U00
Housing-Fusible Link Holder
1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
24381-31U00 |
— | ||
| replacement | |||||
|
24381
|
24381
B4381-31U00
Housing-fusible link holder
1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
B4381-31U00 |
— | ||
|
24382R
|
24382R
24382-31U00 Cover-Fusible Link Holder1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
24382-31U00 |
US $14.26 |
||
|
24382U
|
24382U
24382-31U10 Cover-Fusible Link Holder1995-05-01 ~ 1996-07-01; FED.S; , |
24382-31U10 |
US $19.01 |
||
|
24385+A
|
24385+A
24385-31U10 Retainer-Fusible Link Holder1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
24385-31U10 |
US $5.04 |
||
|
24385+B
|
24385+B
24385-31U05 Retainer-Fusible Link Holder1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
24385-31U05 |
US $5.04 |
||
|
24385+C
|
24385+C
24385-31U15 Retainer-Fusible Link Holder1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
24385-31U15 |
US $5.47 |
||
|
24385+D
|
24385+D
24385-31U20 Retainer-Fusible Link Holder1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
24385-31U20 |
US $5.47 |
||
|
24385+E
|
24385+E
24385-31U24 Retainer-Fusible Link Holder1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
24385-31U24 |
US $5.47 |
||
|
25411
|
25411
24380-31U00 Holder-Fusible Link1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
24380-31U00 |
from US $28.49 |
||
|
28351M
|
28351M
28351-89901 Condensor-Ignition Coil1994-02-01 ~ 1996-07-01; FED.S +CAL.S; , |
28351-89901 |
from US $5.42 |
||
