Component List MAXIMA
Clutch & band servo (1994-02-01 ~ ; SERVO PARTS; AT)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
0092250500	0092250500 00922-50500 ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ	00922-50500	—
089111401A	089111401A 089111401A NUTHEX	089111401A	—
31526R	31526R 31526-80X06 Seal-0 Ring 1994-02-01 ~ ; AT; ,	31526-80X06	from US $4.18
31526R	31526R 31526-80X03 Seal-0 Ring 1994-02-01 ~ ; AT; ,	31526-80X03	US $4.18
31526R	31526R 31526-80X04 Seal-0 Ring 1994-02-01 ~ ; AT; ,	31526-80X04	US $4.18
31526R	31526R 31526-80X05 Seal-0 Ring 1994-02-01 ~ ; AT; ,	31526-80X05	US $4.18
31526R	31526R 31526-41X02 Seal-O Ring 1994-02-01 ~ ; AT; S-R	31526-41X02	US $2.36
31526R	31526R 31526-41X03 Seal-O Ring 1994-02-01 ~ ; AT; S-R	31526-41X03	US $2.36
31526R	31526R 31526-31X08 Seal-O Ring 1994-02-01 ~ ; AT; N-D	31526-31X08	US $4.18
31526R	31526R 3167221X00 Seal-O Ring, Accumulator 1994-02-01 ~ ; AT; N-D	3167221X00	US $4.99
31526RA	31526RA 31526-80X03 Seal-0 Ring 1994-02-01 ~ ; AT; ,	31526-80X03	US $4.18
31526RB	31526RB 31526-80X04 Seal-0 Ring 1994-02-01 ~ ; AT; ,	31526-80X04	US $4.18
31526RC	31526RC 31526-80X05 Seal-0 Ring 1994-02-01 ~ ; AT; ,	31526-80X05	US $4.18
31526RE	31526RE 31526-41X02 Seal-O Ring 1994-02-01 ~ ; AT; S-R	31526-41X02	US $2.36
31526RF	31526RF 31526-41X03 Seal-O Ring 1994-02-01 ~ ; AT; S-R	31526-41X03	US $2.36
31526RG	31526RG 31526-31X08 Seal-O Ring 1994-02-01 ~ ; AT; N-D	31526-31X08	US $4.18
31526RH	31526RH 3167221X00 Seal-O Ring, Accumulator 1994-02-01 ~ ; AT; N-D	3167221X00	US $4.99
31605M	31605M 31605-31X00 Spring-Servo 1994-02-01 ~ ; AT; ,	31605-31X00	US $4.18
31605M	31605M 31605-31X01 Spring-Servo 1994-02-01 ~ ; AT; ,	31605-31X01	US $2.45
31605M	31605M 31605-80X03 Spring-Servo 1994-02-01 ~ ; AT; S-R	31605-80X03	US $4.03
31605M	31605M 31605-31X15 Spring-Servo 1994-02-01 ~ ; AT; N-D	31605-31X15	US $4.18
31605MA	31605MA 31605-31X01 Spring-Servo 1994-02-01 ~ ; AT; ,	31605-31X01	US $2.45
31605MB	31605MB 31605-80X03 Spring-Servo 1994-02-01 ~ ; AT; S-R	31605-80X03	US $4.03
31605MC	31605MC 31605-31X15 Spring-Servo 1994-02-01 ~ ; AT; N-D	31605-31X15	US $4.18
31611	31611 31611-80X00 Retainer-Servo Piston 1994-02-01 ~ 1995-11-01; AT; ,	31611-80X00	US $47.66
31611	31611 31611-80X04 Retainer-Servo Piston 1995-11-01 ~ ; AT; ,	31611-80X04	US $47.66
31611	31611 31377-80X13 Bolt 1994-02-01 ~ ; AT; ,	31377-80X13	US $1.73
31611	31611 31691-80X12 Retainer-Servo Piston 1994-02-01 ~ ; AT; ,	31691-80X12	US $49.82
	replacement
31611	31611 31691-80X22 Retainer-Servo Piston 1994-02-01 ~ ; AT; ,	31691-80X22	US $49.82
31611A	31611A 31377-80X13 Bolt 1994-02-01 ~ ; AT; ,	31377-80X13	US $1.73
31611M	31611M 31691-80X12 Retainer-Servo Piston 1994-02-01 ~ ; AT; ,	31691-80X12	US $49.82
	replacement
31611M	31611M 31691-80X22 Retainer-Servo Piston 1994-02-01 ~ ; AT; ,	31691-80X22	US $49.82
31615	31615 31615-80X00 Piston-Band Servo 1994-02-01 ~ ; AT; ,	31615-80X00	US $36.86
31615	31615 31695-80X01 Piston-Overdrive Servo 1994-02-01 ~ ; AT; ,	31695-80X01	US $14.40
	replacement
31615	31615 31695-80X15 Piston-Overdrive Servo 1994-02-01 ~ ; AT; ,	31695-80X15	US $14.40
31615M	31615M 31695-80X01 Piston-Overdrive Servo 1994-02-01 ~ ; AT; ,	31695-80X01	US $14.40
	replacement
31615M	31615M 31695-80X15 Piston-Overdrive Servo 1994-02-01 ~ ; AT; ,	31695-80X15	US $14.40
31616	31616 31527-80X07 Seal-Lathe Cut Ring 1994-02-01 ~ ; AT; ,	31527-80X07	US $4.75
31616	31616 31527-80X08 Seal-Lathe Cut Ring 1994-02-01 ~ ; AT; ,	31527-80X08	from US $4.75
31616	31616 31527-80X12 Seal-Lathe Cut Ring 1994-02-01 ~ 1996-02-01; AT; ,	31527-80X12	US $4.18
	replacement
31616	31616 C1527-80X12 Seal-lathe cut ring 1994-02-01 ~ 1996-02-01; AT; ,	C1527-80X12	—
31616	31616 31527-80X14 Seal-Lathe Cut Ring 1996-02-01 ~ ; AT; ,	31527-80X14	US $4.75
31616+A	31616+A 31527-80X08 Seal-Lathe Cut Ring 1994-02-01 ~ ; AT; ,	31527-80X08	from US $4.75
31616+B	31616+B 31527-80X12 Seal-Lathe Cut Ring 1994-02-01 ~ 1996-02-01; AT; ,	31527-80X12	US $4.18
	replacement
31616+B	31616+B C1527-80X12 Seal-lathe cut ring 1994-02-01 ~ 1996-02-01; AT; ,	C1527-80X12	—
31616+B	31616+B 31527-80X14 Seal-Lathe Cut Ring 1996-02-01 ~ ; AT; ,	31527-80X14	US $4.75
31618	31618 31618-80X00 Stem-Band Servo Piston 1994-02-01 ~ 1994-12-01; AT; ,	31618-80X00	US $9.07
31618	31618 31618-80X02 Stem-Band Servo Piston 1994-12-01 ~ ; AT; ,	31618-80X02	US $9.07
31618	31618 31365-31X04 Nut 1995-01-01 ~ ; AT; ,	31365-31X04	US $1.73
31618B	31618B 31365-31X04 Nut 1995-01-01 ~ ; AT; ,	31365-31X04	US $1.73
31619	31619 31619-01X00 Washer-Piston Stem 1994-02-01 ~ ; AT; ,	31619-01X00	US $0.86
31622	31622 31622-31X00 Retainer-Return Spring Servo 1994-02-01 ~ 1995-01-01; AT; ,	31622-31X00	US $6.05
31622	31622 31622-31X01 Retainer-Snap, Stem Band 1995-01-01 ~ ; AT; ,	31622-31X01	US $6.19
31623	31623 31623-80X01 Gasket-Retainer, Servo 1994-02-01 ~ ; AT; ,	31623-80X01	US $10.80
31624	31624 31624-41X00 Strut-Band 1994-02-01 ~ ; AT; ,	31624-41X00	US $4.18
31625M	31625M 31625-80X00 Pin-Anchor End 1994-02-01 ~ 1995-10-01; AT; ,	31625-80X00	US $4.18
31625M	31625M 31625-80X01 Pin-Anchor End 1995-10-01 ~ ; AT; ,	31625-80X01	US $4.18
31626	31626 31626-21X00 Washer-Anchor End Pin 1994-02-01 ~ 1995-01-01; AT; ,	31626-21X00	US $0.86
31630	31630 31630-80X02 Band Assy-Brake 1994-02-01 ~ 1999-02-01; AT; ,	31630-80X02	US $82.66
31630	31630 31630-80X04 Band Assy-Brake 1999-02-01 ~ ; AT; ,	31630-80X04	US $49.25
31675	31675 31675-80X02 Piston-Accumulator Servo 1994-02-01 ~ ; AT; S-R	31675-80X02	US $10.80
31675	31675 31675-31X02 Piston-Accumulator Servo 1994-02-01 ~ ; AT; N-D	31675-31X02	US $10.80
31675+A	31675+A 31675-31X02 Piston-Accumulator Servo 1994-02-01 ~ ; AT; N-D	31675-31X02	US $10.80

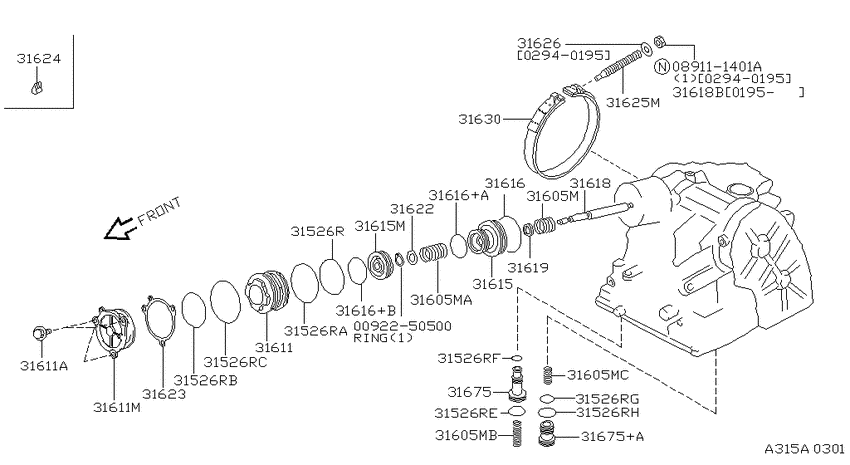

Clutch & band servo (1994-02-01 ~ ; SERVO PARTS; AT) Diagram Nissan MAXIMA U.S.A. 2295737-181477

Clutch & band servo (1994-02-01 ~ ; SERVO PARTS; AT) Diagram Nissan MAXIMA U.S.A. 2295737-181477
