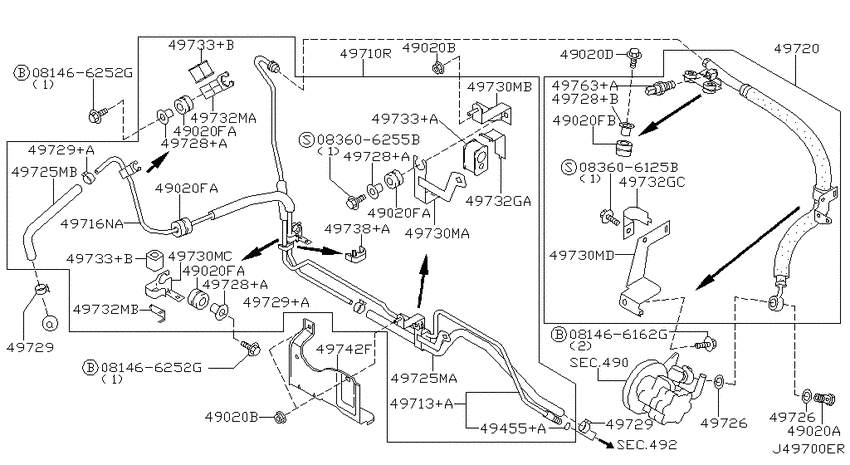

Power steering piping (2001-06-01 ~ ; PART-1; VQ35DE.MT) Diagram Nissan MAXIMA
- Year
- 2001 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35DE
- transmission
- MT
- body
- S
- trim lvl
- SEL
- emission
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
083606125B
|
083606125B
083606125B Screw |
083606125B |
US $1.73 |
||
|
083606255B
|
083606255B
08360-6255B
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6255B |
— | ||
|
49020A
|
49020A
0161900011 BOLT2001-06-01 ~ ; VQ35DE.MT; , |
0161900011 |
from US $3.76 |
||
|
49020B
|
49020B
0122500481
NUT
2001-06-01 ~ ; VQ35DE.MT; , |
0122500481 |
— | ||
|
49020B
|
49020B
0122500481
NUT
2001-06-01 ~ ; VQ35DE.MT; , |
0122500481 |
— | ||
|
49020D
|
49020D
01436-01201 SCREW2001-06-01 ~ ; VQ35DE.MT; , |
01436-01201 |
US $3.88 |
||
|
49020FA
|
49020FA
18316S3260 Bush2001-06-01 ~ ; VQ35DE.MT; , |
18316S3260 |
US $4.71 |
||
|
49020FA
|
49020FA
18316S3260 Bush2001-06-01 ~ ; VQ35DE.MT; , |
18316S3260 |
US $4.71 |
||
|
49020FA
|
49020FA
18316S3260 Bush2001-06-01 ~ ; VQ35DE.MT; , |
18316S3260 |
US $4.71 |
||
|
49020FA
|
49020FA
18316S3260 Bush2001-06-01 ~ ; VQ35DE.MT; , |
18316S3260 |
US $4.71 |
||
|
49020FB
|
49020FB
18316S3260 Bush2001-06-01 ~ ; VQ35DE.MT; , |
18316S3260 |
US $4.71 |
||
|
49455+A
|
49455+A
4974501E00 SEAL-O RING2001-06-01 ~ ; VQ35DE.MT; , |
4974501E00 |
US $2.78 |
||
|
49710R
|
49710R
49710-5Y710
Hose & tube set-power steering
2001-06-01 ~ ; VQ35DE.MT; , |
49710-5Y710 |
— | ||
|
49713+A
|
49713+A
49713-5Y710
Tube-connector to pump
2001-06-01 ~ ; VQ35DE.MT; , |
49713-5Y710 |
— | ||
|
49716NA
|
49716NA
49723-5Y710
Tube-power steering
2001-06-01 ~ ; VQ35DE.MT; , |
49723-5Y710 |
— | ||
|
49720
|
49720
49720-5Y700
Hose assy-pressure,power steering
2001-06-01 ~ ; VQ35DE.MT; , |
49720-5Y700 |
— | ||
|
49725MA
|
49725MA
49725-5Y710
Hose-return,power steering
2001-06-01 ~ ; VQ35DE.MT; , |
49725-5Y710 |
— | ||
|
49725MB
|
49725MB
497252Y902 HOSERETURNPOW2001-06-01 ~ ; VQ35DE.MT; , |
497252Y902 |
US $24.85 |
||
|
49726
|
49726
49726Y0100 Washer-Copper2001-06-01 ~ ; VQ35DE.MT; , |
49726Y0100 |
from US $1.72 |
||
|
49726
|
49726
49726Y0100 Washer-Copper2001-06-01 ~ ; VQ35DE.MT; , |
49726Y0100 |
from US $1.72 |
||
|
49728+A
|
49728+A
49728-55S00
Collar
2001-06-01 ~ ; VQ35DE.MT; , |
49728-55S00 |
— | ||
| replacement | |||||
|
49728+A
|
49728+A
49728-55S0A Collar-Insulator2001-06-01 ~ ; VQ35DE.MT; , |
49728-55S0A |
US $2.64 |
||
|
49728+A
|
49728+A
49728-55S00
Collar
2001-06-01 ~ ; VQ35DE.MT; , |
49728-55S00 |
— | ||
| replacement | |||||
|
49728+A
|
49728+A
49728-55S0A Collar-Insulator2001-06-01 ~ ; VQ35DE.MT; , |
49728-55S0A |
US $2.64 |
||
|
49728+A
|
49728+A
49728-55S00
Collar
2001-06-01 ~ ; VQ35DE.MT; , |
49728-55S00 |
— | ||
| replacement | |||||
|
49728+A
|
49728+A
49728-55S0A Collar-Insulator2001-06-01 ~ ; VQ35DE.MT; , |
49728-55S0A |
US $2.64 |
||
|
49728+B
|
49728+B
49728-55S00
Collar
2001-06-01 ~ ; VQ35DE.MT; , |
49728-55S00 |
— | ||
| replacement | |||||
|
49728+B
|
49728+B
49728-55S0A Collar-Insulator2001-06-01 ~ ; VQ35DE.MT; , |
49728-55S0A |
US $2.64 |
||
|
49729
|
49729
49729-2J001 Clamp2001-06-01 ~ ; VQ35DE.MT; , |
49729-2J001 |
US $2.45 |
||
|
49729
|
49729
49729-2J001 Clamp2001-06-01 ~ ; VQ35DE.MT; , |
49729-2J001 |
US $2.45 |
||
|
49729
|
49729
49729-2J001 Clamp2001-06-01 ~ ; VQ35DE.MT; , |
49729-2J001 |
US $2.45 |
||
|
49729
|
49729
49729-2J016
Clamp
2001-06-01 ~ 2002-04-01; VQ35DE.MT; , |
49729-2J016 |
— | ||
| replacement | |||||
|
49729
|
49729
497292J01B Clamp2001-06-01 ~ 2002-04-01; VQ35DE.MT; , |
497292J01B |
from US $1.96 |
||
|
49729
|
49729
49729-2J001 Clamp2001-06-01 ~ ; VQ35DE.MT; , |
49729-2J001 |
US $2.45 |
||
|
49729
|
49729
49729-2J001 Clamp2001-06-01 ~ ; VQ35DE.MT; , |
49729-2J001 |
US $2.45 |
||
|
49729
|
49729
49729-2J001 Clamp2001-06-01 ~ ; VQ35DE.MT; , |
49729-2J001 |
US $2.45 |
||
|
49729
|
49729
49729-2J016
Clamp
2001-06-01 ~ 2002-04-01; VQ35DE.MT; , |
49729-2J016 |
— | ||
| replacement | |||||
|
49729
|
49729
497292J01B Clamp2001-06-01 ~ 2002-04-01; VQ35DE.MT; , |
497292J01B |
from US $1.96 |
||
|
49729+A
|
49729+A
49729-2J001 Clamp2001-06-01 ~ ; VQ35DE.MT; , |
49729-2J001 |
US $2.45 |
||
|
49729+A
|
49729+A
49729-2J001 Clamp2001-06-01 ~ ; VQ35DE.MT; , |
49729-2J001 |
US $2.45 |
||
|
49730MA
|
49730MA
49730-5Y710
Bracket-tube
2001-06-01 ~ ; VQ35DE.MT; , |
49730-5Y710 |
— | ||
|
49730MB
|
49730MB
49730-5Y711
Bracket-tube
2001-06-01 ~ ; VQ35DE.MT; , |
49730-5Y711 |
— | ||
|
49730MC
|
49730MC
49730-2Y900
Bracket-tube
2001-06-01 ~ ; VQ35DE.MT; , |
49730-2Y900 |
— | ||
|
49730MD
|
49730MD
49730-5Y700
Bracket-tube
2001-06-01 ~ ; VQ35DE.MT; , |
49730-5Y700 |
— | ||
|
49732GA
|
49732GA
49732-85E14
CLAMP
2001-06-01 ~ ; VQ35DE.MT; , |
49732-85E14 |
— | ||
|
49732GC
|
49732GC
497320M000 Bracket-Power Steering Tube2001-06-01 ~ ; VQ35DE.MT; , |
497320M000 |
US $10.51 |
||
|
49732MA
|
49732MA
49732-50J10 Clamp2001-06-01 ~ ; VQ35DE.MT; , |
49732-50J10 |
US $6.34 |
||
|
49732MB
|
49732MB
49732-36E05 BRACKET-POWER STEERING TUBE2001-06-01 ~ ; VQ35DE.MT; , |
49732-36E05 |
US $5.18 |
||
|
49733+A
|
49733+A
49733-3J600
Insulator
2001-06-01 ~ ; VQ35DE.MT; , |
49733-3J600 |
— | ||
|
49733+B
|
49733+B
49733-55M00 Insulator2001-06-01 ~ ; VQ35DE.MT; , |
49733-55M00 |
US $4.57 |
||
|
49733+B
|
49733+B
49733-55M00 Insulator2001-06-01 ~ ; VQ35DE.MT; , |
49733-55M00 |
US $4.57 |
||
|
49738+A
|
49738+A
49738-13E00
CLAMP
2001-06-01 ~ ; VQ35DE.MT; , |
49738-13E00 |
— | ||
|
49742F
|
49742F
48382-2Y900
Insulator
2001-06-01 ~ ; VQ35DE.MT; , |
48382-2Y900 |
— | ||
| replacement | |||||
|
49742F
|
49742F
48382-2Y90A
Insulator
2001-06-01 ~ ; VQ35DE.MT; , |
48382-2Y90A |
— | ||
|
49763+A
|
49763+A
49763-6N200 Sensor Assy-Pressure, Power Steering2001-06-01 ~ ; VQ35DE.MT; , |
49763-6N200 |
US $103.82 |
||
