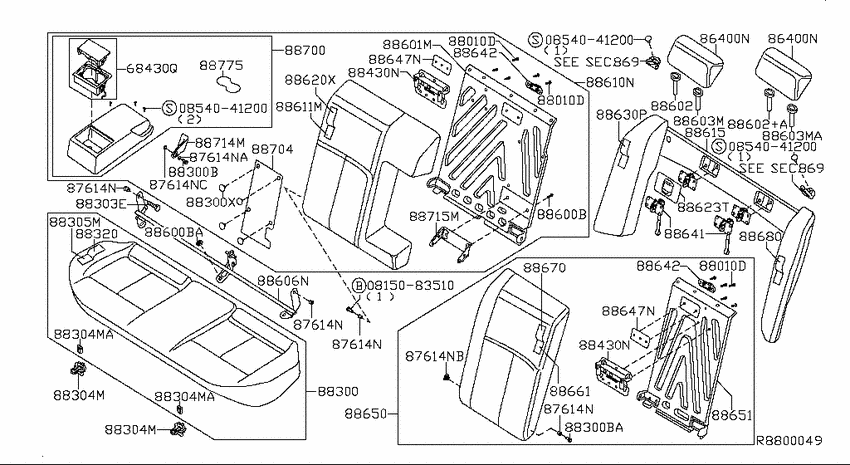

Rear seat (2005-08-01 ~ 2006-06-01; 5 SEATER; 4S.5) Diagram Nissan MAXIMA
- Year
- 2005 - 2006
- Sales region
- U.S.A.
- Engine
- VQ35DE
- transmission
- 5AT
- body
- 4S
- seat
- 5 SEAT
- trim lvl
- SE
- trim mtl
- STD SEAT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0854041200
|
0854041200
08540-41200
Screw-tapping
|
08540-41200 |
— | ||
|
0854041200
|
0854041200
08540-41200
Screw-tapping
|
08540-41200 |
— | ||
|
0854041200
|
0854041200
08540-41200
Screw-tapping
|
08540-41200 |
— | ||
|
68430Q
|
68430Q
88716-7Y400
Holder assy-cup
2005-08-01 ~ 2006-06-01; 4S.5; , |
88716-7Y400 |
— | ||
|
68430Q
|
68430Q
88716-7Y401
Holder assy-cup
2005-08-01 ~ 2006-06-01; 4S.5; , |
88716-7Y401 |
— | ||
|
68430Q
|
68430Q
88716-7Y402
Holder assy-cup
2005-08-01 ~ 2006-06-01; 4S.5; , |
88716-7Y402 |
— | ||
|
86400N
|
86400N
86430-7Y300
Headrest assy-rear seat
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
86430-7Y300 |
— | ||
|
86400N
|
86400N
86430-7Y301
Headrest assy-rear seat
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
86430-7Y301 |
— | ||
|
86400N
|
86400N
86430-7Y302
Headrest assy-rear seat
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
86430-7Y302 |
— | ||
|
86400N
|
86400N
86430-7Y400
Headrest assy-rear seat
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
86430-7Y400 |
— | ||
|
86400N
|
86400N
86430-7Y401
Headrest assy-rear seat
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
86430-7Y401 |
— | ||
|
86400N
|
86400N
86430-7Y402
Headrest assy-rear seat
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
86430-7Y402 |
— | ||
|
86400N
|
86400N
86430-7Y300
Headrest assy-rear seat
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
86430-7Y300 |
— | ||
|
86400N
|
86400N
86430-7Y301
Headrest assy-rear seat
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
86430-7Y301 |
— | ||
|
86400N
|
86400N
86430-7Y302
Headrest assy-rear seat
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
86430-7Y302 |
— | ||
|
86400N
|
86400N
86430-7Y400
Headrest assy-rear seat
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
86430-7Y400 |
— | ||
|
86400N
|
86400N
86430-7Y401
Headrest assy-rear seat
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
86430-7Y401 |
— | ||
|
86400N
|
86400N
86430-7Y402
Headrest assy-rear seat
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
86430-7Y402 |
— | ||
|
869
|
Rear seat belt
869
|
||||
|
869
|
Rear seat belt
869
|
||||
|
869
|
Rear seat belt
869
|
||||
|
869
|
Rear seat belt
869
|
||||
|
87614N
|
87614N
87614-8J000
Bush-rear seat
2005-08-01 ~ 2006-06-01; 4S.5; , |
87614-8J000 |
— | ||
|
87614N
|
87614N
87614-W5000 Bush-Rear Seat2005-08-01 ~ 2006-06-01; 4S.5; , |
87614-W5000 |
US $2.59 |
||
|
87614N
|
87614N
88604-0M400 Bush-Rear Seat2005-08-01 ~ 2006-06-01; 4S.5; , |
88604-0M400 |
US $1.73 |
||
|
87614N
|
87614N
88604-ZK30A
Bush-rear seat
2005-09-01 ~ 2006-06-01; 4S.5; , |
88604-ZK30A |
— | ||
|
87614N
|
87614N
87614-8J000
Bush-rear seat
2005-08-01 ~ 2006-06-01; 4S.5; , |
87614-8J000 |
— | ||
|
87614N
|
87614N
87614-W5000 Bush-Rear Seat2005-08-01 ~ 2006-06-01; 4S.5; , |
87614-W5000 |
US $2.59 |
||
|
87614N
|
87614N
88604-0M400 Bush-Rear Seat2005-08-01 ~ 2006-06-01; 4S.5; , |
88604-0M400 |
US $1.73 |
||
|
87614N
|
87614N
88604-ZK30A
Bush-rear seat
2005-09-01 ~ 2006-06-01; 4S.5; , |
88604-ZK30A |
— | ||
|
87614N
|
87614N
87614-8J000
Bush-rear seat
2005-08-01 ~ 2006-06-01; 4S.5; , |
87614-8J000 |
— | ||
|
87614N
|
87614N
87614-W5000 Bush-Rear Seat2005-08-01 ~ 2006-06-01; 4S.5; , |
87614-W5000 |
US $2.59 |
||
|
87614N
|
87614N
88604-0M400 Bush-Rear Seat2005-08-01 ~ 2006-06-01; 4S.5; , |
88604-0M400 |
US $1.73 |
||
|
87614N
|
87614N
88604-ZK30A
Bush-rear seat
2005-09-01 ~ 2006-06-01; 4S.5; , |
88604-ZK30A |
— | ||
|
87614N
|
87614N
87614-8J000
Bush-rear seat
2005-08-01 ~ 2006-06-01; 4S.5; , |
87614-8J000 |
— | ||
|
87614N
|
87614N
87614-W5000 Bush-Rear Seat2005-08-01 ~ 2006-06-01; 4S.5; , |
87614-W5000 |
US $2.59 |
||
|
87614N
|
87614N
88604-0M400 Bush-Rear Seat2005-08-01 ~ 2006-06-01; 4S.5; , |
88604-0M400 |
US $1.73 |
||
|
87614N
|
87614N
88604-ZK30A
Bush-rear seat
2005-09-01 ~ 2006-06-01; 4S.5; , |
88604-ZK30A |
— | ||
|
87614NA
|
87614NA
87614-W5000 Bush-Rear Seat2005-08-01 ~ 2006-06-01; 4S.5; , |
87614-W5000 |
US $2.59 |
||
|
87614NB
|
87614NB
88604-0M400 Bush-Rear Seat2005-08-01 ~ 2006-06-01; 4S.5; , |
88604-0M400 |
US $1.73 |
||
|
87614NC
|
87614NC
88604-ZK30A
Bush-rear seat
2005-09-01 ~ 2006-06-01; 4S.5; , |
88604-ZK30A |
— | ||
|
88010D
|
88010D
01556-0025U
Screw
2005-08-01 ~ 2006-06-01; 4S.5; , |
01556-0025U |
— | ||
|
88010D
|
88010D
01556-0025U
Screw
2005-08-01 ~ 2006-06-01; 4S.5; , |
01556-0025U |
— | ||
|
88010D
|
88010D
01556-0025U
Screw
2005-08-01 ~ 2006-06-01; 4S.5; , |
01556-0025U |
— | ||
|
88300
|
88300
88300-7Y300
Cushion assy-rear seat
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88300-7Y300 |
— | ||
|
88300
|
88300
88300-7Y301
Cushion assy-rear seat
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88300-7Y301 |
— | ||
|
88300
|
88300
88300-7Y302
Cushion assy-rear seat
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88300-7Y302 |
— | ||
|
88300
|
88300
88300-7Y400
Cushion assy-rear seat
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88300-7Y400 |
— | ||
|
88300
|
88300
88300-7Y401
Cushion assy-rear seat
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88300-7Y401 |
— | ||
|
88300
|
88300
88300-7Y402
Cushion assy-rear seat
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88300-7Y402 |
— | ||
|
88300
|
88300
87615-K0100 Bolt-Special2005-08-01 ~ 2006-06-01; 4S.5; , |
87615-K0100 |
US $4.32 |
||
|
88300
|
88300
87615-ZK30A
Bolt-special
2005-09-01 ~ 2006-06-01; 4S.5; , |
87615-ZK30A |
— | ||
|
88300
|
88300
01553-0087U
Clip-trim
2005-08-01 ~ 2006-06-01; 4S.5; , |
01553-0087U |
— | ||
|
88300
|
88300
01553-0088U
Clip-trim
2005-08-01 ~ 2006-06-01; 4S.5; , |
01553-0088U |
— | ||
|
88300
|
88300
01553-0122U
Clip-trim
2005-08-01 ~ 2006-06-01; 4S.5; , |
01553-0122U |
— | ||
|
88300B
|
88300B
87615-K0100 Bolt-Special2005-08-01 ~ 2006-06-01; 4S.5; , |
87615-K0100 |
US $4.32 |
||
|
88300B
|
88300B
87615-ZK30A
Bolt-special
2005-09-01 ~ 2006-06-01; 4S.5; , |
87615-ZK30A |
— | ||
|
88300BA
|
88300BA
87615-ZK30A
Bolt-special
2005-09-01 ~ 2006-06-01; 4S.5; , |
87615-ZK30A |
— | ||
|
88300X
|
88300X
01553-0087U
Clip-trim
2005-08-01 ~ 2006-06-01; 4S.5; , |
01553-0087U |
— | ||
|
88300X
|
88300X
01553-0088U
Clip-trim
2005-08-01 ~ 2006-06-01; 4S.5; , |
01553-0088U |
— | ||
|
88300X
|
88300X
01553-0122U
Clip-trim
2005-08-01 ~ 2006-06-01; 4S.5; , |
01553-0122U |
— | ||
|
88303E
|
88303E
01125N8031 Bolt2006-04-01 ~ 2006-06-01; 4S.5; , |
01125N8031 |
from US $1.41 |
||
|
88304M
|
88304M
88304-4Z000 Hook-Cushion, Rear Seat2005-08-01 ~ 2006-06-01; 4S.5; , |
88304-4Z000 |
US $7.73 |
||
|
88304M
|
88304M
88304-0M001 Hook-Cushion, Rear Seat2005-08-01 ~ 2006-06-01; 4S.5; , |
88304-0M001 |
US $5.81 |
||
|
88304M
|
88304M
88304-4Z000 Hook-Cushion, Rear Seat2005-08-01 ~ 2006-06-01; 4S.5; , |
88304-4Z000 |
US $7.73 |
||
|
88304M
|
88304M
88304-0M001 Hook-Cushion, Rear Seat2005-08-01 ~ 2006-06-01; 4S.5; , |
88304-0M001 |
US $5.81 |
||
|
88304MA
|
88304MA
88304-0M001 Hook-Cushion, Rear Seat2005-08-01 ~ 2006-06-01; 4S.5; , |
88304-0M001 |
US $5.81 |
||
|
88304MA
|
88304MA
88304-0M001 Hook-Cushion, Rear Seat2005-08-01 ~ 2006-06-01; 4S.5; , |
88304-0M001 |
US $5.81 |
||
|
88305M
|
88305M
88305-7Y000
Pad & frame assy-cushion,rear seat
2005-08-01 ~ 2006-06-01; 4S.5; 5 SEATER |
88305-7Y000 |
— | ||
|
88320
|
88320
88320-7Y300
Trim assy-rear seat cushion
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88320-7Y300 |
— | ||
|
88320
|
88320
88320-7Y301
Trim assy-rear seat cushion
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88320-7Y301 |
— | ||
|
88320
|
88320
88320-7Y302
Trim assy-rear seat cushion
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88320-7Y302 |
— | ||
|
88320
|
88320
88320-7Y400
Trim assy-rear seat cushion
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88320-7Y400 |
— | ||
|
88320
|
88320
88320-7Y401
Trim assy-rear seat cushion
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88320-7Y401 |
— | ||
|
88320
|
88320
88320-7Y402
Trim assy-rear seat cushion
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88320-7Y402 |
— | ||
|
88430N
|
88430N
88430-ZK30A
Bracket assy-rr seat headrest
2005-08-01 ~ 2006-06-01; 4S.5; , |
88430-ZK30A |
— | ||
|
88430N
|
88430N
88430-ZK30A
Bracket assy-rr seat headrest
2005-08-01 ~ 2006-06-01; 4S.5; , |
88430-ZK30A |
— | ||
|
88600B
|
88600B
01223-0033U
Nut
2005-08-01 ~ 2006-06-01; 4S.5; , |
01223-0033U |
— | ||
|
88600B
|
88600B
01225N8011 Nut2006-04-01 ~ 2006-06-01; 4S.5; , |
01225N8011 |
from US $0.70 |
||
|
88600BA
|
88600BA
01225N8011 Nut2006-04-01 ~ 2006-06-01; 4S.5; , |
01225N8011 |
from US $0.70 |
||
|
88601M
|
88601M
88601-7Y000
Frame assy-rear seat back,rh
2005-08-01 ~ 2006-06-01; 4S.5; , |
88601-7Y000 |
— | ||
|
88602
|
88602
87602-89900 Holder Assy-Headrest, Lock2005-08-01 ~ 2006-06-01; 4S.5; , |
87602-89900 |
US $4.18 |
||
|
88602
|
88602
87602-89911 Holder Assy-Headrest, Lock2005-08-01 ~ 2006-06-01; 4S.5; , |
87602-89911 |
US $4.18 |
||
|
88602
|
88602
8760289917 Holder-Head Rest Lock2005-08-01 ~ 2006-06-01; 4S.5; , |
8760289917 |
US $4.18 |
||
|
88602
|
88602
87602-89900 Holder Assy-Headrest, Lock2005-08-01 ~ 2006-06-01; 4S.5; , |
87602-89900 |
US $4.18 |
||
|
88602
|
88602
87602-89911 Holder Assy-Headrest, Lock2005-08-01 ~ 2006-06-01; 4S.5; , |
87602-89911 |
US $4.18 |
||
|
88602
|
88602
8760289917 Holder-Head Rest Lock2005-08-01 ~ 2006-06-01; 4S.5; , |
8760289917 |
US $4.18 |
||
|
88602+A
|
88602+A
87602-89900 Holder Assy-Headrest, Lock2005-08-01 ~ 2006-06-01; 4S.5; , |
87602-89900 |
US $4.18 |
||
|
88602+A
|
88602+A
87602-89911 Holder Assy-Headrest, Lock2005-08-01 ~ 2006-06-01; 4S.5; , |
87602-89911 |
US $4.18 |
||
|
88602+A
|
88602+A
8760289917 Holder-Head Rest Lock2005-08-01 ~ 2006-06-01; 4S.5; , |
8760289917 |
US $4.18 |
||
|
88603M
|
88603M
87603-89900 Holder Assy-Headrest, Free2005-08-01 ~ 2006-06-01; 4S.5; , |
87603-89900 |
US $4.18 |
||
|
88603M
|
88603M
87603-89911 Holder Assy-Headrest, Free2003-01-01 ~ 2005-08-01; 4S.5; , |
87603-89911 |
US $4.18 |
||
|
88603M
|
88603M
8760389917 Holder Assy-Headrest, Free2005-08-01 ~ 2006-06-01; 4S.5; , |
8760389917 |
US $4.18 |
||
|
88603M
|
88603M
87603-89900 Holder Assy-Headrest, Free2005-08-01 ~ 2006-06-01; 4S.5; , |
87603-89900 |
US $4.18 |
||
|
88603M
|
88603M
87603-89911 Holder Assy-Headrest, Free2005-08-01 ~ 2006-06-01; 4S.5; , |
87603-89911 |
US $4.18 |
||
|
88603M
|
88603M
8760389917 Holder Assy-Headrest, Free2005-08-01 ~ 2006-06-01; 4S.5; , |
8760389917 |
US $4.18 |
||
|
88603MA
|
88603MA
87603-89900 Holder Assy-Headrest, Free2005-08-01 ~ 2006-06-01; 4S.5; , |
87603-89900 |
US $4.18 |
||
|
88603MA
|
88603MA
87603-89911 Holder Assy-Headrest, Free2005-08-01 ~ 2006-06-01; 4S.5; , |
87603-89911 |
US $4.18 |
||
|
88603MA
|
88603MA
8760389917 Holder Assy-Headrest, Free2005-08-01 ~ 2006-06-01; 4S.5; , |
8760389917 |
US $4.18 |
||
|
88606N
|
88606N
88606-8J000
Bracket assy-rear seat back,center
2005-08-01 ~ 2006-06-01; 4S.5; , |
88606-8J000 |
— | ||
|
88610N
|
88610N
88612-7Y300
Back assy-rear seat,center
2005-08-01 ~ 2006-06-01; *4S.5.SE; RH RR SEAT BACK W/AR |
88612-7Y300 |
— | ||
|
88610N
|
88610N
88612-7Y301
Back assy-rear seat,center
2005-08-01 ~ 2006-06-01; *4S.5.SE; RH RR SEAT BACK W/AR |
88612-7Y301 |
— | ||
|
88610N
|
88610N
88612-7Y302
Back assy-rear seat,center
2005-08-01 ~ 2006-06-01; *4S.5.SE; RH RR SEAT BACK W/AR |
88612-7Y302 |
— | ||
|
88610N
|
88610N
88612-7Y400
Back assy-rear seat,center
2005-08-01 ~ 2006-06-01; 4S.5.SE; RH RR SEAT BACK W/AR |
88612-7Y400 |
— | ||
|
88610N
|
88610N
88612-7Y401
Back assy-rear seat,center
2005-08-01 ~ 2006-06-01; 4S.5.SE; RH RR SEAT BACK W/AR |
88612-7Y401 |
— | ||
|
88610N
|
88610N
88612-7Y402
Back assy-rear seat,center
2005-08-01 ~ 2006-06-01; 4S.5.SE; RH RR SEAT BACK W/AR |
88612-7Y402 |
— | ||
|
88611M
|
88611M
88611-7Y000
Pad-rear seat back,rh
2005-08-01 ~ 2006-06-01; 4S.5; , |
88611-7Y000 |
— | ||
|
88615
|
88615
88615-7Y800
Frame assy-rear seat back,side
2005-08-01 ~ 2006-06-01; 4S.5; HALO FRAME (NO TRIM) |
88615-7Y800 |
— | ||
|
88620X
|
88620X
88632-7Y300
Trim assy-rear seat back,upper
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88632-7Y300 |
— | ||
|
88620X
|
88620X
88632-7Y301
Trim assy-rear seat back,upper
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88632-7Y301 |
— | ||
|
88620X
|
88620X
88632-7Y302
Trim assy-rear seat back,upper
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88632-7Y302 |
— | ||
|
88620X
|
88620X
88632-7Y400
Trim assy-rear seat back,upper
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88632-7Y400 |
— | ||
|
88620X
|
88620X
88632-7Y401
Trim assy-rear seat back,upper
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88632-7Y401 |
— | ||
|
88620X
|
88620X
88632-7Y402
Trim assy-rear seat back,upper
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88632-7Y402 |
— | ||
|
88623T
|
88623T
88623-8J001
Protector-rear seat lock
2005-08-01 ~ 2006-06-01; 4S.5; , |
88623-8J001 |
— | ||
|
88630P
|
88630P
88630-7Y700
Trim assy-rear seat back,side rh
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88630-7Y700 |
— | ||
|
88630P
|
88630P
88630-7Y701
Trim assy-rear seat back,side rh
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88630-7Y701 |
— | ||
|
88630P
|
88630P
88630-7Y702
Trim assy-rear seat back,side rh
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88630-7Y702 |
— | ||
|
88630P
|
88630P
88630-7Y800
Trim assy-rear seat back,side rh
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88630-7Y800 |
— | ||
|
88630P
|
88630P
88630-7Y801
Trim assy-rear seat back,side rh
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88630-7Y801 |
— | ||
|
88630P
|
88630P
88630-7Y802
Trim assy-rear seat back,side rh
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88630-7Y802 |
— | ||
|
88641
|
88641
88641-8J000
Lock assy-rear seat
2005-08-01 ~ 2006-06-01; 4S.5; , |
88641-8J000 |
— | ||
|
88642
|
88642
88642-8J000
Striker assy-rear seat
2005-08-01 ~ 2006-06-01; 4S.5; , |
88642-8J000 |
— | ||
|
88642
|
88642
88642-8J000
Striker assy-rear seat
2005-08-01 ~ 2006-06-01; 4S.5; , |
88642-8J000 |
— | ||
|
88647N
|
88647N
88647-ZK30A
Plate assy-reinforce
2005-08-01 ~ 2006-06-01; 4S.5; , |
88647-ZK30A |
— | ||
|
88647N
|
88647N
88647-ZK30A
Plate assy-reinforce
2005-08-01 ~ 2006-06-01; 4S.5; , |
88647-ZK30A |
— | ||
|
88650
|
88650
88650-7Y300
Back assy-rear seat,lh
2005-08-01 ~ 2006-06-01; *4S.5.SE; LH REAR SEAT BACK (40%) |
88650-7Y300 |
— | ||
|
88650
|
88650
88650-7Y301
Back assy-rear seat,lh
2005-08-01 ~ 2006-06-01; *4S.5.SE; LH REAR SEAT BACK (40%) |
88650-7Y301 |
— | ||
|
88650
|
88650
88650-7Y302
Back assy-rear seat,lh
2005-08-01 ~ 2006-06-01; *4S.5.SE; LH REAR SEAT BACK (40%) |
88650-7Y302 |
— | ||
|
88650
|
88650
88650-7Y400
Back assy-rear seat,lh
2005-08-01 ~ 2006-06-01; 4S.5.SE; LH REAR SEAT BACK (40%) |
88650-7Y400 |
— | ||
|
88650
|
88650
88650-7Y401
Back assy-rear seat,lh
2005-08-01 ~ 2006-06-01; 4S.5.SE; LH REAR SEAT BACK (40%) |
88650-7Y401 |
— | ||
|
88650
|
88650
88650-7Y402
Back assy-rear seat,lh
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88650-7Y402 |
— | ||
|
88651
|
88651
88651-7Y000
Frame assy-rear seat back,lh
2005-08-01 ~ 2006-06-01; 4S.5; , |
88651-7Y000 |
— | ||
|
88661
|
88661
88661-7Y000
Pad-rear seat back,lh
2005-08-01 ~ 2006-06-01; 4S.5; , |
88661-7Y000 |
— | ||
|
88670
|
88670
88670-7Y300
Trim assy-rear seat back,lh
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88670-7Y300 |
— | ||
|
88670
|
88670
88670-7Y301
Trim assy-rear seat back,lh
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88670-7Y301 |
— | ||
|
88670
|
88670
88670-7Y302
Trim assy-rear seat back,lh
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88670-7Y302 |
— | ||
|
88670
|
88670
88670-7Y400
Trim assy-rear seat back,lh
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88670-7Y400 |
— | ||
|
88670
|
88670
88670-7Y401
Trim assy-rear seat back,lh
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88670-7Y401 |
— | ||
|
88670
|
88670
88670-7Y402
Trim assy-rear seat back,lh
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88670-7Y402 |
— | ||
|
88680
|
88680
88680-7Y700
Trim assy-rear seat back,side lh
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88680-7Y700 |
— | ||
|
88680
|
88680
88680-7Y701
Trim assy-rear seat back,side lh
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88680-7Y701 |
— | ||
|
88680
|
88680
88680-7Y702
Trim assy-rear seat back,side lh
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88680-7Y702 |
— | ||
|
88680
|
88680
88680-7Y800
Trim assy-rear seat back,side lh
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88680-7Y800 |
— | ||
|
88680
|
88680
88680-7Y801
Trim assy-rear seat back,side lh
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88680-7Y801 |
— | ||
|
88680
|
88680
88680-7Y802
Trim assy-rear seat back,side lh
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88680-7Y802 |
— | ||
|
88700
|
88700
88700-7Y300
Armrest assy-rear seat
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88700-7Y300 |
— | ||
|
88700
|
88700
88700-7Y301
Armrest assy-rear seat
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88700-7Y301 |
— | ||
|
88700
|
88700
88700-7Y302
Armrest assy-rear seat
2005-08-01 ~ 2006-06-01; *4S.5.SE; , |
88700-7Y302 |
— | ||
|
88700
|
88700
88700-7Y400
Armrest assy-rear seat
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88700-7Y400 |
— | ||
|
88700
|
88700
88700-7Y401
Armrest assy-rear seat
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88700-7Y401 |
— | ||
|
88700
|
88700
88700-7Y402
Armrest assy-rear seat
2005-08-01 ~ 2006-06-01; 4S.5.SE; , |
88700-7Y402 |
— | ||
|
88704
|
88704
88704-8J000
Board assy-armrest lid
2005-08-01 ~ 2006-06-01; 4S.5; , |
88704-8J000 |
— | ||
|
88704
|
88704
88704-8J001
Board assy-armrest lid
2005-08-01 ~ 2006-06-01; 4S.5; , |
88704-8J001 |
— | ||
|
88704
|
88704
88704-ZK30A
Board assy-armrest lid
2005-08-01 ~ 2006-06-01; 4S.5; , |
88704-ZK30A |
— | ||
|
88714M
|
88714M
88714-7Y000
Cover-armrest bracket,rh
2005-08-01 ~ 2006-06-01; 4S.5; , |
88714-7Y000 |
— | ||
|
88714M
|
88714M
88714-8J000
Cover-armrest bracket,rh
2005-08-01 ~ 2006-06-01; 4S.5; , |
88714-8J000 |
— | ||
|
88714M
|
88714M
88714-8J001
Cover-armrest bracket,rh
2005-08-01 ~ 2006-06-01; 4S.5; , |
88714-8J001 |
— | ||
|
88715M
|
88715M
88715-ZK30A
Bracket assy-armrest
2005-08-01 ~ 2006-06-01; 4S.5; , |
88715-ZK30A |
— | ||
|
88775
|
88775
88775-7Y400
Insert-cup holder
2005-08-01 ~ 2006-06-01; 4S.5; , |
88775-7Y400 |
— | ||
