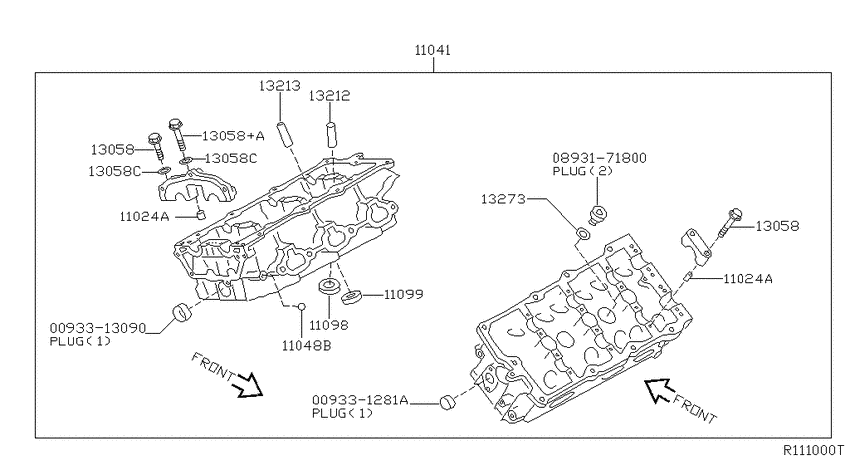

Cylinder head & rocker cover (2003-01-01 ~ 2005-08-01; COMPONENT PARTS-1; VQ35DE) Diagram Nissan MAXIMA
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Engine
- VQ35DE
- transmission
- 5AT
- body
- 4S
- seat
- 4 SEAT
- trim lvl
- SE
- trim mtl
- LEATHER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331281A
|
009331281A
00933-1281A Plug-Welch |
00933-1281A |
US $1.73 |
||
|
0093313090
|
0093313090
00933-13090
PLUG
|
00933-13090 |
— | ||
|
0893171800
|
0893171800
08931-71800
PLUGTHREAD
|
08931-71800 |
— | ||
|
11024A
|
11024A
1102231U00 Pin-Dowel2003-01-01 ~ 2005-08-01; VQ35DE; , |
1102231U00 |
US $2.45 |
||
|
11024A
|
11024A
1102231U00 Pin-Dowel2003-01-01 ~ 2005-08-01; VQ35DE; , |
1102231U00 |
US $2.45 |
||
|
11041
|
11041
11040-7Y000
Head Assy-Cylinder
2003-01-01 ~ 2005-08-01; VQ35DE; RH |
11040-7Y000 |
— | ||
|
11041
|
11041
11040-EA200
Head Assy-Cylinder
2004-08-01 ~ 2005-08-01; *VQ35DE.(MT+5AT); RH |
11040-EA200 |
— | ||
|
11041
|
11041
11090-7Y000
Head Assy-Cylinder, Lh
2003-01-01 ~ 2005-08-01; VQ35DE; LH |
11090-7Y000 |
— | ||
|
11041
|
11041
11090-EA200
Head Assy-Cylinder, Lh
2004-08-01 ~ 2005-08-01; *VQ35DE.(MT+5AT); LH |
11090-EA200 |
— | ||
|
11048B
|
11048B
11051-31U00 Plug-Thread2003-01-01 ~ 2005-08-01; VQ35DE; , |
11051-31U00 |
US $7.34 |
||
|
11098
|
11098
11098-4W003
Seat-Valve, Intake
2004-08-01 ~ 2005-08-01; *VQ35DE.(MT+5AT); , |
11098-4W003 |
— | ||
|
11098
|
11098
11098-4W060 Seat-Valve, Intake2003-01-01 ~ 2005-08-01; VQ35DE; , |
11098-4W060 |
from US $18 |
||
|
11099
|
11099
11099-38U60 Seat-Valve, Exhaust2003-01-01 ~ 2005-08-01; VQ35DE; , |
11099-38U60 |
US $21.02 |
||
|
11099
|
11099
11099-EA200
Seat-Valve, Exhaust
2004-08-01 ~ 2005-08-01; *VQ35DE.(MT+5AT); , |
11099-EA200 |
— | ||
|
13058
|
13058
13058-31U01
Bolt-Camshaft Bracket
2003-01-01 ~ 2005-08-01; VQ35DE; , |
13058-31U01 |
— | ||
| replacement | |||||
|
13058
|
13058
13058-31U2A Bolt-Camshaft Bracket2003-01-01 ~ 2005-08-01; VQ35DE; , |
13058-31U2A |
from US $1.35 |
||
|
13058
|
13058
13058-31U02 Bolt-Camshaft Bracket2003-01-01 ~ 2005-08-01; VQ35DE; , |
13058-31U02 |
US $2.45 |
||
|
13058
|
13058
13056-31U00 Washer2003-01-01 ~ 2005-08-01; VQ35DE; , |
13056-31U00 |
US $2.45 |
||
|
13058
|
13058
13058-31U01
Bolt-Camshaft Bracket
2003-01-01 ~ 2005-08-01; VQ35DE; , |
13058-31U01 |
— | ||
| replacement | |||||
|
13058
|
13058
13058-31U2A Bolt-Camshaft Bracket2003-01-01 ~ 2005-08-01; VQ35DE; , |
13058-31U2A |
from US $1.35 |
||
|
13058
|
13058
13058-31U02 Bolt-Camshaft Bracket2003-01-01 ~ 2005-08-01; VQ35DE; , |
13058-31U02 |
US $2.45 |
||
|
13058
|
13058
13056-31U00 Washer2003-01-01 ~ 2005-08-01; VQ35DE; , |
13056-31U00 |
US $2.45 |
||
|
13058+A
|
13058+A
13058-31U02 Bolt-Camshaft Bracket2003-01-01 ~ 2005-08-01; VQ35DE; , |
13058-31U02 |
US $2.45 |
||
|
13058C
|
13058C
13056-31U00 Washer2003-01-01 ~ 2005-08-01; VQ35DE; , |
13056-31U00 |
US $2.45 |
||
|
13058C
|
13058C
13056-31U00 Washer2003-01-01 ~ 2005-08-01; VQ35DE; , |
13056-31U00 |
US $2.45 |
||
|
13212
|
13212
13212-58S23
Guide-Valve, Intake
2004-08-01 ~ 2005-08-01; *VQ35DE.(MT+5AT); , |
13212-58S23 |
— | ||
|
13212
|
13212
1321258S60 Guide-Valve, Intake2003-01-01 ~ 2005-08-01; VQ35DE; , |
1321258S60 |
from US $19.22 |
||
|
13213
|
13213
13213-31U01
Guide-Valve, Exhaust
2004-08-01 ~ 2005-08-01; *VQ35DE.(MT+5AT); , |
13213-31U01 |
— | ||
|
13213
|
13213
1321331U60 Guide-Valve, Exhaust2003-01-01 ~ 2005-08-01; VQ35DE; , |
1321331U60 |
from US $19.91 |
||
|
13273
|
13273
11026-53J00 Gasket2003-01-01 ~ 2005-08-01; VQ35DE; , |
11026-53J00 |
from US $3.46 |
||
