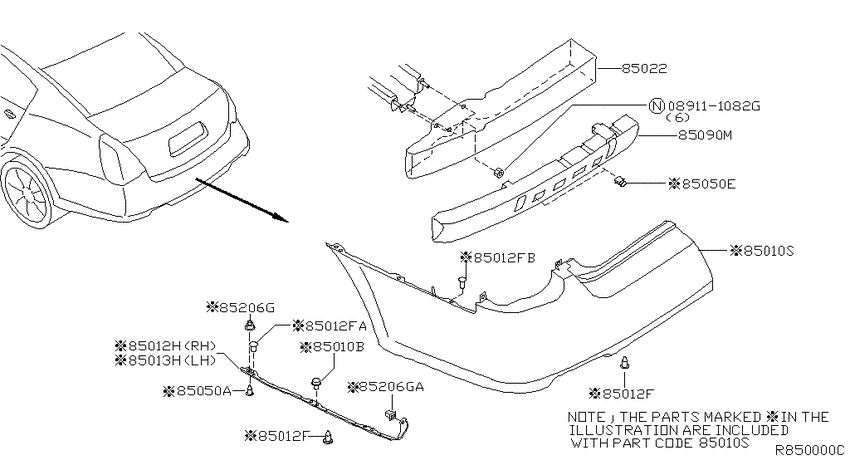

Rear bumper (2003-01-01 ~ 2005-08-01; 4S) Diagram Nissan MAXIMA
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Engine
- VQ35DE
- transmission
- 5AT
- body
- 4S
- seat
- 4 SEAT
- trim lvl
- SE
- trim mtl
- LEATHER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
85010B
|
85010B
850N8-2Y900
Bolt
2003-01-01 ~ 2005-08-01; 4S; , |
850N8-2Y900 |
— | ||
| replacement | |||||
|
85010B
|
85010B
850N82Y90A BOLT2003-01-01 ~ 2005-08-01; 4S; , |
850N82Y90A |
US $1.93 |
||
|
85010S
|
85010S
85022-7Y025
Fascia kit-rear bumper
2003-01-01 ~ 2005-08-01; 4S; , |
85022-7Y025 |
— | ||
|
85010S
|
85010S
85022-7Y025
Fascia kit-rear bumper
2003-01-01 ~ 2005-08-01; 4S; , |
85022-7Y025 |
— | ||
|
85012F
|
85012F
0155309241 CLAMP2003-01-01 ~ 2005-08-01; 4S; , |
0155309241 |
from US $0.82 |
||
|
85012F
|
85012F
015530075U Clip2003-01-01 ~ 2005-08-01; 4S; , |
015530075U |
US $0.86 |
||
|
85012F
|
85012F
0155309321 CLIP2003-01-01 ~ 2005-08-01; 4S; , |
0155309321 |
US $0.97 |
||
|
85012F
|
85012F
0155309241 CLAMP2003-01-01 ~ 2005-08-01; 4S; , |
0155309241 |
from US $0.82 |
||
|
85012F
|
85012F
015530075U Clip2003-01-01 ~ 2005-08-01; 4S; , |
015530075U |
US $0.86 |
||
|
85012F
|
85012F
0155309321 CLIP2003-01-01 ~ 2005-08-01; 4S; , |
0155309321 |
US $0.97 |
||
|
85012FA
|
85012FA
015530075U Clip2003-01-01 ~ 2005-08-01; 4S; , |
015530075U |
US $0.86 |
||
|
85012FB
|
85012FB
0155309321 CLIP2003-01-01 ~ 2005-08-01; 4S; , |
0155309321 |
US $0.97 |
||
|
85012H
|
85012H
85220-7Y000
Bracket-rear bumper side,rh
2003-01-01 ~ 2005-08-01; 4S; , |
85220-7Y000 |
— | ||
|
85013H
|
85013H
85221-7Y000
Bracket-rear bumper side,lh
2003-01-01 ~ 2005-08-01; 4S; , |
85221-7Y000 |
— | ||
|
85022
|
85022
85032-7Y000
Reinforce-inner rear bumper center
2003-01-01 ~ 2005-08-01; 4S; , |
85032-7Y000 |
— | ||
|
85050A
|
85050A
0146600261 SCREW2003-01-01 ~ 2005-08-01; 4S; , |
0146600261 |
from US $0.46 |
||
|
85050E
|
85050E
85284AD000 Clip2003-01-01 ~ 2005-08-01; 4S; , |
85284AD000 |
from US $4.44 |
||
|
85090M
|
85090M
85090-7Y000
Energy absorber-rear bumper
2003-01-01 ~ 2004-01-01; 4S; , |
85090-7Y000 |
— | ||
|
85090M
|
85090M
85092-7Y000
Energy absorber-rear bumper
2004-01-01 ~ 2005-08-01; 4S; , |
85092-7Y000 |
— | ||
|
85206G
|
85206G
0128101081 GROMMET-SCREW2003-01-01 ~ 2005-08-01; 4S; , |
0128101081 |
US $0.85 |
||
|
85206G
|
85206G
638465V000 Grommet-Screw2003-01-01 ~ 2005-08-01; 4S; , |
638465V000 |
from US $1.63 |
||
|
85206GA
|
85206GA
638465V000 Grommet-Screw2003-01-01 ~ 2005-08-01; 4S; , |
638465V000 |
from US $1.63 |
||
