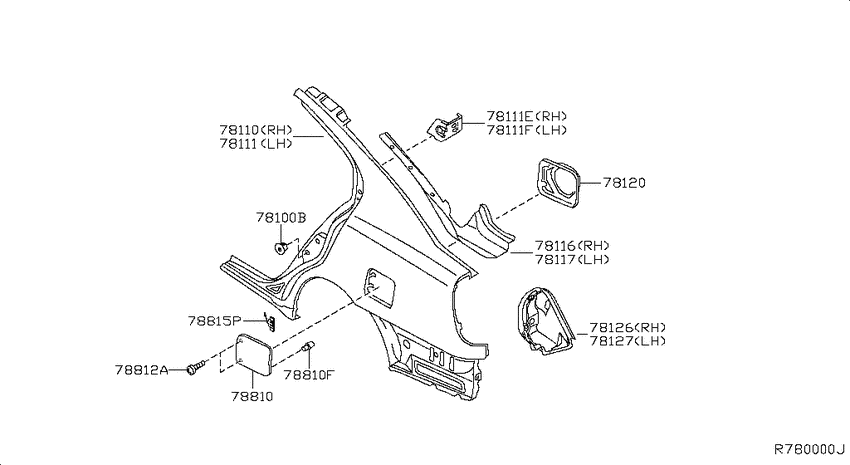

Rear fender & fitting (2003-01-01 ~ 2005-08-01; 4S) Diagram Nissan MAXIMA
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Engine
- VQ35DE
- transmission
- 5AT
- body
- 4S
- seat
- 4 SEAT
- trim lvl
- SE
- trim mtl
- LEATHER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78100B
|
78100B
01236-00051 NUT2003-01-01 ~ 2005-08-01; 4S; , |
01236-00051 |
US $2.74 |
||
|
78110
|
78110
78100-7Y030
Fender-rear,rh
2003-01-01 ~ 2005-08-01; 4S; , |
78100-7Y030 |
— | ||
|
78111
|
78111
78101-7Y030
Fender-rear,lh
2003-01-01 ~ 2005-08-01; 4S; , |
78101-7Y030 |
— | ||
|
78111
|
78111
76690-7Y030
Retainer-tapping,striker rh
2003-01-01 ~ 2005-08-01; 4S; , |
76690-7Y030 |
— | ||
|
78111
|
78111
76691-7Y030
Retainer-tapping,striker lh
2003-01-01 ~ 2005-08-01; 4S; , |
76691-7Y030 |
— | ||
|
78111E
|
78111E
76690-7Y030
Retainer-tapping,striker rh
2003-01-01 ~ 2005-08-01; 4S; , |
76690-7Y030 |
— | ||
|
78111F
|
78111F
76691-7Y030
Retainer-tapping,striker lh
2003-01-01 ~ 2005-08-01; 4S; , |
76691-7Y030 |
— | ||
|
78116
|
78116
78116-7Y030
Extension-rear fender,rh
2003-01-01 ~ 2005-08-01; 4S; , |
78116-7Y030 |
— | ||
|
78117
|
78117
78117-7Y030
Extension-rear fender,lh
2003-01-01 ~ 2005-08-01; 4S; , |
78117-7Y030 |
— | ||
|
78120
|
78120
78120-7Y030
Base-filler lid
2003-01-01 ~ 2005-08-01; 4S; , |
78120-7Y030 |
— | ||
|
78126
|
78126
78134-7Y030
Corner-rear fender,rh
2003-01-01 ~ 2005-08-01; 4S; , |
78134-7Y030 |
— | ||
|
78127
|
78127
78135-7Y030
Corner-rear fender,lh
2003-01-01 ~ 2005-08-01; 4S; , |
78135-7Y030 |
— | ||
|
78810
|
78810
78830-7Y030
Lid-gas filler
2003-01-01 ~ 2005-08-01; 4S; , |
78830-7Y030 |
— | ||
|
78810
|
78810
0165800393 BUMPER-FUEL FILLER LID2003-01-01 ~ 2005-08-01; 4S; , |
0165800393 |
from US $2.13 |
||
|
78810F
|
78810F
0165800393 BUMPER-FUEL FILLER LID2003-01-01 ~ 2005-08-01; 4S; , |
0165800393 |
from US $2.13 |
||
|
78812A
|
78812A
01426-0003U
Screw
2003-01-01 ~ 2005-08-01; 4S; , |
01426-0003U |
— | ||
|
78815P
|
78815P
7883660U10 Spring-Gas Filler Lid2003-01-01 ~ 2005-08-01; 4S; , |
7883660U10 |
US $4.32 |
