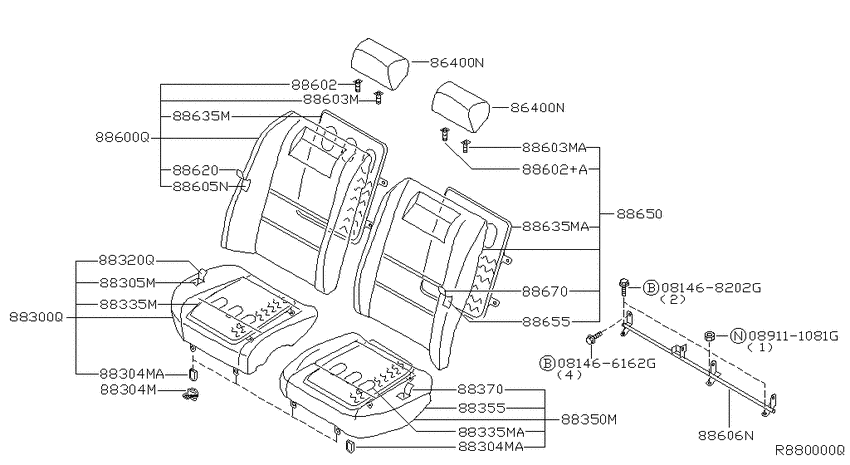

Rear seat (2003-01-01 ~ 2005-08-01; 4 SEATER (RECLINING); 4S.4) Diagram Nissan MAXIMA
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Engine
- VQ35DE
- transmission
- 5AT
- body
- 4S
- seat
- 4 SEAT
- trim lvl
- SE
- trim mtl
- LEATHER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081468202G
|
081468202G
081468202G Bolt-hexagon |
081468202G |
US $0.85 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
86400N
|
86400N
86430-7Y310
Headrest assy-rear seat
2003-01-01 ~ 2005-08-01; 4S.4; , |
86430-7Y310 |
— | ||
|
86400N
|
86400N
86430-7Y311
Headrest assy-rear seat
2003-01-01 ~ 2005-08-01; 4S.4; , |
86430-7Y311 |
— | ||
|
86400N
|
86400N
86430-7Y312
Headrest assy-rear seat
2003-01-01 ~ 2005-08-01; 4S.4; , |
86430-7Y312 |
— | ||
|
86400N
|
86400N
86430-7Y313
Headrest assy-rear seat
2003-01-01 ~ 2005-08-01; 4S.4; , |
86430-7Y313 |
— | ||
|
86400N
|
86400N
86430-7Y310
Headrest assy-rear seat
2003-01-01 ~ 2005-08-01; 4S.4; , |
86430-7Y310 |
— | ||
|
86400N
|
86400N
86430-7Y311
Headrest assy-rear seat
2003-01-01 ~ 2005-08-01; 4S.4; , |
86430-7Y311 |
— | ||
|
86400N
|
86400N
86430-7Y312
Headrest assy-rear seat
2003-01-01 ~ 2005-08-01; 4S.4; , |
86430-7Y312 |
— | ||
|
86400N
|
86400N
86430-7Y313
Headrest assy-rear seat
2003-01-01 ~ 2005-08-01; 4S.4; , |
86430-7Y313 |
— | ||
|
88300Q
|
88300Q
88300-7Y310
Cushion assy-rear seat,rh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88300-7Y310 |
— | ||
|
88300Q
|
88300Q
88300-7Y311
Cushion assy-rear seat,rh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88300-7Y311 |
— | ||
|
88300Q
|
88300Q
88300-7Y312
Cushion assy-rear seat,rh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88300-7Y312 |
— | ||
|
88300Q
|
88300Q
88300-7Y313
Cushion assy-rear seat,rh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88300-7Y313 |
— | ||
|
88304M
|
88304M
88304-4Z000 Hook-Cushion, Rear Seat2003-01-01 ~ 2005-08-01; 4S.4; , |
88304-4Z000 |
US $7.73 |
||
|
88304M
|
88304M
88304-0M001 Hook-Cushion, Rear Seat2003-01-01 ~ 2005-08-01; 4S.4; , |
88304-0M001 |
US $5.81 |
||
|
88304MA
|
88304MA
88304-0M001 Hook-Cushion, Rear Seat2003-01-01 ~ 2005-08-01; 4S.4; , |
88304-0M001 |
US $5.81 |
||
|
88304MA
|
88304MA
88304-0M001 Hook-Cushion, Rear Seat2003-01-01 ~ 2005-08-01; 4S.4; , |
88304-0M001 |
US $5.81 |
||
|
88305M
|
88305M
88305-7Y310
Pad & frame assy-cushion,rear seat
2003-01-01 ~ 2005-08-01; 4S.4; 4 SEATER |
88305-7Y310 |
— | ||
|
88320Q
|
88320Q
88320-7Y310
Trim assy-rear seat cushion,rh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88320-7Y310 |
— | ||
|
88320Q
|
88320Q
88320-7Y311
Trim assy-rear seat cushion,rh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88320-7Y311 |
— | ||
|
88320Q
|
88320Q
88320-7Y312
Trim assy-rear seat cushion,rh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88320-7Y312 |
— | ||
|
88320Q
|
88320Q
88320-7Y313
Trim assy-rear seat cushion,rh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88320-7Y313 |
— | ||
|
88335M
|
88335M
88335-7Y460
Heater unit assy-rear seat cushion
2003-01-01 ~ 2005-08-01; 4S.4; , |
88335-7Y460 |
— | ||
|
88335M
|
88335M
88335-7Y460
Heater unit assy-rear seat cushion
2003-01-01 ~ 2005-08-01; 4S.4; , |
88335-7Y460 |
— | ||
|
88335MA
|
88335MA
88335-7Y460
Heater unit assy-rear seat cushion
2003-01-01 ~ 2005-08-01; 4S.4; , |
88335-7Y460 |
— | ||
|
88350M
|
88350M
88350-7Y310
Cushion assy-rear seat,lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88350-7Y310 |
— | ||
|
88350M
|
88350M
88350-7Y311
Cushion assy-rear seat,lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88350-7Y311 |
— | ||
|
88350M
|
88350M
88350-7Y312
Cushion assy-rear seat,lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88350-7Y312 |
— | ||
|
88350M
|
88350M
88350-7Y313
Cushion assy-rear seat,lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88350-7Y313 |
— | ||
|
88355
|
88355
88355-7Y310
Pad & frame assy-cushion,rear seat lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88355-7Y310 |
— | ||
|
88370
|
88370
88370-7Y310
Trim assy-rear seat cushion,lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88370-7Y310 |
— | ||
|
88370
|
88370
88370-7Y311
Trim assy-rear seat cushion,lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88370-7Y311 |
— | ||
|
88370
|
88370
88370-7Y312
Trim assy-rear seat cushion,lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88370-7Y312 |
— | ||
|
88370
|
88370
88370-7Y313
Trim assy-rear seat cushion,lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88370-7Y313 |
— | ||
|
88600Q
|
88600Q
88600-7Y310
Back assy-rear seat,rh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88600-7Y310 |
— | ||
|
88600Q
|
88600Q
88600-7Y311
Back assy-rear seat,rh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88600-7Y311 |
— | ||
|
88600Q
|
88600Q
88600-7Y312
Back assy-rear seat,rh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88600-7Y312 |
— | ||
|
88600Q
|
88600Q
88600-7Y313
Back assy-rear seat,rh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88600-7Y313 |
— | ||
|
88602
|
88602
87602-89900 Holder Assy-Headrest, Lock2003-01-01 ~ 2005-08-01; 4S.4; , |
87602-89900 |
US $4.18 |
||
|
88602
|
88602
87602-89911 Holder Assy-Headrest, Lock2003-01-01 ~ 2005-08-01; 4S.4; , |
87602-89911 |
US $4.18 |
||
|
88602
|
88602
8760289917 Holder-Head Rest Lock2003-01-01 ~ 2005-08-01; 4S.4; , |
8760289917 |
US $4.18 |
||
|
88602
|
88602
87602-89900 Holder Assy-Headrest, Lock2003-01-01 ~ 2005-08-01; 4S.4; , |
87602-89900 |
US $4.18 |
||
|
88602
|
88602
87602-89911 Holder Assy-Headrest, Lock2003-01-01 ~ 2005-08-01; 4S.4; , |
87602-89911 |
US $4.18 |
||
|
88602
|
88602
8760289917 Holder-Head Rest Lock2003-01-01 ~ 2005-08-01; 4S.4; , |
8760289917 |
US $4.18 |
||
|
88602+A
|
88602+A
87602-89900 Holder Assy-Headrest, Lock2003-01-01 ~ 2005-08-01; 4S.4; , |
87602-89900 |
US $4.18 |
||
|
88602+A
|
88602+A
87602-89911 Holder Assy-Headrest, Lock2003-01-01 ~ 2005-08-01; 4S.4; , |
87602-89911 |
US $4.18 |
||
|
88602+A
|
88602+A
8760289917 Holder-Head Rest Lock2003-01-01 ~ 2005-08-01; 4S.4; , |
8760289917 |
US $4.18 |
||
|
88603M
|
88603M
87603-89900 Holder Assy-Headrest, Free2003-01-01 ~ 2005-08-01; 4S.4; , |
87603-89900 |
US $4.18 |
||
|
88603M
|
88603M
87603-89911 Holder Assy-Headrest, Free2003-01-01 ~ 2005-08-01; 4S.4; , |
87603-89911 |
US $4.18 |
||
|
88603M
|
88603M
8760389917 Holder Assy-Headrest, Free2003-01-01 ~ 2005-08-01; 4S.4; , |
8760389917 |
US $4.18 |
||
|
88603M
|
88603M
87603-89900 Holder Assy-Headrest, Free2003-01-01 ~ 2005-08-01; 4S.4; , |
87603-89900 |
US $4.18 |
||
|
88603M
|
88603M
87603-89911 Holder Assy-Headrest, Free2003-01-01 ~ 2005-08-01; 4S.4; , |
87603-89911 |
US $4.18 |
||
|
88603M
|
88603M
8760389917 Holder Assy-Headrest, Free2003-01-01 ~ 2005-08-01; 4S.4; , |
8760389917 |
US $4.18 |
||
|
88603MA
|
88603MA
87603-89900 Holder Assy-Headrest, Free2003-01-01 ~ 2005-08-01; 4S.4; , |
87603-89900 |
US $4.18 |
||
|
88603MA
|
88603MA
87603-89911 Holder Assy-Headrest, Free2003-01-01 ~ 2005-08-01; 4S.4; , |
87603-89911 |
US $4.18 |
||
|
88603MA
|
88603MA
8760389917 Holder Assy-Headrest, Free2003-01-01 ~ 2005-08-01; 4S.4; , |
8760389917 |
US $4.18 |
||
|
88605N
|
88605N
88605-7Y310
Pad & frame assy-back,rear seat rh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88605-7Y310 |
— | ||
|
88606N
|
88606N
88606-7Y310
Bracket assy-rear seat back,center
2003-01-01 ~ 2005-08-01; 4S.4; , |
88606-7Y310 |
— | ||
|
88620
|
88620
88620-7Y310
Trim assy-rear seat back,rh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88620-7Y310 |
— | ||
|
88620
|
88620
88620-7Y311
Trim assy-rear seat back,rh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88620-7Y311 |
— | ||
|
88620
|
88620
88620-7Y312
Trim assy-rear seat back,rh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88620-7Y312 |
— | ||
|
88620
|
88620
88620-7Y313
Trim assy-rear seat back,rh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88620-7Y313 |
— | ||
|
88635M
|
88635M
88635-7Y460
Heater unit assy-rear seat back
2003-01-01 ~ 2005-08-01; 4S.4; , |
88635-7Y460 |
— | ||
|
88635M
|
88635M
88635-7Y460
Heater unit assy-rear seat back
2003-01-01 ~ 2005-08-01; 4S.4; , |
88635-7Y460 |
— | ||
|
88635MA
|
88635MA
88635-7Y460
Heater unit assy-rear seat back
2003-01-01 ~ 2005-08-01; 4S.4; , |
88635-7Y460 |
— | ||
|
88650
|
88650
88650-7Y310
Back assy-rear seat,lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88650-7Y310 |
— | ||
|
88650
|
88650
88650-7Y311
Back assy-rear seat,lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88650-7Y311 |
— | ||
|
88650
|
88650
88650-7Y312
Back assy-rear seat,lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88650-7Y312 |
— | ||
|
88650
|
88650
88650-7Y313
Back assy-rear seat,lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88650-7Y313 |
— | ||
|
88655
|
88655
88655-7Y310
Pad & frame assy-back,rear seat lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88655-7Y310 |
— | ||
|
88670
|
88670
88670-7Y310
Trim assy-rear seat back,lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88670-7Y310 |
— | ||
|
88670
|
88670
88670-7Y311
Trim assy-rear seat back,lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88670-7Y311 |
— | ||
|
88670
|
88670
88670-7Y312
Trim assy-rear seat back,lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88670-7Y312 |
— | ||
|
88670
|
88670
88670-7Y313
Trim assy-rear seat back,lh
2003-01-01 ~ 2005-08-01; 4S.4; , |
88670-7Y313 |
— |
