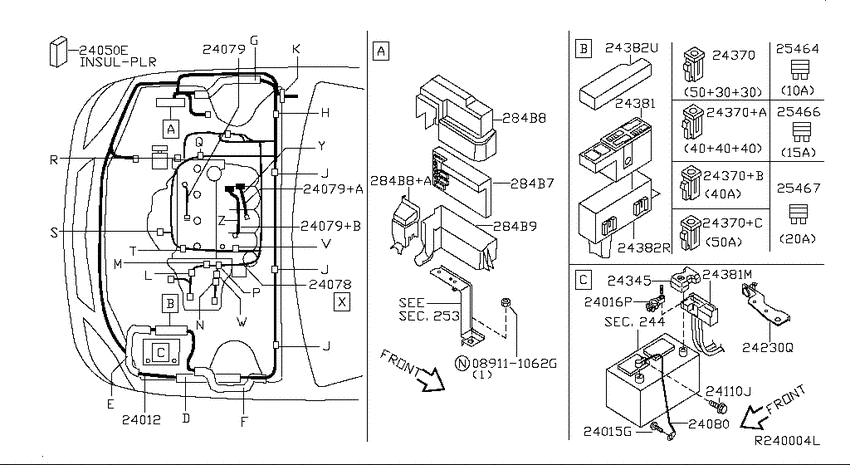

Wiring (2003-01-01 ~ 2005-08-01; ENGINE ROOM; 4S) Diagram Nissan MAXIMA
- Year
- 2003 - 2005
- Sales region
- U.S.A.
- Engine
- VQ35DE
- transmission
- 5AT
- body
- 4S
- seat
- 4 SEAT
- trim lvl
- SE
- trim mtl
- LEATHER
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.54 |
||
|
24012
|
24012
24012-7Y304
Harness assy-engine room
2003-01-01 ~ 2005-08-01; 4S.4.5AT +4S.SL; , |
24012-7Y304 |
— | ||
|
24012
|
24012
24012-7Y308
Harness assy-engine room
2003-01-01 ~ 2005-08-01; *4S.4.5AT +*4S.SL; , |
24012-7Y308 |
— | ||
|
24012
|
24012
24012-ZA304
Harness assy-engine room
2003-01-01 ~ 2005-08-01; *4S.4.5AT; , |
24012-ZA304 |
— | ||
|
24012
|
24012
24012-ZA308
Harness assy-engine room
2003-01-01 ~ 2005-08-01; *4S.4.5AT; , |
24012-ZA308 |
— | ||
|
24012
|
24012
0145600411 SCREW2003-01-01 ~ 2005-08-01; 4S; ENG ROOM HARN GROUND |
0145600411 |
US $1.60 |
||
|
24015G
|
24015G
0145600411 SCREW2003-01-01 ~ 2005-08-01; 4S; 12MM LG GROUND BOLT |
0145600411 |
US $1.60 |
||
|
24016P
|
24016P
243407F003 Terminal Assy-Battery2003-01-01 ~ 2005-08-01; 4S.5AT; , |
243407F003 |
from US $8.54 |
||
|
24050E
|
24050E
768845L314 Insulator-Rear Pillar, Inner2003-11-01 ~ 2005-08-01; 4S; , |
768845L314 |
US $5.88 |
||
|
24078
|
24078
24011-8Y000
Harness assy-egi
2003-01-01 ~ 2005-08-01; 4S.5AT; , |
24011-8Y000 |
— | ||
|
24078
|
24078
24011-ZA300
Harness assy-egi
2003-01-01 ~ 2005-08-01; *4S.5AT; , |
24011-ZA300 |
— | ||
|
24079
|
24079
24079-7Y005
Harness Assy-Egi Sub
2003-01-01 ~ 2005-08-01; 4S; F/KNOCK SENSOR |
24079-7Y005 |
— | ||
|
24079
|
24079
24079-7Y000
Harness Assy-Egi Sub
2003-01-01 ~ 2005-08-01; 4S; F/INJECTOR |
24079-7Y000 |
— | ||
|
24079
|
24079
24079-7Y010
Harness Assy-Egi Sub
2003-01-01 ~ 2005-08-01; 4S; , |
24079-7Y010 |
— | ||
|
24079+A
|
24079+A
24079-7Y000
Harness Assy-Egi Sub
2003-01-01 ~ 2005-08-01; 4S; F/INJECTOR |
24079-7Y000 |
— | ||
|
24079+B
|
24079+B
24079-7Y010
Harness Assy-Egi Sub
2003-01-01 ~ 2005-08-01; 4S; , |
24079-7Y010 |
— | ||
|
24080
|
24080
24080-8Y000
Cable Assy-Battery Earth
2003-01-01 ~ 2005-08-01; 4S.5AT; , |
24080-8Y000 |
— | ||
|
24230Q
|
24230Q
24230-8Y000
Bracket-Clip, Battery Cable
2003-01-01 ~ 2005-08-01; 4S.SL +4S.5AT; , |
24230-8Y000 |
— | ||
|
24345
|
24345
2434579912 Cover-Connector2003-01-01 ~ 2005-08-01; 4S; , |
2434579912 |
US $12.60 |
||
| replacement | |||||
|
24345
|
24345
24345-7992A Cover-Connector2003-01-01 ~ 2005-08-01; 4S; , |
24345-7992A |
from US $13.79 |
||
|
24370
|
24370
24370C9906 Connector Assy-Fusible Link2003-01-01 ~ 2005-08-01; *4S.5AT; MFL 50+30+30 R |
24370C9906 |
US $12.74 |
||
|
24370
|
24370
24370C9900 Connector Assy-Fusible Link2003-01-01 ~ 2005-08-01; *4S.4.5AT +*4S.5.LEATHER.5AT; MFL 40+40+40 G |
24370C9900 |
from US $12.81 |
||
|
24370
|
24370
24370C9921 Connector Assy-Fusible Link2003-01-01 ~ 2005-08-01; *4S.4.5AT +*4S.SL; FL40A NJ-TYPE |
24370C9921 |
from US $12.81 |
||
|
24370
|
24370
24370-C9924 Connector Assy-Fusible Link2003-01-01 ~ 2005-08-01; *4S.4.5AT +*4S.SL; FL50A NJ-TYPE |
24370-C9924 |
from US $12.74 |
||
|
24370+A
|
24370+A
24370C9900 Connector Assy-Fusible Link2003-01-01 ~ 2005-08-01; *4S.4.5AT +*4S.5.LEATHER.5AT; MFL 40+40+40 G |
24370C9900 |
from US $12.81 |
||
|
24370+B
|
24370+B
24370C9921 Connector Assy-Fusible Link2003-01-01 ~ 2005-08-01; *4S.4.5AT +*4S.SL; FL40A NJ-TYPE |
24370C9921 |
from US $12.81 |
||
|
24370+C
|
24370+C
24370-C9924 Connector Assy-Fusible Link2003-01-01 ~ 2005-08-01; *4S.4.5AT +*4S.SL; FL50A NJ-TYPE |
24370-C9924 |
from US $12.74 |
||
|
24381
|
24381
24381C9900 Housing-Fusible Link Holder2003-01-01 ~ 2005-08-01; *4S.4.5AT +*4S.5.LEATHER.5AT; , |
24381C9900 |
US $44.53 |
||
|
24381
|
24381
2438079912 Holder-Fusible Link2003-01-01 ~ 2005-08-01; 4S; 120A,100A,80A,60A,80A |
2438079912 |
from US $37.38 |
||
|
24381M
|
24381M
2438079912 Holder-Fusible Link2003-01-01 ~ 2005-08-01; 4S; 120A,100A,80A,60A,80A |
2438079912 |
from US $37.38 |
||
|
24382R
|
24382R
24382-8J011 Cover-Fusible Link Holder2003-01-01 ~ 2005-08-01; 4S.SL +4S.5AT; , |
24382-8J011 |
US $13.02 |
||
|
24382U
|
24382U
24382-7Y000
Cover-fusible link holder
2003-01-01 ~ 2005-08-01; 4S; , |
24382-7Y000 |
— | ||
|
25464
|
25464
2431989910 Fuse2005-02-01 ~ 2005-08-01; 4S; 10A W/O LEG |
2431989910 |
US $1.12 |
||
|
25464
|
25464
24319C9910 Fuse2003-01-01 ~ 2005-08-01; *4S.5AT; 10A |
24319C9910 |
from US $0.39 |
||
|
25466
|
25466
2431989915 Fuse2005-02-01 ~ 2005-08-01; 4S; 15A W/O LEG |
2431989915 |
US $1.12 |
||
|
25466
|
25466
24319C9915 Fuse2003-01-01 ~ 2005-08-01; *4S.5AT; 15A |
24319C9915 |
from US $0.56 |
||
|
25467
|
25467
24319C9920 Fuse2003-01-01 ~ 2005-08-01; 4S; 20A |
24319C9920 |
from US $0.84 |
||
|
284B7
|
284B7
284B7-7Y000
Controller Unit-Ipdm Engine Room
2003-01-01 ~ 2003-05-01; 4S; , |
284B7-7Y000 |
— | ||
|
284B7
|
284B7
284B7-7Y010 Controller Unit-Ipdm Engine Room2003-05-01 ~ 2005-08-01; 4S; , |
284B7-7Y010 |
US $932.40 |
||
|
284B7
|
284B7
284B7-7Y020
Controller Unit-Ipdm Engine Room
2004-05-01 ~ 2005-08-01; *4S; , |
284B7-7Y020 |
— | ||
|
284B8
|
284B8
284B8-7Y000 Cover-Usm2003-01-01 ~ 2005-08-01; 4S; F/UPPER COVER |
284B8-7Y000 |
US $35.56 |
||
|
284B8
|
284B8
284B8-7Y001 Cover-Usm2003-01-01 ~ 2005-08-01; 4S; , |
284B8-7Y001 |
US $53.76 |
||
|
284B8+A
|
284B8+A
284B8-7Y001 Cover-Usm2003-01-01 ~ 2005-08-01; 4S; , |
284B8-7Y001 |
US $53.76 |
||
|
284B9
|
284B9
284B97Y000 Cover-Usm2003-01-01 ~ 2005-08-01; 4S; , |
284B97Y000 |
US $29.82 |
||
