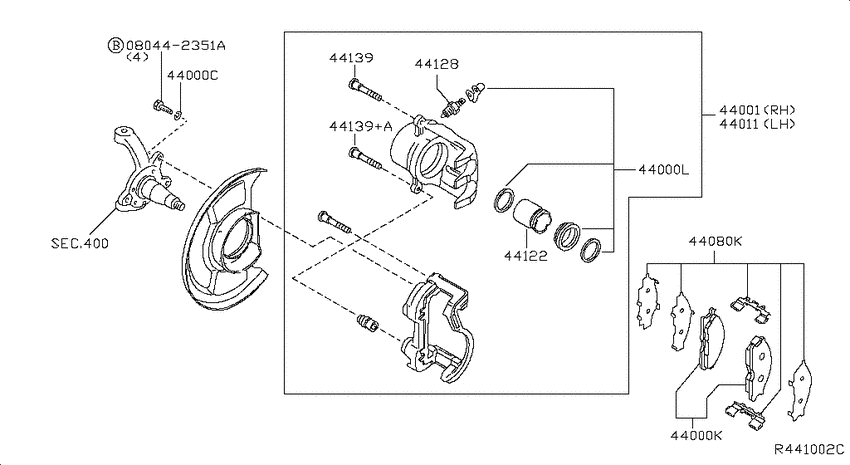

Rear brake (2006-06-01 ~ ; CALIPER; VQ35DE) Diagram Nissan MAXIMA
- Year
- 2006 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35DE
- transmission
- CVT
- body
- 4S
- seat
- 5 SEAT
- trim lvl
- SE
- trim mtl
- STD SEAT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080442351A
|
080442351A
08044-2351A Bolt-hexagon |
08044-2351A |
US $1.76 |
||
|
44000C
|
44000C
0131101251 WASHER2006-06-01 ~ ; VQ35DE; , |
0131101251 |
from US $0.57 |
||
|
44000K
|
44000K
44060CB10J Pad Kit-Disc Brake, Rear2006-06-01 ~ 2006-08-01; VQ35DE; , |
44060CB10J |
US $81.79 |
||
|
44000K
|
44000K
D4060JA00A
Pad Kit-Disc Brake, Rear
2006-08-01 ~ 2007-04-01; VQ35DE; , |
D4060JA00A |
— | ||
|
44000L
|
44000L
44120-8H325
Seal Kit-Disc Brake
2006-06-01 ~ 2007-11-01; VQ35DE; , |
44120-8H325 |
— | ||
|
44000L
|
44000L
44120-8J126
Seal Kit-Disc Brake
2007-11-01 ~ 2008-03-01; VQ35DE; , |
44120-8J126 |
— | ||
|
44000L
|
44000L
44120-8J127 Seal Kit-Disc Brake2008-03-01 ~ 2008-05-01; VQ35DE; , |
44120-8J127 |
from US $29.71 |
||
|
44001
|
44001
44001-7Y005
Caliper Assy-Rear Rh, W/o Pad & Shim
2006-06-01 ~ 2006-08-01; VQ35DE; , |
44001-7Y005 |
— | ||
| replacement | |||||
|
44001
|
44001
44001-8J10A Caliper Assy-Rear Rh, W/o Pads Or Shims2006-06-01 ~ 2006-08-01; VQ35DE; , |
44001-8J10A |
US $376.66 |
||
|
44001
|
44001
44001-JA01A Caliper Assy-Rear Rh, W/o Pads Or Shims2006-08-01 ~ ; VQ35DE; , |
44001-JA01A |
US $385.15 |
||
|
44011
|
44011
44011-7Y005
Caliper Assy-Rear Lh, W/o Pad & Shim
2006-06-01 ~ 2006-08-01; VQ35DE; , |
44011-7Y005 |
— | ||
| replacement | |||||
|
44011
|
44011
44011-8J10A Caliper Assy-Rear Lh, W/o Pads Or Shims2006-06-01 ~ 2006-08-01; VQ35DE; , |
44011-8J10A |
US $376.66 |
||
|
44011
|
44011
44011-JA01A Caliper Assy-Rear Lh, W/o Pads Or Shims2007-04-01 ~ ; VQ35DE; , |
44011-JA01A |
US $385.15 |
||
|
44011
|
44011
44011ZD82A
Caliper Assy-Rear Lh, W/o Pad & Shim
2007-03-01 ~ 2007-04-01; VQ35DE; , |
44011ZD82A |
— | ||
|
44080K
|
44080K
440808J125 Hardware Kit-Rear Disc Brake Pad2006-06-01 ~ 2007-04-01; VQ35DE; , |
440808J125 |
US $64.08 |
||
|
44080K
|
44080K
44080-8J126
Hardware Kit-Rear Disc Brake Pad
2007-04-01 ~ 2008-04-01; VQ35DE; , |
44080-8J126 |
— | ||
|
44080K
|
44080K
D4080-JA01B Hardware Kit-Rear Disc Brake Pad2008-04-01 ~ ; VQ35DE; , |
D4080-JA01B |
US $54.29 |
||
|
44122
|
44122
44126-8J100 Piston2006-06-01 ~ 2007-11-01; VQ35DE; , |
44126-8J100 |
US $78.19 |
||
|
44122
|
44122
44126-JA01A Piston2007-11-01 ~ ; VQ35DE; , |
44126-JA01A |
US $34.26 |
||
|
44128
|
44128
411288J100 Screw-Bleeder2006-06-01 ~ 2006-08-01; VQ35DE; , |
411288J100 |
from US $6.91 |
||
|
44128
|
44128
41128-JA01A Screw-Bleeder2006-08-01 ~ ; VQ35DE; , |
41128-JA01A |
US $6.91 |
||
|
44139
|
44139
44140-8J100
Pin-Slide
2006-06-01 ~ 2006-08-01; VQ35DE; , |
44140-8J100 |
— | ||
| replacement | |||||
|
44139
|
44139
44140JA01A Pin-Slide2006-06-01 ~ 2006-08-01; VQ35DE; , |
44140JA01A |
from US $10.69 |
||
|
44139
|
44139
44140JA01A Pin-Slide2006-08-01 ~ ; VQ35DE; , |
44140JA01A |
from US $10.69 |
||
|
44139
|
44139
44141-8J100
Bolt-Pin
2006-06-01 ~ 2006-08-01; VQ35DE; , |
44141-8J100 |
— | ||
| replacement | |||||
|
44139
|
44139
44141JA01A Bolt-Pin2006-06-01 ~ 2006-08-01; VQ35DE; , |
44141JA01A |
from US $5.31 |
||
|
44139
|
44139
44141JA01A Bolt-Pin2006-08-01 ~ 2008-05-01; VQ35DE; , |
44141JA01A |
from US $5.31 |
||
|
44139+A
|
44139+A
44141-8J100
Bolt-Pin
2006-06-01 ~ 2006-08-01; VQ35DE; , |
44141-8J100 |
— | ||
| replacement | |||||
|
44139+A
|
44139+A
44141JA01A Bolt-Pin2006-06-01 ~ 2006-08-01; VQ35DE; , |
44141JA01A |
from US $5.31 |
||
|
44139+A
|
44139+A
44141JA01A Bolt-Pin2006-08-01 ~ 2008-05-01; VQ35DE; , |
44141JA01A |
from US $5.31 |
||
