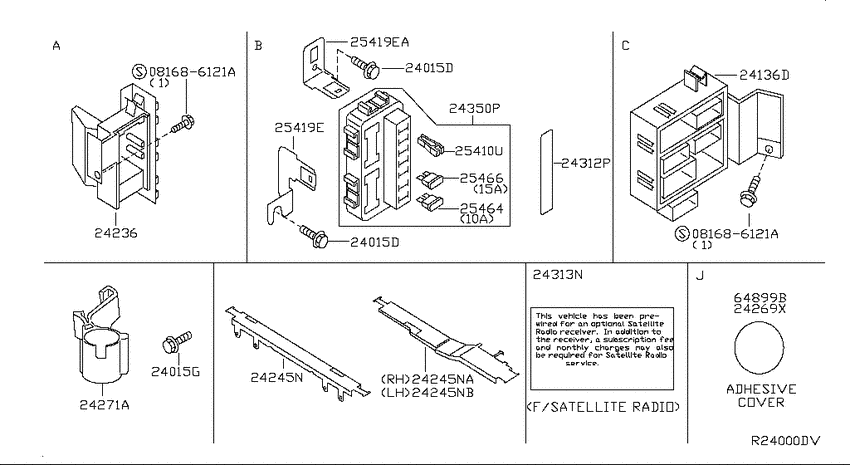

Wiring (2006-06-01 ~ ; FITTING(BODY); 4S) Diagram Nissan MAXIMA
- Year
- 2006 - 2011
- Sales region
- U.S.A.
- Engine
- VQ35DE
- transmission
- CVT
- body
- 4S
- seat
- 5 SEAT
- trim lvl
- SE
- trim mtl
- STD SEAT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
24015D
|
24015D
01466-00022 Bolt2006-06-01 ~ ; 4S; , |
01466-00022 |
from US $0.78 |
||
|
24015D
|
24015D
01466-00022 Bolt2006-06-01 ~ ; 4S; , |
01466-00022 |
from US $0.78 |
||
|
24015G
|
24015G
0145600411 SCREW2006-06-01 ~ ; 4S; 12MM LG GROUND BOLT |
0145600411 |
US $1.67 |
||
|
24136D
|
24136D
24236-8Y000 Bracket-Connector2006-06-01 ~ ; 4S; , |
24236-8Y000 |
US $10.80 |
||
|
24236
|
24236
24236-7Y010 Bracket Assy-Connector2006-06-01 ~ ; *4S.5.SE; , |
24236-7Y010 |
US $14.40 |
||
|
24245N
|
24245N
24276-ZK00A
Protector
2006-06-01 ~ ; *4S.5.SE; , |
24276-ZK00A |
— | ||
|
24245N
|
24245N
24276-7Y010
Protector
2006-06-01 ~ ; *4S.5.SE; , |
24276-7Y010 |
— | ||
|
24245N
|
24245N
24276-7Y011
Protector
2006-06-01 ~ ; 4S; , |
24276-7Y011 |
— | ||
|
24245NA
|
24245NA
24276-7Y010
Protector
2006-06-01 ~ ; *4S.5.SE; , |
24276-7Y010 |
— | ||
|
24245NB
|
24245NB
24276-7Y011
Protector
2006-06-01 ~ ; 4S; , |
24276-7Y011 |
— | ||
|
24269X
|
24269X
64899-7Y000
Cover-Hole
2006-06-01 ~ ; 4S; 30MM DIA, ADHESIVE C |
64899-7Y000 |
— | ||
|
24271A
|
24271A
24271-7Y000
Protector-harness
2006-06-01 ~ ; 4S; , |
24271-7Y000 |
— | ||
|
24312P
|
24312P
24313-ZK30A
Label-fuse block
2006-06-01 ~ ; 4S; , |
24313-ZK30A |
— | ||
|
24313N
|
24313N
24313-6Z600
Label-Satellite Radio
2006-06-01 ~ ; 4S; , |
24313-6Z600 |
— | ||
|
24350P
|
24350P
24350-ZK30A
Block-junction
2006-06-01 ~ ; 4S; , |
24350-ZK30A |
— | ||
|
25410U
|
25410U
24321-79902 Puller-Fuse2006-06-01 ~ ; 4S; , |
24321-79902 |
US $3.46 |
||
|
25419E
|
25419E
24317-8J000
Bracket-Fuse Block
2006-06-01 ~ ; 4S; , |
24317-8J000 |
— | ||
|
25419E
|
25419E
24317-8J001
Bracket-Fuse Block
2006-06-01 ~ ; 4S; , |
24317-8J001 |
— | ||
|
25419EA
|
25419EA
24317-8J001
Bracket-Fuse Block
2006-06-01 ~ ; 4S; , |
24317-8J001 |
— | ||
|
25464
|
25464
2431989910 Fuse2006-06-01 ~ ; 4S; 10A, W/O LEG |
2431989910 |
US $1.15 |
||
|
25464
|
25464
24319C9910 Fuse2007-05-01 ~ ; *4S.5.SE; 10A |
24319C9910 |
from US $0.86 |
||
|
25466
|
25466
2431989915 Fuse2006-06-01 ~ ; 4S; 15A, W/O LEG |
2431989915 |
US $1.15 |
||
|
25466
|
25466
24319C9915 Fuse2007-05-01 ~ ; *4S.5.SE; 15A |
24319C9915 |
from US $0.86 |
||
|
64899B
|
64899B
64899-7Y000
Cover-Hole
2006-06-01 ~ ; 4S.5; , |
64899-7Y000 |
— |
