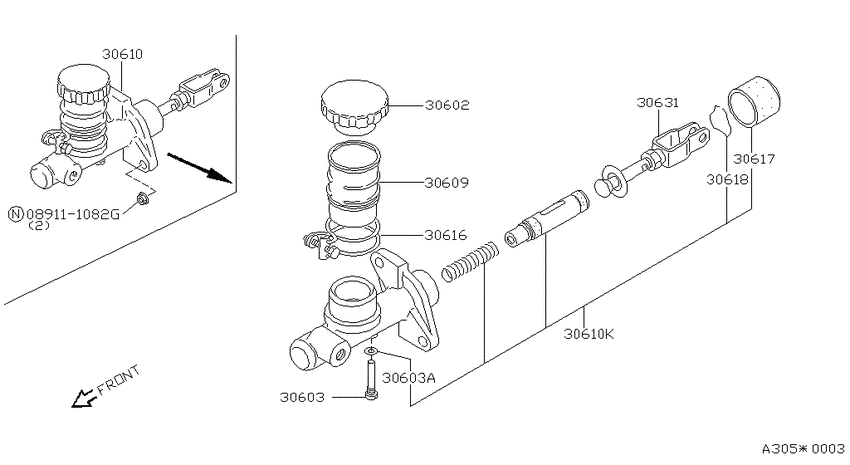

Clutch master cylinder (1988-08-01 ~ 1991-07-01; VG30E.MT) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- MT
- body
- FED.S
- trim lvl
- SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
30602
|
30602
46020-18W00
Cap Assy-Brake Oil Reservoir Tank
1988-08-01 ~ 1991-07-01; VG30E.MT; NABCO |
46020-18W00 |
— | ||
|
30603
|
30603
30672-C8200 Stopper-Screw1988-08-01 ~ 1991-07-01; VG30E.MT; NABCO |
30672-C8200 |
US $4.18 |
||
|
30603
|
30603
4607927260 Gasket1988-08-01 ~ 1991-07-01; VG30E.MT; NABCO |
4607927260 |
US $1.95 |
||
|
30603A
|
30603A
4607927260 Gasket1988-08-01 ~ 1991-07-01; VG30E.MT; NABCO |
4607927260 |
US $1.95 |
||
|
30609
|
30609
30617-28E00 RESERVOIR-OIL,CLUTCH1988-08-01 ~ 1991-07-01; VG30E.MT; NABCO |
30617-28E00 |
US $11.38 |
||
|
30610
|
30610
30610-51E01
CYLINDER ASSY-CLUTCH MASTER
1988-08-01 ~ 1991-05-01; VG30E.MT; NABCO 5/8 |
30610-51E01 |
— | ||
|
30610
|
30610
30610-51E02
CYLINDER ASSY-CLUTCH MASTER
1991-05-01 ~ 1991-07-01; VG30E.MT; NABO 5/8 |
30610-51E02 |
— | ||
|
30610
|
30610
30611-30P27 Piston Kit-Clutch Master Cylinder1991-05-01 ~ 1991-07-01; VG30E.MT; NABCO 5/8 |
30611-30P27 |
US $30.67 |
||
| replacement | |||||
|
30610
|
30610
30611-10V26
Piston kit-clutch master cylinder
1991-05-01 ~ 1991-07-01; VG30E.MT; NABCO 5/8 |
30611-10V26 |
— | ||
|
30610
|
30610
30611-71L25 Piston Kit-Clutch Master Cylinder1988-08-01 ~ 1991-05-01; VG30E.MT; NABCO 5/8 |
30611-71L25 |
US $23.04 |
||
| replacement | |||||
|
30610
|
30610
30611-10V26
Piston kit-clutch master cylinder
1988-08-01 ~ 1991-05-01; VG30E.MT; NABCO 5/8 |
30611-10V26 |
— | ||
|
30610K
|
30610K
30611-30P27 Piston Kit-Clutch Master Cylinder1991-05-01 ~ 1991-07-01; VG30E.MT; NABCO 5/8 |
30611-30P27 |
US $30.67 |
||
| replacement | |||||
|
30610K
|
30610K
30611-10V26
Piston kit-clutch master cylinder
1991-05-01 ~ 1991-07-01; VG30E.MT; NABCO 5/8 |
30611-10V26 |
— | ||
|
30610K
|
30610K
30611-71L25 Piston Kit-Clutch Master Cylinder1988-08-01 ~ 1991-05-01; VG30E.MT; NABCO 5/8 |
30611-71L25 |
US $23.04 |
||
| replacement | |||||
|
30610K
|
30610K
30611-10V26
Piston kit-clutch master cylinder
1988-08-01 ~ 1991-05-01; VG30E.MT; NABCO 5/8 |
30611-10V26 |
— | ||
|
30616
|
30616
46016W0400 Band Assy-Reservoir1988-08-01 ~ 1991-07-01; VG30E.MT; NABCO |
46016W0400 |
US $5.55 |
||
|
30617
|
30617
46100-28600 Cover-Dust1988-08-01 ~ 1991-07-01; VG30E.MT; NABCO |
46100-28600 |
US $1.01 |
||
|
30618
|
30618
4607027260 Ring-Stopper1988-08-01 ~ 1991-07-01; VG30E.MT; NABCO |
4607027260 |
US $1.58 |
||
|
30631
|
30631
30631-10V00 Rod Assy-Push1988-08-01 ~ 1991-05-01; VG30E.MT; NABCO |
30631-10V00 |
US $11.81 |
||
|
30631
|
30631
30631-51E02 ROD ASSY-PUSH1991-05-01 ~ 1991-07-01; VG30E.MT; NABCO |
30631-51E02 |
US $11.81 |
||
