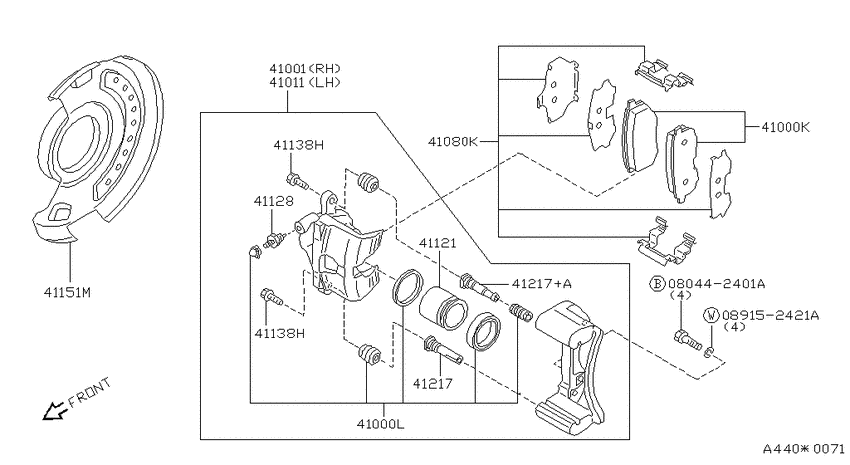

Front brake (1988-08-01 ~ 1991-07-01; VG30E) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- MT
- body
- FED.S
- trim lvl
- SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080442401A
|
080442401A
080442401A Bolt-hexagon |
080442401A |
US $1.91 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
41000K
|
41000K
41060-88E94
Pad kit-disc brake
1988-08-01 ~ 1989-12-01; VG30E; F/RH & LH |
41060-88E94 |
— | ||
| replacement | |||||
|
41000K
|
41000K
D106M-88E85
Pad kit-disc brake
1988-08-01 ~ 1989-12-01; VG30E; F/RH & LH |
D106M-88E85 |
— | ||
|
41000K
|
41000K
D1060-88E90
Pad kit-disc brake
1989-12-01 ~ 1990-09-01; VG30E; F/RH & LH |
D1060-88E90 |
— | ||
| replacement | |||||
|
41000K
|
41000K
D106M-88E85
Pad kit-disc brake
1989-12-01 ~ 1990-09-01; VG30E; F/RH & LH |
D106M-88E85 |
— | ||
|
41000K
|
41000K
D1060-88E91
Pad kit-disc brake
1990-09-01 ~ 1991-07-01; VG30E; F/RH & LH |
D1060-88E91 |
— | ||
| replacement | |||||
|
41000K
|
41000K
D106M-88E85
Pad kit-disc brake
1990-09-01 ~ 1991-07-01; VG30E; F/RH & LH |
D106M-88E85 |
— | ||
|
41000L
|
41000L
41120-71E26
SEAL KIT-DISC BRAKE
1990-09-01 ~ 1991-07-01; VG30E; , |
41120-71E26 |
— | ||
| replacement | |||||
|
41000L
|
41000L
41120-6M025
Seal Kit-Disc Brake
1990-09-01 ~ 1991-07-01; VG30E; , |
41120-6M025 |
— | ||
|
41000L
|
41000L
41120-88E25
SEAL KIT-DISC BRAKE
1988-08-01 ~ 1990-09-01; VG30E; , |
41120-88E25 |
— | ||
|
41001
|
41001
41001-88E00
CALIPER ASSY-FRONT RH,W/O PADS OR SHIMS
1988-08-01 ~ 1989-06-01; VG30E; , |
41001-88E00 |
— | ||
|
41001
|
41001
41001-88E01 CALIPER ASSY-FRONT RH,W/O PADS OR SHIMS1989-06-01 ~ 1990-09-01; VG30E; , |
41001-88E01 |
US $502.68 |
||
| replacement | |||||
|
41001
|
41001
410014L010 Caliper Assy-Front Rh, W/o Pads Or Shims1989-06-01 ~ 1990-09-01; VG30E; , |
410014L010 |
US $502.68 |
||
|
41001
|
41001
41001-88E02 CALIPER ASSY-FRONT RH,W/O PADS OR SHIMS1990-09-01 ~ 1991-07-01; VG30E; , |
41001-88E02 |
US $502.68 |
||
| replacement | |||||
|
41001
|
41001
410014L010 Caliper Assy-Front Rh, W/o Pads Or Shims1990-09-01 ~ 1991-07-01; VG30E; , |
410014L010 |
US $502.68 |
||
|
41011
|
41011
41011-88E00
CALIPER ASSY-FRONT LH,W/O PADS OR SHIMS
1988-08-01 ~ 1989-06-01; VG30E; , |
41011-88E00 |
— | ||
|
41011
|
41011
41011-88E01 CALIPER ASSY-FRONT LH,W/O PADS OR SHIMS1989-06-01 ~ 1990-09-01; VG30E; , |
41011-88E01 |
US $502.68 |
||
| replacement | |||||
|
41011
|
41011
410114L010 Caliper Assy-Front Lh, W/o Pads Or Shims1989-06-01 ~ 1990-09-01; VG30E; , |
410114L010 |
US $502.68 |
||
|
41011
|
41011
41011-88E02 CALIPER ASSY-FRONT LH,W/O PADS OR SHIMS1990-09-01 ~ 1991-07-01; VG30E; , |
41011-88E02 |
US $502.68 |
||
| replacement | |||||
|
41011
|
41011
410114L010 Caliper Assy-Front Lh, W/o Pads Or Shims1990-09-01 ~ 1991-07-01; VG30E; , |
410114L010 |
US $502.68 |
||
|
41080K
|
41080K
41080-73L26 Hardware Kit-Front Disc Brake Pad1990-09-01 ~ 1991-07-01; VG30E; , |
41080-73L26 |
US $84.38 |
||
|
41080K
|
41080K
41080-88E25 HARDWARE KIT-FRONT DISC BRAKE PAD1988-08-01 ~ 1990-09-01; VG30E; , |
41080-88E25 |
US $93.17 |
||
|
41121
|
41121
4112171E00 PISTON-CYLINDER1990-09-01 ~ 1991-07-01; VG30E; , |
4112171E00 |
from US $59.88 |
||
|
41121
|
41121
41121-88E00 PISTON-CYLINDER1988-08-01 ~ 1990-09-01; VG30E; , |
41121-88E00 |
US $46.66 |
||
|
41128
|
41128
41128-88E00 SCREW-BLEEDER1990-09-01 ~ 1991-07-01; VG30E; , |
41128-88E00 |
US $5.33 |
||
|
41128
|
41128
41128-U3400
Screw-Bleeder
1988-08-01 ~ 1990-09-01; VG30E; , |
41128-U3400 |
— | ||
| replacement | |||||
|
41128
|
41128
4112880Z0A Screw-Bleeder1988-08-01 ~ 1990-09-01; VG30E; , |
4112880Z0A |
US $7.35 |
||
|
41138H
|
41138H
41136-V5000 Pin-Bolt1988-08-01 ~ 1990-09-01; VG30E; , |
41136-V5000 |
US $1.87 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
1990-09-01 ~ 1991-07-01; VG30E; , |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt1990-09-01 ~ 1991-07-01; VG30E; , |
44141AW70A |
from US $3.35 |
||
|
41138H
|
41138H
41136-V5000 Pin-Bolt1988-08-01 ~ 1990-09-01; VG30E; , |
41136-V5000 |
US $1.87 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
1990-09-01 ~ 1991-07-01; VG30E; , |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt1990-09-01 ~ 1991-07-01; VG30E; , |
44141AW70A |
from US $3.35 |
||
|
41151M
|
41151M
41150-88E00
PLATE-BAFFLE
1988-08-01 ~ 1991-07-01; VG30E; , |
41150-88E00 |
— | ||
|
41217
|
41217
41139-88E00 PIN1988-08-01 ~ 1990-09-01; VG30E; , |
41139-88E00 |
US $7.49 |
||
|
41217
|
41217
44140N9500 Pin-Lock1990-09-01 ~ 1991-07-01; VG30E; , |
44140N9500 |
from US $8.45 |
||
|
41217
|
41217
41140-88E00 PIN1988-08-01 ~ 1990-09-01; VG30E; , |
41140-88E00 |
US $11.38 |
||
|
41217
|
41217
44139-16E01 PIN1990-09-01 ~ 1991-07-01; VG30E; , |
44139-16E01 |
US $18.29 |
||
|
41217+A
|
41217+A
41140-88E00 PIN1988-08-01 ~ 1990-09-01; VG30E; , |
41140-88E00 |
US $11.38 |
||
|
41217+A
|
41217+A
44139-16E01 PIN1990-09-01 ~ 1991-07-01; VG30E; , |
44139-16E01 |
US $18.29 |
||
