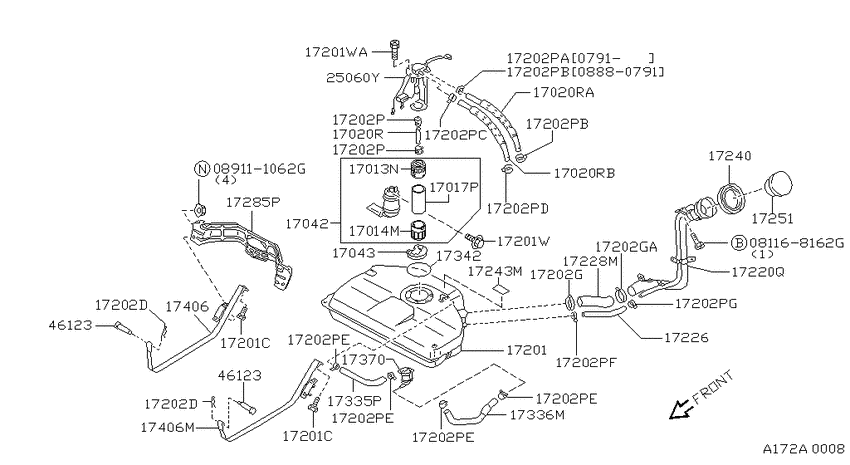

Fuel tank (1988-08-01 ~ 1991-07-01; VG30E) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- MT
- body
- FED.S
- trim lvl
- SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081168162G
|
081168162G
081168162G Bolt-hexagon |
081168162G |
US $3.06 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
17020R
|
17020R
08740-05539
HOSE-FUEL
1988-08-01 ~ 1991-07-01; VG30E; L=55 S/#A8741-00039 |
08740-05539 |
— | ||
| replacement | |||||
|
17020R
|
17020R
A874100039 Hose-Fuel1988-08-01 ~ 1991-07-01; VG30E; L=55 S/#A8741-00039 |
A874100039 |
from US $26.01 |
||
|
17020R
|
17020R
17551-85E00 HOSE-FUEL1988-08-01 ~ 1991-07-01; VG30E; , |
17551-85E00 |
US $31.82 |
||
|
17020R
|
17020R
17555-85E00 HOSE-FUEL1988-08-01 ~ 1991-07-01; VG30E; , |
17555-85E00 |
US $24.05 |
||
|
17020RA
|
17020RA
17551-85E00 HOSE-FUEL1988-08-01 ~ 1991-07-01; VG30E; , |
17551-85E00 |
US $31.82 |
||
|
17020RB
|
17020RB
17555-85E00 HOSE-FUEL1988-08-01 ~ 1991-07-01; VG30E; , |
17555-85E00 |
US $24.05 |
||
|
17042
|
17042
17042-85E00
FUEL PUMP-IN TANK
1988-08-01 ~ 1991-07-01; VG30E; , |
17042-85E00 |
— | ||
|
17043
|
17043
17043-85E00 SUPPORT-PUMP,RUBBER1988-08-01 ~ 1991-07-01; VG30E; , |
17043-85E00 |
US $28.80 |
||
|
17201
|
17201
17202-85E00
TANK ASSY-FUEL
1988-08-01 ~ 1991-07-01; VG30E; , |
17202-85E00 |
— | ||
|
17201
|
17201
01121-03471 Plug-Drain1988-08-01 ~ 1991-07-01; VG30E; , |
01121-03471 |
US $4.18 |
||
|
17201
|
17201
01431-00351 SCREW1988-08-01 ~ 1991-07-01; VG30E; , |
01431-00351 |
US $2.21 |
||
|
17201
|
17201
0143600291 SCREW1988-08-01 ~ 1991-07-01; VG30E; , |
0143600291 |
from US $0.72 |
||
|
17201C
|
17201C
01121-03471 Plug-Drain1988-08-01 ~ 1991-07-01; VG30E; , |
01121-03471 |
US $4.18 |
||
|
17201C
|
17201C
01121-03471 Plug-Drain1988-08-01 ~ 1991-07-01; VG30E; , |
01121-03471 |
US $4.18 |
||
|
17201W
|
17201W
01431-00351 SCREW1988-08-01 ~ 1991-07-01; VG30E; , |
01431-00351 |
US $2.21 |
||
|
17201W
|
17201W
0143600291 SCREW1988-08-01 ~ 1991-07-01; VG30E; , |
0143600291 |
from US $0.72 |
||
|
17201WA
|
17201WA
0143600291 SCREW1988-08-01 ~ 1991-07-01; VG30E; , |
0143600291 |
from US $0.72 |
||
|
17202D
|
17202D
0153200022 PIN1988-08-01 ~ 1991-07-01; VG30E; , |
0153200022 |
US $1.73 |
||
|
17202D
|
17202D
0153200022 PIN1988-08-01 ~ 1991-07-01; VG30E; , |
0153200022 |
US $1.73 |
||
|
17202G
|
17202G
01555-00311
CLAMP-HOSE
1988-08-01 ~ 1991-07-01; VG30E; , |
01555-00311 |
— | ||
| replacement | |||||
|
17202G
|
17202G
0155500951 CLAMP1988-08-01 ~ 1991-07-01; VG30E; , |
0155500951 |
from US $2.74 |
||
|
17202G
|
17202G
01555-00311
CLAMP-HOSE
1988-08-01 ~ 1991-07-01; VG30E; , |
01555-00311 |
— | ||
| replacement | |||||
|
17202G
|
17202G
0155500951 CLAMP1988-08-01 ~ 1991-07-01; VG30E; , |
0155500951 |
from US $2.74 |
||
|
17202GA
|
17202GA
01555-00311
CLAMP-HOSE
1988-08-01 ~ 1991-07-01; VG30E; , |
01555-00311 |
— | ||
| replacement | |||||
|
17202GA
|
17202GA
0155500951 CLAMP1988-08-01 ~ 1991-07-01; VG30E; , |
0155500951 |
from US $2.74 |
||
|
17202P
|
17202P
1643953A05 Clamp1988-08-01 ~ 1991-07-01; VG30E; , |
1643953A05 |
US $4.42 |
||
|
17202P
|
17202P
1643953A00 Clamp-Hose1988-08-01 ~ 1990-09-01; VG30E; , |
1643953A00 |
from US $2.35 |
||
|
17202P
|
17202P
1643953A00 Clamp-Hose1988-08-01 ~ 1991-07-01; VG30E; , |
1643953A00 |
from US $2.35 |
||
|
17202P
|
17202P
1643953A00 Clamp-Hose1988-08-01 ~ 1991-07-01; VG30E; , |
1643953A00 |
from US $2.35 |
||
|
17202P
|
17202P
0155800111
CLAMP
1988-08-01 ~ 1991-07-01; VG30E; , |
0155800111 |
— | ||
| replacement | |||||
|
17202P
|
17202P
01558-00401 CLAMP-HOSE1988-08-01 ~ 1991-07-01; VG30E; , |
01558-00401 |
from US $2.50 |
||
|
17202P
|
17202P
16439-V5000
Clamp-Hose A
1988-08-01 ~ 1991-07-01; VG30E; , |
16439-V5000 |
— | ||
| replacement | |||||
|
17202P
|
17202P
16439V500B Clamp-Hose A1988-08-01 ~ 1991-07-01; VG30E; , |
16439V500B |
from US $2.50 |
||
|
17202P
|
17202P
16439-V5000
Clamp-Hose A
1988-08-01 ~ 1991-07-01; VG30E; , |
16439-V5000 |
— | ||
| replacement | |||||
|
17202P
|
17202P
16439V500B Clamp-Hose A1988-08-01 ~ 1991-07-01; VG30E; , |
16439V500B |
from US $2.50 |
||
|
17202P
|
17202P
1643953A05 Clamp1988-08-01 ~ 1991-07-01; VG30E; , |
1643953A05 |
US $4.42 |
||
|
17202P
|
17202P
1643953A00 Clamp-Hose1988-08-01 ~ 1990-09-01; VG30E; , |
1643953A00 |
from US $2.35 |
||
|
17202P
|
17202P
1643953A00 Clamp-Hose1988-08-01 ~ 1991-07-01; VG30E; , |
1643953A00 |
from US $2.35 |
||
|
17202P
|
17202P
1643953A00 Clamp-Hose1988-08-01 ~ 1991-07-01; VG30E; , |
1643953A00 |
from US $2.35 |
||
|
17202P
|
17202P
0155800111
CLAMP
1988-08-01 ~ 1991-07-01; VG30E; , |
0155800111 |
— | ||
| replacement | |||||
|
17202P
|
17202P
01558-00401 CLAMP-HOSE1988-08-01 ~ 1991-07-01; VG30E; , |
01558-00401 |
from US $2.50 |
||
|
17202P
|
17202P
16439-V5000
Clamp-Hose A
1988-08-01 ~ 1991-07-01; VG30E; , |
16439-V5000 |
— | ||
| replacement | |||||
|
17202P
|
17202P
16439V500B Clamp-Hose A1988-08-01 ~ 1991-07-01; VG30E; , |
16439V500B |
from US $2.50 |
||
|
17202P
|
17202P
16439-V5000
Clamp-Hose A
1988-08-01 ~ 1991-07-01; VG30E; , |
16439-V5000 |
— | ||
| replacement | |||||
|
17202P
|
17202P
16439V500B Clamp-Hose A1988-08-01 ~ 1991-07-01; VG30E; , |
16439V500B |
from US $2.50 |
||
|
17202PB
|
17202PB
1643953A00 Clamp-Hose1988-08-01 ~ 1990-09-01; VG30E; , |
1643953A00 |
from US $2.35 |
||
|
17202PB
|
17202PB
1643953A00 Clamp-Hose1988-08-01 ~ 1990-09-01; VG30E; , |
1643953A00 |
from US $2.35 |
||
|
17202PC
|
17202PC
1643953A00 Clamp-Hose1988-08-01 ~ 1991-07-01; VG30E; , |
1643953A00 |
from US $2.35 |
||
|
17202PD
|
17202PD
1643953A00 Clamp-Hose1988-08-01 ~ 1991-07-01; VG30E; , |
1643953A00 |
from US $2.35 |
||
|
17202PE
|
17202PE
0155800111
CLAMP
1988-08-01 ~ 1991-07-01; VG30E; , |
0155800111 |
— | ||
| replacement | |||||
|
17202PE
|
17202PE
01558-00401 CLAMP-HOSE1988-08-01 ~ 1991-07-01; VG30E; , |
01558-00401 |
from US $2.50 |
||
|
17202PE
|
17202PE
0155800111
CLAMP
1988-08-01 ~ 1991-07-01; VG30E; , |
0155800111 |
— | ||
| replacement | |||||
|
17202PE
|
17202PE
01558-00401 CLAMP-HOSE1988-08-01 ~ 1991-07-01; VG30E; , |
01558-00401 |
from US $2.50 |
||
|
17202PE
|
17202PE
0155800111
CLAMP
1988-08-01 ~ 1991-07-01; VG30E; , |
0155800111 |
— | ||
| replacement | |||||
|
17202PE
|
17202PE
01558-00401 CLAMP-HOSE1988-08-01 ~ 1991-07-01; VG30E; , |
01558-00401 |
from US $2.50 |
||
|
17202PE
|
17202PE
0155800111
CLAMP
1988-08-01 ~ 1991-07-01; VG30E; , |
0155800111 |
— | ||
| replacement | |||||
|
17202PE
|
17202PE
01558-00401 CLAMP-HOSE1988-08-01 ~ 1991-07-01; VG30E; , |
01558-00401 |
from US $2.50 |
||
|
17202PF
|
17202PF
16439-V5000
Clamp-Hose A
1988-08-01 ~ 1991-07-01; VG30E; , |
16439-V5000 |
— | ||
| replacement | |||||
|
17202PF
|
17202PF
16439V500B Clamp-Hose A1988-08-01 ~ 1991-07-01; VG30E; , |
16439V500B |
from US $2.50 |
||
|
17202PG
|
17202PG
16439-V5000
Clamp-Hose A
1988-08-01 ~ 1991-07-01; VG30E; , |
16439-V5000 |
— | ||
| replacement | |||||
|
17202PG
|
17202PG
16439V500B Clamp-Hose A1988-08-01 ~ 1991-07-01; VG30E; , |
16439V500B |
from US $2.50 |
||
|
17220Q
|
17220Q
17221-85E00
TUBE ASSY-FILLER
1988-08-01 ~ 1991-07-01; VG30E; , |
17221-85E00 |
— | ||
| replacement | |||||
|
17220Q
|
17220Q
17221-85E60
Tube assy-filler
1988-08-01 ~ 1991-07-01; VG30E; , |
17221-85E60 |
— | ||
|
17226
|
17226
17226-51E00 HOSE-VENTILATION1990-09-01 ~ 1991-07-01; VG30E; , |
17226-51E00 |
US $14.69 |
||
| replacement | |||||
|
17226
|
17226
A7226-51E00
Hose-ventilation
1990-09-01 ~ 1991-07-01; VG30E; , |
A7226-51E00 |
— | ||
|
17226
|
17226
17226-85E00
HOSE-VENTILATION
1988-08-01 ~ 1990-09-01; VG30E; , |
17226-85E00 |
— | ||
| replacement | |||||
|
17226
|
17226
A7226-85E00 Hose-ventilation1988-08-01 ~ 1990-09-01; VG30E; , |
A7226-85E00 |
US $49.78 |
||
|
17228M
|
17228M
17228-51E00 HOSE-FILLER1988-08-01 ~ 1991-07-01; VG30E; , |
17228-51E00 |
US $44.77 |
||
|
17240
|
17240
17240-51E00 GROMMET-FILLER BASE1988-08-01 ~ 1991-07-01; VG30E; , |
17240-51E00 |
US $25.20 |
||
|
17243M
|
17243M
17243-51E00
SHIM-FUEL TANK
1989-07-01 ~ 1991-07-01; VG30E; , |
17243-51E00 |
— | ||
|
17251
|
17251
17251-79900
Cap Assy-Filler
1988-08-01 ~ 1989-04-01; VG30E; , |
17251-79900 |
— | ||
| replacement | |||||
|
17251
|
17251
1725179920 Cap Assy-Filler1988-08-01 ~ 1989-04-01; VG30E; , |
1725179920 |
from US $33.13 |
||
|
17251
|
17251
17251-79910
Cap Assy-Filler
1989-04-01 ~ 1990-09-01; VG30E; , |
17251-79910 |
— | ||
| replacement | |||||
|
17251
|
17251
1725179920 Cap Assy-Filler1989-04-01 ~ 1990-09-01; VG30E; , |
1725179920 |
from US $33.13 |
||
|
17251
|
17251
17251-79912 Cap Assy-Filler1990-09-01 ~ 1991-07-01; VG30E; , |
17251-79912 |
US $35.42 |
||
| replacement | |||||
|
17251
|
17251
17251-F9912 Cap Assy-Filler1990-09-01 ~ 1991-07-01; VG30E; , |
17251-F9912 |
US $35.02 |
||
|
17285P
|
17285P
17285-85E00 PROTECTOR-FUEL TANK1988-08-01 ~ 1991-07-01; VG30E; , |
17285-85E00 |
US $41.04 |
||
|
17335P
|
17335P
17335-51E10 HOSE-BREATHER1988-08-01 ~ 1991-07-01; VG30E; , |
17335-51E10 |
US $12.47 |
||
|
17336M
|
17336M
17336-85E10
HOSE-BREATHER
1988-08-01 ~ 1991-07-01; VG30E; , |
17336-85E10 |
— | ||
|
17342
|
17342
1734201A00 Seal-O Ring, Fuel Gauge1988-08-01 ~ 1991-07-01; VG30E; , |
1734201A00 |
from US $16.50 |
||
|
17370
|
17370
17370-89910 Valve Assy-Check1988-08-01 ~ 1991-07-01; VG30E; , |
17370-89910 |
US $45.33 |
||
|
17406
|
17406
17406-85E00 BAND ASSY-FUEL TANK MOUNTING1988-08-01 ~ 1991-07-01; VG30E; , |
17406-85E00 |
US $90.14 |
||
|
17406
|
17406
17407-85E00 BAND ASSY-FUEL TANK,MOUNTING1988-08-01 ~ 1991-07-01; VG30E; , |
17407-85E00 |
US $90.14 |
||
|
17406M
|
17406M
17407-85E00 BAND ASSY-FUEL TANK,MOUNTING1988-08-01 ~ 1991-07-01; VG30E; , |
17407-85E00 |
US $90.14 |
||
|
25060Y
|
25060Y
25060-85E00 SENDER UNIT-FUEL GAUGE1988-08-01 ~ 1989-01-01; VG30E; , |
25060-85E00 |
US $446.04 |
||
|
25060Y
|
25060Y
25060-85E01 SENDER UNIT-FUEL GAUGE1989-01-01 ~ 1991-07-01; VG30E; , |
25060-85E01 |
US $446.04 |
||
|
46123
|
46123
46123-51E00 PIN-CLEVIS1988-08-01 ~ 1991-07-01; VG30E; , |
46123-51E00 |
US $5.81 |
||
|
46123
|
46123
46123-51E00 PIN-CLEVIS1988-08-01 ~ 1991-07-01; VG30E; , |
46123-51E00 |
US $5.81 |
||
