Transmission gear (1988-08-01 ~ 1991-07-01; RS5F50A/V; MT)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
080708251A	080708251A 08070-8251A Bolt-hexagon	08070-8251A	—
32138N	32138N 32139-03E00 SHIM-ADJUST,MAIN SHAFT BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.44	32139-03E00	US $4.18
32138N	32138N 32139-03E01 SHIM-ADJUST,MAIN SHAFT BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.48	32139-03E01	US $4.18
32138N	32138N 32139-03E02 SHIM-ADJUST,MAIN SHAFT BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.56	32139-03E02	US $4.18
32138N	32138N 32139-03E03 SHIM-ADJUST,MAIN SHAFT BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.60	32139-03E03	US $4.18
32138N	32138N 32139-03E04 SHIM-ADJUST,MAIN SHAFT BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.64	32139-03E04	US $4.18
32138N	32138N 32139-03E05 SHIM-ADJUST,MAIN SHAFT BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.68	32139-03E05	US $4.18
32138N	32138N 32139-03E06 SHIM-ADJUST,MAIN SHAFT BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.72	32139-03E06	US $4.18
32138N	32138N 32139-03E07 SHIM-ADJUST,MAIN SHAFT BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.76	32139-03E07	US $4.18
32138N	32138N 32139-03E08 SHIM-ADJUST,MAIN SHAFT BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.80	32139-03E08	US $4.18
32138N	32138N 32139-03E11 SHIM-ADJUST,MAIN SHAFT BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.40	32139-03E11	US $4.18
32138N	32138N 32139-03E12 SHIM-ADJUST,MAIN SHAFT BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.52	32139-03E12	US $4.18
32138N	32138N 32139-03E13 SHIM-ADJUST,MAIN SHAFT BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=1.20	32139-03E13	US $5.47
32200M	32200M 32201-86E04 GEAR-INPUT SHAFT 1988-08-01 ~ 1991-07-01; MT; ,	32201-86E04	—
32203M	32203M 3220303E00 BEARING-INPUT SHAFT 1988-08-01 ~ 1991-07-01; MT; ,	3220303E00	from US $21.37
32213M	32213M 32260-56E00 GEAR ASSY-3RD,INPUT SHAFT 1988-08-01 ~ 1991-07-01; MT; ,	32260-56E00	US $174.24
32217M	32217M 32270-29R00 Gear Assy-4Th, Input Shaft 1988-08-01 ~ 1991-07-01; MT; ,	32270-29R00	US $145.44
32218M	32218M 32225-08E00 SHIM-BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.40	32225-08E00	US $4.18
32218M	32218M 32225-08E01 SHIM-BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.44	32225-08E01	US $4.18
32218M	32218M 32225-08E02 SHIM-BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.48	32225-08E02	US $4.18
32218M	32218M 32225-08E03 SHIM-BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.52	32225-08E03	US $4.18
32218M	32218M 32225-08E04 SHIM-BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.56	32225-08E04	US $4.18
32218M	32218M 32225-08E05 SHIM-BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.60	32225-08E05	US $4.18
32218M	32218M 32225-08E06 SHIM-BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.64	32225-08E06	US $4.18
32218M	32218M 32225-08E07 SHIM-BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.68	32225-08E07	US $4.18
32218M	32218M 32225-08E08 SHIM-BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.72	32225-08E08	US $4.18
32218M	32218M 32225-08E09 SHIM-BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.76	32225-08E09	US $4.18
32218M	32218M 32225-08E10 SHIM-BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=0.80	32225-08E10	US $4.18
32218M	32218M 32225-08E11 SHIM-BEARING 1988-08-01 ~ 1991-07-01; MT; SELECT T=1.20	32225-08E11	US $7.49
32222	32222 32348-05E00 RING-SNAP 1990-09-01 ~ 1991-07-01; MT; SELECT T=1.95	32348-05E00	US $2.45
32222	32222 32348-05E01 RING-SNAP 1990-09-01 ~ 1991-07-01; MT; SELECT T=2.05	32348-05E01	US $2.45
32222	32222 32348-05E02 RING-SNAP 1990-09-01 ~ 1991-07-01; MT; SELECT T=2.15	32348-05E02	US $2.45
32222	32222 32348-05E03 RING-SNAP 1990-09-01 ~ 1991-07-01; MT; SELECT T=2.25	32348-05E03	US $2.45
32230	32230 32230-86E14 GEAR ASSY-1ST,MAIN SHAFT 1988-08-01 ~ 1991-07-01; MT; ,	32230-86E14	—
32241	32241 32241-86E04 SHAFT-MAIN 1988-08-01 ~ 1991-07-01; MT; ,	32241-86E04	—
	replacement
32241	32241 32241-86E14 Shaft-main 1988-08-01 ~ 1991-07-01; MT; ,	32241-86E14	—
32245	32245 32245-38E10 GEAR-REVERSE,MAIN SHAFT 1988-08-01 ~ 1990-09-01; MT; ,	32245-38E10	US $135.07
	replacement
32245	32245 32245-56E24 GEAR-REVERSE,MAIN SHAFT 1988-08-01 ~ 1990-09-01; MT; ,	32245-56E24	US $135.07
32245	32245 32245-77E00 GEAR-REVERSE,MAIN SHAFT 1990-09-01 ~ 1991-07-01; MT; ,	32245-77E00	US $135.07
32246	32246 32278-03E01 WASHER-THRUST 1988-08-01 ~ 1989-07-01; MT; SELECT T=4.50	32278-03E01	US $6.34
32246	32246 32278-03E02 WASHER-THRUST 1988-08-01 ~ 1989-07-01; MT; SELECT T=4.52	32278-03E02	US $6.34
32246	32246 32278-03E03 WASHER-THRUST 1988-08-01 ~ 1989-07-01; MT; SELECT T=4.55	32278-03E03	US $6.34
32246	32246 32278-03E04 WASHER-THRUST 1989-07-01 ~ 1991-07-01; MT; SELECT T=4.575	32278-03E04	US $6.34
32246	32246 32278-03E01 WASHER-THRUST 1988-08-01 ~ 1989-07-01; MT; SELECT T=4.50	32278-03E01	US $6.34
32246	32246 32278-03E02 WASHER-THRUST 1988-08-01 ~ 1989-07-01; MT; SELECT T=4.52	32278-03E02	US $6.34
32246	32246 32278-03E03 WASHER-THRUST 1988-08-01 ~ 1989-07-01; MT; SELECT T=4.55	32278-03E03	US $6.34
32246	32246 32278-03E04 WASHER-THRUST 1989-07-01 ~ 1991-07-01; MT; SELECT T=4.575	32278-03E04	US $6.34
32250	32250 32250-54C04 Gear Assy-2Nd 1990-09-01 ~ 1991-07-01; MT; ,	32250-54C04	US $145.44
	replacement
32250	32250 32251-54C14 Gear Assy-2Nd 1990-09-01 ~ 1991-07-01; MT; ,	32251-54C14	—
32250	32250 32250-86E04 Gear Assy-2Nd 1988-08-01 ~ 1990-09-01; MT; ,	32250-86E04	US $118.51
32260	32260 32215-56E00 GEAR ASSY-3RD 1988-08-01 ~ 1991-07-01; MT; ,	32215-56E00	US $133.20
32262	32262 32279-03E04 WASHER-THRUST 1988-08-01 ~ 1991-07-01; MT; ,	32279-03E04	US $7.06
32263	32263 32269-03E00 RING-SNAP 1988-08-01 ~ 1991-07-01; MT; SELECT T=2.00	32269-03E00	US $2.45
32263	32263 32269-03E01 RING-SNAP 1988-08-01 ~ 1991-07-01; MT; SELECT T=2.05	32269-03E01	US $2.45
32263	32263 32269-03E02 RING-SNAP 1988-08-01 ~ 1991-07-01; MT; SELECT T=2.10	32269-03E02	US $2.45
32263	32263 32269-03E03 RING-SNAP 1988-08-01 ~ 1991-07-01; MT; SELECT T=1.95	32269-03E03	US $2.45
32264	32264 32223-03E00 BEARING-MAIN SHAFT 1988-08-01 ~ 1989-06-01; MT; ,	32223-03E00	—
32264	32264 32223-79E00 BEARING-MAIN SHAFT 1989-06-01 ~ 1991-07-01; MT; ,	32223-79E00	US $27.07
32265	32265 32138-03E00 SPACER-MAIN SHAFT 1988-08-01 ~ 1991-07-01; MT; ,	32138-03E00	US $4.18
32270	32270 32217-29R00 Gear Assy-4Th 1988-08-01 ~ 1991-07-01; MT; ,	32217-29R00	US $145.44
32273	32273 32273-03E00 BEARING-MAIN SHAFT 1988-08-01 ~ 1991-07-01; MT; ,	32273-03E00	US $34.85
32273	32273 32203-03E02 BEARING-BALL,INPUT 1989-07-01 ~ 1991-07-01; MT; ,	32203-03E02	US $46.37
32273N	32273N 32203-03E02 BEARING-BALL,INPUT 1989-07-01 ~ 1991-07-01; MT; ,	32203-03E02	US $46.37
32281	32281 32281-03E01 SHAFT-REVERSE IDLER 1988-08-01 ~ 1989-03-01; MT; ,	32281-03E01	US $25.49
32281	32281 32281-79E10 SHAFT-REVERSE IDLER 1989-03-01 ~ 1991-07-01; MT; ,	32281-79E10	US $31.10
32281	32281 32281-03E01 SHAFT-REVERSE IDLER 1988-08-01 ~ 1989-03-01; MT; ,	32281-03E01	US $25.49
32281	32281 32281-79E10 SHAFT-REVERSE IDLER 1989-03-01 ~ 1991-07-01; MT; ,	32281-79E10	US $31.10
32282	32282 32280-39E00 GEAR-REVERSE IDLER 1988-08-01 ~ 1991-07-01; MT; ,	32280-39E00	US $74.16
	replacement
32282	32282 32280-39E24 GEAR-REVERSE IDLER 1988-08-01 ~ 1991-07-01; MT; ,	32280-39E24	US $74.16
32282	32282 32280-39E00 GEAR-REVERSE IDLER 1988-08-01 ~ 1991-07-01; MT; ,	32280-39E00	US $74.16
	replacement
32282	32282 32280-39E24 GEAR-REVERSE IDLER 1988-08-01 ~ 1991-07-01; MT; ,	32280-39E24	US $74.16
32285	32285 32269-03E00 RING-SNAP 1988-08-01 ~ 1991-07-01; MT; SELECT T=2.00	32269-03E00	US $2.45
32285	32285 32269-03E01 RING-SNAP 1988-08-01 ~ 1991-07-01; MT; SELECT T=2.05	32269-03E01	US $2.45
32285	32285 32269-03E02 RING-SNAP 1988-08-01 ~ 1991-07-01; MT; SELECT T=2.10	32269-03E02	US $2.45
32285	32285 32269-03E03 RING-SNAP 1988-08-01 ~ 1991-07-01; MT; SELECT T=1.95	32269-03E03	US $2.45
32310M	32310M 32310-41E10 GEAR ASSY-5TH,INPUT SHAFT 1988-08-01 ~ 1991-07-01; MT; ,	32310-41E10	US $162.72
32341	32341 32341-28E00 GEAR-5TH,MAIN 1988-08-01 ~ 1991-07-01; MT; ,	32341-28E00	US $99.65
32544	32544 32617-39E00 RING-BAULK 1988-08-01 ~ 1990-09-01; MT; REV	32617-39E00	US $19.01
32544	32544 32617-79E00 RING-BAULK 1990-09-01 ~ 1991-07-01; MT; REV	32617-79E00	US $19.01
32601A	32601A 32601-38E00 HUB-SYNCHRONIZER,1ST & 2ND 1988-08-01 ~ 1990-09-01; MT; ,	32601-38E00	US $70.27
32601A	32601A 32601-79E00 HUB-SYNCHRONIZER,1ST & 2ND 1990-09-01 ~ 1991-07-01; MT; ,	32601-79E00	US $67.64
32602	32602 32609-03E01 SPRING-SHIFTING INSERT 1988-08-01 ~ 1991-07-01; MT; 3RD & 4TH	32609-03E01	—
	replacement
32602	32602 32609-03E04 SPRING-SHIFTING INSERT 1988-08-01 ~ 1991-07-01; MT; 3RD & 4TH	32609-03E04	US $4.85
32602	32602 32259-03E03 SPRING-SHIFTING INSERT 1988-08-01 ~ 1990-09-01; MT; 1ST & 2ND	32259-03E03	US $1.73
32602	32602 32259-79E00 SPRING-SHIFTING INSERT 1990-09-01 ~ 1991-07-01; MT; 1ST & 2ND	32259-79E00	US $4.03
32602N	32602N 32259-03E03 SPRING-SHIFTING INSERT 1988-08-01 ~ 1990-09-01; MT; 1ST & 2ND	32259-03E03	US $1.73
32602N	32602N 32259-79E00 SPRING-SHIFTING INSERT 1990-09-01 ~ 1991-07-01; MT; 1ST & 2ND	32259-79E00	US $4.03
32604	32604 3260403E15 RING-BAULK 1988-08-01 ~ 1990-09-01; MT; 3RD & 4TH	3260403E15	from US $59.85
32604	32604 32604-79E10 RING-BAULK 1990-09-01 ~ 1991-07-01; MT; 3RD & 4TH	32604-79E10	US $70.27
32604	32604 32607-39E15 RING-BAULK 1988-08-01 ~ 1990-09-01; MT; OD	32607-39E15	US $64.51
32604	32604 32607-39E16 RING-BAULK 1990-09-01 ~ 1991-07-01; MT; OD	32607-39E16	US $64.51
32604	32604 32607-38E05 RING-BAULK 1988-08-01 ~ 1990-09-01; MT; 1ST	32607-38E05	US $48.67
	replacement
32604	32604 32607-38E60 RING-BAULK 1988-08-01 ~ 1990-09-01; MT; 1ST	32607-38E60	US $48.67
32604	32604 32607-80S00 Ring-Baulk 1990-09-01 ~ 1991-07-01; MT; 1ST	32607-80S00	US $32.26
32604	32604 32604-79E00 RING-BAULK 1990-09-01 ~ 1991-07-01; MT; 2ND	32604-79E00	US $53.71
32604	32604 32607-38E15 RING-BAULK 1988-08-01 ~ 1990-09-01; MT; 2ND	32607-38E15	—
	replacements
32604	32604 3260758S80 Ring-Baulk 1988-08-01 ~ 1990-09-01; MT; 2ND	3260758S80	from US $45.88
32604	32604 3260780S60 Ring-Baulk 1988-08-01 ~ 1990-09-01; MT; 2ND	3260780S60	from US $45.88
32604	32604 32259-79E20 SPRING-SHIFTING INSERT 1988-08-01 ~ 1990-09-01; MT; 2ND	32259-79E20	US $4.42
32604	32604 32601-79E00 HUB-SYNCHRONIZER,1ST & 2ND 1988-08-01 ~ 1990-09-01; MT; 2ND	32601-79E00	US $67.64
32604	32604 3260403E15 RING-BAULK 1988-08-01 ~ 1990-09-01; MT; 3RD & 4TH	3260403E15	from US $59.85
32604	32604 32604-79E10 RING-BAULK 1990-09-01 ~ 1991-07-01; MT; 3RD & 4TH	32604-79E10	US $70.27
32604	32604 32607-39E15 RING-BAULK 1988-08-01 ~ 1990-09-01; MT; OD	32607-39E15	US $64.51
32604	32604 32607-39E16 RING-BAULK 1990-09-01 ~ 1991-07-01; MT; OD	32607-39E16	US $64.51
32604	32604 32607-38E05 RING-BAULK 1988-08-01 ~ 1990-09-01; MT; 1ST	32607-38E05	US $48.67
	replacement
32604	32604 32607-38E60 RING-BAULK 1988-08-01 ~ 1990-09-01; MT; 1ST	32607-38E60	US $48.67
32604	32604 32607-80S00 Ring-Baulk 1990-09-01 ~ 1991-07-01; MT; 1ST	32607-80S00	US $32.26
32604	32604 32604-79E00 RING-BAULK 1990-09-01 ~ 1991-07-01; MT; 2ND	32604-79E00	US $53.71
32604	32604 32607-38E15 RING-BAULK 1988-08-01 ~ 1990-09-01; MT; 2ND	32607-38E15	—
	replacements
32604	32604 3260758S80 Ring-Baulk 1988-08-01 ~ 1990-09-01; MT; 2ND	3260758S80	from US $45.88
32604	32604 3260780S60 Ring-Baulk 1988-08-01 ~ 1990-09-01; MT; 2ND	3260780S60	from US $45.88
32604	32604 32259-79E20 SPRING-SHIFTING INSERT 1988-08-01 ~ 1990-09-01; MT; 2ND	32259-79E20	US $4.42
32604	32604 32601-79E00 HUB-SYNCHRONIZER,1ST & 2ND 1988-08-01 ~ 1990-09-01; MT; 2ND	32601-79E00	US $67.64
32604+A	32604+A 32607-39E15 RING-BAULK 1988-08-01 ~ 1990-09-01; MT; OD	32607-39E15	US $64.51
32604+A	32604+A 32607-39E16 RING-BAULK 1990-09-01 ~ 1991-07-01; MT; OD	32607-39E16	US $64.51
32604M	32604M 32607-38E05 RING-BAULK 1988-08-01 ~ 1990-09-01; MT; 1ST	32607-38E05	US $48.67
	replacement
32604M	32604M 32607-38E60 RING-BAULK 1988-08-01 ~ 1990-09-01; MT; 1ST	32607-38E60	US $48.67
32604M	32604M 32607-80S00 Ring-Baulk 1990-09-01 ~ 1991-07-01; MT; 1ST	32607-80S00	US $32.26
32604M	32604M 32604-79E00 RING-BAULK 1990-09-01 ~ 1991-07-01; MT; 2ND	32604-79E00	US $53.71
32604M	32604M 32607-38E15 RING-BAULK 1988-08-01 ~ 1990-09-01; MT; 2ND	32607-38E15	—
	replacements
32604M	32604M 3260758S80 Ring-Baulk 1988-08-01 ~ 1990-09-01; MT; 2ND	3260758S80	from US $45.88
32604M	32604M 3260780S60 Ring-Baulk 1988-08-01 ~ 1990-09-01; MT; 2ND	3260780S60	from US $45.88
32604M	32604M 32259-79E20 SPRING-SHIFTING INSERT 1988-08-01 ~ 1990-09-01; MT; 2ND	32259-79E20	US $4.42
32604M	32604M 32601-79E00 HUB-SYNCHRONIZER,1ST & 2ND 1988-08-01 ~ 1990-09-01; MT; 2ND	32601-79E00	US $67.64
32604MA	32604MA 32604-79E00 RING-BAULK 1990-09-01 ~ 1991-07-01; MT; 2ND	32604-79E00	US $53.71
32604MA	32604MA 32607-38E15 RING-BAULK 1988-08-01 ~ 1990-09-01; MT; 2ND	32607-38E15	—
	replacements
32604MA	32604MA 3260758S80 Ring-Baulk 1988-08-01 ~ 1990-09-01; MT; 2ND	3260758S80	from US $45.88
32604MA	32604MA 3260780S60 Ring-Baulk 1988-08-01 ~ 1990-09-01; MT; 2ND	3260780S60	from US $45.88
32604MA	32604MA 32259-79E20 SPRING-SHIFTING INSERT 1988-08-01 ~ 1990-09-01; MT; 2ND	32259-79E20	US $4.42
32604MA	32604MA 32601-79E00 HUB-SYNCHRONIZER,1ST & 2ND 1988-08-01 ~ 1990-09-01; MT; 2ND	32601-79E00	US $67.64
32605	32605 32605-03E15 HUB-SYNCHRONIZER 1988-08-01 ~ 1991-07-01; MT; 3RD & 4TH	32605-03E15	US $70.27
32605	32605 32344-39E15 HUB-SYNCHRONIZER,5TH 1988-08-01 ~ 1991-07-01; MT; ,	32344-39E15	US $54.86
32605C	32605C 32344-39E15 HUB-SYNCHRONIZER,5TH 1988-08-01 ~ 1991-07-01; MT; ,	32344-39E15	US $54.86
32606	32606 32606-01B00 Sleeve-Coupling 1990-09-01 ~ 1991-07-01; MT; OD-REV	32606-01B00	US $46.51
	replacement
32606	32606 32606-01B05 Sleeve-Coupling 1990-09-01 ~ 1991-07-01; MT; OD-REV	32606-01B05	US $46.51
32606	32606 32606-03E10 SLEEVE-COUPLING 1988-08-01 ~ 1990-09-01; MT; 3RD & 4TH	32606-03E10	US $105.55
32606	32606 32606-01B00 Sleeve-Coupling 1988-08-01 ~ 1990-09-01; MT; OD-REV	32606-01B00	US $46.51
	replacement
32606	32606 32606-01B05 Sleeve-Coupling 1988-08-01 ~ 1990-09-01; MT; OD-REV	32606-01B05	US $46.51
32606	32606 32606-03E10 SLEEVE-COUPLING 1990-09-01 ~ 1991-07-01; MT; 3RD & 4TH	32606-03E10	US $105.55
32606+A	32606+A 32606-01B00 Sleeve-Coupling 1988-08-01 ~ 1990-09-01; MT; OD-REV	32606-01B00	US $46.51
	replacement
32606+A	32606+A 32606-01B05 Sleeve-Coupling 1988-08-01 ~ 1990-09-01; MT; OD-REV	32606-01B05	US $46.51
32606+A	32606+A 32606-03E10 SLEEVE-COUPLING 1990-09-01 ~ 1991-07-01; MT; 3RD & 4TH	32606-03E10	US $105.55
32608	32608 32609-39E10 INSERT-SHIFTING 1988-08-01 ~ 1990-09-01; MT; OD-REV	32609-39E10	US $0.86
32608	32608 32609-79E00 INSERT-SHIFTING 1990-09-01 ~ 1991-07-01; MT; OD-REV	32609-79E00	US $4.03
32615N	32615N 32234-39E10 CONE-SYNCHRONIZER,REVERSE 1988-08-01 ~ 1991-07-01; MT; ,	32234-39E10	US $16.85

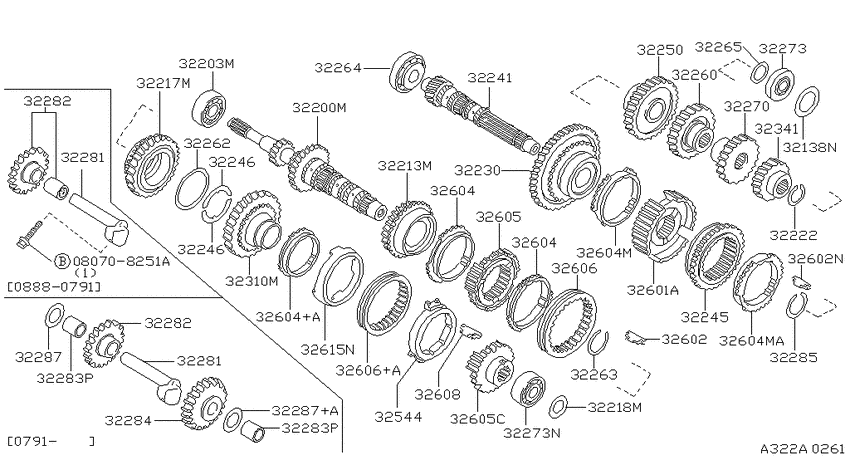

Transmission gear (1988-08-01 ~ 1991-07-01; RS5F50A/V; MT) Diagram Nissan MAXIMA U.S.A. 2302793-182113

Transmission gear (1988-08-01 ~ 1991-07-01; RS5F50A/V; MT) Diagram Nissan MAXIMA U.S.A. 2302793-182113
