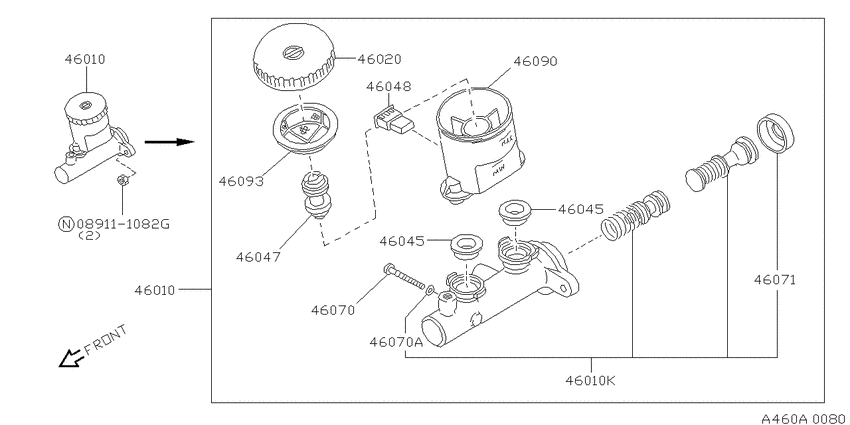

Brake master cylinder (1988-10-01 ~ 1991-08-01; VG30E) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- Japan
- Engine
- VG30E
- transmission
- AT
- grade
- 1/2/SESV
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
46010
|
46010
46010-88E20 CYLINDER ASSY-BRAKE MASTER8810--01 ~ 9108--01; VG30E; ﾅﾌﾞｺ 1 |
46010-88E20 |
US $403.56 |
||
|
46010
|
46010
46011-1E025 PISTON KIT-TANDEM BRAKE MASTER CYLINDER9103--01 ~ 9108--01; VG30E; ﾅﾌﾞｺ 1 |
46011-1E025 |
US $121.82 |
||
|
46010
|
46010
46011-88E25
PISTON KIT-TANDEM BRAKE MASTER CYLINDER
8810--01 ~ 9103--01; VG30E; ﾅﾌﾞｺ 1 |
46011-88E25 |
— | ||
|
46010
|
46010
46010-88E20 CYLINDER ASSY-BRAKE MASTER8810--01 ~ 9108--01; VG30E; ﾅﾌﾞｺ 1 |
46010-88E20 |
US $403.56 |
||
|
46010
|
46010
46011-1E025 PISTON KIT-TANDEM BRAKE MASTER CYLINDER9103--01 ~ 9108--01; VG30E; ﾅﾌﾞｺ 1 |
46011-1E025 |
US $121.82 |
||
|
46010
|
46010
46011-88E25
PISTON KIT-TANDEM BRAKE MASTER CYLINDER
8810--01 ~ 9103--01; VG30E; ﾅﾌﾞｺ 1 |
46011-88E25 |
— | ||
|
46010K
|
46010K
46011-1E025 PISTON KIT-TANDEM BRAKE MASTER CYLINDER9103--01 ~ 9108--01; VG30E; ﾅﾌﾞｺ 1 |
46011-1E025 |
US $121.82 |
||
|
46010K
|
46010K
46011-88E25
PISTON KIT-TANDEM BRAKE MASTER CYLINDER
8810--01 ~ 9103--01; VG30E; ﾅﾌﾞｺ 1 |
46011-88E25 |
— | ||
|
46020
|
46020
4602058E21 CAP ASSY-OIL RESERVOIR TANK8810--01 ~ 9108--01; VG30E; ﾅﾌﾞｺ |
4602058E21 |
US $19.82 |
||
|
46045
|
46045
46045W1300 Seal-Reservoir Tank8810--01 ~ 9108--01; VG30E; ﾅﾌﾞｺ |
46045W1300 |
US $5.42 |
||
|
46045
|
46045
46045W1300 Seal-Reservoir Tank8810--01 ~ 9108--01; VG30E; ﾅﾌﾞｺ |
46045W1300 |
US $5.42 |
||
|
46047
|
46047
4604701F00 Float-Reservoir Tank8810--01 ~ 9108--01; VG30E; ﾅﾌﾞｺ |
4604701F00 |
US $6.51 |
||
|
46048
|
46048
4604801F00 Indicator Assy-Level8810--01 ~ 9108--01; VG30E; ﾅﾌﾞｺ |
4604801F00 |
US $38.12 |
||
|
46070
|
46070
46032-58E20 SCREW-STOPPER8810--01 ~ 9108--01; VG30E; ﾅﾌﾞｺ |
46032-58E20 |
US $4.18 |
||
|
46070
|
46070
46079-W1300 Packing-Stopper Screw8810--01 ~ 9108--01; VG30E; ﾅﾌﾞｺ |
46079-W1300 |
US $2.45 |
||
|
46070A
|
46070A
46079-W1300 Packing-Stopper Screw8810--01 ~ 9108--01; VG30E; ﾅﾌﾞｺ |
46079-W1300 |
US $2.45 |
||
|
46071
|
46071
46082-R9000 Ring-Snap8810--01 ~ 9108--01; VG30E; ﾅﾌﾞｺ |
46082-R9000 |
US $3.17 |
||
| replacement | |||||
|
46071
|
46071
46082R900A Retainer-Piston8810--01 ~ 9108--01; VG30E; ﾅﾌﾞｺ |
46082R900A |
US $2.64 |
||
|
46090
|
46090
46091-51E20 TANK-OIL RESERVOIR8810--01 ~ 9108--01; VG30E; ﾅﾌﾞｺ |
46091-51E20 |
US $29.95 |
||
|
46093
|
46093
4609301F00 Strainer-Brake Oil8810--01 ~ 9108--01; VG30E; ﾅﾌﾞｺ |
4609301F00 |
US $14.83 |
||
