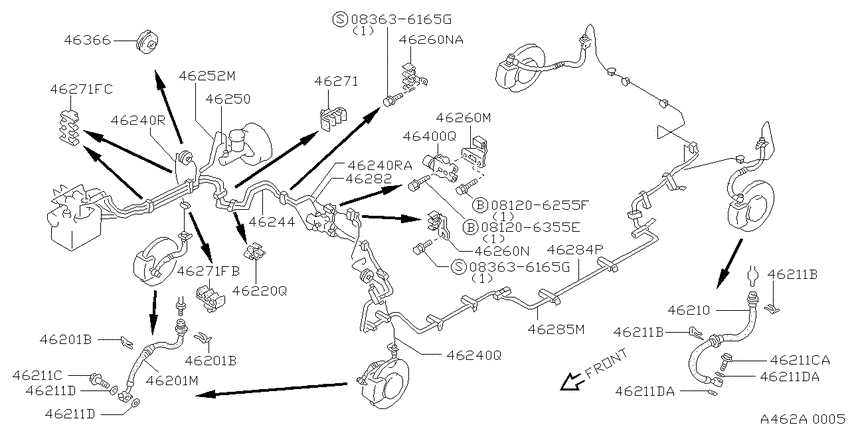

Brake piping & control (1988-10-01 ~ 1991-08-01; S) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- Japan
- Engine
- VG30E
- transmission
- AT
- grade
- 1/2/SESV
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081206255F
|
081206255F
081206255F
Bolt-hexagon
|
081206255F |
— | ||
|
081206355E
|
081206355E
08120-6355E
Bolt-hexagon
|
08120-6355E |
— | ||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
083636165G
|
083636165G
083636165G Bolt |
083636165G |
from US $0.50 |
||
|
46201B
|
46201B
46206M0200 Spring-Lock8810--01 ~ 9108--01; S |
46206M0200 |
from US $0.74 |
||
|
46201B
|
46201B
46206M0200 Spring-Lock8810--01 ~ 9108--01; S |
46206M0200 |
from US $0.74 |
||
|
46201M
|
46201M
46210-85E00 HOSE ASSY-BRAKE,FRONT8810--01 ~ 9108--01; S; ﾋﾀﾁ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46210-85E00 |
US $33.70 |
||
|
46201M
|
46201M
46210-85E10 HOSE ASSY-BRAKE,FRONT8810--01 ~ 9108--01; S; ﾆﾁﾘﾝ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46210-85E10 |
US $33.70 |
||
|
46210
|
46210
46210-56E00 HOSE ASSY-BRAKE,REAR8810--01 ~ 9108--01; S; ﾋﾀﾁ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46210-56E00 |
US $23.04 |
||
|
46210
|
46210
46210-56E10 HOSE ASSY-BRAKE,REAR8810--01 ~ 9108--01; S; ﾆﾁﾘﾝ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46210-56E10 |
US $20.88 |
||
|
46211B
|
46211B
46206M0200 Spring-Lock8810--01 ~ 9108--01; S |
46206M0200 |
from US $0.74 |
||
|
46211B
|
46211B
46206M0200 Spring-Lock8810--01 ~ 9108--01; S |
46206M0200 |
from US $0.74 |
||
|
46211C
|
46211C
46356-01E01
BOLT-UNION,FRONT BRAKE HOSE
8810--01 ~ 9108--01; S |
46356-01E01 |
— | ||
| replacement | |||||
|
46211C
|
46211C
463560E00A Bolt-Union, Front Brake Hose8810--01 ~ 9108--01; S |
463560E00A |
from US $1.52 |
||
|
46211C
|
46211C
46356-01E01
BOLT-UNION,FRONT BRAKE HOSE
8810--01 ~ 9108--01; S |
46356-01E01 |
— | ||
| replacement | |||||
|
46211C
|
46211C
463560E00A Bolt-Union, Front Brake Hose8810--01 ~ 9108--01; S |
463560E00A |
from US $1.52 |
||
|
46211CA
|
46211CA
46356-01E01
BOLT-UNION,FRONT BRAKE HOSE
8810--01 ~ 9108--01; S |
46356-01E01 |
— | ||
| replacement | |||||
|
46211CA
|
46211CA
463560E00A Bolt-Union, Front Brake Hose8810--01 ~ 9108--01; S |
463560E00A |
from US $1.52 |
||
|
46211D
|
46211D
46237A4600 Gasket-Clutch Hose8810--01 ~ 9108--01; S |
46237A4600 |
from US $0.35 |
||
|
46211D
|
46211D
46237A4600 Gasket-Clutch Hose8810--01 ~ 9108--01; S |
46237A4600 |
from US $0.35 |
||
|
46211D
|
46211D
46237A4600 Gasket-Clutch Hose8810--01 ~ 9108--01; S |
46237A4600 |
from US $0.35 |
||
|
46211D
|
46211D
46237A4600 Gasket-Clutch Hose8810--01 ~ 9108--01; S |
46237A4600 |
from US $0.35 |
||
|
46211DA
|
46211DA
46237A4600 Gasket-Clutch Hose8810--01 ~ 9108--01; S |
46237A4600 |
from US $0.35 |
||
|
46211DA
|
46211DA
46237A4600 Gasket-Clutch Hose8810--01 ~ 9108--01; S |
46237A4600 |
from US $0.35 |
||
|
46220Q
|
46220Q
0156100241 CLAMP8810--01 ~ 9108--01; S |
0156100241 |
from US $0.57 |
||
|
46240Q
|
46240Q
46244-90E00 TUBE ASSY-BRAKE,M/CYLINDER TO FRONT RH8810--01 ~ 9108--01; S |
46244-90E00 |
US $28.80 |
||
|
46240R
|
46240R
46240-90E00 TUBE ASSY-BRAKE,ACTUATOR TO FRONT RH8810--01 ~ 9108--01; S |
46240-90E00 |
US $28.80 |
||
|
46240R
|
46240R
46242-90E00 TUBE ASSY-BRAKE,ACTUATOR TO FRONT RH8810--01 ~ 9108--01; S |
46242-90E00 |
US $28.80 |
||
|
46240RA
|
46240RA
46242-90E00 TUBE ASSY-BRAKE,ACTUATOR TO FRONT RH8810--01 ~ 9108--01; S |
46242-90E00 |
US $28.80 |
||
|
46244
|
46244
46283-90E00 TUBE ASSY-BRAKE,FRONT8810--01 ~ 9108--01; VG30E |
46283-90E00 |
US $24.62 |
||
|
46250
|
46250
46250-90E00 TUBE ASSY-BRAKE,FRONT MASTER CYLINDER8810--01 ~ 9108--01; S |
46250-90E00 |
US $24.62 |
||
|
46252M
|
46252M
46252-90E00 TUBE ASSY-BRAKE,REAR MASTER CYLINDER8810--01 ~ 9108--01; S |
46252-90E00 |
US $24.62 |
||
|
46260M
|
46260M
46260-56E00 BRACKET-BRAKE CONNECTOR8810--01 ~ 9108--01; S |
46260-56E00 |
US $10.51 |
||
|
46260N
|
46260N
46260-51E00 BRACKET-BRAKE TUBE8810--01 ~ 9108--01; S |
46260-51E00 |
US $5.04 |
||
|
46260N
|
46260N
46260-50A00 Bracket-Front Brake Hose8810--01 ~ 9108--01; S |
46260-50A00 |
US $5.04 |
||
|
46260NA
|
46260NA
46260-50A00 Bracket-Front Brake Hose8810--01 ~ 9108--01; S |
46260-50A00 |
US $5.04 |
||
|
46271
|
46271
46271-01E02
CLIP-TUBE,BRAKE
8810--01 ~ 9108--01; S |
46271-01E02 |
— | ||
| replacement | |||||
|
46271
|
46271
46271-32R00 Clip-Tube, Brake8810--01 ~ 9108--01; S |
46271-32R00 |
US $4.30 |
||
|
46271
|
46271
46271-01B10
Clip
8810--01 ~ 9108--01; S |
46271-01B10 |
— | ||
| replacement | |||||
|
46271
|
46271
46271-01E00 CLAMP-BRAKE TUBE8810--01 ~ 9108--01; S |
46271-01E00 |
US $1.67 |
||
|
46271
|
46271
46271-08W10 Clamp-Brake Tube8810--01 ~ 9108--01; S |
46271-08W10 |
US $1.67 |
||
|
46271
|
46271
46271-01B00
Clamp
8810--01 ~ 9108--01; S |
46271-01B00 |
— | ||
| replacement | |||||
|
46271
|
46271
46271W1601 Clip-Tube, Clutch8810--01 ~ 9108--01; S |
46271W1601 |
from US $3.66 |
||
|
46271
|
46271
4627101E01 CLAMP-BRAKE TUBE8810--01 ~ 9108--01; S |
4627101E01 |
US $2.91 |
||
|
46271
|
46271
46271-56E01 CLAMP-BRAKE TUBE8810--01 ~ 9108--01; S |
46271-56E01 |
US $5.04 |
||
|
46271FB
|
46271FB
4627101E01 CLAMP-BRAKE TUBE8810--01 ~ 9108--01; S |
4627101E01 |
US $2.91 |
||
|
46271FC
|
46271FC
46271-56E01 CLAMP-BRAKE TUBE8810--01 ~ 9108--01; S |
46271-56E01 |
US $5.04 |
||
|
46282
|
46282
46282-90E00 TUBE ASSY-BRAKE,REAR8810--01 ~ 9108--01; S |
46282-90E00 |
US $24.62 |
||
|
46284P
|
46284P
46284-85E05 TUBE ASSY-BRAKE REAR RH8810--01 ~ 9108--01; S |
46284-85E05 |
US $45.07 |
||
|
46285M
|
46285M
46285-85E05 TUBE ASSY-BRAKE,REAR8810--01 ~ 9108--01; S |
46285-85E05 |
US $24.62 |
||
|
46366
|
46366
46366H5001 Grommet8810--01 ~ 9108--01; S |
46366H5001 |
US $2.88 |
||
|
46400Q
|
46400Q
46400-58E00 VALVE ASSY-DUAL PROPORTIONING8810--01 ~ 9108--01; S |
46400-58E00 |
US $260.64 |
||
