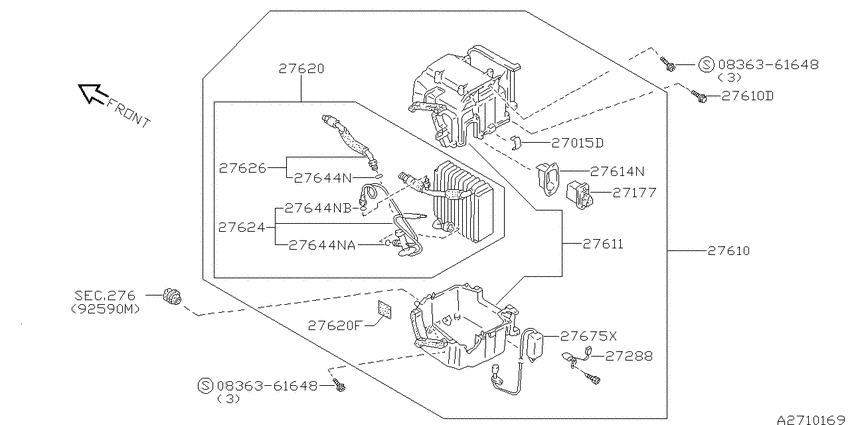

Cooling unit (1988-10-01 ~ 1991-08-01; S) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- Japan
- Engine
- VG30E
- transmission
- AT
- grade
- 1/2/SESV
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836361648
|
0836361648
08363-61648
SCREW
|
08363-61648 |
— | ||
| replacement | |||||
|
0836361648
|
0836361648
083636162H SCREWMACHINE |
083636162H |
US $2.21 |
||
|
0836361648
|
0836361648
08363-61648
SCREW
|
08363-61648 |
— | ||
| replacement | |||||
|
0836361648
|
0836361648
083636162H SCREWMACHINE |
083636162H |
US $2.21 |
||
|
27015D
|
27015D
21476-B0100
Clip-Cooler Case
8810--01 ~ 9108--01; S |
21476-B0100 |
— | ||
| replacement | |||||
|
27015D
|
27015D
21476-C5500 Clip8810--01 ~ 9108--01; S |
21476-C5500 |
from US $3.07 |
||
|
27177
|
27177
27761-71L00 Amplifier Assy-Fan Control8810--01 ~ 9104--01; S |
27761-71L00 |
US $154.08 |
||
| replacement | |||||
|
27177
|
27177
2776171L01 Amplifier Assy-Fan Control8810--01 ~ 9104--01; S |
2776171L01 |
US $168.48 |
||
|
27177
|
27177
2776171L01 Amplifier Assy-Fan Control9104--01 ~ 9108--01; S |
2776171L01 |
US $168.48 |
||
|
27288
|
27288
27724-93E00 SENSOR ASSY-EVAPORATOR8810--01 ~ 9108--01; S |
27724-93E00 |
US $46.80 |
||
|
276
|
air conditioner (engine room)
276
|
||||
|
276
|
air conditioner (engine room)
276
|
||||
|
27610
|
27610
27270-88E00 COOLING UNIT ASSY8810--01 ~ 9010--01; S; [B517] |
27270-88E00 |
US $989.78 |
||
|
27610
|
27610
27270-88E01 COOLING UNIT ASSY9010--01 ~ 9108--01; S; [B517] |
27270-88E01 |
US $989.78 |
||
|
27610
|
27610
01456-00421 SCREW8810--01 ~ 9108--01; S |
01456-00421 |
from US $0.57 |
||
|
27610D
|
27610D
01456-00421 SCREW8810--01 ~ 9108--01; S |
01456-00421 |
from US $0.57 |
||
|
27611
|
27611
27284-88E00 CASE ASSY-COOLING UNIT8810--01 ~ 9106--01; S |
27284-88E00 |
US $98.21 |
||
|
27611
|
27611
27284-91E00 CASE ASSY-COOLING UNIT9106--01 ~ 9108--01; S |
27284-91E00 |
US $372.41 |
||
|
27614N
|
27614N
27152-51E00 BRACKET-RESISTOR8810--01 ~ 9108--01; S |
27152-51E00 |
US $13.25 |
||
|
27620
|
27620
27280-51E00 EVAPORATOR ASSY-COOLER8810--01 ~ 9010--01; S |
27280-51E00 |
US $750.48 |
||
|
27620
|
27620
27280-51E03 EVAPORATOR ASSY-COOLER9010--01 ~ 9108--01; S |
27280-51E03 |
US $750.48 |
||
|
27620
|
27620
B7755-02A65 Insulator8810--01 ~ 9108--01; S |
B7755-02A65 |
US $2.45 |
||
|
27620F
|
27620F
B7755-02A65 Insulator8810--01 ~ 9108--01; S |
B7755-02A65 |
US $2.45 |
||
|
27624
|
27624
92200-51E00 VALVE ASSY-EXPANSION8810--01 ~ 9108--01; S |
92200-51E00 |
US $129.46 |
||
|
27626
|
27626
2728351E00 TUBE-EVAPORATOR INLET8810--01 ~ 9108--01; S |
2728351E00 |
US $46.80 |
||
|
27644N
|
27644N
92470-N8200
O Ring
8810--01 ~ 9108--01; S; D=8[B421] |
92470-N8200 |
— | ||
| replacement | |||||
|
27644N
|
27644N
92470N8210 O Ring8810--01 ~ 9108--01; S; D=8[B421] |
92470N8210 |
from US $0.98 |
||
|
27644N
|
27644N
92471N8200 O Ring8810--01 ~ 9108--01; S |
92471N8200 |
US $1.13 |
||
|
27644N
|
27644N
92472N8200 Seal-O Ring8810--01 ~ 9108--01; S |
92472N8200 |
US $1.13 |
||
|
27644NA
|
27644NA
92471N8200 O Ring8810--01 ~ 9108--01; S |
92471N8200 |
US $1.13 |
||
|
27644NB
|
27644NB
92472N8200 Seal-O Ring8810--01 ~ 9108--01; S |
92472N8200 |
US $1.13 |
||
|
27675X
|
27675X
27675-51E00 AMPLIFIER-THERMO8810--01 ~ 9108--01; S |
27675-51E00 |
US $80.93 |
||
