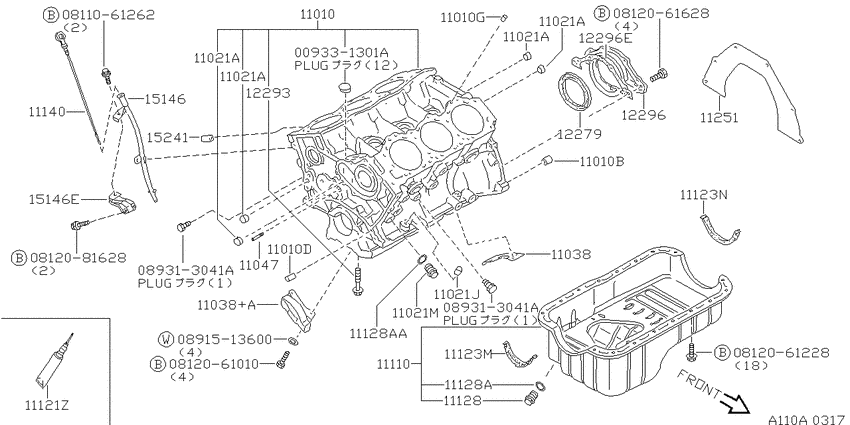

Cylinder block & oil pan (1988-10-01 ~ 1991-08-01; VG30E) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- Japan
- Engine
- VG30E
- transmission
- AT
- grade
- 1/2/SESV
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009331301A
|
009331301A
009331301A Plug-Welch |
009331301A |
from US $1.15 |
||
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0812061010
|
0812061010
0812061010
Bolt-hexagon
|
0812061010 |
— | ||
|
0812061228
|
0812061228
0812061228 Bolt-hexagon |
0812061228 |
from US $2.21 |
||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
0812081628
|
0812081628
08120-81628
Bolt-hexagon
|
08120-81628 |
— | ||
| replacement | |||||
|
0812081628
|
0812081628
081208161E Bolt-hexagon |
081208161E |
from US $0.59 |
||
|
0891513600
|
0891513600
08915-13600
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13600 |
— | ||
|
089313041A
|
089313041A
089313041A
Plug-Drain
|
089313041A |
— | ||
|
089313041A
|
089313041A
089313041A
Plug-Drain
|
089313041A |
— | ||
|
11010
|
11010
11000-85E00 BLOCK ASSY-CYLINDER9009--01 ~ 9108--01; VG30E |
11000-85E00 |
US $2,912 |
||
| replacement | |||||
|
11010
|
11010
11000-85E01 BLOCK ASSY-CYLINDER9009--01 ~ 9108--01; VG30E |
11000-85E01 |
US $2,170 |
||
|
11010
|
11010
11010-85E80 BLOCK ASSY-CYLINDER8810--01 ~ 9009--01; VG30E |
11010-85E80 |
US $2,898 |
||
| replacement | |||||
|
11010
|
11010
11000-85E01 BLOCK ASSY-CYLINDER8810--01 ~ 9009--01; VG30E |
11000-85E01 |
US $2,170 |
||
|
11010
|
11010
1102221000 Dowel-Block To Transmission8810--01 ~ 9108--01; VG30E |
1102221000 |
from US $0.59 |
||
|
11010
|
11010
1104673402 Dowel-Water Pump8810--01 ~ 9108--01; VG30E |
1104673402 |
from US $0.54 |
||
|
11010
|
11010
1102210V00 Dowel-Block To Oil Pump8810--01 ~ 9108--01; VG30E |
1102210V00 |
from US $0.80 |
||
|
11010B
|
11010B
1102221000 Dowel-Block To Transmission8810--01 ~ 9108--01; VG30E |
1102221000 |
from US $0.59 |
||
|
11010D
|
11010D
1104673402 Dowel-Water Pump8810--01 ~ 9108--01; VG30E |
1104673402 |
from US $0.54 |
||
|
11010G
|
11010G
1102210V00 Dowel-Block To Oil Pump8810--01 ~ 9108--01; VG30E |
1102210V00 |
from US $0.80 |
||
|
11021A
|
11021A
11024K0100 Plug-Taper8810--01 ~ 9108--01; VG30E |
11024K0100 |
from US $0.52 |
||
|
11021A
|
11021A
11024K0100 Plug-Taper8810--01 ~ 9108--01; VG30E |
11024K0100 |
from US $0.52 |
||
|
11021A
|
11021A
11024K0100 Plug-Taper8810--01 ~ 9108--01; VG30E |
11024K0100 |
from US $0.52 |
||
|
11021A
|
11021A
11024K0100 Plug-Taper8810--01 ~ 9108--01; VG30E |
11024K0100 |
from US $0.52 |
||
|
11021J
|
11021J
11022-U6700 Plug-Taper, Level Gauge8810--01 ~ 9108--01; VG30E |
11022-U6700 |
US $3.06 |
||
|
11021M
|
11021M
11128-01M00 Plug-Drain8810--01 ~ 9108--01; VG30E |
11128-01M00 |
US $1.87 |
||
| replacement | |||||
|
11021M
|
11021M
1112801M0B Plug-Drain8810--01 ~ 9108--01; VG30E |
1112801M0B |
from US $2.50 |
||
|
11038
|
11038
11038-V5001 Plate-Baffle, Crank Case8810--01 ~ 9108--01; VG30E |
11038-V5001 |
US $4.03 |
||
|
11038
|
11038
11038-V5011 Plate-Baffle, Crank Case8810--01 ~ 9108--01; VG30E |
11038-V5011 |
US $4.03 |
||
|
11038+A
|
11038+A
11038-V5011 Plate-Baffle, Crank Case8810--01 ~ 9108--01; VG30E |
11038-V5011 |
US $4.03 |
||
|
11047
|
11047
11047-E3000 Jet-Oil, Cylinder Head8810--01 ~ 9108--01; VG30E |
11047-E3000 |
from US $0.59 |
||
|
11110
|
11110
11110-85E00 PAN ASSY-OIL8810--01 ~ 9108--01; VG30E |
11110-85E00 |
US $205.92 |
||
|
11121Z
|
11121Z
KP510-00150 Gasket-Liquid8810--01 ~ 9108--01; VG30E; [K504] |
KP510-00150 |
US $29.51 |
||
|
11123M
|
11123M
11121-22P00 Seal-Oil Pan, Front8810--01 ~ 9108--01; VG30E |
11121-22P00 |
US $7.92 |
||
|
11123N
|
11123N
11121-F6505 Seal-Oil Pan, Rear8810--01 ~ 9108--01; VG30E |
11121-F6505 |
US $7.92 |
||
|
11128
|
11128
11128-01M00 Plug-Drain8810--01 ~ 9108--01; VG30E |
11128-01M00 |
US $1.87 |
||
| replacement | |||||
|
11128
|
11128
1112801M0B Plug-Drain8810--01 ~ 9108--01; VG30E |
1112801M0B |
from US $2.50 |
||
|
11128
|
11128
1102601M02 Washer-Drain Plug8810--01 ~ 9108--01; VG30E |
1102601M02 |
from US $0.91 |
||
|
11128
|
11128
1102601M02 Washer-Drain Plug8810--01 ~ 9108--01; VG30E |
1102601M02 |
from US $0.91 |
||
|
11128A
|
11128A
1102601M02 Washer-Drain Plug8810--01 ~ 9108--01; VG30E |
1102601M02 |
from US $0.91 |
||
|
11128A
|
11128A
1102601M02 Washer-Drain Plug8810--01 ~ 9108--01; VG30E |
1102601M02 |
from US $0.91 |
||
|
11128AA
|
11128AA
1102601M02 Washer-Drain Plug8810--01 ~ 9108--01; VG30E |
1102601M02 |
from US $0.91 |
||
|
11140
|
11140
11140-85E00 Gauge-Oil Level8810--01 ~ 9108--01; VG30E |
11140-85E00 |
US $24.05 |
||
|
11251
|
11251
30411-16E10 PLATE-ENGINE,REAR8810--01 ~ 9108--01; VG30E |
30411-16E10 |
US $52.70 |
||
|
12279
|
12279
12279-18V00 Seal-Oil, Crankshaft Rear8902--01 ~ 9108--01; VG30E |
12279-18V00 |
US $21.74 |
||
| replacement | |||||
|
12279
|
12279
12279AD205 Seal-Oil, Crankshaft Rear8902--01 ~ 9108--01; VG30E |
12279AD205 |
from US $17.71 |
||
|
12279
|
12279
12279-D0100 Seal-Oil, Crankshaft Rear8810--01 ~ 8902--01; VG30E |
12279-D0100 |
US $28.94 |
||
| replacement | |||||
|
12279
|
12279
12279AD205 Seal-Oil, Crankshaft Rear8810--01 ~ 8902--01; VG30E |
12279AD205 |
from US $17.71 |
||
|
12279
|
12279
13510-V5000
Seal-Oil, Crankshaft Front
8810--01 ~ 9108--01; VG30E |
13510-V5000 |
— | ||
| replacement | |||||
|
12279
|
12279
1351088G00 Seal-Oil, Crankshaft Front8810--01 ~ 9108--01; VG30E |
1351088G00 |
from US $5.26 |
||
|
12293
|
12293
12293-V5200 Bolt-Main Bearing Cap8810--01 ~ 9108--01; VG30E |
12293-V5200 |
US $3.31 |
||
|
12296
|
12296
12297F6500 Retainer-Oil Seal, Rear8810--01 ~ 9108--01; VG30E |
12297F6500 |
from US $16.13 |
||
|
12296
|
12296
1229889E00 GASKET-RETAINER9001--01 ~ 9108--01; VG30E |
1229889E00 |
from US $3.31 |
||
|
12296
|
12296
12298-V5000 Gasket-Retainer8810--01 ~ 9001--01; VG30E |
12298-V5000 |
US $3.46 |
||
|
12296E
|
12296E
1229889E00 GASKET-RETAINER9001--01 ~ 9108--01; VG30E |
1229889E00 |
from US $3.31 |
||
|
12296E
|
12296E
12298-V5000 Gasket-Retainer8810--01 ~ 9001--01; VG30E |
12298-V5000 |
US $3.46 |
||
|
15146
|
15146
11150-85E01 Guide-Oil Level Gauge8810--01 ~ 9108--01; VG30E |
11150-85E01 |
US $34.27 |
||
|
15146
|
15146
11155-85E00 SUPPORT ASSY-OIL LEVEL GAUGE8810--01 ~ 9108--01; VG30E |
11155-85E00 |
US $22.18 |
||
|
15146E
|
15146E
11155-85E00 SUPPORT ASSY-OIL LEVEL GAUGE8810--01 ~ 9108--01; VG30E |
11155-85E00 |
US $22.18 |
||
|
15241
|
15241
15241-16A01 Valve Assy-Regulator8810--01 ~ 9108--01; VG30E |
15241-16A01 |
US $6.19 |
||
