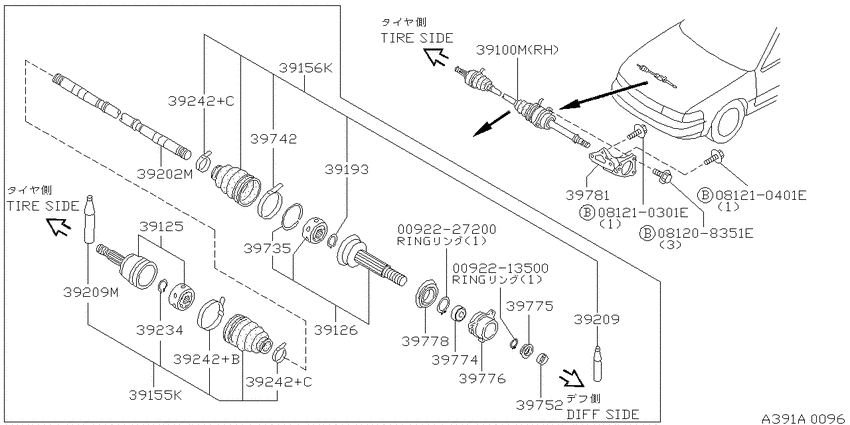

Front drive shaft (ff) (1988-10-01 ~ 1991-08-01; 右; VG30E) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- Japan
- Engine
- VG30E
- transmission
- AT
- grade
- 1/2/SESV
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092213500
|
0092213500
00922-13500
RING-SNAP
|
00922-13500 |
— | ||
|
0092227200
|
0092227200
00922-27200 RINGSNAP |
00922-27200 |
US $4.13 |
||
|
081208351E
|
081208351E
081208351E Bolt-hexagon |
081208351E |
US $0.52 |
||
|
081210301E
|
081210301E
081210301E Bolt-hexagon |
081210301E |
from US $2.44 |
||
|
081210401E
|
081210401E
081210401E Bolt-hexagon |
081210401E |
US $1.13 |
||
|
39100M
|
39100M
39100-85E10 SHAFT ASSY-FRONT DRIVE,RH8810--01 ~ 9108--01; VG30E |
39100-85E10 |
US $1,486.09 |
||
|
39125
|
39125
39211-85E10 JOINT ASSY-OUTER8810--01 ~ 9108--01; VG30E; ｱﾝﾁｽｷﾂﾄﾞｾﾝｻ-ﾛ-ﾀ- ﾂｷ |
39211-85E10 |
US $703.75 |
||
|
39126
|
39126
39711-55E00 JOINT ASSY-INNER8810--01 ~ 9108--01; VG30E; ﾋﾀﾞﾘ |
39711-55E00 |
US $307.27 |
||
|
39126
|
39126
39771-55E00 JOINT ASSY-INNER8810--01 ~ 9108--01; VG30E; ﾐｷﾞ |
39771-55E00 |
US $308.69 |
||
| replacement | |||||
|
39126
|
39126
39771-55E02
Joint assy-inner
8810--01 ~ 9108--01; VG30E; ﾐｷﾞ |
39771-55E02 |
— | ||
|
39155K
|
39155K
39241-10E26 REPAIR KIT-DUST BOOT,OUTER8810--01 ~ 9108--01; VG30E |
39241-10E26 |
US $65.66 |
||
| replacement | |||||
|
39155K
|
39155K
39241-10E88 REPAIR KIT-DUST BOOT,OUTER8810--01 ~ 9108--01; VG30E |
39241-10E88 |
US $78.34 |
||
|
39156K
|
39156K
39741-16E27 REPAIR KIT-DUST B00T,INNER8810--01 ~ 9004--01; VG30E |
39741-16E27 |
US $69.84 |
||
| replacement | |||||
|
39156K
|
39156K
3974155E87
REPAIR KIT-DUST B00T,INNER
8810--01 ~ 9004--01; VG30E |
3974155E87 |
— | ||
|
39156K
|
39156K
39741-55E25 REPAIR KIT-DUST B00T,INNER9004--01 ~ 9108--01; VG30E |
39741-55E25 |
US $82.08 |
||
| replacement | |||||
|
39156K
|
39156K
3974155E87
REPAIR KIT-DUST B00T,INNER
9004--01 ~ 9108--01; VG30E |
3974155E87 |
— | ||
|
39193
|
39193
00922-12500 RING-SNAP,B8810--01 ~ 9108--01; VG30E |
00922-12500 |
US $2.45 |
||
|
39202M
|
39202M
39204-85E00 SHAFT-FRONT DRIVE,RH8810--01 ~ 9108--01; VG30E; ﾐｷﾞ |
39204-85E00 |
US $351.17 |
||
|
39202M
|
39202M
39205-71E00 SHAFT-FRONT DRIVE,RH8810--01 ~ 9108--01; VG30E; ﾋﾀﾞﾘ |
39205-71E00 |
US $177.12 |
||
|
39209
|
39209
39709-16E25 GREASE-INNER8810--01 ~ 8904--01; VG30E |
39709-16E25 |
US $26.21 |
||
| replacement | |||||
|
39209
|
39209
C97092U618 Grease-Inner8810--01 ~ 8904--01; VG30E |
C97092U618 |
US $23.33 |
||
|
39209
|
39209
39709-55E25 GREASE-INNER8904--01 ~ 9108--01; VG30E |
39709-55E25 |
US $30.96 |
||
| replacement | |||||
|
39209
|
39209
C97092U618 Grease-Inner8904--01 ~ 9108--01; VG30E |
C97092U618 |
US $23.33 |
||
|
39209
|
39209
39209-01A27 Grease-Outer8810--01 ~ 9108--01; VG30E |
39209-01A27 |
US $27.65 |
||
|
39209M
|
39209M
39209-01A27 Grease-Outer8810--01 ~ 9108--01; VG30E |
39209-01A27 |
US $27.65 |
||
|
39234
|
39234
3923410E00 CIRCLIP-DRIVE SHAFT8810--01 ~ 9108--01; VG30E |
3923410E00 |
from US $0.94 |
||
|
39242+B
|
39242+B
3924210E00 BAND-BOOT,DRIVE SHAFT OUTER8810--01 ~ 9108--01; VG30E |
3924210E00 |
US $4.42 |
||
|
39242+C
|
39242+C
39242-01E10 BAND-BOOT,DRIVE SHAFT8810--01 ~ 9108--01; VG30E |
39242-01E10 |
US $4.64 |
||
|
39242+C
|
39242+C
39242-01E10 BAND-BOOT,DRIVE SHAFT8810--01 ~ 9108--01; VG30E |
39242-01E10 |
US $4.64 |
||
|
39735
|
39735
39735-03P00 Ring-Stopper8810--01 ~ 9108--01; VG30E |
39735-03P00 |
US $2.45 |
||
|
39742
|
39742
3974203P00 Band-Boot, Drive Shaft Inner8810--01 ~ 9108--01; VG30E |
3974203P00 |
US $9.69 |
||
|
39752
|
39752
39752-10E02 SHIELD-DUST9005--01 ~ 9108--01; VG30E |
39752-10E02 |
US $4.03 |
||
|
39774
|
39774
39774-10E02 BEARING-SUPPORT9005--01 ~ 9108--01; VG30E |
39774-10E02 |
US $45.22 |
||
|
39775
|
39775
39775-10E03 SHIELD-DUST9005--01 ~ 9108--01; VG30E |
39775-10E03 |
US $4.03 |
||
|
39776
|
39776
3977610E03 RETAINER-BEARING,FRONT DRIVE SHAFT9005--01 ~ 9108--01; VG30E |
3977610E03 |
US $46.37 |
||
|
39778
|
39778
39778-10E03 SHIELD-DUST9005--01 ~ 9108--01; VG30E |
39778-10E03 |
US $4.75 |
||
|
39781
|
39781
39780-85E10 BRACKET-BEARING SUPPORT,FR DRIVE SHAFT8810--01 ~ 9108--01; VG30E |
39780-85E10 |
US $203.04 |
||
