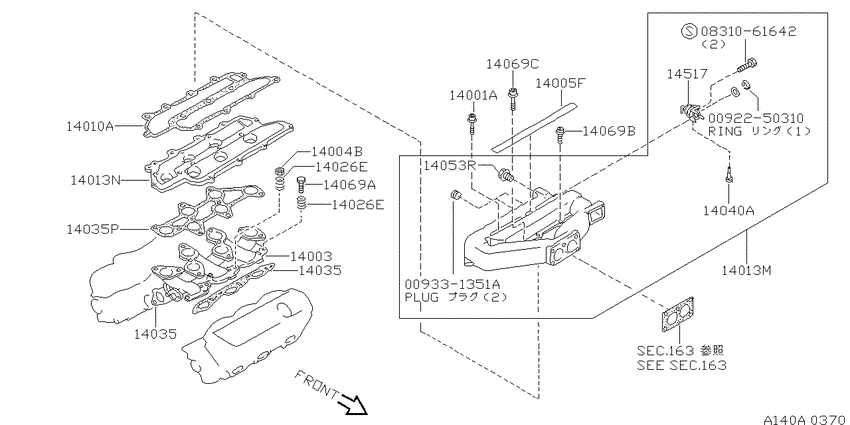

Manifold (1988-10-01 ~ 1991-08-01; インテーク マニホールド; VG30E) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- Japan
- Engine
- VG30E
- transmission
- AT
- grade
- 1/2/SESV
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250310
|
0092250310
00922-50310
RINGSNAP
|
00922-50310 |
— | ||
|
009331351A
|
009331351A
009331351A Plug-Welch |
009331351A |
US $3.06 |
||
|
0831061642
|
0831061642
08310-61642
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-61642 |
— | ||
|
14001A
|
14001A
16163-V5204 Bolt8810--01 ~ 9108--01; VG30E |
16163-V5204 |
US $1.73 |
||
|
14003
|
14003
14003-85E00 MANIFOLD-INTAKE8810--01 ~ 9108--01; VG30E |
14003-85E00 |
US $192.96 |
||
|
14003
|
14003
14052-02E00 Plug-Taper8810--01 ~ 9108--01; VG30E |
14052-02E00 |
US $8.78 |
||
|
14004B
|
14004B
14039-V5300 Nut8810--01 ~ 9108--01; VG30E |
14039-V5300 |
US $4.03 |
||
|
14004B
|
14004B
14039W1500 Nut8810--01 ~ 9108--01; VG30E |
14039W1500 |
US $2.36 |
||
|
14005F
|
14005F
14041-21V00 Ornament Assy-Engine Cover8810--01 ~ 9108--01; VG30E |
14041-21V00 |
US $12.20 |
||
|
14010A
|
14010A
14033-10V01
Gasket-Intake Manifold, A
8810--01 ~ 9001--01; VG30E |
14033-10V01 |
— | ||
| replacement | |||||
|
14010A
|
14010A
A4033-89E00 Gasket-manifold,upper8810--01 ~ 9001--01; VG30E |
A4033-89E00 |
US $34.52 |
||
|
14010A
|
14010A
1403389E00 GASKET-INTAKE MANIFOLD,A9001--01 ~ 9108--01; VG30E |
1403389E00 |
US $18.29 |
||
| replacement | |||||
|
14010A
|
14010A
A4033-89E00 Gasket-manifold,upper9001--01 ~ 9108--01; VG30E |
A4033-89E00 |
US $34.52 |
||
|
14013M
|
14013M
14010-89E00 COLLECTOR-INTAKE MANIFOLD8810--01 ~ 9108--01; VG30E |
14010-89E00 |
US $784.46 |
||
|
14013N
|
14013N
14012-21V01 Collector-Intake Manifold8810--01 ~ 9108--01; VG30E |
14012-21V01 |
US $77.76 |
||
|
14026E
|
14026E
14037-V5200 Spacer8810--01 ~ 9108--01; VG30E |
14037-V5200 |
from US $10.69 |
||
|
14026E
|
14026E
14037-V5200 Spacer8810--01 ~ 9108--01; VG30E |
14037-V5200 |
from US $10.69 |
||
|
14035
|
14035
14035V5202 Gasket-Manifold8810--01 ~ 9108--01; VG30E |
14035V5202 |
from US $52.02 |
||
|
14035
|
14035
14032-21V01 Gasket-Intake Manifold, B8810--01 ~ 9001--01; VG30E |
14032-21V01 |
US $9.65 |
||
|
14035
|
14035
14032-89E00 GASKET-INTAKE MANIFOLD,B9001--01 ~ 9108--01; VG30E |
14032-89E00 |
US $9.50 |
||
|
14035
|
14035
14035V5202 Gasket-Manifold8810--01 ~ 9108--01; VG30E |
14035V5202 |
from US $52.02 |
||
|
14035
|
14035
14032-21V01 Gasket-Intake Manifold, B8810--01 ~ 9001--01; VG30E |
14032-21V01 |
US $9.65 |
||
|
14035
|
14035
14032-89E00 GASKET-INTAKE MANIFOLD,B9001--01 ~ 9108--01; VG30E |
14032-89E00 |
US $9.50 |
||
|
14035P
|
14035P
14032-21V01 Gasket-Intake Manifold, B8810--01 ~ 9001--01; VG30E |
14032-21V01 |
US $9.65 |
||
|
14035P
|
14035P
14032-89E00 GASKET-INTAKE MANIFOLD,B9001--01 ~ 9108--01; VG30E |
14032-89E00 |
US $9.50 |
||
|
14040A
|
14040A
14511-10V01 Pin8810--01 ~ 9108--01; VG30E |
14511-10V01 |
US $1.73 |
||
|
14053R
|
14053R
14053-42L00
Plug Assy-Air Relief
8810--01 ~ 9108--01; VG30E |
14053-42L00 |
— | ||
| replacement | |||||
|
14053R
|
14053R
1405342L0A Plug Assy-Air Relief8810--01 ~ 9108--01; VG30E |
1405342L0A |
US $3.89 |
||
|
14069A
|
14069A
14069-V5001 Bolt8810--01 ~ 9108--01; VG30E |
14069-V5001 |
from US $2.44 |
||
|
14069B
|
14069B
16163-10V02 Bolt8810--01 ~ 9108--01; VG30E |
16163-10V02 |
US $4.03 |
||
|
14069C
|
14069C
16122-N8400 Bolt-Chamber8810--01 ~ 9108--01; VG30E |
16122-N8400 |
US $2.45 |
||
|
14517
|
14517
14517-85E00 VALVE ASSY-POWER8810--01 ~ 9108--01; VG30E |
14517-85E00 |
US $84.24 |
||
