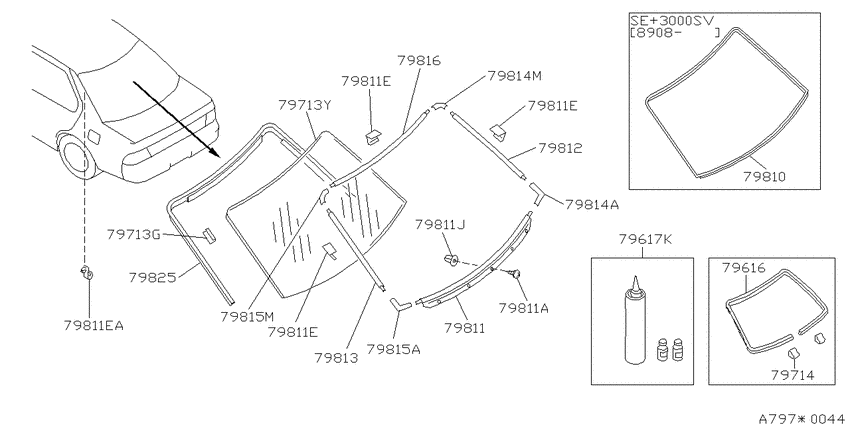

Rear window (1988-10-01 ~ 1991-08-01; S) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- Japan
- Engine
- VG30E
- transmission
- AT
- grade
- 1/2/SESV
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
79616
|
79616
G271689901
Dam Rubber-Sealant
8810--01 ~ 9108--01; S; T=7.0[D608] |
G271689901 |
— | ||
| replacement | |||||
|
79616
|
79616
G2G1689901 RUBBERDUM8810--01 ~ 9108--01; S; T=7.0[D608] |
G2G1689901 |
from US $18.05 |
||
|
79617K
|
79617K
G2891-89925
Sealant Kit-Glass
8810--01 ~ 9108--01; S; [D608] |
G2891-89925 |
— | ||
|
79713G
|
79713G
79720-10V00
Protector-Rear Window Harness
8810--01 ~ 9108--01; S |
79720-10V00 |
— | ||
| replacement | |||||
|
79713G
|
79713G
797200P000 Protector-Rear Window Harness8810--01 ~ 9108--01; S |
797200P000 |
US $4.85 |
||
|
79713Y
|
79713Y
79712-88E00 ｶﾞﾗｽ,ﾘﾔ ｳｲﾝﾄﾞｳ8810--01 ~ 9108--01; S; BRONZE WITH ANTENNA[D608] |
79712-88E00 |
US $657.02 |
||
|
79714
|
79714
79714-85E00 ｽﾍﾟ-ｻ-,ｶﾞﾗｽ a8908--01 ~ 9108--01; *S; SE+3000SV |
79714-85E00 |
US $7.06 |
||
|
79714
|
79714
79758-08E00 SPACER-GLASS,A8810--01 ~ 9108--01; S |
79758-08E00 |
US $3.60 |
||
|
79810
|
79810
79750-86E00 MLDG ASSYRR WD8908--01 ~ 9108--01; *S; SE+3000SV |
79750-86E00 |
US $292.48 |
||
|
79811
|
79811
79772-85E10 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ｳｲﾝﾄﾞｳ ﾛｱ8810--01 ~ 9010--01; S |
79772-85E10 |
US $128.88 |
||
|
79811
|
79811
79772-96E00 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ｳｲﾝﾄﾞｳ ﾛｱ9010--01 ~ 9108--01; S |
79772-96E00 |
US $126.56 |
||
|
79811
|
79811
0145100851 SCREW-MOULDING8810--01 ~ 9108--01; S |
0145100851 |
US $3.06 |
||
|
79811
|
79811
79796-71E00 ｸﾘﾂﾌﾟ,ﾓ-ﾙﾃﾞｲﾝｸﾞ8810--01 ~ 9108--01; S |
79796-71E00 |
US $0.97 |
||
|
79811
|
79811
76882-85E00 ｸﾘﾂﾌﾟ,ﾓ-ﾙﾃﾞｲﾝｸﾞ8810--01 ~ 9108--01; S |
76882-85E00 |
US $15.70 |
||
|
79811
|
79811
7684851E00
GROMMET-SCREW
8810--01 ~ 9108--01; S |
7684851E00 |
— | ||
|
79811A
|
79811A
0145100851 SCREW-MOULDING8810--01 ~ 9108--01; S |
0145100851 |
US $3.06 |
||
|
79811E
|
79811E
79796-71E00 ｸﾘﾂﾌﾟ,ﾓ-ﾙﾃﾞｲﾝｸﾞ8810--01 ~ 9108--01; S |
79796-71E00 |
US $0.97 |
||
|
79811E
|
79811E
76882-85E00 ｸﾘﾂﾌﾟ,ﾓ-ﾙﾃﾞｲﾝｸﾞ8810--01 ~ 9108--01; S |
76882-85E00 |
US $15.70 |
||
|
79811E
|
79811E
79796-71E00 ｸﾘﾂﾌﾟ,ﾓ-ﾙﾃﾞｲﾝｸﾞ8810--01 ~ 9108--01; S |
79796-71E00 |
US $0.97 |
||
|
79811E
|
79811E
76882-85E00 ｸﾘﾂﾌﾟ,ﾓ-ﾙﾃﾞｲﾝｸﾞ8810--01 ~ 9108--01; S |
76882-85E00 |
US $15.70 |
||
|
79811E
|
79811E
79796-71E00 ｸﾘﾂﾌﾟ,ﾓ-ﾙﾃﾞｲﾝｸﾞ8810--01 ~ 9108--01; S |
79796-71E00 |
US $0.97 |
||
|
79811E
|
79811E
76882-85E00 ｸﾘﾂﾌﾟ,ﾓ-ﾙﾃﾞｲﾝｸﾞ8810--01 ~ 9108--01; S |
76882-85E00 |
US $15.70 |
||
|
79811EA
|
79811EA
76882-85E00 ｸﾘﾂﾌﾟ,ﾓ-ﾙﾃﾞｲﾝｸﾞ8810--01 ~ 9108--01; S |
76882-85E00 |
US $15.70 |
||
|
79811J
|
79811J
7684851E00
GROMMET-SCREW
8810--01 ~ 9108--01; S |
7684851E00 |
— | ||
|
79812
|
79812
79760-85E10 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ｳｲﾝﾄﾞｳ ｻｲﾄﾞ rh8810--01 ~ 9010--01; S |
79760-85E10 |
US $53.71 |
||
|
79812
|
79812
79760-96E00 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ｳｲﾝﾄﾞｳ ｻｲﾄﾞ rh9010--01 ~ 9108--01; S |
79760-96E00 |
US $52.81 |
||
|
79813
|
79813
79761-85E10 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ｳｲﾝﾄﾞｳ ｻｲﾄﾞ lh8810--01 ~ 9010--01; S |
79761-85E10 |
US $53.71 |
||
|
79813
|
79813
79761-96E00 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ｳｲﾝﾄﾞｳ ｻｲﾄﾞ lh9010--01 ~ 9108--01; S |
79761-96E00 |
US $52.81 |
||
|
79814A
|
79814A
79776-85E10 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ｳｲﾝﾄﾞｳ ｺ-ﾅ- ﾛｱ rh8810--01 ~ 9010--01; S |
79776-85E10 |
US $53.71 |
||
|
79814A
|
79814A
79776-96E00 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ｳｲﾝﾄﾞｳ ｺ-ﾅ- ﾛｱ rh9010--01 ~ 9108--01; S |
79776-96E00 |
US $52.81 |
||
|
79814M
|
79814M
79754-85E10 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ｳｲﾝﾄﾞｳ ｺ-ﾅ- ｱﾂﾊﾟ- rh8810--01 ~ 9010--01; S |
79754-85E10 |
US $53.71 |
||
|
79814M
|
79814M
79754-96E00 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ｳｲﾝﾄﾞｳ ｺ-ﾅ- ｱﾂﾊﾟ- rh9010--01 ~ 9108--01; S |
79754-96E00 |
US $52.81 |
||
|
79815A
|
79815A
79777-85E10 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ｳｲﾝﾄﾞｳ ｺ-ﾅ- ﾛｱ lh8810--01 ~ 9010--01; S |
79777-85E10 |
US $53.71 |
||
|
79815A
|
79815A
79777-96E00 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ｳｲﾝﾄﾞｳ ｺ-ﾅ- ﾛｱ lh9010--01 ~ 9108--01; S |
79777-96E00 |
US $52.81 |
||
|
79815M
|
79815M
79755-85E10 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ｳｲﾝﾄﾞｳ ｺ-ﾅ- ｱﾂﾊﾟ- lh8810--01 ~ 9108--01; S |
79755-85E10 |
US $53.71 |
||
|
79816
|
79816
79751-85E10 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ｳｲﾝﾄﾞｳ ｱﾂﾊﾟ-8810--01 ~ 9108--01; S |
79751-85E10 |
US $53.71 |
||
|
79825
|
79825
79780-85E00
ﾌｱｽﾅ-,ﾓ-ﾙﾃﾞｲﾝｸﾞ
8810--01 ~ 9108--01; S |
79780-85E00 |
— | ||
|
79825
|
79825
79780-86E00 ﾌｱｽﾅ-,ﾓ-ﾙﾃﾞｲﾝｸﾞ8908--01 ~ 9108--01; *S; SE+3000SV |
79780-86E00 |
US $153.87 |
||
