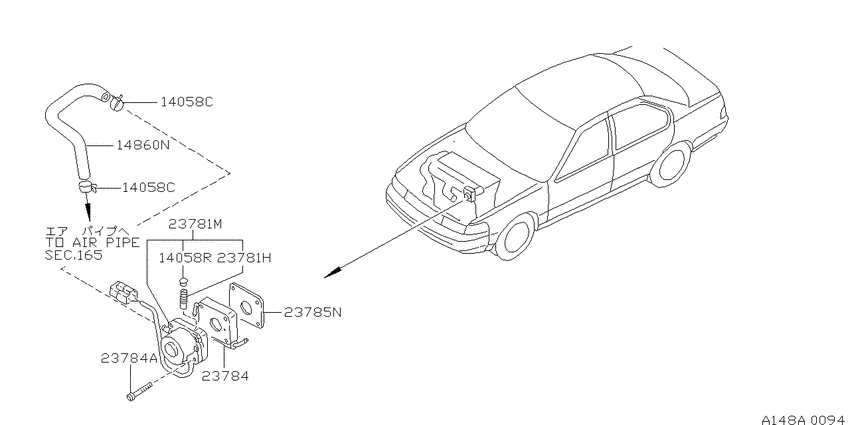

Secondary air system (1988-10-01 ~ 1991-08-01; VG30E) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- Japan
- Engine
- VG30E
- transmission
- AT
- grade
- 1/2/SESV
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14058C
|
14058C
16439-V5000
Clamp-Hose A
8810--01 ~ 9108--01; VG30E |
16439-V5000 |
— | ||
| replacement | |||||
|
14058C
|
14058C
16439V500B Clamp-Hose A8810--01 ~ 9108--01; VG30E |
16439V500B |
from US $2.50 |
||
|
14058C
|
14058C
16439-V5000
Clamp-Hose A
8810--01 ~ 9108--01; VG30E |
16439-V5000 |
— | ||
| replacement | |||||
|
14058C
|
14058C
16439V500B Clamp-Hose A8810--01 ~ 9108--01; VG30E |
16439V500B |
from US $2.50 |
||
|
14058R
|
14058R
23783-F6503 Cap-Aac Valve8810--01 ~ 9108--01; VG30E; ｾﾝﾀｸ ｼﾖｳ ﾄｳｷﾖｳ ｿｸﾊﾝ |
23783-F6503 |
US $1.58 |
||
|
14058R
|
14058R
23783-F6513 Cap-Aac Valve8810--01 ~ 9108--01; VG30E; ｾﾝﾀｸ ｼﾖｳ ｱﾂｷﾞ ﾕﾆｼｱ |
23783-F6513 |
US $1.58 |
||
|
14860N
|
14860N
14099-85E01 HOSE-AIR8810--01 ~ 9108--01; VG30E |
14099-85E01 |
from US $17.93 |
||
|
165
|
Air cleaner
165
|
||||
|
23781H
|
23781H
16144-10V10
Screw-Idle Adjust
8810--01 ~ 9108--01; VG30E |
16144-10V10 |
— | ||
|
23781M
|
23781M
23781-F6503 Iacv-Aac Valve8810--01 ~ 9108--01; VG30E; ｾﾝﾀｸ ｼﾖｳ ﾄｳｷﾖｳ ｿｸﾊﾝ |
23781-F6503 |
US $719.33 |
||
|
23781M
|
23781M
23781-F6518 Iacv-Aac Valve8810--01 ~ 9108--01; VG30E; ｾﾝﾀｸ ｼﾖｳ ｱﾂｷﾞ ﾕﾆｼｱ |
23781-F6518 |
US $856.68 |
||
|
23784
|
23784
23784-85E00 VALVE ASSY-AIR CUT8810--01 ~ 9108--01; VG30E |
23784-85E00 |
US $185.76 |
||
|
23784
|
23784
16163-F6505 Screw8810--01 ~ 9108--01; VG30E |
16163-F6505 |
US $2.45 |
||
|
23784A
|
23784A
16163-F6505 Screw8810--01 ~ 9108--01; VG30E |
16163-F6505 |
US $2.45 |
||
|
23785N
|
23785N
23785-89E00
IACV-AAC VALVE GASKET
9002--01 ~ 9108--01; VG30E |
23785-89E00 |
— | ||
|
23785N
|
23785N
23785-F6500
Iacv-Aac Valve Gasket
8810--01 ~ 9002--01; VG30E |
23785-F6500 |
— | ||
| replacement | |||||
|
23785N
|
23785N
23785-89E00
IACV-AAC VALVE GASKET
8810--01 ~ 9002--01; VG30E |
23785-89E00 |
— | ||
