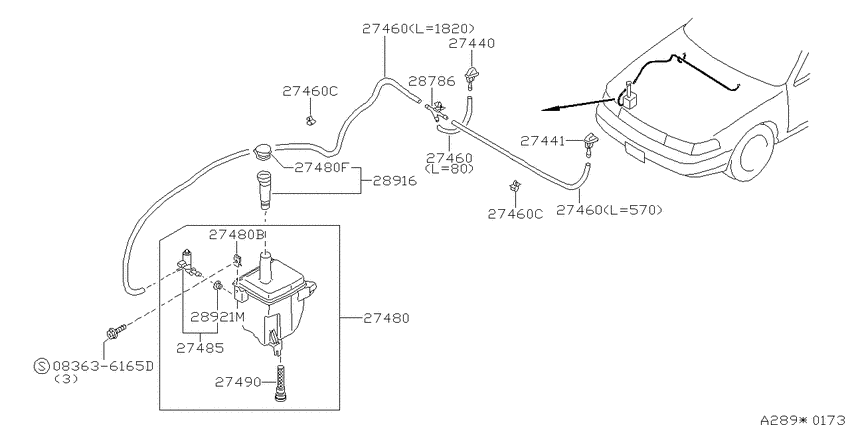

Windshield washer (1988-10-01 ~ 1991-08-01; S) Diagram Nissan MAXIMA
- Year
- 1988 - 1991
- Sales region
- Japan
- Engine
- VG30E
- transmission
- AT
- grade
- 1/2/SESV
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636165D
|
083636165D
08363-6165D
Rope & Hook
|
08363-6165D |
— | ||
| replacement | |||||
|
083636165D
|
083636165D
083606165D Rope & Hook |
083606165D |
US $1.52 |
||
|
27440
|
27440
28930-88E00 NOZZLE ASSY-WASHER,NO 18810--01 ~ 9108--01; S; ﾐｷﾞ |
28930-88E00 |
US $28.66 |
||
|
27441
|
27441
28931-88E00 NOZZLE ASSY-WASHER,NO 28810--01 ~ 9108--01; S; ﾋﾀﾞﾘ |
28931-88E00 |
US $28.66 |
||
|
27460
|
27460
28940-56E10 HOSE-WASHER9810--01 ~ ; S; L=80 |
28940-56E10 |
US $21.49 |
||
|
27460
|
27460
28940-85E01
HOSE-WASHER
9810--01 ~ ; S; L=1820 |
28940-85E01 |
— | ||
|
27460
|
27460
28940-85E02
HOSE-WASHER
9810--01 ~ ; S; L=570 |
28940-85E02 |
— | ||
|
27460
|
27460
B8940-89910
Hose-Washer
8810--01 ~ 9108--01; S; L=10M ｷﾂﾃ ｼﾖｳ |
B8940-89910 |
— | ||
| replacement | |||||
|
27460
|
27460
B746189910 Hose-Washer8810--01 ~ 9108--01; S; L=10M ｷﾂﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460
|
27460
2894510V00 Clip8810--01 ~ 9108--01; S |
2894510V00 |
from US $0.82 |
||
|
27460
|
27460
28940-56E10 HOSE-WASHER9810--01 ~ ; S; L=80 |
28940-56E10 |
US $21.49 |
||
|
27460
|
27460
28940-85E01
HOSE-WASHER
9810--01 ~ ; S; L=1820 |
28940-85E01 |
— | ||
|
27460
|
27460
28940-85E02
HOSE-WASHER
9810--01 ~ ; S; L=570 |
28940-85E02 |
— | ||
|
27460
|
27460
B8940-89910
Hose-Washer
8810--01 ~ 9108--01; S; L=10M ｷﾂﾃ ｼﾖｳ |
B8940-89910 |
— | ||
| replacement | |||||
|
27460
|
27460
B746189910 Hose-Washer8810--01 ~ 9108--01; S; L=10M ｷﾂﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460
|
27460
2894510V00 Clip8810--01 ~ 9108--01; S |
2894510V00 |
from US $0.82 |
||
|
27460
|
27460
28940-56E10 HOSE-WASHER9810--01 ~ ; S; L=80 |
28940-56E10 |
US $21.49 |
||
|
27460
|
27460
28940-85E01
HOSE-WASHER
9810--01 ~ ; S; L=1820 |
28940-85E01 |
— | ||
|
27460
|
27460
28940-85E02
HOSE-WASHER
9810--01 ~ ; S; L=570 |
28940-85E02 |
— | ||
|
27460
|
27460
B8940-89910
Hose-Washer
8810--01 ~ 9108--01; S; L=10M ｷﾂﾃ ｼﾖｳ |
B8940-89910 |
— | ||
| replacement | |||||
|
27460
|
27460
B746189910 Hose-Washer8810--01 ~ 9108--01; S; L=10M ｷﾂﾃ ｼﾖｳ |
B746189910 |
from US $25.37 |
||
|
27460
|
27460
2894510V00 Clip8810--01 ~ 9108--01; S |
2894510V00 |
from US $0.82 |
||
|
27460C
|
27460C
2894510V00 Clip8810--01 ~ 9108--01; S |
2894510V00 |
from US $0.82 |
||
|
27460C
|
27460C
2894510V00 Clip8810--01 ~ 9108--01; S |
2894510V00 |
from US $0.82 |
||
|
27480
|
27480
28910-85E00 TANK ASSY-WINDSHIELD WASHER8810--01 ~ 9108--01; S |
28910-85E00 |
US $116.78 |
||
|
27480
|
27480
01241-00191
NUT
8810--01 ~ 9108--01; S |
01241-00191 |
— | ||
| replacement | |||||
|
27480
|
27480
0124100471 NUT8810--01 ~ 9108--01; S |
0124100471 |
from US $0.57 |
||
|
27480
|
27480
2891340F00
Cap-Windshield Washer Tank
8810--01 ~ 9108--01; S |
2891340F00 |
— | ||
| replacement | |||||
|
27480
|
27480
28913-JM01A Cap-Windshield Washer Tank8810--01 ~ 9108--01; S |
28913-JM01A |
from US $1.79 |
||
|
27480B
|
27480B
01241-00191
NUT
8810--01 ~ 9108--01; S |
01241-00191 |
— | ||
| replacement | |||||
|
27480B
|
27480B
0124100471 NUT8810--01 ~ 9108--01; S |
0124100471 |
from US $0.57 |
||
|
27480F
|
27480F
2891340F00
Cap-Windshield Washer Tank
8810--01 ~ 9108--01; S |
2891340F00 |
— | ||
| replacement | |||||
|
27480F
|
27480F
28913-JM01A Cap-Windshield Washer Tank8810--01 ~ 9108--01; S |
28913-JM01A |
from US $1.79 |
||
|
27485
|
27485
2892051E10 MOTOR-WASHER,FRONT8810--01 ~ 9108--01; S |
2892051E10 |
US $33.96 |
||
|
27490
|
27490
28911-V5000 Sensor Assy-Water8810--01 ~ 9108--01; S |
28911-V5000 |
US $41.33 |
||
|
28786
|
28786
2893710V00 Connector-Hose8810--01 ~ 9108--01; S |
2893710V00 |
from US $6.24 |
||
|
28916
|
28916
28915-85E00 INLET-WASHER TANK8810--01 ~ 8906--01; S |
28915-85E00 |
US $15.55 |
||
| replacement | |||||
|
28916
|
28916
B8915-85E01
Inlet-washer tank
8810--01 ~ 8906--01; S |
B8915-85E01 |
— | ||
|
28916
|
28916
28915-85E01 INLET-WASHER TANK8906--01 ~ 9108--01; S |
28915-85E01 |
US $22.75 |
||
|
28921M
|
28921M
28921-03E01 PACKING-WASHER MOTOR8810--01 ~ 8912--01; S |
28921-03E01 |
US $4.85 |
||
|
28921M
|
28921M
2892150Y00 Packing-Washer Motor8912--01 ~ 9108--01; S |
2892150Y00 |
US $4.30 |
||
