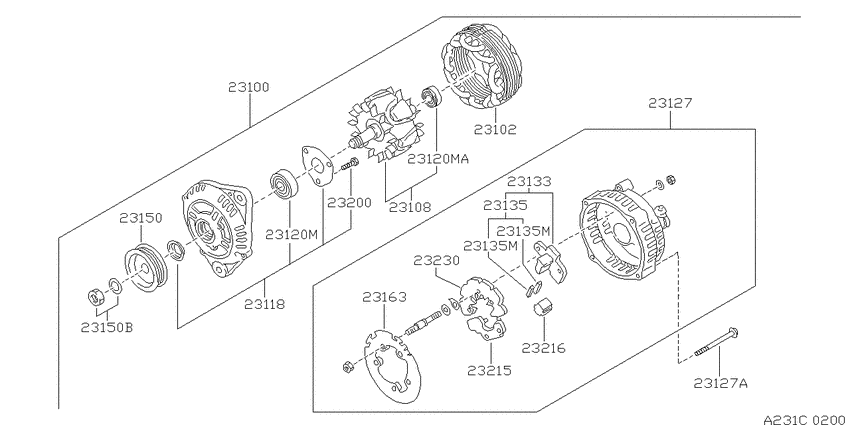

Alternator (1991-08-01 ~ ; 日立; VE30DE) Diagram Nissan MAXIMA
- Year
- 1991 - 2012
- Sales region
- Japan
- Engine
- VE30DE
- transmission
- AT
- grade
- SE
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-97E01 ALTERNATOR ASSY9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23100-97E01 |
US $2,072 |
||
|
23100
|
23100
0122100381 NUT9108--01 ~ ; VE30DE |
0122100381 |
from US $5.37 |
||
|
23102
|
23102
23102-61U00 Stator Assy9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23102-61U00 |
US $522.50 |
||
|
23108
|
23108
23108-97E01 ROTOR ASSY9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23108-97E01 |
US $658.44 |
||
|
23118
|
23118
23118-97E01 COVER ASSY-FRONT9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23118-97E01 |
US $257.76 |
||
|
23120M
|
23120M
2312097E00 BEARING-BALL9108--01 ~ ; VE30DE; ﾋﾀﾁ |
2312097E00 |
from US $15.93 |
||
|
23120M
|
23120M
23120-1P105 Bearing-Ball9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23120-1P105 |
US $35.86 |
||
|
23120MA
|
23120MA
23120-1P105 Bearing-Ball9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23120-1P105 |
US $35.86 |
||
|
23127
|
23127
23127-97E02 COVER ASSY-REAR9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23127-97E02 |
US $960.05 |
||
|
23127
|
23127
23131-58S00 Bolt-Through9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23131-58S00 |
US $6.05 |
||
|
23127A
|
23127A
23131-58S00 Bolt-Through9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23131-58S00 |
US $6.05 |
||
|
23133
|
23133
23133-97E02 HOLDER ASSY-BRUSH9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23133-97E02 |
US $504.10 |
||
|
23135
|
23135
23135-97E02 BRUSH ASSY9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23135-97E02 |
US $12.24 |
||
|
23135
|
23135
23142-60U00 Brush-F9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23142-60U00 |
US $10.51 |
||
|
23135M
|
23135M
23142-60U00 Brush-F9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23142-60U00 |
US $10.51 |
||
|
23135M
|
23135M
23142-60U00 Brush-F9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23142-60U00 |
US $10.51 |
||
|
23150
|
23150
23150-97E00 PULLEY ASSY9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23150-97E00 |
US $104.98 |
||
|
23150
|
23150
23153-60U00 Nut Assy-Pulley9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23153-60U00 |
US $5.76 |
||
|
23150B
|
23150B
23153-60U00 Nut Assy-Pulley9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23153-60U00 |
US $5.76 |
||
|
23163
|
23163
23163-97E02 GUIDE-ALTERNATOR FAN9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23163-97E02 |
US $15.70 |
||
|
23200
|
23200
23200-97E00 SCREW SET9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23200-97E00 |
US $9.36 |
||
|
23215
|
23215
23215-97E02 REGULATOR ASSY-IC9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23215-97E02 |
US $417.72 |
||
|
23216
|
23216
23216-97E02 CONDENSER9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23216-97E02 |
US $42.48 |
||
|
23230
|
23230
23230-97E02 DIODE ASSY9108--01 ~ ; VE30DE; ﾋﾀﾁ |
23230-97E02 |
US $325.68 |
