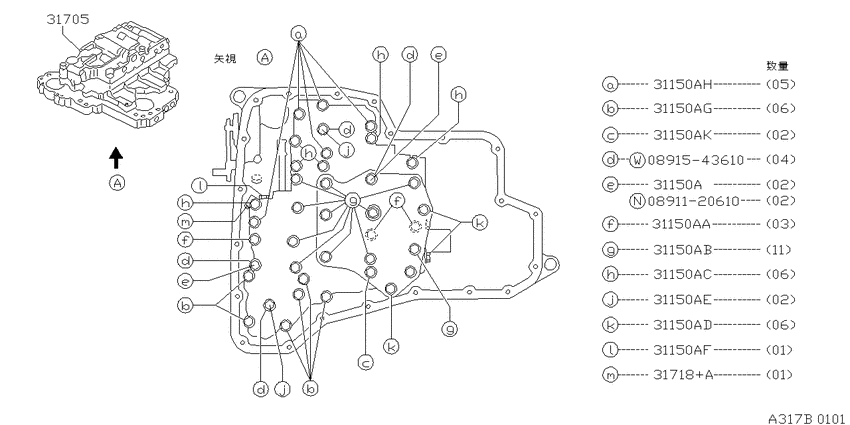

Control valve (atm) (1991-08-01 ~ ; フィクシング ボルト; AT) Diagram Nissan MAXIMA
- Year
- 1991 - 2012
- Sales region
- Japan
- Engine
- VE30DE
- transmission
- AT
- grade
- SE
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891120610
|
0891120610
0891120610 NUTHEX |
0891120610 |
US $2.21 |
||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
31150A
|
31150A
01111-01131 BOLT9108--01 ~ ; AT |
01111-01131 |
US $0.86 |
||
|
31150A
|
31150A
01121-03721 BOLT9108--01 ~ ; AT |
01121-03721 |
from US $0.52 |
||
|
31150A
|
31150A
01121-03661 BOLT9108--01 ~ ; AT |
01121-03661 |
from US $0.54 |
||
|
31150A
|
31150A
01121-03671 BOLT9108--01 ~ ; AT |
01121-03671 |
US $1.73 |
||
|
31150A
|
31150A
01121-03691 BOLT9108--01 ~ ; AT |
01121-03691 |
from US $0.57 |
||
|
31150A
|
31150A
01121-02911 BOLT9108--01 ~ 9310--01; AT |
01121-02911 |
US $1.93 |
||
|
31150A
|
31150A
31377-31X12 Bolt9310--01 ~ ; AT |
31377-31X12 |
US $2.45 |
||
|
31150A
|
31150A
01121-04911 BOLT9108--01 ~ ; AT |
01121-04911 |
US $0.86 |
||
|
31150A
|
31150A
01121-02911 BOLT9108--01 ~ ; AT |
01121-02911 |
US $1.93 |
||
|
31150A
|
31150A
01121-03671 BOLT9108--01 ~ ; AT |
01121-03671 |
US $1.73 |
||
|
31150A
|
31150A
01121-03711 BOLT9108--01 ~ ; AT |
01121-03711 |
US $1.73 |
||
|
31150AA
|
31150AA
01121-03721 BOLT9108--01 ~ ; AT |
01121-03721 |
from US $0.52 |
||
|
31150AB
|
31150AB
01121-03661 BOLT9108--01 ~ ; AT |
01121-03661 |
from US $0.54 |
||
|
31150AC
|
31150AC
01121-03671 BOLT9108--01 ~ ; AT |
01121-03671 |
US $1.73 |
||
|
31150AD
|
31150AD
01121-03691 BOLT9108--01 ~ ; AT |
01121-03691 |
from US $0.57 |
||
|
31150AE
|
31150AE
01121-02911 BOLT9108--01 ~ 9310--01; AT |
01121-02911 |
US $1.93 |
||
|
31150AE
|
31150AE
31377-31X12 Bolt9310--01 ~ ; AT |
31377-31X12 |
US $2.45 |
||
|
31150AF
|
31150AF
01121-04911 BOLT9108--01 ~ ; AT |
01121-04911 |
US $0.86 |
||
|
31150AG
|
31150AG
01121-02911 BOLT9108--01 ~ ; AT |
01121-02911 |
US $1.93 |
||
|
31150AH
|
31150AH
01121-03671 BOLT9108--01 ~ ; AT |
01121-03671 |
US $1.73 |
||
|
31150AK
|
31150AK
01121-03711 BOLT9108--01 ~ ; AT |
01121-03711 |
US $1.73 |
||
|
31705
|
31705
31705-80X01
Valve Assy-Control
9108--01 ~ 9202--01; AT |
31705-80X01 |
— | ||
|
31705
|
31705
31705-80X06 Valve Assy-Control9202--01 ~ 9207--01; AT |
31705-80X06 |
US $961.46 |
||
|
31705
|
31705
31705-80X13 Valve Assy-Control9207--01 ~ 9302--01; AT |
31705-80X13 |
US $961.46 |
||
| replacement | |||||
|
31705
|
31705
31705-80X68 Valve Assy-Control9207--01 ~ 9302--01; AT |
31705-80X68 |
US $961.46 |
||
|
31705
|
31705
31705-80X17 Valve Assy-Control9302--01 ~ 9303--01; AT |
31705-80X17 |
US $961.46 |
||
| replacement | |||||
|
31705
|
31705
31705-80X68 Valve Assy-Control9302--01 ~ 9303--01; AT |
31705-80X68 |
US $961.46 |
||
|
31705
|
31705
31705-80X21 Valve Assy-Control9303--01 ~ 9307--01; AT |
31705-80X21 |
US $961.46 |
||
| replacement | |||||
|
31705
|
31705
31705-80X68 Valve Assy-Control9303--01 ~ 9307--01; AT |
31705-80X68 |
US $961.46 |
||
|
31705
|
31705
31705-80X60 Valve Assy-Control9307--01 ~ 9310--01; AT |
31705-80X60 |
US $961.46 |
||
| replacement | |||||
|
31705
|
31705
31705-80X68 Valve Assy-Control9307--01 ~ 9310--01; AT |
31705-80X68 |
US $961.46 |
||
|
31705
|
31705
31705-80X64 Valve Assy-Control9310--01 ~ ; AT |
31705-80X64 |
US $961.46 |
||
| replacement | |||||
|
31705
|
31705
31705-80X68 Valve Assy-Control9310--01 ~ ; AT |
31705-80X68 |
US $961.46 |
||
|
31718+A
|
31718+A
31718-80X01 Plate-Support, Accumulator9409--01 ~ ; AT |
31718-80X01 |
US $7.34 |
||
