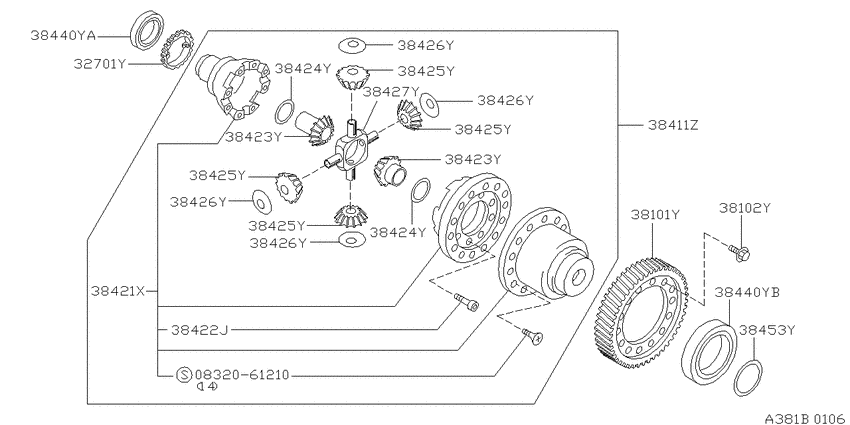

Front final drive (1991-08-01 ~ ; ビスカス LSD; VE30DE) Diagram Nissan MAXIMA
- Year
- 1991 - 2012
- Sales region
- Japan
- Engine
- VE30DE
- transmission
- AT
- grade
- SE
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0832061210
|
0832061210
08320-61210
New Genuine Part
|
08320-61210 |
— | ||
|
32701Y
|
32701Y
32701-80X00 Gear-Drive, Speedometer9108--01 ~ ; VE30DE |
32701-80X00 |
US $11.95 |
||
|
38101Y
|
38101Y
38101-80X61 Gear-Final Drive9108--01 ~ 9201--01; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38101-80X61 |
US $260.64 |
||
|
38101Y
|
38101Y
38101-80X66 Gear-Final Drive9201--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38101-80X66 |
US $200.16 |
||
| replacement | |||||
|
38101Y
|
38101Y
38101-81X63
Gear-final drive
9201--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38101-81X63 |
— | ||
|
38102Y
|
38102Y
38102-80X61 Bolt-Drive Gear9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38102-80X61 |
US $2.45 |
||
|
38411Z
|
38411Z
38411-80X00 Case Compl-Differential, Viscous9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38411-80X00 |
US $2,506 |
||
|
38421X
|
38421X
38420-80X00 Case Assy-Differential, Viscous9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38420-80X00 |
US $1,764 |
||
|
38422J
|
38422J
38734-56E00 BOLT-COUPLING,DIFFERENTIAL CASE9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38734-56E00 |
US $4.32 |
||
|
38423Y
|
38423Y
38423-80X00 Gear-Side9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38423-80X00 |
US $145.44 |
||
| replacement | |||||
|
38423Y
|
38423Y
38423-80X10 Gear-Side9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38423-80X10 |
US $145.44 |
||
|
38423Y
|
38423Y
38423-80X00 Gear-Side9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38423-80X00 |
US $145.44 |
||
| replacement | |||||
|
38423Y
|
38423Y
38423-80X10 Gear-Side9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38423-80X10 |
US $145.44 |
||
|
38424Y
|
38424Y
38424-51E10 WASHER-THRUST,SIDE GEAR9108--01 ~ ; SE; ｾﾝﾀｸ T=0.44 |
38424-51E10 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-51E11 WASHER-THRUST,SIDE GEAR9108--01 ~ ; SE; ｾﾝﾀｸ T=0.53 |
38424-51E11 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-51E12 WASHER-THRUST,SIDE GEAR9108--01 ~ ; SE; ｾﾝﾀｸ T=0.62 |
38424-51E12 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-51E13 WASHER-THRUST,SIDE GEAR9108--01 ~ ; SE; ｾﾝﾀｸ T=0.71 |
38424-51E13 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-51E14 WASHER-THRUST,SIDE GEAR9108--01 ~ ; SE; ｾﾝﾀｸ T=0.80 |
38424-51E14 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-E3000 Washer-Thrust, Side Gear9108--01 ~ ; SE; ｾﾝﾀｸ T=0.75-0.80 |
38424-E3000 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3001 Washer-Thrust, Side Gear9108--01 ~ ; SE; ｾﾝﾀｸ T=0.80-0.85 |
38424-E3001 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3002 Washer-Thrust, Side Gear9108--01 ~ ; SE; ｾﾝﾀｸ T=0.85-0.90 |
38424-E3002 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3003 Washer-Thrust, Side Gear9108--01 ~ ; SE; ｾﾝﾀｸ T=0.90-0.95 |
38424-E3003 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-51E10 WASHER-THRUST,SIDE GEAR9108--01 ~ ; SE; ｾﾝﾀｸ T=0.44 |
38424-51E10 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-51E11 WASHER-THRUST,SIDE GEAR9108--01 ~ ; SE; ｾﾝﾀｸ T=0.53 |
38424-51E11 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-51E12 WASHER-THRUST,SIDE GEAR9108--01 ~ ; SE; ｾﾝﾀｸ T=0.62 |
38424-51E12 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-51E13 WASHER-THRUST,SIDE GEAR9108--01 ~ ; SE; ｾﾝﾀｸ T=0.71 |
38424-51E13 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-51E14 WASHER-THRUST,SIDE GEAR9108--01 ~ ; SE; ｾﾝﾀｸ T=0.80 |
38424-51E14 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-E3000 Washer-Thrust, Side Gear9108--01 ~ ; SE; ｾﾝﾀｸ T=0.75-0.80 |
38424-E3000 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3001 Washer-Thrust, Side Gear9108--01 ~ ; SE; ｾﾝﾀｸ T=0.80-0.85 |
38424-E3001 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3002 Washer-Thrust, Side Gear9108--01 ~ ; SE; ｾﾝﾀｸ T=0.85-0.90 |
38424-E3002 |
US $4.03 |
||
|
38424Y
|
38424Y
38424-E3003 Washer-Thrust, Side Gear9108--01 ~ ; SE; ｾﾝﾀｸ T=0.90-0.95 |
38424-E3003 |
US $4.03 |
||
|
38425Y
|
38425Y
38425-B4000 Pinion-Mate9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38425-B4000 |
US $41.47 |
||
|
38425Y
|
38425Y
38425-B4000 Pinion-Mate9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38425-B4000 |
US $41.47 |
||
|
38425Y
|
38425Y
38425-B4000 Pinion-Mate9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38425-B4000 |
US $41.47 |
||
|
38425Y
|
38425Y
38425-B4000 Pinion-Mate9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38425-B4000 |
US $41.47 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38426-03E00 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38426-03E00 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38426-03E00 |
US $4.18 |
||
|
38426Y
|
38426Y
38426-03E00 WASHER-THRUST,PINION MATE9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38426-03E00 |
US $4.18 |
||
|
38427Y
|
38427Y
38427-P9300 Shaft-Pinion Mate9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38427-P9300 |
from US $64.37 |
||
|
38440YA
|
38440YA
31408-80X05 Bearing-Differential Side9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
31408-80X05 |
US $46.80 |
||
|
38440YB
|
38440YB
38440-01X00 Bearing-Differential Side9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38440-01X00 |
US $104.83 |
||
| replacement | |||||
|
38440YB
|
38440YB
38440-AD301 Bearing-Ring Gear9108--01 ~ ; SE; ﾋﾞｽｶｽLSD ﾖｳ |
38440-AD301 |
US $69.70 |
||
|
38453Y
|
38453Y
38753-56E00 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.36 |
38753-56E00 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E01 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.40 |
38753-56E01 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E02 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.44 |
38753-56E02 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E03 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.48 |
38753-56E03 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E04 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.52 |
38753-56E04 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E05 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.56 |
38753-56E05 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E06 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.60 |
38753-56E06 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E07 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.64 |
38753-56E07 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E08 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.68 |
38753-56E08 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E09 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.72 |
38753-56E09 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E10 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.76 |
38753-56E10 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E11 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.80 |
38753-56E11 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E12 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.84 |
38753-56E12 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E13 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.88 |
38753-56E13 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E14 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.92 |
38753-56E14 |
US $10.51 |
||
|
38453Y
|
38453Y
38753-56E15 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.12 |
38753-56E15 |
US $10.22 |
||
|
38453Y
|
38453Y
38753-56E16 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.16 |
38753-56E16 |
US $10.22 |
||
|
38453Y
|
38453Y
38753-56E17 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.20 |
38753-56E17 |
US $10.22 |
||
|
38453Y
|
38453Y
38753-56E18 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.24 |
38753-56E18 |
US $10.22 |
||
|
38453Y
|
38453Y
38753-56E19 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.28 |
38753-56E19 |
US $10.22 |
||
|
38453Y
|
38453Y
38753-56E20 SHIM-ADJUST,SIDE BEARING9108--01 ~ ; SE; ｾﾝﾀｸ T=0.32 |
38753-56E20 |
US $10.22 |
||
