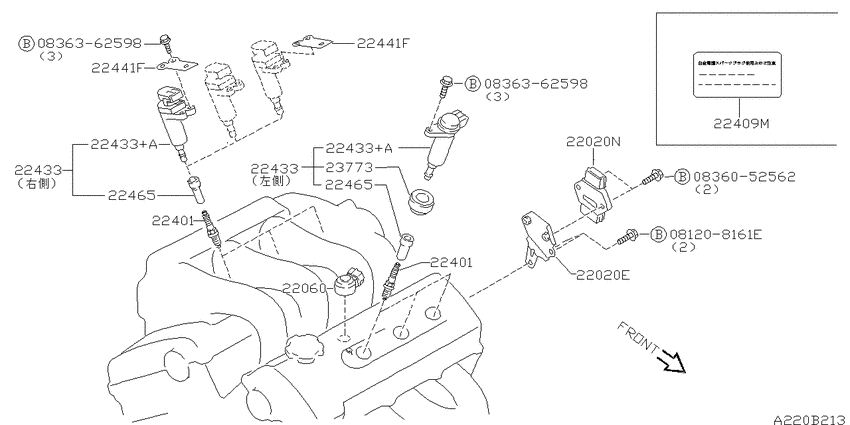

Ignition System (1991-08-01 ~ ; VE30DE) Diagram Nissan MAXIMA
- Year
- 1991 - 2012
- Sales region
- Japan
- Engine
- VE30DE
- transmission
- AT
- grade
- SE
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
0836052562
|
0836052562
08360-52562
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-52562 |
— | ||
|
0836362598
|
0836362598
08363-62598
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62598 |
— | ||
|
0836362598
|
0836362598
08363-62598
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62598 |
— | ||
|
22020E
|
22020E
22435-97E00 BRACKET-TRANSISTOR IGNITION9108--01 ~ ; VE30DE |
22435-97E00 |
US $71.14 |
||
|
22020N
|
22020N
22020-97E00 TRANSISTOR IGNITION UNIT9108--01 ~ ; VE30DE; ﾋﾀﾁ |
22020-97E00 |
US $814.20 |
||
|
22020N
|
22020N
22020-97E10 TRANSISTOR IGNITION UNIT9108--01 ~ ; VE30DE; ﾐﾂﾋﾞｼ |
22020-97E10 |
US $814.20 |
||
|
22060
|
22060
2206030P00 Knock Sensor9108--01 ~ ; VE30DE |
2206030P00 |
from US $174.64 |
||
|
22401
|
22401
22401-97E64 Plug-Spark9108--01 ~ ; VE30DE; PFR4C-11 ｻ-ﾋﾞｽﾖｳ[B512] |
22401-97E64 |
US $21.60 |
||
|
22401
|
22401
22401-97E65 Plug-Spark9108--01 ~ ; VE30DE; PFR5C-11 ﾋﾖｳｼﾞﾕﾝ[B512] |
22401-97E65 |
US $21.60 |
||
|
22401
|
22401
22401-97E66 Plug-Spark9108--01 ~ ; VE30DE; PFR6C-11 ｻ-ﾋﾞｽﾖｳ[B512] |
22401-97E66 |
US $21.60 |
||
|
22401
|
22401
22401-97E64 Plug-Spark9108--01 ~ ; VE30DE; PFR4C-11 ｻ-ﾋﾞｽﾖｳ[B512] |
22401-97E64 |
US $21.60 |
||
|
22401
|
22401
22401-97E65 Plug-Spark9108--01 ~ ; VE30DE; PFR5C-11 ﾋﾖｳｼﾞﾕﾝ[B512] |
22401-97E65 |
US $21.60 |
||
|
22401
|
22401
22401-97E66 Plug-Spark9108--01 ~ ; VE30DE; PFR6C-11 ｻ-ﾋﾞｽﾖｳ[B512] |
22401-97E66 |
US $21.60 |
||
|
22409M
|
22409M
2240958S00 Label-Spark Plug9108--01 ~ ; VE30DE |
2240958S00 |
US $5.27 |
||
|
22433
|
22433
22448-97E00 COIL ASSY-IGNITION9108--01 ~ ; VE30DE; ﾊﾝｼﾝ(ﾐｷﾞｶﾞﾜ) |
22448-97E00 |
US $214.56 |
||
|
22433
|
22433
22448-97E05 COIL ASSY-IGNITION9108--01 ~ ; VE30DE; ﾊﾝｼﾝ (ﾋﾀﾞﾘｶﾞﾜ) |
22448-97E05 |
US $214.56 |
||
|
22433
|
22433
22433-97E00 COIL ASSY-IGNITION9108--01 ~ ; VE30DE; ﾊﾝｼﾝ(ﾐｷﾞｶﾞﾜ) |
22433-97E00 |
US $194.40 |
||
|
22433
|
22433
22433-97E05 COIL ASSY-IGNITION9108--01 ~ ; VE30DE; ﾊﾝｼﾝ (ﾋﾀﾞﾘｶﾞﾜ) |
22433-97E05 |
US $194.40 |
||
|
22433
|
22433
22448-97E00 COIL ASSY-IGNITION9108--01 ~ ; VE30DE; ﾊﾝｼﾝ(ﾐｷﾞｶﾞﾜ) |
22448-97E00 |
US $214.56 |
||
|
22433
|
22433
22448-97E05 COIL ASSY-IGNITION9108--01 ~ ; VE30DE; ﾊﾝｼﾝ (ﾋﾀﾞﾘｶﾞﾜ) |
22448-97E05 |
US $214.56 |
||
|
22433
|
22433
22433-97E00 COIL ASSY-IGNITION9108--01 ~ ; VE30DE; ﾊﾝｼﾝ(ﾐｷﾞｶﾞﾜ) |
22433-97E00 |
US $194.40 |
||
|
22433
|
22433
22433-97E05 COIL ASSY-IGNITION9108--01 ~ ; VE30DE; ﾊﾝｼﾝ (ﾋﾀﾞﾘｶﾞﾜ) |
22433-97E05 |
US $194.40 |
||
|
22433+A
|
22433+A
22433-97E00 COIL ASSY-IGNITION9108--01 ~ ; VE30DE; ﾊﾝｼﾝ(ﾐｷﾞｶﾞﾜ) |
22433-97E00 |
US $194.40 |
||
|
22433+A
|
22433+A
22433-97E05 COIL ASSY-IGNITION9108--01 ~ ; VE30DE; ﾊﾝｼﾝ (ﾋﾀﾞﾘｶﾞﾜ) |
22433-97E05 |
US $194.40 |
||
|
22433+A
|
22433+A
22433-97E00 COIL ASSY-IGNITION9108--01 ~ ; VE30DE; ﾊﾝｼﾝ(ﾐｷﾞｶﾞﾜ) |
22433-97E00 |
US $194.40 |
||
|
22433+A
|
22433+A
22433-97E05 COIL ASSY-IGNITION9108--01 ~ ; VE30DE; ﾊﾝｼﾝ (ﾋﾀﾞﾘｶﾞﾜ) |
22433-97E05 |
US $194.40 |
||
|
22441F
|
22441F
24239-97E00 BRACKET-CLIP9108--01 ~ ; VE30DE |
24239-97E00 |
US $19.01 |
||
|
22441F
|
22441F
24239-97E00 BRACKET-CLIP9108--01 ~ ; VE30DE |
24239-97E00 |
US $19.01 |
||
|
22465
|
22465
22465-97E00 PROTECTOR-IGNITION COIL9108--01 ~ ; VE30DE; ﾊﾝｼﾝ(ﾐｷﾞｶﾞﾜ) |
22465-97E00 |
US $21.31 |
||
|
22465
|
22465
22465-97E05 PROTECTOR-IGNITION COIL9108--01 ~ ; VE30DE; ﾊﾝｼﾝ(ﾋﾀﾞﾘｶﾞﾜ) |
22465-97E05 |
US $21.31 |
||
|
22465
|
22465
22465-97E00 PROTECTOR-IGNITION COIL9108--01 ~ ; VE30DE; ﾊﾝｼﾝ(ﾐｷﾞｶﾞﾜ) |
22465-97E00 |
US $21.31 |
||
|
22465
|
22465
22465-97E05 PROTECTOR-IGNITION COIL9108--01 ~ ; VE30DE; ﾊﾝｼﾝ(ﾋﾀﾞﾘｶﾞﾜ) |
22465-97E05 |
US $21.31 |
||
|
23773
|
23773
22491-97E05 MOUNTING RUBBER-IGNITION COIL9108--01 ~ ; VE30DE; ﾊﾝｼﾝ(ﾋﾀﾞﾘｶﾞﾜ) |
22491-97E05 |
US $12.82 |
