Component List MAXIMA
Brake piping & control (1984-07-01 ~ ; ALL)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
081206255F	081206255F 081206255F Bolt-hexagon	081206255F	—
46201	46201 46210-01E11 HOSE ASSY-BRAKE,FRONT RH 1984-07-01 ~ 1986-01-01; S +W; SELECT USE NICHIRIN	46210-01E11	US $43.63
46201	46201 46210-D4001 Hose Assy-Brake, Front Rh 1986-01-01 ~ ; S +W; SELECT USE HITACHI	46210-D4001	US $47.23
46201	46201 46210D4011 Hose Assy-Brake, Front Rh 1986-01-01 ~ ; S +W; SELECT USE NICHIRIN	46210D4011	US $35.71
46201	46201 46206M0200 Spring-Lock 1984-07-01 ~ ; S +W; ,	46206M0200	from US $0.74
46201	46201 46356-01E01 BOLT-UNION,FRONT BRAKE HOSE 1984-07-01 ~ ; S +W; F/REAR	46356-01E01	—
	replacement
46201	46201 463560E00A Bolt-Union, Front Brake Hose 1984-07-01 ~ ; S +W; F/REAR	463560E00A	from US $1.52
46201	46201 46356-50W02 Bolt-Union, Front Brake Hose 1984-07-01 ~ ; S +W; F/FRONT	46356-50W02	—
46201	46201 46237A4600 Gasket-Clutch Hose 1984-07-01 ~ ; S +W; ,	46237A4600	from US $0.35
46201B	46201B 46206M0200 Spring-Lock 1984-07-01 ~ ; S +W; ,	46206M0200	from US $0.74
46201B	46201B 46206M0200 Spring-Lock 1984-07-01 ~ ; S +W; ,	46206M0200	from US $0.74
46201B	46201B 46206M0200 Spring-Lock 1984-07-01 ~ ; S +W; ,	46206M0200	from US $0.74
46201B	46201B 46206M0200 Spring-Lock 1984-07-01 ~ ; S +W; ,	46206M0200	from US $0.74
46201C	46201C 46356-01E01 BOLT-UNION,FRONT BRAKE HOSE 1984-07-01 ~ ; S +W; F/REAR	46356-01E01	—
	replacement
46201C	46201C 463560E00A Bolt-Union, Front Brake Hose 1984-07-01 ~ ; S +W; F/REAR	463560E00A	from US $1.52
46201C	46201C 46356-50W02 Bolt-Union, Front Brake Hose 1984-07-01 ~ ; S +W; F/FRONT	46356-50W02	—
46201C	46201C 46356-01E01 BOLT-UNION,FRONT BRAKE HOSE 1984-07-01 ~ ; S +W; F/REAR	46356-01E01	—
	replacement
46201C	46201C 463560E00A Bolt-Union, Front Brake Hose 1984-07-01 ~ ; S +W; F/REAR	463560E00A	from US $1.52
46201C	46201C 46356-50W02 Bolt-Union, Front Brake Hose 1984-07-01 ~ ; S +W; F/FRONT	46356-50W02	—
46201D	46201D 46237A4600 Gasket-Clutch Hose 1984-07-01 ~ ; S +W; ,	46237A4600	from US $0.35
46201D	46201D 46237A4600 Gasket-Clutch Hose 1984-07-01 ~ ; S +W; ,	46237A4600	from US $0.35
46201D	46201D 46237A4600 Gasket-Clutch Hose 1984-07-01 ~ ; S +W; ,	46237A4600	from US $0.35
46201D	46201D 46237A4600 Gasket-Clutch Hose 1984-07-01 ~ ; S +W; ,	46237A4600	from US $0.35
46202	46202 46210-01E12 HOSE ASSY-BRAKE,FRONT LH 1984-07-01 ~ 1986-01-01; S +W; ,	46210-01E12	US $43.63
46202	46202 46210-D4002 Hose Assy-Brake, Front Lh 1986-01-01 ~ ; S +W; SELECT USE HITACHI	46210-D4002	US $47.23
46202	46202 46210D4012 Hose Assy-Brake, Front Lh 1986-01-01 ~ ; S +W; SELECT USE NICHIRIN	46210D4012	US $35.71
46210N	46210N 46210-02E00 HOSE ASSY-BRAKE,REAR RH 1984-07-01 ~ ; S +W; SELECT USE HITACHI	46210-02E00	US $29.38
46210N	46210N 46210-02E10 HOSE ASSY-BRAKE,REAR RH 1984-07-01 ~ ; S +W; SELECT USE NICHIRIN	46210-02E10	US $38.88
46240	46240 46240-16E00 TUBE ASSY-BRAKE,FRONT RH 1984-07-01 ~ 1987-08-01; S +W; ,	46240-16E00	—
46240	46240 46240-16E10 TUBE ASSY-BRAKE,FRONT RH 1987-08-01 ~ 1987-10-01; S +W; ,	46240-16E10	—
46240	46240 46240-16E11 TUBE ASSY-BRAKE,FRONT RH 1987-10-01 ~ ; S +W;	46240-16E11	—
46240	46240 46366H5001 Grommet 1984-07-01 ~ ; S +W; ,	46366H5001	US $2.88
46240M	46240M 46366H5001 Grommet 1984-07-01 ~ ; S +W; ,	46366H5001	US $2.88
46240M	46240M 46366H5001 Grommet 1984-07-01 ~ ; S +W; ,	46366H5001	US $2.88
46242	46242 46242-15E00 TUBE ASSY-BRAKE,FRONT LH 1984-07-01 ~ 1987-08-01; S +W; ,	46242-15E00	—
46242	46242 46242-15E20 TUBE ASSY-BRAKE,FRONT LH 1987-08-01 ~ ; S +W; ,	46242-15E20	—
46271	46271 46271W1601 Clip-Tube, Clutch 1984-07-01 ~ ; S +W; ,	46271W1601	from US $3.66
46271	46271 46271W1601 Clip-Tube, Clutch 1984-07-01 ~ ; S +W; ,	46271W1601	from US $3.66
46271	46271 46271W1601 Clip-Tube, Clutch 1984-07-01 ~ ; S +W; ,	46271W1601	from US $3.66
46272	46272 46271-01E00 CLAMP-BRAKE TUBE 1984-07-01 ~ 1985-07-01; S +W; ,	46271-01E00	from US $1.67
46272	46272 4627101E01 CLAMP-BRAKE TUBE 1987-08-01 ~ ; S +W; ,	4627101E01	US $2.91
46272	46272 46271-01E03 CLIP-TUBE,CLUTCH 1985-07-01 ~ 1987-08-01; S +W; ,	46271-01E03	US $0.97
46276	46276 0156100241 CLAMP 1984-07-01 ~ ; S +W; ,	0156100241	from US $0.57
46276	46276 0156100241 CLAMP 1984-07-01 ~ ; S +W; ,	0156100241	from US $0.57
46277	46277 46271-01B00 Clamp 1984-07-01 ~ ; S +W; ,	46271-01B00	—
	replacement
46277	46277 46271W1601 Clip-Tube, Clutch 1984-07-01 ~ ; S +W; ,	46271W1601	from US $3.66
46282M	46282M 46283-15E00 TUBE ASSY-BRAKE,REAR 1984-07-01 ~ 1987-10-01; S +W; ,	46283-15E00	—
46282M	46282M 46283-15E11 TUBE ASSY-BRAKE,REAR 1987-10-01 ~ ; S +W; ,	46283-15E11	—
46282Q	46282Q 46282-16E00 Tube assy-brake,master cylinder to rear 1984-07-01 ~ 1986-08-01; S +W; ,	46282-16E00	—
46282Q	46282Q 46282-16E10 TUBE ASSY-BRAKE,REAR 1986-08-01 ~ 1987-08-01; S +W; M/CYL TO REAR,LH	46282-16E10	—
46282Q	46282Q 46282-16E20 TUBE ASSY-BRAKE,REAR 1987-08-01 ~ 1987-10-01; S +W; ,	46282-16E20	—
46282Q	46282Q 46282-16E21 TUBE ASSY-BRAKE,REAR 1987-10-01 ~ ; S +W;	46282-16E21	—
46284	46284 46284-01E00 TUBE ASSY-BRAKE,REAR 1984-07-01 ~ ; S +W; ,	46284-01E00	US $36.43
46284	46284 46285-01E00 TUBE ASSY-BRAKE,REAR 1984-07-01 ~ ; S +W; ,	46285-01E00	US $28.37
46284M	46284M 46285-01E00 TUBE ASSY-BRAKE,REAR 1984-07-01 ~ ; S +W; ,	46285-01E00	US $28.37
46313	46313 46313-01E01 CONNECTOR-BRAKE TUBE 1984-07-01 ~ 1988-04-01; S +W; ,	46313-01E01	—
	replacement
46313	46313 4631301E02 CONNECTOR-BRAKE TUBE 1984-07-01 ~ 1988-04-01; S +W; ,	4631301E02	US $17.19
46313	46313 4631301E02 CONNECTOR-BRAKE TUBE 1988-04-01 ~ ; S +W; ,	4631301E02	US $17.19
46313	46313 46289-89908 Clamp 1985-07-01 ~ ; S +W; ,	46289-89908	US $9.79
46313F	46313F 46289-89908 Clamp 1985-07-01 ~ ; S +W; ,	46289-89908	US $9.79

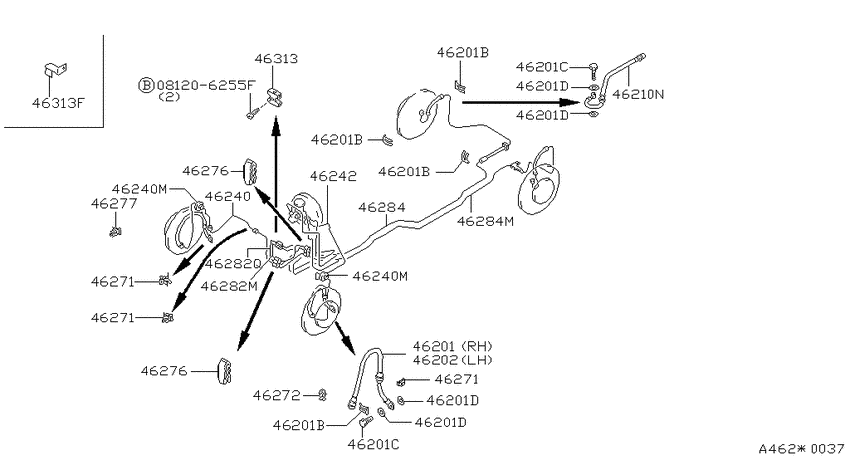

Brake piping & control (1984-07-01 ~ ; ALL) Diagram Nissan MAXIMA U.S.A. 2308096-182437

Brake piping & control (1984-07-01 ~ ; ALL) Diagram Nissan MAXIMA U.S.A. 2308096-182437
