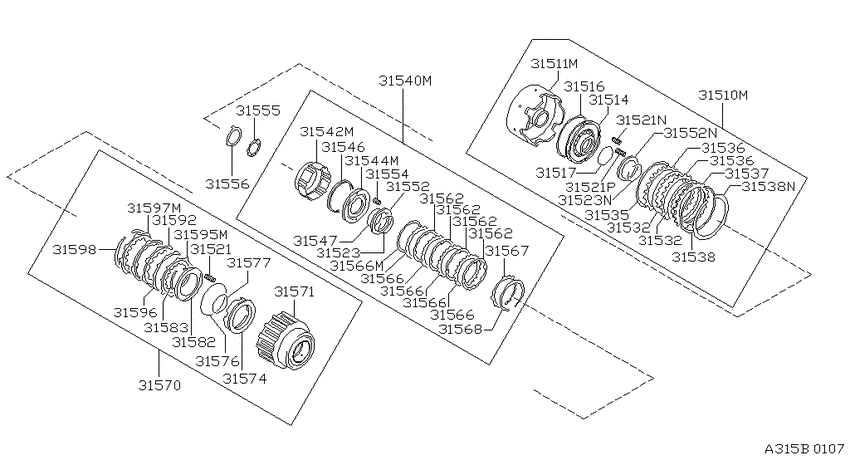

Clutch & band servo (1984-07-01 ~ ; CLUTCH ASSY (RL4F02A); AT.F4) Diagram Nissan MAXIMA
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- AT
- body
- S
- trim lvl
- SE
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31510M
|
31510M
31510-21X02 Clutch Assy-Reverse1984-07-01 ~ ; AT.F4; , |
31510-21X02 |
US $298.78 |
||
|
31511M
|
31511M
31511-21X01
Drum-Reverse Clutch
1984-07-01 ~ ; AT.F4; , |
31511-21X01 |
— | ||
|
31514
|
31514
31514-21X01 Piston Assy-Clutch1984-07-01 ~ ; AT.F4; , |
31514-21X01 |
US $25.49 |
||
|
31516
|
31516
31516-21X01
Seal-Lip
1984-07-01 ~ ; AT.F4; , |
31516-21X01 |
— | ||
| replacement | |||||
|
31516
|
31516
C1516-21X01 Seal-lip1984-07-01 ~ ; AT.F4; , |
C1516-21X01 |
US $11.79 |
||
|
31517
|
31517
31517-21X00 Seal-Lathe Cut Ring1984-07-01 ~ ; AT.F4; , |
31517-21X00 |
US $6.77 |
||
|
31521
|
31521
3152121X00 Spring-Piston Return1984-07-01 ~ ; AT.F4; , |
3152121X00 |
US $1.73 |
||
|
31521
|
31521
3152121X00 Spring-Piston Return1984-07-01 ~ ; AT.F4; , |
3152121X00 |
US $1.73 |
||
|
31521
|
31521
31521-21X01 Spring-Piston Return1984-07-01 ~ ; AT.F4; , |
31521-21X01 |
US $1.73 |
||
|
31521N
|
31521N
3152121X00 Spring-Piston Return1984-07-01 ~ ; AT.F4; , |
3152121X00 |
US $1.73 |
||
|
31521P
|
31521P
31521-21X01 Spring-Piston Return1984-07-01 ~ ; AT.F4; , |
31521-21X01 |
US $1.73 |
||
|
31523
|
31523
31553-21X00 Ring-Snap1984-07-01 ~ ; AT.F4; , |
31553-21X00 |
US $4.03 |
||
|
31523
|
31523
31523-21X00 Ring-Snap1984-07-01 ~ ; AT.F4; , |
31523-21X00 |
US $2.45 |
||
|
31523N
|
31523N
31523-21X00 Ring-Snap1984-07-01 ~ ; AT.F4; , |
31523-21X00 |
US $2.45 |
||
|
31532
|
31532
31532-21X00 Plate Assy-Drive1984-07-01 ~ ; AT.F4; , |
31532-21X00 |
US $18.58 |
||
|
31532
|
31532
31532-21X00 Plate Assy-Drive1984-07-01 ~ ; AT.F4; , |
31532-21X00 |
US $18.58 |
||
|
31535
|
31535
31529-21X00 Plate-Dished1984-07-01 ~ 1984-12-01; AT.F4; , |
31529-21X00 |
US $15.26 |
||
|
31535
|
31535
31535-21X03 Plate-Dished1988-05-01 ~ ; AT.F4; , |
31535-21X03 |
US $15.98 |
||
|
31536
|
31536
31536-21X01 Plate-Driven1984-07-01 ~ ; AT.F4; , |
31536-21X01 |
US $13.68 |
||
|
31536
|
31536
31536-21X01 Plate-Driven1984-07-01 ~ ; AT.F4; , |
31536-21X01 |
US $13.68 |
||
|
31537
|
31537
31537-21X10 Plate-Retaining1984-07-01 ~ ; AT.F4; SELECT T=4.6 |
31537-21X10 |
US $55.58 |
||
|
31537
|
31537
31537-21X11 Plate-Retaining1984-07-01 ~ ; AT.F4; SELECT T=4.8 |
31537-21X11 |
US $56.74 |
||
|
31537
|
31537
31537-21X12 Plate-Retaining1984-07-01 ~ ; AT.F4; SELECT T=5.0 |
31537-21X12 |
US $55.58 |
||
|
31537
|
31537
31537-21X13 Plate-Retaining1984-07-01 ~ ; AT.F4; SELECT T=5.2 |
31537-21X13 |
US $55.58 |
||
|
31537
|
31537
31537-21X14 Plate-Retaining1984-07-01 ~ ; AT.F4; SELECT T=5.4 |
31537-21X14 |
US $55.58 |
||
|
31538
|
31538
31538-21X00 Ring-Snap1984-07-01 ~ ; AT.F4; , |
31538-21X00 |
US $4.03 |
||
|
31538
|
31538
31538-21X10 Ring-Snap1984-07-01 ~ ; AT.F4; , |
31538-21X10 |
US $4.18 |
||
|
31538N
|
31538N
31538-21X10 Ring-Snap1984-07-01 ~ ; AT.F4; , |
31538-21X10 |
US $4.18 |
||
|
31540M
|
31540M
31540-21X02
Clutch Assy-High
1984-07-01 ~ 1984-12-01; AT.F4; , |
31540-21X02 |
— | ||
| replacement | |||||
|
31540M
|
31540M
31540-21X11
Clutch assy-high
1984-07-01 ~ 1984-12-01; AT.F4; , |
31540-21X11 |
— | ||
|
31540M
|
31540M
31540-21X03 Clutch Assy-High1984-12-01 ~ 1985-10-01; AT.F4; FROM U/# AZ01090 |
31540-21X03 |
US $379.49 |
||
|
31540M
|
31540M
31540-21X09 Clutch Assy-High1985-10-01 ~ 1988-05-01; AT.F4; , |
31540-21X09 |
US $372.41 |
||
|
31540M
|
31540M
31540-21X12
Clutch Assy-High
1984-12-01 ~ 1985-10-01; AT.F4; , |
31540-21X12 |
— | ||
|
31540M
|
31540M
31540-21X21 Clutch Assy-High1988-05-01 ~ ; AT.F4; , |
31540-21X21 |
US $372.41 |
||
|
31542M
|
31542M
31541-21X01 Drum-High Clutch1985-10-01 ~ ; AT.F4; , |
31541-21X01 |
US $178.56 |
||
|
31542M
|
31542M
31541-21X02 Drum-High Clutch1984-07-01 ~ 1985-10-01; AT.F4; , |
31541-21X02 |
US $178.56 |
||
|
31544M
|
31544M
31544-21X01
Piston Assy-High Clutch
1984-07-01 ~ 1984-12-01; AT.F4; , |
31544-21X01 |
— | ||
|
31544M
|
31544M
31544-21X02 Piston Assy-High Clutch1984-12-01 ~ 1985-10-01; AT.F4; , |
31544-21X02 |
US $98.64 |
||
|
31544M
|
31544M
31544-21X03 Piston Assy-High Clutch1985-10-01 ~ 1988-05-01; AT.F4; , |
31544-21X03 |
US $82.80 |
||
|
31544M
|
31544M
31544-21X06 Piston Assy-High Clutch1988-05-01 ~ ; AT.F4; , |
31544-21X06 |
US $92.16 |
||
|
31546
|
31546
31528-21X09 Seal-Lip1985-10-01 ~ ; AT.F4; , |
31528-21X09 |
US $11.52 |
||
|
31546
|
31546
31546-21X00
Seal-Lip
1984-07-01 ~ 1984-08-01; AT.F4; , |
31546-21X00 |
— | ||
|
31546
|
31546
31546-21X01 Seal-Lip1984-08-01 ~ 1985-10-01; AT.F4; , |
31546-21X01 |
US $11.52 |
||
|
31547
|
31547
3154721X00 Seal-Lathe Cut Ring1984-07-01 ~ ; AT.F4; , |
3154721X00 |
from US $5.76 |
||
|
31552
|
31552
31552-21X00 Retainer-Spring1984-07-01 ~ 1988-04-01; AT.F4; , |
31552-21X00 |
US $5.18 |
||
|
31552
|
31552
31552-21X01 Retainer-Spring1984-07-01 ~ ; AT.F4; , |
31552-21X01 |
US $5.18 |
||
|
31552
|
31552
31522-21X00 Retainer-Spring1984-07-01 ~ ; AT.F4; , |
31522-21X00 |
US $4.03 |
||
|
31552N
|
31552N
31522-21X00 Retainer-Spring1984-07-01 ~ ; AT.F4; , |
31522-21X00 |
US $4.03 |
||
|
31554
|
31554
31505-21X00 Spring-Return, Piston1985-07-01 ~ 1985-10-01; AT.F4; , |
31505-21X00 |
US $0.86 |
||
|
31554
|
31554
31505-21X02 Spring-Return, Piston1985-10-01 ~ ; AT.F4; , |
31505-21X02 |
US $0.86 |
||
|
31554
|
31554
31554-21X01 Spring-Return, Piston1984-07-01 ~ 1985-07-01; AT.F4; , |
31554-21X01 |
US $0.86 |
||
|
31555
|
31555
31407-21X00 Bearing-Needle, Thrust1987-03-01 ~ ; AT.F4; , |
31407-21X00 |
US $10.80 |
||
|
31555
|
31555
31428-X0100 Bearing-Needle, Thrust1984-07-01 ~ 1987-03-01; AT.F4; , |
31428-X0100 |
US $12.96 |
||
|
31556
|
31556
31429-21X00 Race-Bearing1984-07-01 ~ ; AT.F4; SELECT T=0.8 |
31429-21X00 |
US $5.18 |
||
|
31556
|
31556
31429-21X01 Race-Bearing1984-07-01 ~ ; AT.F4; SELECT T=1.0 |
31429-21X01 |
US $5.18 |
||
|
31556
|
31556
31429-21X02 Race-Bearing1984-07-01 ~ ; AT.F4; SELECT T=1.2 |
31429-21X02 |
US $5.18 |
||
|
31556
|
31556
31429-21X03 Race-Bearing1984-07-01 ~ ; AT.F4; SELECT T=1.4 |
31429-21X03 |
US $5.18 |
||
|
31556
|
31556
31429-21X04 Race-Bearing1984-07-01 ~ ; AT.F4; SELECT T=1.6 |
31429-21X04 |
US $5.18 |
||
|
31556
|
31556
31429-21X05 Race-Bearing1984-07-01 ~ ; AT.F4; SELECT T=1.8 |
31429-21X05 |
US $5.18 |
||
|
31556
|
31556
31429-21X06 Race-Bearing1984-07-01 ~ ; AT.F4; SELECT T=2.0 |
31429-21X06 |
US $5.18 |
||
|
31562
|
31562
31532-21X02 Plate Assy-Drive1984-11-01 ~ ; AT.F4; , |
31532-21X02 |
US $15.55 |
||
|
31562
|
31562
31532-21X04
Plate Assy-Drive
1984-09-01 ~ 1984-11-01; AT.F4; , |
31532-21X04 |
— | ||
|
31562
|
31562
31562-21X01
Plate Assy-Drive
1984-07-01 ~ 1984-09-01; AT.F4; , |
31562-21X01 |
— | ||
|
31562
|
31562
31532-21X02 Plate Assy-Drive1984-11-01 ~ ; AT.F4; , |
31532-21X02 |
US $15.55 |
||
|
31562
|
31562
31532-21X04
Plate Assy-Drive
1984-09-01 ~ 1984-11-01; AT.F4; , |
31532-21X04 |
— | ||
|
31562
|
31562
31562-21X01
Plate Assy-Drive
1984-07-01 ~ 1984-09-01; AT.F4; , |
31562-21X01 |
— | ||
|
31562
|
31562
31532-21X02 Plate Assy-Drive1984-11-01 ~ ; AT.F4; , |
31532-21X02 |
US $15.55 |
||
|
31562
|
31562
31532-21X04
Plate Assy-Drive
1984-09-01 ~ 1984-11-01; AT.F4; , |
31532-21X04 |
— | ||
|
31562
|
31562
31562-21X01
Plate Assy-Drive
1984-07-01 ~ 1984-09-01; AT.F4; , |
31562-21X01 |
— | ||
|
31562
|
31562
31532-21X02 Plate Assy-Drive1984-11-01 ~ ; AT.F4; , |
31532-21X02 |
US $15.55 |
||
|
31562
|
31562
31532-21X04
Plate Assy-Drive
1984-09-01 ~ 1984-11-01; AT.F4; , |
31532-21X04 |
— | ||
|
31562
|
31562
31562-21X01
Plate Assy-Drive
1984-07-01 ~ 1984-09-01; AT.F4; , |
31562-21X01 |
— | ||
|
31566
|
31566
31536-21X02 Plate-Driven1985-10-01 ~ 1988-05-01; AT.F4; , |
31536-21X02 |
US $6.48 |
||
|
31566
|
31566
31536-21X03 Plate-Driven1988-05-01 ~ ; AT.F4; , |
31536-21X03 |
US $11.66 |
||
|
31566
|
31566
31566-21X01
Plate-Driven
1984-07-01 ~ 1984-11-01; AT.F4; , |
31566-21X01 |
— | ||
|
31566
|
31566
31566-21X02 Plate-Driven1984-11-01 ~ 1985-10-01; AT.F4; , |
31566-21X02 |
US $15.55 |
||
|
31566
|
31566
31566-21X00 Plate-Driven1984-07-01 ~ 1985-10-01; AT.F4; , |
31566-21X00 |
US $6.48 |
||
|
31566
|
31566
31536-21X02 Plate-Driven1985-10-01 ~ 1988-05-01; AT.F4; , |
31536-21X02 |
US $6.48 |
||
|
31566
|
31566
31536-21X03 Plate-Driven1988-05-01 ~ ; AT.F4; , |
31536-21X03 |
US $11.66 |
||
|
31566
|
31566
31566-21X01
Plate-Driven
1984-07-01 ~ 1984-11-01; AT.F4; , |
31566-21X01 |
— | ||
|
31566
|
31566
31566-21X02 Plate-Driven1984-11-01 ~ 1985-10-01; AT.F4; , |
31566-21X02 |
US $15.55 |
||
|
31566
|
31566
31566-21X00 Plate-Driven1984-07-01 ~ 1985-10-01; AT.F4; , |
31566-21X00 |
US $6.48 |
||
|
31566
|
31566
31536-21X02 Plate-Driven1985-10-01 ~ 1988-05-01; AT.F4; , |
31536-21X02 |
US $6.48 |
||
|
31566
|
31566
31536-21X03 Plate-Driven1988-05-01 ~ ; AT.F4; , |
31536-21X03 |
US $11.66 |
||
|
31566
|
31566
31566-21X01
Plate-Driven
1984-07-01 ~ 1984-11-01; AT.F4; , |
31566-21X01 |
— | ||
|
31566
|
31566
31566-21X02 Plate-Driven1984-11-01 ~ 1985-10-01; AT.F4; , |
31566-21X02 |
US $15.55 |
||
|
31566
|
31566
31566-21X00 Plate-Driven1984-07-01 ~ 1985-10-01; AT.F4; , |
31566-21X00 |
US $6.48 |
||
|
31566
|
31566
31536-21X02 Plate-Driven1985-10-01 ~ 1988-05-01; AT.F4; , |
31536-21X02 |
US $6.48 |
||
|
31566
|
31566
31536-21X03 Plate-Driven1988-05-01 ~ ; AT.F4; , |
31536-21X03 |
US $11.66 |
||
|
31566
|
31566
31566-21X01
Plate-Driven
1984-07-01 ~ 1984-11-01; AT.F4; , |
31566-21X01 |
— | ||
|
31566
|
31566
31566-21X02 Plate-Driven1984-11-01 ~ 1985-10-01; AT.F4; , |
31566-21X02 |
US $15.55 |
||
|
31566
|
31566
31566-21X00 Plate-Driven1984-07-01 ~ 1985-10-01; AT.F4; , |
31566-21X00 |
US $6.48 |
||
|
31566M
|
31566M
31566-21X00 Plate-Driven1984-07-01 ~ 1985-10-01; AT.F4; , |
31566-21X00 |
US $6.48 |
||
|
31567
|
31567
31567-21X00 Plate-Retaining1984-07-01 ~ ; AT.F4; SELECT T=3.6 |
31567-21X00 |
US $40.61 |
||
|
31567
|
31567
31567-21X01 Plate-Retaining1984-07-01 ~ ; AT.F4; SELECT T=3.8 |
31567-21X01 |
US $40.61 |
||
|
31567
|
31567
31567-21X02 Plate-Retaining1984-07-01 ~ ; AT.F4; SELECT T=4.0 |
31567-21X02 |
US $40.61 |
||
|
31567
|
31567
31567-21X03 Plate-Retaining1984-07-01 ~ ; AT.F4; SELECT T=4.2 |
31567-21X03 |
US $40.61 |
||
|
31567
|
31567
31567-21X04 Plate-Retaining1984-07-01 ~ ; AT.F4; SELECT T=4.4 |
31567-21X04 |
US $40.61 |
||
|
31567
|
31567
31567-21X05 Plate-Retaining1984-07-01 ~ ; AT.F4; SELECT T=4.6 |
31567-21X05 |
US $40.61 |
||
|
31567
|
31567
31567-21X06 Plate-Retaining1984-07-01 ~ ; AT.F4; SELECT T=4.8 |
31567-21X06 |
US $40.61 |
||
|
31567
|
31567
31567-21X10 Plate-Retaining1984-07-01 ~ 1984-11-01; AT.F4; SELECT T=5.0 |
31567-21X10 |
US $40.61 |
||
|
31568
|
31568
31538-01X00 Ring-Snap1984-11-01 ~ 1985-10-01; AT.F4; , |
31538-01X00 |
US $6.48 |
||
|
31568
|
31568
31568-21X00 Ring-Snap, Transfer Clutch Drum1984-07-01 ~ 1984-11-01; AT.F4; , |
31568-21X00 |
US $4.18 |
||
|
31570
|
31570
31570-21X02 Clutch Assy-Low1984-07-01 ~ 1985-10-01; AT.F4; , |
31570-21X02 |
US $399.31 |
||
|
31570
|
31570
31570-21X06 Clutch Assy-Low1985-10-01 ~ ; AT.F4; , |
31570-21X06 |
US $390.82 |
||
|
31571
|
31571
31571-21X03 Drum Assy-Low Clutch1984-07-01 ~ ; AT.F4; , |
31571-21X03 |
US $77.47 |
||
|
31574
|
31574
31574-21X01 Piston Assy-Low Clutch1984-07-01 ~ 1985-06-01; AT.F4; , |
31574-21X01 |
US $34.85 |
||
|
31574
|
31574
31574-21X02 Piston Assy-Low Clutch1985-06-01 ~ 1985-10-01; AT.F4; , |
31574-21X02 |
US $34.85 |
||
|
31574
|
31574
31574-21X03 Piston Assy-Low Clutch1985-10-01 ~ ; AT.F4; , |
31574-21X03 |
US $43.78 |
||
|
31576
|
31576
31528-21X10 Seal-Lip1985-10-01 ~ ; AT.F4; , |
31528-21X10 |
US $8.78 |
||
|
31576
|
31576
31576-21X00 Seal-Lathe Cut Ring1984-07-01 ~ 1985-10-01; AT.F4; , |
31576-21X00 |
US $8.93 |
||
|
31577
|
31577
31577-21X00 Seal-O Ring, Low Clutch1984-07-01 ~ ; AT.F4; , |
31577-21X00 |
US $5.90 |
||
|
31582
|
31582
31582-21X00 Retainer-Spring, Low Clutch1984-07-01 ~ ; AT.F4; , |
31582-21X00 |
US $5.18 |
||
|
31583
|
31583
31583-21X00 Ring-Snap, Low Clutch1984-07-01 ~ ; AT.F4; , |
31583-21X00 |
US $1.73 |
||
|
31592
|
31592
31592-21X00 Plate Assy-Drive1984-07-01 ~ ; AT.F4; , |
31592-21X00 |
US $14.40 |
||
|
31595M
|
31595M
31578-21X01 Plate-Dished1984-07-01 ~ ; AT.F4; , |
31578-21X01 |
US $15.55 |
||
|
31596
|
31596
31596-21X00 Plate-Driven1984-07-01 ~ ; AT.F4; , |
31596-21X00 |
US $8.21 |
||
|
31597M
|
31597M
31597-21X10 Plate-Retaining Clutch1984-07-01 ~ ; AT.F4; SELECT T=3.2 |
31597-21X10 |
US $47.81 |
||
|
31597M
|
31597M
31597-21X11 Plate-Retaining Clutch1984-07-01 ~ ; AT.F4; SELECT T=3.4 |
31597-21X11 |
US $47.81 |
||
|
31597M
|
31597M
31597-21X12 Plate-Retaining Clutch1984-07-01 ~ ; AT.F4; SELECT T=3.6 |
31597-21X12 |
US $47.81 |
||
|
31597M
|
31597M
31597-21X13 Plate-Retaining Clutch1984-07-01 ~ ; AT.F4; SELECT T=3.8 |
31597-21X13 |
US $47.81 |
||
|
31597M
|
31597M
31597-21X14 Plate-Retaining Clutch1984-07-01 ~ ; AT.F4; SELECT T=4.0 |
31597-21X14 |
US $47.81 |
||
|
31597M
|
31597M
31597-21X15 Plate-Retaining Clutch1984-07-01 ~ ; AT.F4; SELECT T=4.2 |
31597-21X15 |
US $47.81 |
||
|
31598
|
31598
31598-21X00 Ring-Snap, Clutch Drum1984-07-01 ~ ; AT.F4; , |
31598-21X00 |
US $2.45 |
||
