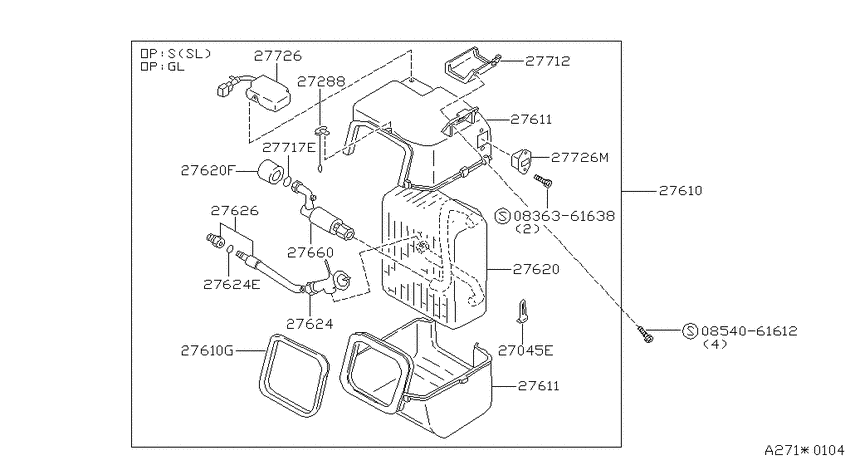

Cooling unit (1984-07-01 ~ ; PART 2; ALL) Diagram Nissan MAXIMA
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- AT
- body
- S
- trim lvl
- SE
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836361638
|
0836361638
08363-61638
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61638 |
— | ||
| replacement | |||||
|
0836361638
|
0836361638
083636161G Bolt |
083636161G |
US $2.36 |
||
|
0854061612
|
0854061612
08540-61612
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08540-61612 |
— | ||
|
27045E
|
27045E
27333-D0100 Bracket-Thermo Switch1984-07-01 ~ ; S +W; , |
27333-D0100 |
US $1.15 |
||
|
27610
|
27610
27270-16E00
COOLING UNIT ASSY
1984-07-01 ~ 1985-07-01; S +W; , |
27270-16E00 |
— | ||
|
27610
|
27610
27270-16E01
COOLING UNIT ASSY
1985-07-01 ~ 1985-12-01; S +W; , |
27270-16E01 |
— | ||
|
27610
|
27610
27270-16E02
COOLING UNIT ASSY
1985-12-01 ~ 1986-01-01; S +W; , |
27270-16E02 |
— | ||
|
27610
|
27610
27270-38E00
COOLING UNIT ASSY
1986-01-01 ~ 1986-07-01; S +W; , |
27270-38E00 |
— | ||
|
27610
|
27610
27270-38E05
COOLING UNIT ASSY
1986-07-01 ~ 1986-08-01; S +W; , |
27270-38E05 |
— | ||
|
27610
|
27610
27270-38E06
COOLING UNIT ASSY
1986-08-01 ~ ; S +W; , |
27270-38E06 |
— | ||
|
27611
|
27611
27285-16E01
CASE ASSY-COOLING UNIT
1984-07-01 ~ 1986-01-01; S +W; , |
27285-16E01 |
— | ||
|
27611
|
27611
27285-38E05
CASE ASSY-COOLING UNIT
1986-01-01 ~ ; S +W; , |
27285-38E05 |
— | ||
|
27611
|
27611
27285-16E01
CASE ASSY-COOLING UNIT
1984-07-01 ~ 1986-01-01; S +W; , |
27285-16E01 |
— | ||
|
27611
|
27611
27285-38E05
CASE ASSY-COOLING UNIT
1986-01-01 ~ ; S +W; , |
27285-38E05 |
— | ||
|
27620
|
27620
27280-13E01
EVAPORATOR ASSY-COOLER
1984-07-01 ~ 1984-08-01; S +W; , |
27280-13E01 |
— | ||
|
27620
|
27620
27280-15E00
EVAPORATOR ASSY-COOLER
1984-08-01 ~ 1986-01-01; S +W; , |
27280-15E00 |
— | ||
|
27620
|
27620
27280-15E01
EVAPORATOR ASSY-COOLER
1984-08-01 ~ 1986-01-01; S +W; , |
27280-15E01 |
— | ||
|
27620
|
27620
27280-38E00
EVAPORATOR ASSY-COOLER
1986-01-01 ~ 1986-08-01; S +W; , |
27280-38E00 |
— | ||
|
27620
|
27620
27280-38E01
EVAPORATOR ASSY-COOLER
1986-08-01 ~ ; S +W; , |
27280-38E01 |
— | ||
|
27624
|
27624
92200-01E00 VALVE ASSY-EXPANSION1986-01-01 ~ ; S +W; , |
92200-01E00 |
US $159.84 |
||
|
27624
|
27624
92200-13E00
VALVE ASSY-EXPANSION
1984-07-01 ~ 1986-01-01; S +W; , |
92200-13E00 |
— | ||
|
27624
|
27624
92471N8200 O Ring1984-07-01 ~ ; S +W; , |
92471N8200 |
US $1.13 |
||
|
27624E
|
27624E
92471N8200 O Ring1984-07-01 ~ ; S +W; , |
92471N8200 |
US $1.13 |
||
|
27626
|
27626
92560-01E00 GROMMET-COOLER TUBE1984-07-01 ~ ; S +W; , |
92560-01E00 |
US $8.21 |
||
|
27660
|
27660
92210-16E00
VALVE-SUCTION THROTTLE
1986-01-01 ~ ; S +W; , |
92210-16E00 |
— | ||
|
27660
|
27660
92720-16E60
VALVE-SUCTION THROTTLE
1988-04-01 ~ ; S; , |
92720-16E60 |
— | ||
|
27712
|
27712
27295-13E00
BRACKET-COOLING UNIT
1984-07-01 ~ ; S +W; , |
27295-13E00 |
— | ||
