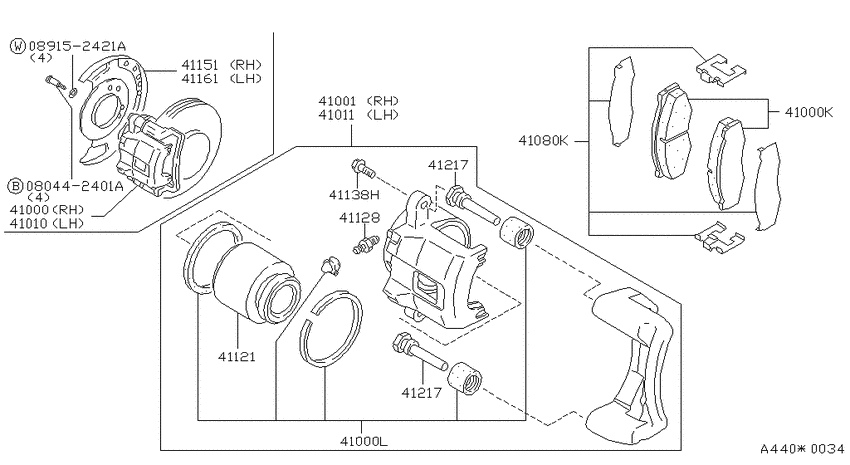

Front brake (1984-07-01 ~ ; ALL) Diagram Nissan MAXIMA
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- AT
- body
- S
- trim lvl
- SE
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080442401A
|
080442401A
080442401A Bolt-hexagon |
080442401A |
US $1.91 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
41000
|
41000
41000-17E00
Brake assy-front,rh
1984-07-01 ~ 1986-06-01; VG30E; , |
41000-17E00 |
— | ||
|
41000
|
41000
41060-32E90
PAD KIT-DISC BRAKE,FRONT
1986-06-01 ~ 1987-02-01; VG30E; F/RH & LH |
41060-32E90 |
— | ||
|
41000
|
41000
41060-32E92
PAD KIT-DISC BRAKE,FRONT
1987-02-01 ~ 1987-08-01; VG30E; F/RH & LH |
41060-32E92 |
— | ||
| replacement | |||||
|
41000
|
41000
41060-VR025
Pad kit-disc brake
1987-02-01 ~ 1987-08-01; VG30E; F/RH & LH |
41060-VR025 |
— | ||
|
41000
|
41000
41060-32E94
PAD KIT-DISC BRAKE,FRONT
1987-02-01 ~ ; VG30E; F/RH & LH |
41060-32E94 |
— | ||
| replacement | |||||
|
41000
|
41000
41060-VR025
Pad kit-disc brake
1987-02-01 ~ ; VG30E; F/RH & LH |
41060-VR025 |
— | ||
|
41000
|
41000
41060-V6790
Pad Kit-Disc Brake, Front
1984-07-01 ~ 1986-06-01; VG30E; F/RH & LH |
41060-V6790 |
— | ||
|
41000
|
41000
41120-V0326
Seal Kit-Disc Brake
1984-07-01 ~ ; VG30E; , |
41120-V0326 |
— | ||
|
41000
|
41000
41120-V0327
Seal Kit-Disc Brake
1984-07-01 ~ ; VG30E; , |
41120-V0327 |
— | ||
|
41000K
|
41000K
41060-32E90
PAD KIT-DISC BRAKE,FRONT
1986-06-01 ~ 1987-02-01; VG30E; F/RH & LH |
41060-32E90 |
— | ||
|
41000K
|
41000K
41060-32E92
PAD KIT-DISC BRAKE,FRONT
1987-02-01 ~ 1987-08-01; VG30E; F/RH & LH |
41060-32E92 |
— | ||
| replacement | |||||
|
41000K
|
41000K
41060-VR025
Pad kit-disc brake
1987-02-01 ~ 1987-08-01; VG30E; F/RH & LH |
41060-VR025 |
— | ||
|
41000K
|
41000K
41060-32E94
PAD KIT-DISC BRAKE,FRONT
1987-02-01 ~ ; VG30E; F/RH & LH |
41060-32E94 |
— | ||
| replacement | |||||
|
41000K
|
41000K
41060-VR025
Pad kit-disc brake
1987-02-01 ~ ; VG30E; F/RH & LH |
41060-VR025 |
— | ||
|
41000K
|
41000K
41060-V6790
Pad Kit-Disc Brake, Front
1984-07-01 ~ 1986-06-01; VG30E; F/RH & LH |
41060-V6790 |
— | ||
|
41000L
|
41000L
41120-V0326
Seal Kit-Disc Brake
1984-07-01 ~ ; VG30E; , |
41120-V0326 |
— | ||
|
41000L
|
41000L
41120-V0327
Seal Kit-Disc Brake
1984-07-01 ~ ; VG30E; , |
41120-V0327 |
— | ||
|
41001
|
41001
41001-16E00 ｷﾔﾘﾊﾟ- ｱﾂｾﾝﾌﾞﾘ,ﾌﾛﾝﾄrh ｳｲｽﾞｱｳﾄ ﾊﾟﾂﾄ ｵｱ ｼﾑ1984-07-01 ~ ; VG30E; , |
41001-16E00 |
US $404.98 |
||
| replacement | |||||
|
41001
|
41001
41001-16E01
Caliper assy-front rh,w/o pads or shims
1984-07-01 ~ ; VG30E; , |
41001-16E01 |
— | ||
|
41001
|
41001
41001-17E00
CALIPER ASSY-FRONT RH,W/O PADS OR SHIMS
1984-07-01 ~ 1987-11-01; VG30E; , |
41001-17E00 |
— | ||
|
41010
|
41010
41010-17E00
Brake assy-front,lh
1984-07-01 ~ 1986-06-01; VG30E; , |
41010-17E00 |
— | ||
|
41011
|
41011
41011-16E00 ｷﾔﾘﾊﾟ- ｱﾂｾﾝﾌﾞﾘ,ﾌﾛﾝﾄlh ｳｲｽﾞｱｳﾄ ﾊﾟﾂﾄ ｵｱ ｼﾑ1984-07-01 ~ ; VG30E; , |
41011-16E00 |
US $404.98 |
||
| replacement | |||||
|
41011
|
41011
41011-16E01
Caliper assy-front lh,w/o pads or shims
1984-07-01 ~ ; VG30E; , |
41011-16E01 |
— | ||
|
41011
|
41011
41011-17E00 CALIPER ASSY-FRONT LH,W/O PADS OR SHIMS1984-07-01 ~ 1987-11-01; VG30E; , |
41011-17E00 |
US $404.98 |
||
| replacement | |||||
|
41011
|
41011
41011-16E01
Caliper assy-front lh,w/o pads or shims
1984-07-01 ~ 1987-11-01; VG30E; , |
41011-16E01 |
— | ||
|
41080K
|
41080K
41080-09W26 Hardware Kit-Front Disc Brake Pad1984-07-01 ~ 1987-02-01; VG30E; , |
41080-09W26 |
US $54.29 |
||
| replacement | |||||
|
41080K
|
41080K
41080-41L26
Hardware kit-front disc brake pad
1984-07-01 ~ 1987-02-01; VG30E; , |
41080-41L26 |
— | ||
|
41080K
|
41080K
41080-41L25 Hardware Kit-Front Disc Brake Pad1984-07-01 ~ 1987-02-01; VG30E; , |
41080-41L25 |
US $71.86 |
||
| replacement | |||||
|
41080K
|
41080K
41080-41L26
Hardware kit-front disc brake pad
1984-07-01 ~ 1987-02-01; VG30E; , |
41080-41L26 |
— | ||
|
41080K
|
41080K
41080-41L29
Hardware Kit-Front Disc Brake Pad
1987-02-01 ~ 1987-08-01; VG30E; , |
41080-41L29 |
— | ||
| replacement | |||||
|
41080K
|
41080K
41080-41L85 Hardware Kit-Front Disc Brake Pad1987-02-01 ~ 1987-08-01; VG30E; , |
41080-41L85 |
US $70.55 |
||
|
41080K
|
41080K
41080-41L85 Hardware Kit-Front Disc Brake Pad1987-08-01 ~ ; VG30E; , |
41080-41L85 |
US $70.55 |
||
|
41121
|
41121
41121V1401 Piston-Cylinder1984-07-01 ~ ; VG30E; , |
41121V1401 |
US $56.30 |
||
|
41128
|
41128
41128-21010
Screw-Bleeder
1984-07-01 ~ ; VG30E; , |
41128-21010 |
— | ||
|
41128
|
41128
41128-V5510
Screw-Bleeder
1984-07-01 ~ ; VG30E; , |
41128-V5510 |
— | ||
|
41138H
|
41138H
41141-01A00 Pin-Bolt1984-07-01 ~ ; VG30E; , |
41141-01A00 |
US $4.18 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
1984-07-01 ~ ; VG30E; , |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt1984-07-01 ~ ; VG30E; , |
44141AW70A |
from US $3.35 |
||
|
41151
|
41151
41150-16E00 PLATE-BAFFLE1984-07-01 ~ 1985-11-01; VG30E; , |
41150-16E00 |
US $30.38 |
||
|
41151
|
41151
41150-16E01 PLATE-BAFFLE1985-11-01 ~ ; VG30E; , |
41150-16E01 |
US $30.38 |
||
|
41151
|
41151
41151-16E00
Plate-baffle,rh
1984-07-01 ~ 1985-11-01; VG30E; , |
41151-16E00 |
— | ||
|
41161
|
41161
41150-16E01 PLATE-BAFFLE1985-11-01 ~ ; VG30E; , |
41150-16E01 |
US $30.38 |
||
|
41161
|
41161
41160-16E00 PLATE-BAFFLE1984-07-01 ~ 1985-11-01; VG30E; , |
41160-16E00 |
US $30.38 |
||
|
41161
|
41161
41161-16E00
Plate-baffle,lh
1984-07-01 ~ 1985-11-01; VG30E; , |
41161-16E00 |
— | ||
|
41217
|
41217
41139-V0300 Pin1984-07-01 ~ ; VG30E; , |
41139-V0300 |
US $5.76 |
||
|
41217
|
41217
41139-V0300 Pin1984-07-01 ~ ; VG30E; , |
41139-V0300 |
US $5.76 |
||
