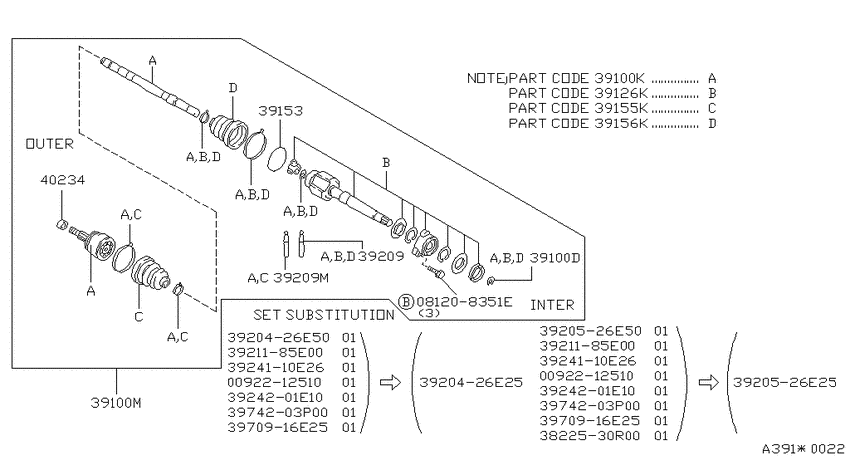

Front drive shaft (ff) (1984-07-01 ~ ; RH; ALL) Diagram Nissan MAXIMA
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- AT
- body
- S
- trim lvl
- SE
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208351E
|
081208351E
081208351E
Bolt-hexagon
|
081208351E |
— | ||
|
39100D
|
39100D
38225-10E00
CLIP-DRIVE SHAFT
1984-07-01 ~ ; VG30E; SELECT D=28.6 |
38225-10E00 |
— | ||
|
39100D
|
39100D
3822530R00 Circlip-Side Gear1984-07-01 ~ ; VG30E; SELECT D=29.35 |
3822530R00 |
US $1.73 |
||
|
39100D
|
39100D
38225-65A10 Clip-Drive Shaft1984-07-01 ~ ; VG30E; , |
38225-65A10 |
US $1.73 |
||
|
39100K
|
39100K
39204-16E25 REPAIR KIT-FRONT DRIVE SHAFT1984-07-01 ~ 1987-09-01; VG30E; RH |
39204-16E25 |
US $951.55 |
||
| replacement | |||||
|
39100K
|
39100K
39204-16E27
Repair kit-front drive shaft,rh
1984-07-01 ~ 1987-09-01; VG30E; RH |
39204-16E27 |
— | ||
|
39100K
|
39100K
39204-26E25 REPAIR KIT-FRONT DRIVE SHAFT1987-12-01 ~ ; VG30E; , |
39204-26E25 |
US $877.92 |
||
|
39100M
|
39100M
39100-16E00
SHAFT ASSY-FRONT DRIVE
1984-07-01 ~ 1987-09-01; VG30E; HOUSING GREEN |
39100-16E00 |
— | ||
|
39100M
|
39100M
39100-26E00 SHAFT ASSY-FRONT DRIVE1987-09-01 ~ 1987-12-01; VG30E.(SL+GL).MT.F5 +VG30E.AT.F4; HOUSING BLACK |
39100-26E00 |
US $1,042.18 |
||
|
39100M
|
39100M
39100-26E10 SHAFT ASSY-FRONT DRIVE1987-12-01 ~ ; VG30E; HOUSING BLACK SHAFT YELLOW BAND |
39100-26E10 |
US $1,042.18 |
||
|
39126K
|
39126K
39710-16E25 REPAIR KIT-JOINT,INNER1984-07-01 ~ 1987-09-01; VG30E; LH |
39710-16E25 |
US $951.55 |
||
|
39126K
|
39126K
39710-26E25
JOINT KIT-INNER,FRONT DRIVE SHAFT
1987-09-01 ~ 1987-12-01; VG30E; LH |
39710-26E25 |
— | ||
|
39126K
|
39126K
39710-26E26
JOINT KIT-INNER,FRONT DRIVE SHAFT
1987-12-01 ~ ; VG30E; LH |
39710-26E26 |
— | ||
| replacement | |||||
|
39126K
|
39126K
39710-26E27
Repair kit-joint,inner
1987-12-01 ~ ; VG30E; LH |
39710-26E27 |
— | ||
|
39126K
|
39126K
39770-16E25 REPAIR KIT-JOINT,INNER1984-07-01 ~ 1986-01-01; VG30E; RH HOUSING GREEN |
39770-16E25 |
US $406.39 |
||
|
39126K
|
39126K
39770-16E27 REPAIR KIT-JOINT,INNER1986-01-01 ~ 1987-12-01; VG30E; RH HOUSING GREEN |
39770-16E27 |
US $495.60 |
||
|
39126K
|
39126K
39770-26E25
JOINT KIT-INNER,FRONT DRIVE SHAFT
1987-09-01 ~ 1987-12-01; VG30E; RH HOUSING BLACK |
39770-26E25 |
— | ||
|
39126K
|
39126K
39770-26E26
JOINT KIT-INNER,FRONT DRIVE SHAFT
1987-12-01 ~ ; VG30E; RH HOUSING BLACK |
39770-26E26 |
— | ||
| replacement | |||||
|
39126K
|
39126K
39770-26E27
Repair kit-joint,inner
1987-12-01 ~ ; VG30E; RH HOUSING BLACK |
39770-26E27 |
— | ||
|
39153
|
39153
39735-03P00 Ring-Stopper1984-07-01 ~ 1987-09-01; VG30E; , |
39735-03P00 |
US $2.45 |
||
|
39155K
|
39155K
39241-10E25 REPAIR KIT-DUST BOOT,OUTER1984-07-01 ~ 1987-09-01; VG30E; , |
39241-10E25 |
US $65.66 |
||
| replacement | |||||
|
39155K
|
39155K
39241-10E88 REPAIR KIT-DUST BOOT,OUTER1984-07-01 ~ 1987-09-01; VG30E; , |
39241-10E88 |
US $78.34 |
||
|
39155K
|
39155K
39241-10E26 REPAIR KIT-DUST BOOT,OUTER1987-09-01 ~ ; VG30E; , |
39241-10E26 |
US $65.66 |
||
| replacement | |||||
|
39155K
|
39155K
39241-10E88 REPAIR KIT-DUST BOOT,OUTER1987-09-01 ~ ; VG30E; , |
39241-10E88 |
US $78.34 |
||
|
39156K
|
39156K
39741-16E25 REPAIR KIT-DUST B00T,INNER1984-07-01 ~ 1987-09-01; VG30E; RH&LH |
39741-16E25 |
US $69.84 |
||
|
39156K
|
39156K
3974116E28 DUST BOOT KIT-REPAIR,INNER1987-12-01 ~ ; VG30E; , |
3974116E28 |
US $82.94 |
||
| replacement | |||||
|
39156K
|
39156K
3974155E87
REPAIR KIT-DUST B00T,INNER
1987-12-01 ~ ; VG30E; , |
3974155E87 |
— | ||
|
39209
|
39209
39709-16E25 GREASE-INNER1984-07-01 ~ 1989-02-01; VG30E; RH&LH |
39709-16E25 |
US $26.21 |
||
| replacement | |||||
|
39209
|
39209
C97092U618 Grease-Inner1984-07-01 ~ 1989-02-01; VG30E; RH&LH |
C97092U618 |
US $23.33 |
||
|
39209
|
39209
39709-55E25 GREASE-INNER1989-02-01 ~ ; VG30E; RH&LH |
39709-55E25 |
US $30.96 |
||
| replacement | |||||
|
39209
|
39209
C97092U618 Grease-Inner1989-02-01 ~ ; VG30E; RH&LH |
C97092U618 |
US $23.33 |
||
|
39209
|
39209
39209-01A27 Grease-Outer1984-07-01 ~ ; VG30E; RH&LH |
39209-01A27 |
US $27.65 |
||
|
39209M
|
39209M
39209-01A27 Grease-Outer1984-07-01 ~ ; VG30E; RH&LH |
39209-01A27 |
US $27.65 |
||
|
40234
|
40234
39254-01E00 CAP-SPRING,SLIDE HOUSING1984-07-01 ~ ; VG30E; , |
39254-01E00 |
US $1.73 |
||
