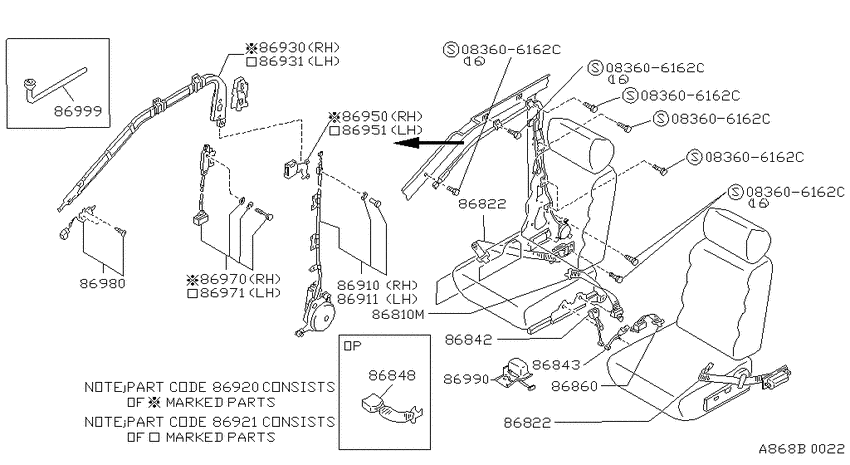

Front seat belt (1986-08-01 ~ ; FRONT; ALL) Diagram Nissan MAXIMA
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- AT
- body
- S
- trim lvl
- SE
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083606162C
|
083606162C
08360-6162C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6162C |
— | ||
|
083606162C
|
083606162C
08360-6162C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6162C |
— | ||
|
083606162C
|
083606162C
08360-6162C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6162C |
— | ||
|
083606162C
|
083606162C
08360-6162C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6162C |
— | ||
|
083606162C
|
083606162C
08360-6162C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6162C |
— | ||
|
083606162C
|
083606162C
08360-6162C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6162C |
— | ||
|
86810M
|
86810M
86862-42E00
Belt-shoulder,front rh
1986-08-01 ~ ; S +W; (K) |
86862-42E00 |
— | ||
|
86810M
|
86810M
86862-42E01
Belt-shoulder,front rh
1986-08-01 ~ ; S +W; (C) |
86862-42E01 |
— | ||
|
86810M
|
86810M
86862-42E03
Belt-shoulder,front rh
1986-08-01 ~ ; S +W; (B) |
86862-42E03 |
— | ||
|
86822
|
86822
86894-42E00
Belt-front seat outer
1986-08-01 ~ ; S +W; (K) RH |
86894-42E00 |
— | ||
|
86822
|
86822
86894-42E01
Belt-front seat outer
1986-08-01 ~ ; S +W; (C) RH |
86894-42E01 |
— | ||
|
86822
|
86822
86894-42E03
Belt-front seat outer
1986-08-01 ~ ; S +W; (B) RH |
86894-42E03 |
— | ||
|
86822
|
86822
86895-42E00
Belt-front seat outer
1986-08-01 ~ ; S +W; (K) LH |
86895-42E00 |
— | ||
|
86822
|
86822
86895-42E01
Belt-front seat outer
1986-08-01 ~ ; S +W; (C) LH |
86895-42E01 |
— | ||
|
86822
|
86822
86895-42E03
Belt-front seat outer
1986-08-01 ~ ; S +W; (B) LH |
86895-42E03 |
— | ||
|
86822
|
86822
86894-42E00
Belt-front seat outer
1986-08-01 ~ ; S +W; (K) RH |
86894-42E00 |
— | ||
|
86822
|
86822
86894-42E01
Belt-front seat outer
1986-08-01 ~ ; S +W; (C) RH |
86894-42E01 |
— | ||
|
86822
|
86822
86894-42E03
Belt-front seat outer
1986-08-01 ~ ; S +W; (B) RH |
86894-42E03 |
— | ||
|
86822
|
86822
86895-42E00
Belt-front seat outer
1986-08-01 ~ ; S +W; (K) LH |
86895-42E00 |
— | ||
|
86822
|
86822
86895-42E01
Belt-front seat outer
1986-08-01 ~ ; S +W; (C) LH |
86895-42E01 |
— | ||
|
86822
|
86822
86895-42E03
Belt-front seat outer
1986-08-01 ~ ; S +W; (B) LH |
86895-42E03 |
— | ||
|
86842
|
86842
86892-42E00
Belt assy-front seat buckle,rh
1986-08-01 ~ ; S +W; (K) |
86892-42E00 |
— | ||
|
86842
|
86842
86892-42E01
Belt assy-front seat buckle,rh
1986-08-01 ~ ; S +W; (C) |
86892-42E01 |
— | ||
|
86842
|
86842
86892-42E03
Belt assy-front seat buckle,rh
1986-08-01 ~ ; S +W; (B) |
86892-42E03 |
— | ||
|
86843
|
86843
86893-42E00
Belt assy-front seat buckle,lh
1986-08-01 ~ ; S +W; (K) |
86893-42E00 |
— | ||
|
86843
|
86843
86893-42E01
Belt assy-front seat buckle,lh
1986-08-01 ~ ; S +W; (C) |
86893-42E01 |
— | ||
|
86843
|
86843
86893-42E03
Belt assy-front seat buckle,lh
1986-08-01 ~ ; S +W; (B) |
86893-42E03 |
— | ||
|
86848
|
86848
86848-42E00
Belt assy-front seat adapter,rh
1986-08-01 ~ ; S +W; (K) PASSIVE |
86848-42E00 |
— | ||
|
86848
|
86848
86848-42E01
Belt assy-front seat adapter,rh
1986-08-01 ~ ; S +W; (C) PASSIVE |
86848-42E01 |
— | ||
|
86848
|
86848
86848-42E03
Belt assy-front seat adapter,rh
1986-08-01 ~ ; S +W; (B) PASSIVE |
86848-42E03 |
— | ||
|
86860
|
86860
86863-42E00
Belt-shoulder,front lh
1986-08-01 ~ ; S +W; (K) |
86863-42E00 |
— | ||
|
86860
|
86860
86863-42E01
Belt-shoulder,front lh
1986-08-01 ~ ; S +W; (C) |
86863-42E01 |
— | ||
|
86860
|
86860
86863-42E03
Belt-shoulder,front lh
1986-08-01 ~ ; S +W; (B) |
86863-42E03 |
— | ||
|
86910
|
86910
86910-42E00
Power unit-passive belt,rh
1986-08-01 ~ ; S +W; , |
86910-42E00 |
— | ||
|
86911
|
86911
86911-42E00
Power unit-passive belt,lh
1986-08-01 ~ ; S +W; , |
86911-42E00 |
— | ||
|
86920
|
86920
86920-42E02
Slide assy-passive belt,rh
1986-08-01 ~ ; S +W; , |
86920-42E02 |
— | ||
|
86921
|
86921
86921-42E02
Slide assy-passive belt,lh
1986-08-01 ~ ; S +W; , |
86921-42E02 |
— | ||
|
86930
|
86930
86930-42E00
Slide-passive belt,rh
1986-08-01 ~ ; S +W; , |
86930-42E00 |
— | ||
|
86931
|
86931
86931-42E00
Slide-passive belt,lh
1986-08-01 ~ ; S +W; , |
86931-42E00 |
— | ||
|
86950
|
86950
86950-42E02
Buckle assy-passive belt,rh
1986-08-01 ~ ; S +W; , |
86950-42E02 |
— | ||
|
86951
|
86951
86951-42E02
Buckle assy-passive belt,lh
1986-08-01 ~ ; S +W; , |
86951-42E02 |
— | ||
|
86970
|
86970
86970-42E00
Latch assy-passive,rh
1986-08-01 ~ ; S +W; , |
86970-42E00 |
— | ||
|
86971
|
86971
86971-42E00
Latch assy-passive,lh
1986-08-01 ~ ; S +W; , |
86971-42E00 |
— | ||
|
86980
|
86980
86980-42E00
Switch assy-passive
1986-08-01 ~ ; S +W; , |
86980-42E00 |
— | ||
|
86990
|
86990
86990-42E00
Sensor assy-passive
1986-08-01 ~ 1987-08-01; S +W; , |
86990-42E00 |
— | ||
|
86999
|
86999
86999-42E00
Wrench-motor,passive
1986-08-01 ~ ; S +W; , |
86999-42E00 |
— |
