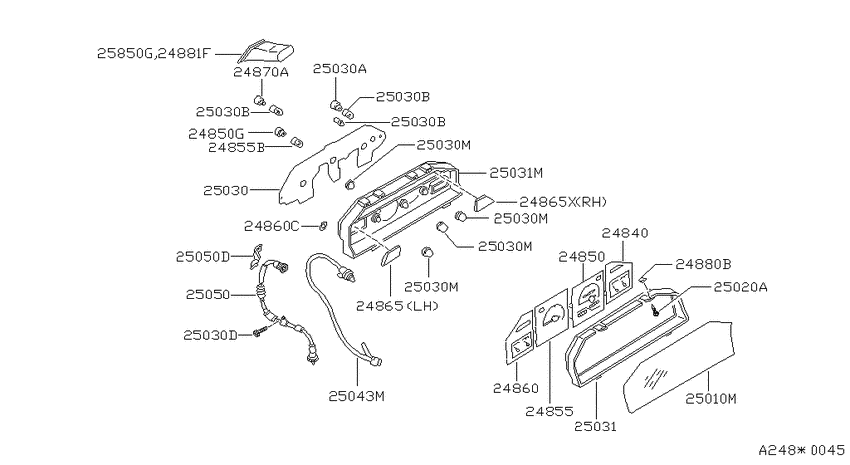

Instrument meter & gauge (1984-07-01 ~ ; ANALOG METER; ALL) Diagram Nissan MAXIMA
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- AT
- body
- S
- trim lvl
- SE
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
24840
|
24840
24880-15E00
METER ASSY-WATER & OIL
1984-07-01 ~ 1986-01-01; S +W; , |
24880-15E00 |
— | ||
|
24840
|
24840
24880-38E00
METER ASSY-WATER & OIL
1986-01-01 ~ 1987-08-01; S +W; , |
24880-38E00 |
— | ||
|
24840
|
24840
24880-38E01
METER ASSY-WATER & OIL
1987-08-01 ~ ; S +W; , |
24880-38E01 |
— | ||
|
24850
|
24850
24850-15E00
SPEEDOMETER ASSY
1984-07-01 ~ 1984-12-01; S +W; , |
24850-15E00 |
— | ||
|
24850
|
24850
24850-15E01
SPEEDOMETER ASSY
1984-12-01 ~ 1985-05-01; S +W; , |
24850-15E01 |
— | ||
|
24850
|
24850
24850-15E60
SPEEDOMETER ASSY
1985-05-01 ~ 1987-08-01; S +W; , |
24850-15E60 |
— | ||
|
24850
|
24850
24850-38E01
SPEEDOMETER ASSY
1987-08-01 ~ ; S +W; , |
24850-38E01 |
— | ||
|
24850
|
24850
26260-89905 Socket Assy-Bulb1984-07-01 ~ ; S +W; , |
26260-89905 |
US $1.87 |
||
|
24850
|
24850
26260-C9901 Socket Assy-Bulb1984-07-01 ~ ; S +W; , |
26260-C9901 |
US $1.73 |
||
|
24850G
|
24850G
26260-89905 Socket Assy-Bulb1984-07-01 ~ ; S +W; , |
26260-89905 |
US $1.87 |
||
|
24850G
|
24850G
26260-C9901 Socket Assy-Bulb1984-07-01 ~ ; S +W; , |
26260-C9901 |
US $1.73 |
||
|
24855
|
24855
24855-16E00
TACHOMETER ASSY
1984-07-01 ~ 1986-01-01; S +W; , |
24855-16E00 |
— | ||
|
24855
|
24855
24855-38E00
TACHOMETER ASSY
1986-01-01 ~ 1987-08-01; S +W; , |
24855-38E00 |
— | ||
|
24855
|
24855
24855-38E01
TACHOMETER ASSY
1987-08-01 ~ ; S +W; , |
24855-38E01 |
— | ||
|
24855
|
24855
26261-89905
Bulb
1984-07-01 ~ ; S +W; 12V-1.4W |
26261-89905 |
— | ||
| replacement | |||||
|
24855
|
24855
B7677R8215 Bulb1984-07-01 ~ ; S +W; 12V-1.4W |
B7677R8215 |
from US $0.97 |
||
|
24855
|
24855
B7677R8215 Bulb1984-07-01 ~ ; S +W; 12V-1.4W |
B7677R8215 |
from US $0.97 |
||
|
24855
|
24855
26261-89906 Bulb1984-07-01 ~ ; *S +*W; ELECTRONIC INDICATIN G 12V-2W |
26261-89906 |
US $0.97 |
||
|
24855B
|
24855B
26261-89905
Bulb
1984-07-01 ~ ; S +W; 12V-1.4W |
26261-89905 |
— | ||
| replacement | |||||
|
24855B
|
24855B
B7677R8215 Bulb1984-07-01 ~ ; S +W; 12V-1.4W |
B7677R8215 |
from US $0.97 |
||
|
24855B
|
24855B
B7677R8215 Bulb1984-07-01 ~ ; S +W; 12V-1.4W |
B7677R8215 |
from US $0.97 |
||
|
24860
|
24860
24860-15E00
METER ASSY-FUEL
1984-07-01 ~ 1986-01-01; S +W; W/VOLT |
24860-15E00 |
— | ||
| replacement | |||||
|
24860
|
24860
24860-15E01
Meter assy-fuel
1984-07-01 ~ 1986-01-01; S +W; W/VOLT |
24860-15E01 |
— | ||
|
24860
|
24860
24860-38E00
METER ASSY-FUEL
1986-01-01 ~ 1987-08-01; S +W; , |
24860-38E00 |
— | ||
|
24860
|
24860
24860-38E01
METER ASSY-FUEL
1987-08-01 ~ ; S +W; , |
24860-38E01 |
— | ||
|
24860
|
24860
24899-D0200 Washer1984-07-01 ~ ; S +W; , |
24899-D0200 |
US $0.86 |
||
|
24860C
|
24860C
24899-D0200 Washer1984-07-01 ~ ; S +W; , |
24899-D0200 |
US $0.86 |
||
|
24865
|
24865
B5046-02E00 Shade-Warning1984-07-01 ~ ; S +W; LH |
B5046-02E00 |
US $6.19 |
||
|
24865
|
24865
B5047-02E00 Shade-Warning1984-07-01 ~ ; S +W; RH |
B5047-02E00 |
US $6.19 |
||
|
24865X
|
24865X
B5047-02E00 Shade-Warning1984-07-01 ~ ; S +W; RH |
B5047-02E00 |
US $6.19 |
||
|
24870A
|
24870A
24878-01E00 SOCKET ASSY-BULB1984-07-01 ~ ; S +W; 3.4W |
24878-01E00 |
US $16.27 |
||
|
24870A
|
24870A
25047-01E60 SOCKET ASSY-BULB1984-07-01 ~ ; *S +*W; ELECTRONIC INDICATIN G |
25047-01E60 |
US $35.71 |
||
|
24880B
|
24880B
68198-01E00
NUT
1984-07-01 ~ ; S +W; F/COMBINED METER |
68198-01E00 |
— | ||
| replacement | |||||
|
24880B
|
24880B
6819151E0A Nut1984-07-01 ~ ; S +W; F/COMBINED METER |
6819151E0A |
US $1.39 |
||
|
24881F
|
24881F
25056-13E00
GROMMET
1985-07-01 ~ ; S +W; , |
25056-13E00 |
— | ||
|
25010M
|
25010M
25033-01E60 COVER-LID FOR SPEEDOMETER1984-07-01 ~ ; *S +*W; ELECTRONIC INDICATIN G |
25033-01E60 |
US $59.47 |
||
|
25010M
|
25010M
25033-15E00
COVER-LID,SPEEDOMETER
1984-07-01 ~ ; S +W; , |
25033-15E00 |
— | ||
|
25020A
|
25020A
0145100221 SCREW1984-07-01 ~ ; S +W; , |
0145100221 |
US $2.21 |
||
|
25030
|
25030
25030-15E00
PLATE ASSY-PRINTED CIRCUIT
1984-07-01 ~ ; S +W; , |
25030-15E00 |
— | ||
|
25030
|
25030
25030-15E60
PLATE ASSY-PRINTED CIRCUIT
1984-07-01 ~ ; *S +*W; ELECTRONIC INDICATIN G |
25030-15E60 |
— | ||
|
25030
|
25030
26260-N8200 Socket Assy-Bulb1984-07-01 ~ ; S +W; , |
26260-N8200 |
US $10.54 |
||
|
25030
|
25030
26261-89900 Bulb-Trunk Room Lamp1984-07-01 ~ ; S +W; 12V-3.4W |
26261-89900 |
US $1.74 |
||
|
25030
|
25030
01451-00311 Bolt1984-07-01 ~ ; S +W; , |
01451-00311 |
US $2.45 |
||
|
25030
|
25030
24361R8015 Filter-Bulb1984-07-01 ~ ; S +W; F/3.4W |
24361R8015 |
US $3.74 |
||
|
25030
|
25030
24834-18L70 Filter-Bulb1984-07-01 ~ ; S +W; F/1.4W |
24834-18L70 |
US $2.16 |
||
|
25030A
|
25030A
26260-N8200 Socket Assy-Bulb1984-07-01 ~ ; S +W; , |
26260-N8200 |
US $10.54 |
||
|
25030B
|
25030B
26261-89900 Bulb-Trunk Room Lamp1984-07-01 ~ ; S +W; 12V-3.4W |
26261-89900 |
US $1.74 |
||
|
25030B
|
25030B
26261-89900 Bulb-Trunk Room Lamp1984-07-01 ~ ; S +W; 12V-3.4W |
26261-89900 |
US $1.74 |
||
|
25030B
|
25030B
26261-89900 Bulb-Trunk Room Lamp1984-07-01 ~ ; S +W; 12V-3.4W |
26261-89900 |
US $1.74 |
||
|
25030D
|
25030D
01451-00311 Bolt1984-07-01 ~ ; S +W; , |
01451-00311 |
US $2.45 |
||
|
25030M
|
25030M
24361R8015 Filter-Bulb1984-07-01 ~ ; S +W; F/3.4W |
24361R8015 |
US $3.74 |
||
|
25030M
|
25030M
24834-18L70 Filter-Bulb1984-07-01 ~ ; S +W; F/1.4W |
24834-18L70 |
US $2.16 |
||
|
25030M
|
25030M
24361R8015 Filter-Bulb1984-07-01 ~ ; S +W; F/3.4W |
24361R8015 |
US $3.74 |
||
|
25030M
|
25030M
24834-18L70 Filter-Bulb1984-07-01 ~ ; S +W; F/1.4W |
24834-18L70 |
US $2.16 |
||
|
25030M
|
25030M
24361R8015 Filter-Bulb1984-07-01 ~ ; S +W; F/3.4W |
24361R8015 |
US $3.74 |
||
|
25030M
|
25030M
24834-18L70 Filter-Bulb1984-07-01 ~ ; S +W; F/1.4W |
24834-18L70 |
US $2.16 |
||
|
25030M
|
25030M
24361R8015 Filter-Bulb1984-07-01 ~ ; S +W; F/3.4W |
24361R8015 |
US $3.74 |
||
|
25030M
|
25030M
24834-18L70 Filter-Bulb1984-07-01 ~ ; S +W; F/1.4W |
24834-18L70 |
US $2.16 |
||
|
25031
|
25031
25031-01E60 HOUSING-METER COMB,UPPER1984-07-01 ~ ; *S +*W; ELECTRONIC INDICATIN G |
25031-01E60 |
US $72 |
||
|
25031
|
25031
25031-02E00 HOUSING-METER COMB,UPPER1984-07-01 ~ ; S +W; , |
25031-02E00 |
US $59.47 |
||
|
25031
|
25031
25032-15E00
HOUSING-COMBINATION METER,LOWER
1984-07-01 ~ ; S +W; , |
25032-15E00 |
— | ||
|
25031
|
25031
25032-16E60
HOUSING-COMBINATION METER,LOWER
1984-07-01 ~ 1986-01-01; *S +*W; ELECTRONIC INDICATIN G |
25032-16E60 |
— | ||
|
25031
|
25031
25032-16E70
HOUSING-COMBINATION METER,LOWER
1986-01-01 ~ ; *S +*W; ELECTRONIC INDICATIN G |
25032-16E70 |
— | ||
|
25031M
|
25031M
25032-15E00
HOUSING-COMBINATION METER,LOWER
1984-07-01 ~ ; S +W; , |
25032-15E00 |
— | ||
|
25031M
|
25031M
25032-16E60
HOUSING-COMBINATION METER,LOWER
1984-07-01 ~ 1986-01-01; *S +*W; ELECTRONIC INDICATIN G |
25032-16E60 |
— | ||
|
25031M
|
25031M
25032-16E70
HOUSING-COMBINATION METER,LOWER
1986-01-01 ~ ; *S +*W; ELECTRONIC INDICATIN G |
25032-16E70 |
— | ||
|
25043M
|
25043M
24879-01E00 FIBER SCOPE1984-07-01 ~ ; S +W; LESS SOCKET & BULB |
24879-01E00 |
US $21.46 |
||
|
25050
|
25050
25050-01E01
SHAFT ASSY-FLEXIBLE,SPEEDOMETER
1986-01-01 ~ ; *S +*W; ELECTRONIC INDICATIN G |
25050-01E01 |
— | ||
|
25050
|
25050
25050-16E01
SHAFT ASSY-FLEXIBLE,SPEEDOMETER
1984-07-01 ~ 1985-05-01; S.DX +S.(SL+SE+GL).AT.F4 +W; , |
25050-16E01 |
— | ||
|
25050
|
25050
25050-16E03
SHAFT ASSY-FLEXIBLE,SPEEDOMETER
1985-05-01 ~ 1986-03-01; S.DX +S.(SL+SE+GL).AT.F4 +W; , |
25050-16E03 |
— | ||
|
25050
|
25050
25050-16E06
SHAFT ASSY-FLEXIBLE,SPEEDOMETER
1984-07-01 ~ 1986-01-01; *S.DX +*S.(SL+SE+GL).AT.F4 +*W; ELECTRONIC INDICATIN G |
25050-16E06 |
— | ||
|
25050
|
25050
25050-16E08
SHAFT ASSY-FLEXIBLE,SPEEDOMETER
1985-05-01 ~ ; S.DX +S.(SL+SE+GL).AT.F4 +W; , |
25050-16E08 |
— | ||
|
25050
|
25050
25052-16E00
CLIP-FLEXIBLE SHAFT
1985-07-01 ~ 1986-08-01; S +W; , |
25052-16E00 |
— | ||
|
25050
|
25050
25052-16E02
CLIP-FLEXIBLE SHAFT
1985-07-01 ~ ; S +W; , |
25052-16E02 |
— | ||
|
25050
|
25050
16439-23M00 Clamp-Hose1984-07-01 ~ ; S.DX +S.(SL+SE+GL).AT.F4 +W; UPR |
16439-23M00 |
US $3.60 |
||
|
25050
|
25050
24220-D1800 Clip-Accelerator Wire1984-07-01 ~ ; S +W; LWR |
24220-D1800 |
US $3.46 |
||
|
25050D
|
25050D
25052-16E00
CLIP-FLEXIBLE SHAFT
1985-07-01 ~ 1986-08-01; S +W; , |
25052-16E00 |
— | ||
|
25050D
|
25050D
25052-16E02
CLIP-FLEXIBLE SHAFT
1985-07-01 ~ ; S +W; , |
25052-16E02 |
— | ||
|
25850G
|
25850G
25051-13E01
GROMMET-SPEEDOMETER
1984-07-01 ~ ; S +W; , |
25051-13E01 |
— | ||
