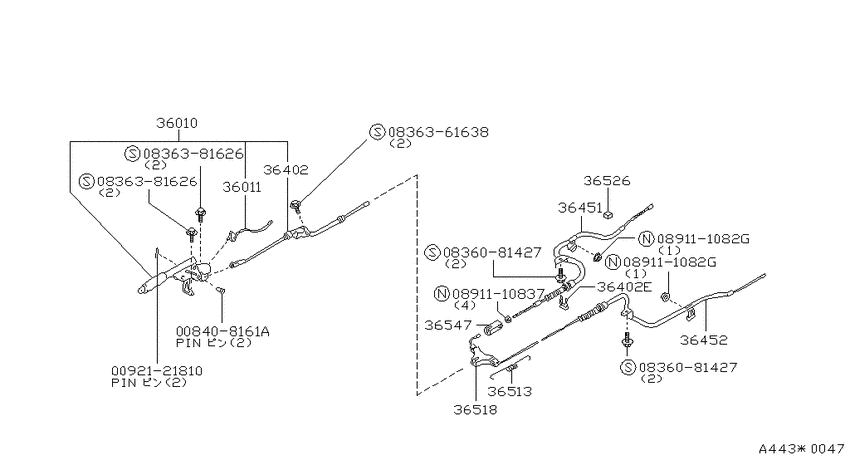

Parking brake control (1984-07-01 ~ 1986-01-01; ALL) Diagram Nissan MAXIMA
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- AT
- body
- S
- trim lvl
- SE
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
008408161A
|
008408161A
00840-8161A
Pin-clevis
|
00840-8161A |
— | ||
|
0092121810
|
0092121810
00921-21810
ﾋﾟﾝ,ｽﾌﾟﾘﾂﾄ ｺﾂﾀ-
|
00921-21810 |
— | ||
|
0836081427
|
0836081427
08360-81427
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-81427 |
— | ||
|
0836081427
|
0836081427
08360-81427
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-81427 |
— | ||
|
0836361638
|
0836361638
08363-61638
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61638 |
— | ||
| replacement | |||||
|
0836361638
|
0836361638
083636161G Bolt |
083636161G |
US $2.36 |
||
|
0836381626
|
0836381626
08363-81626
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-81626 |
— | ||
|
0836381626
|
0836381626
08363-81626
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-81626 |
— | ||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
0891110837
|
0891110837
08911-10837
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-10837 |
— | ||
| replacement | |||||
|
0891110837
|
0891110837
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
36010
|
36010
36010-01E01 DEVICE ASSY-PARKING BRAKE CONTROL1984-07-01 ~ 1985-07-01; VG30E; , |
36010-01E01 |
US $159.84 |
||
|
36010
|
36010
36010-16E00
DEVICE ASSY-PARKING BRAKE CONTROL
1985-07-01 ~ 1986-01-01; VG30E; , |
36010-16E00 |
— | ||
|
36010
|
36010
36010-D4010
Device Assy-Parking Brake Control
1986-01-01 ~ 1988-04-01; VG30E.(SE+GL).(MT.F5+AT.F4); LEATHER GRIP |
36010-D4010 |
— | ||
|
36010
|
36010
36010-D4015 Device Assy-Parking Brake Control1988-04-01 ~ ; 5VG30E.(SE+GL).MT.F5 +S.VG30E.GL.AT.F4 +VG30E.SE.AT.F4; LEATHER GRIP |
36010-D4015 |
US $101.52 |
||
|
36011
|
36011
36011-01E00 SWITCH ASSY-PARKING BRAKE LAMP1984-07-01 ~ 1986-01-01; VG30E; , |
36011-01E00 |
US $14.54 |
||
|
36011
|
36011
36011D4000 Switch Assy-Parking Brake Lamp1986-01-01 ~ ; VG30E; , |
36011D4000 |
US $6.05 |
||
|
36402
|
36402
36402-01E03 CABLE ASSY-PARKING BRAKE,FRONT1984-07-01 ~ 1986-01-01; VG30E; , |
36402-01E03 |
US $49.25 |
||
|
36402
|
36402
36402-D4000 Cable Assy-Parking Brake, Front1986-01-01 ~ ; VG30E; , |
36402-D4000 |
US $17.14 |
||
|
36402
|
36402
36181-D4000 Nut-Adjust1986-01-01 ~ ; VG30E; , |
36181-D4000 |
US $3.46 |
||
|
36402
|
36402
36406-01P00 Plate-Cable Lock1984-07-01 ~ 1986-01-01; VG30E; , |
36406-01P00 |
US $0.86 |
||
| replacement | |||||
|
36402
|
36402
3640601P0A Plate-Cable Lock1984-07-01 ~ 1986-01-01; VG30E; , |
3640601P0A |
from US $1.04 |
||
|
36402
|
36402
36184-28E00 CAP-ADJUST1986-01-01 ~ 1986-10-01; VG30E; , |
36184-28E00 |
US $3.46 |
||
|
36402E
|
36402E
36406-01P00 Plate-Cable Lock1984-07-01 ~ 1986-01-01; VG30E; , |
36406-01P00 |
US $0.86 |
||
| replacement | |||||
|
36402E
|
36402E
3640601P0A Plate-Cable Lock1984-07-01 ~ 1986-01-01; VG30E; , |
3640601P0A |
from US $1.04 |
||
|
36451
|
36451
36530-02E06 CABLE ASSY-BRAKE,REAR RH1984-07-01 ~ 1986-01-01; VG30E; SERVICE PART |
36530-02E06 |
US $71.94 |
||
|
36451
|
36451
36530-15E01
CABLE ASSY-BRAKE,REAR RH
1985-03-01 ~ 1985-09-01; VG30E; S/#36530-02E06 |
36530-15E01 |
— | ||
|
36451
|
36451
36530-15E02
CABLE ASSY-BRAKE,REAR RH
1985-09-01 ~ 1986-01-01; VG30E; S/#36530-02E06 |
36530-15E02 |
— | ||
|
36451
|
36451
36530-D4200
Cable Assy-Brake, Rear Rh
1986-01-01 ~ ; VG30E; , |
36530-D4200 |
— | ||
|
36451
|
36451
36530-D4220
Cable Assy-Brake, Rear Rh
1986-01-01 ~ ; VG30E; , |
36530-D4220 |
— | ||
|
36452
|
36452
36531-02E06
CABLE ASSY-BRAKE,REAR LH
1984-07-01 ~ 1986-01-01; VG30E; , |
36531-02E06 |
— | ||
|
36452
|
36452
36531-D4220
Cable Assy-Brake, Rear Lh
1986-01-01 ~ ; VG30E; , |
36531-D4220 |
— | ||
|
36513
|
36513
36457-01E00 SPRING-RETURN1984-07-01 ~ 1986-01-01; VG30E; , |
36457-01E00 |
US $4.90 |
||
|
36518
|
36518
36441-01E01 EQUALIZER ASSY-PARKING BRAKE1984-07-01 ~ 1986-01-01; VG30E; , |
36441-01E01 |
US $11.23 |
||
|
36518
|
36518
36441-01E10 EQUALIZER ASSY-PARKING BRAKE1984-07-01 ~ ; VG30E; , |
36441-01E10 |
US $11.23 |
||
|
36526
|
36526
36532-02E00 PROTECTOR1985-07-01 ~ 1986-01-01; VG30E.MT.F5 +S.VG30E.AT.F4; , |
36532-02E00 |
US $15.26 |
||
|
36526
|
36526
36532-02E15 PROTECTOR1985-07-01 ~ ; *VG30E.MT.F5 +*S.VG30E.AT.F4; S |
36532-02E15 |
US $276.48 |
||
|
36547
|
36547
3654701A02 Adjuster-Cable, Rear1984-07-01 ~ 1986-01-01; VG30E; , |
3654701A02 |
US $4.18 |
||
