Component List MAXIMA
Power steering piping (1984-07-01 ~ 1986-01-01; ALL)

Difficulties in parts search?

Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
083636165G	083636165G 083636165G Bolt	083636165G	from US $0.50
083636165G	083636165G 083636165G Bolt	083636165G	from US $0.50
083636165G	083636165G 083636165G Bolt	083636165G	from US $0.50
083636305B	083636305B 08363-6305B SCREWMACHINE	08363-6305B	—
083636305B	083636305B 08363-6305B SCREWMACHINE	08363-6305B	—
085136205C	085136205C 08513-6205C ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ	08513-6205C	—
49125	49125 49115-03E02 TANK ASSY-RESERVOIR 1984-07-01 ~ 1986-01-01; VG30E; ,	49115-03E02	US $154.08
49125	49125 49180-03E02 TANK ASSY-RESERVOIR 1984-07-01 ~ 1986-01-01; VG30E; ,	49180-03E02	US $160.78
49125	49125 49116-03E01 BRACKET-RESERVOIR TANK 1984-07-01 ~ 1986-01-01; VG30E; ,	49116-03E01	—
49125G	49125G 49116-03E01 BRACKET-RESERVOIR TANK 1984-07-01 ~ 1986-01-01; VG30E; ,	49116-03E01	—
49134M	49134M 49116-03E00 BRACKET-ADJUST,POWER STEERING PUMP 1984-07-01 ~ 1986-01-01; VG30E; ,	49116-03E00	US $38.30
49181	49181 49181-03E00 CAP ASSY-PUMP 1984-07-01 ~ 1986-01-01; VG30E; ,	49181-03E00	US $8.45
49455	49455 4974501E00 SEAL-O RING 1984-07-01 ~ ; VG30E; ,	4974501E00	US $2.78
49558	49558 64840-H9200 Bush 1984-07-01 ~ 1986-01-01; VG30E; ,	64840-H9200	US $5.33
49559	49559 49728-55S00 Collar 1986-01-01 ~ ; VG30E; ,	49728-55S00	—
	replacement
49559	49559 49728-55S0A Collar-Insulator 1986-01-01 ~ ; VG30E; ,	49728-55S0A	US $2.64
49559	49559 49728-D0301 Collar-Insulator 1984-07-01 ~ 1986-01-01; VG30E; ,	49728-D0301	—
49571	49571 49727-D0301 Washer 1984-07-01 ~ 1986-01-01; VG30E; ,	49727-D0301	—
49703E	49703E 01555-00081 CLAMP 1984-07-01 ~ 1985-10-01; VG30E; ,	01555-00081	US $2.45
	replacement
49703E	49703E 0155500861 CLIP 1984-07-01 ~ 1985-10-01; VG30E; ,	0155500861	US $2.45
49703E	49703E 01555-00241 CLIP 1985-10-01 ~ 1986-01-01; VG30E; ,	01555-00241	US $2.45
	replacement
49703E	49703E 0155500861 CLIP 1985-10-01 ~ 1986-01-01; VG30E; ,	0155500861	US $2.45
49703E	49703E 01555-00081 CLAMP 1984-07-01 ~ 1985-10-01; VG30E; ,	01555-00081	US $2.45
	replacement
49703E	49703E 0155500861 CLIP 1984-07-01 ~ 1985-10-01; VG30E; ,	0155500861	US $2.45
49703E	49703E 01555-00241 CLIP 1985-10-01 ~ 1986-01-01; VG30E; ,	01555-00241	US $2.45
	replacement
49703E	49703E 0155500861 CLIP 1985-10-01 ~ 1986-01-01; VG30E; ,	0155500861	US $2.45
49703F	49703F 18316S3260 Bush 1984-07-01 ~ 1986-01-01; VG30E; ,	18316S3260	from US $3.42
49703M	49703M 49726-13E00 TUBE-HOSE TO POWER STEERING HOSE 1984-07-01 ~ 1986-01-01; VG30E; ,	49726-13E00	—
49704E	49704E 01555-00101 CLAMP 1984-07-01 ~ 1986-01-01; VG30E; ,	01555-00101	US $2.45
	replacement
49704E	49704E 0155500811 CLAMP-HOSE 1984-07-01 ~ 1986-01-01; VG30E; ,	0155500811	US $3.06
49704E	49704E 01555-00211 CLAMP-HOSE 1984-07-01 ~ 1986-01-01; VG30E; ,	01555-00211	—
	replacement
49704E	49704E 0155500811 CLAMP-HOSE 1984-07-01 ~ 1986-01-01; VG30E; ,	0155500811	US $3.06
49704E	49704E 0155500691 CLAMP 1987-05-01 ~ ; VG30E;	0155500691	from US $2.11
49704E	49704E 01555-00101 CLAMP 1984-07-01 ~ 1986-01-01; VG30E; ,	01555-00101	US $2.45
	replacement
49704E	49704E 0155500811 CLAMP-HOSE 1984-07-01 ~ 1986-01-01; VG30E; ,	0155500811	US $3.06
49704E	49704E 01555-00211 CLAMP-HOSE 1984-07-01 ~ 1986-01-01; VG30E; ,	01555-00211	—
	replacement
49704E	49704E 0155500811 CLAMP-HOSE 1984-07-01 ~ 1986-01-01; VG30E; ,	0155500811	US $3.06
49704E	49704E 0155500691 CLAMP 1987-05-01 ~ ; VG30E;	0155500691	from US $2.11
49704E	49704E 01555-00101 CLAMP 1984-07-01 ~ 1986-01-01; VG30E; ,	01555-00101	US $2.45
	replacement
49704E	49704E 0155500811 CLAMP-HOSE 1984-07-01 ~ 1986-01-01; VG30E; ,	0155500811	US $3.06
49704E	49704E 01555-00211 CLAMP-HOSE 1984-07-01 ~ 1986-01-01; VG30E; ,	01555-00211	—
	replacement
49704E	49704E 0155500811 CLAMP-HOSE 1984-07-01 ~ 1986-01-01; VG30E; ,	0155500811	US $3.06
49704E	49704E 0155500691 CLAMP 1987-05-01 ~ ; VG30E;	0155500691	from US $2.11
49704E	49704E 01555-00101 CLAMP 1984-07-01 ~ 1986-01-01; VG30E; ,	01555-00101	US $2.45
	replacement
49704E	49704E 0155500811 CLAMP-HOSE 1984-07-01 ~ 1986-01-01; VG30E; ,	0155500811	US $3.06
49704E	49704E 01555-00211 CLAMP-HOSE 1984-07-01 ~ 1986-01-01; VG30E; ,	01555-00211	—
	replacement
49704E	49704E 0155500811 CLAMP-HOSE 1984-07-01 ~ 1986-01-01; VG30E; ,	0155500811	US $3.06
49704E	49704E 0155500691 CLAMP 1987-05-01 ~ ; VG30E;	0155500691	from US $2.11
49710	49710 49722-16E00 Hose assy-pump 1986-01-01 ~ 1987-05-01; VG30E; ,	49722-16E00	—
49710	49710 4972226E01 HOSE ASSY-PUMP 1987-05-01 ~ ; VG30E; ,	4972226E01	US $266.40
49710	49710 0161900011 BOLT 1987-01-01 ~ ; VG30E; ,	0161900011	from US $3.76
49710	49710 49590-R8200 Bolt-Connector 1984-07-01 ~ 1986-01-01; VG30E; ,	49590-R8200	US $13.39
49710	49710 01552-00043 CLIP 1986-01-01 ~ ; VG30E; ,	01552-00043	—
	replacement
49710	49710 2421610Y80 Clamp 1986-01-01 ~ ; VG30E; ,	2421610Y80	from US $4.42
49710	49710 49781-01E00 BRACKET-HOSE 1984-07-01 ~ 1985-07-01; VG30E; ,	49781-01E00	US $9.50
49710	49710 49781-16E00 BRACKET-HOSE 1985-07-01 ~ 1986-01-01; VG30E; ,	49781-16E00	US $11.38
49710	49710 49781-D4005 Bracket-Hose 1986-01-01 ~ ; VG30E; ,	49781-D4005	US $7.34
49710	49710 49780-01E02 BRACKET-HOSE 1984-07-01 ~ 1985-07-01; VG30E; ,	49780-01E02	US $11.38
49710	49710 49780-16E00 BRACKET-HOSE 1985-07-01 ~ 1986-01-01; VG30E; ,	49780-16E00	US $15.84
49710	49710 49780-D4005 Bracket-Hose 1986-01-01 ~ ; VG30E; ,	49780-D4005	US $10.08
49710	49710 49726-01E01 HOSE-TUBE TO PUMP 1984-07-01 ~ 1985-07-01; VG30E; ,	49726-01E01	US $66.38
49710	49710 49726-16E00 Hose-tube to pump 1985-07-01 ~ 1986-01-01; VG30E; ,	49726-16E00	—
49710	49710 49726-38E00 Hose-tube to pump 1986-01-01 ~ ; VG30E; ,	49726-38E00	—
49710A	49710A 0161900011 BOLT 1987-01-01 ~ ; VG30E; ,	0161900011	from US $3.76
49710A	49710A 49590-R8200 Bolt-Connector 1984-07-01 ~ 1986-01-01; VG30E; ,	49590-R8200	US $13.39
49710A	49710A 0161900011 BOLT 1987-01-01 ~ ; VG30E; ,	0161900011	from US $3.76
49710A	49710A 49590-R8200 Bolt-Connector 1984-07-01 ~ 1986-01-01; VG30E; ,	49590-R8200	US $13.39
49710G	49710G 49781-01E00 BRACKET-HOSE 1984-07-01 ~ 1985-07-01; VG30E; ,	49781-01E00	US $9.50
49710G	49710G 49781-16E00 BRACKET-HOSE 1985-07-01 ~ 1986-01-01; VG30E; ,	49781-16E00	US $11.38
49710G	49710G 49781-D4005 Bracket-Hose 1986-01-01 ~ ; VG30E; ,	49781-D4005	US $7.34
49710H	49710H 49780-01E02 BRACKET-HOSE 1984-07-01 ~ 1985-07-01; VG30E; ,	49780-01E02	US $11.38
49710H	49710H 49780-16E00 BRACKET-HOSE 1985-07-01 ~ 1986-01-01; VG30E; ,	49780-16E00	US $15.84
49710H	49710H 49780-D4005 Bracket-Hose 1986-01-01 ~ ; VG30E; ,	49780-D4005	US $10.08
49710M	49710M 49726-01E01 HOSE-TUBE TO PUMP 1984-07-01 ~ 1985-07-01; VG30E; ,	49726-01E01	US $66.38
49710M	49710M 49726-16E00 Hose-tube to pump 1985-07-01 ~ 1986-01-01; VG30E; ,	49726-16E00	—
49710M	49710M 49726-38E00 Hose-tube to pump 1986-01-01 ~ ; VG30E; ,	49726-38E00	—
49714	49714 49713-D4015 Tube Assy-Power Steering 1986-01-01 ~ ; VG30E; ,	49713-D4015	—
	replacement
49714	49714 D9713-D4015 Tube assy-power steering 1986-01-01 ~ ; VG30E; ,	D9713-D4015	—
49717	49717 49788-01E02 PLATE ASSY-POWER STEERING 1984-07-01 ~ 1986-01-01; VG30E; ,	49788-01E02	US $6.19
49717	49717 49788-D4005 Plate Assy-Power Steering 1986-01-01 ~ ; VG30E; ,	49788-D4005	US $4.32
49722	49722 49723-05E01 HOSE-PUMP TO RESERVOIR TANK 1984-07-01 ~ 1985-07-01; VG30E; ,	49723-05E01	US $37.87
49722	49722 49723-16E00 HOSE-PUMP TO RESERVOIR TANK 1985-07-01 ~ 1986-01-01; VG30E; ,	49723-16E00	—
49726	49726 49589-R8200 Washer-Copper 1984-07-01 ~ 1985-10-01; VG30E; ,	49589-R8200	US $3.46
	replacement
49726	49726 49726Y0100 Washer-Copper 1984-07-01 ~ 1985-10-01; VG30E; ,	49726Y0100	from US $1.74
49726	49726 49726Y0100 Washer-Copper 1984-07-01 ~ 1985-10-01; VG30E; ,	49726Y0100	from US $1.74
49726	49726 49589-R8200 Washer-Copper 1984-07-01 ~ 1985-10-01; VG30E; ,	49589-R8200	US $3.46
	replacement
49726	49726 49726Y0100 Washer-Copper 1984-07-01 ~ 1985-10-01; VG30E; ,	49726Y0100	from US $1.74
49726	49726 49726Y0100 Washer-Copper 1984-07-01 ~ 1985-10-01; VG30E; ,	49726Y0100	from US $1.74
49726	49726 49589-R8200 Washer-Copper 1984-07-01 ~ 1985-10-01; VG30E; ,	49589-R8200	US $3.46
	replacement
49726	49726 49726Y0100 Washer-Copper 1984-07-01 ~ 1985-10-01; VG30E; ,	49726Y0100	from US $1.74
49726	49726 49726Y0100 Washer-Copper 1984-07-01 ~ 1985-10-01; VG30E; ,	49726Y0100	from US $1.74
49726	49726 49589-R8200 Washer-Copper 1984-07-01 ~ 1985-10-01; VG30E; ,	49589-R8200	US $3.46
	replacement
49726	49726 49726Y0100 Washer-Copper 1984-07-01 ~ 1985-10-01; VG30E; ,	49726Y0100	from US $1.74
49726	49726 49726Y0100 Washer-Copper 1984-07-01 ~ 1985-10-01; VG30E; ,	49726Y0100	from US $1.74
49735E	49735E 01552-00043 CLIP 1986-01-01 ~ ; VG30E; ,	01552-00043	—
	replacement
49735E	49735E 2421610Y80 Clamp 1986-01-01 ~ ; VG30E; ,	2421610Y80	from US $4.42
49735E	49735E 01552-00411 CLAMP-HOSE 1986-01-01 ~ ; VG30E; ,	01552-00411	—
	replacement
49735E	49735E 2421610Y80 Clamp 1986-01-01 ~ ; VG30E; ,	2421610Y80	from US $4.42
49742E	49742E 49738-13E00 CLAMP 1986-01-01 ~ ; VG30E; ,	49738-13E00	—
49744E	49744E 49738-13E01 CLAMP 1984-07-01 ~ 1986-01-01; VG30E; ,	49738-13E01	—
49761	49761 49761V5400 Switch-Pressure, Power Steering 1986-01-01 ~ ; VG30E; ,	49761V5400	US $59.04

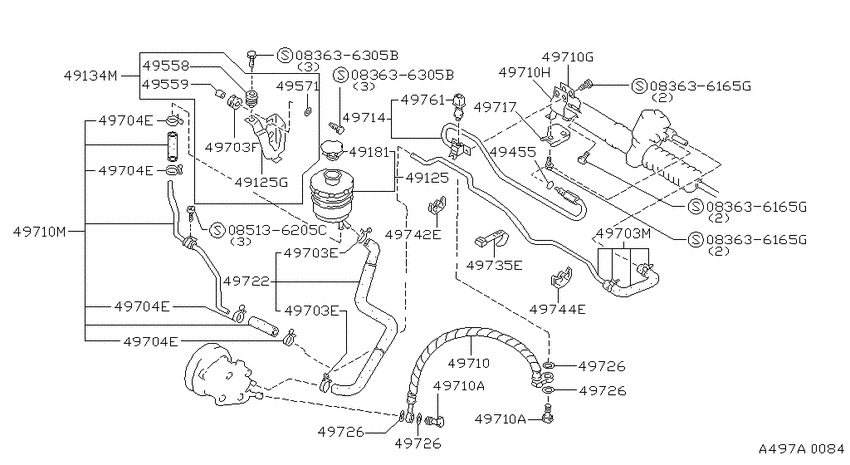

Power steering piping (1984-07-01 ~ 1986-01-01; ALL) Diagram Nissan MAXIMA U.S.A. 2308106-182437

Power steering piping (1984-07-01 ~ 1986-01-01; ALL) Diagram Nissan MAXIMA U.S.A. 2308106-182437
