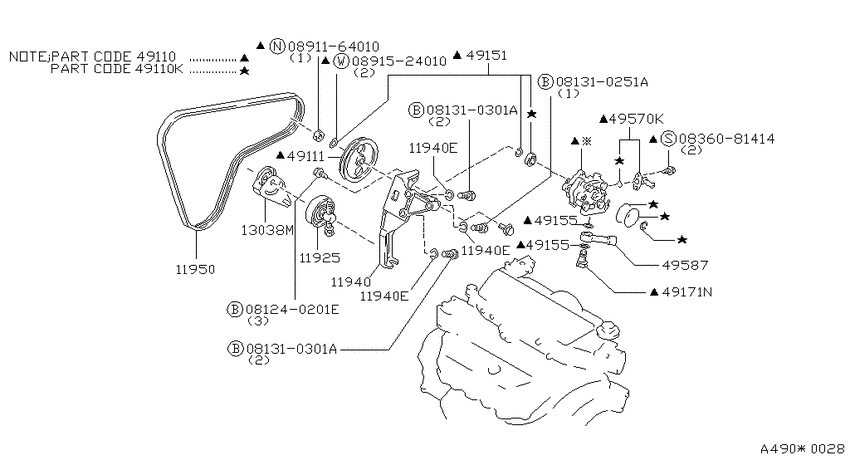

Power steering pump (1984-07-01 ~ ; ALL) Diagram Nissan MAXIMA
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- AT
- body
- S
- trim lvl
- SE
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081240201E
|
081240201E
081240201E Bolt-hexagon |
081240201E |
US $1.11 |
||
|
081310251A
|
081310251A
08131-0251A
Bolt-hexagon
|
08131-0251A |
— | ||
|
081310301A
|
081310301A
08131-0301A
Bolt-hexagon
|
08131-0301A |
— | ||
|
081310301A
|
081310301A
08131-0301A
Bolt-hexagon
|
08131-0301A |
— | ||
|
0836081414
|
0836081414
08360-81414
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-81414 |
— | ||
|
0891164010
|
0891164010
08911-64010
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-64010 |
— | ||
| replacement | |||||
|
0891164010
|
0891164010
089116402A
NUTHEX
|
089116402A |
— | ||
|
0891524010
|
0891524010
08915-24010
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-24010 |
— | ||
|
11925
|
11925
11945-16E00
PULLEY-POWER STEERING
1984-07-01 ~ ; VG30E; , |
11945-16E00 |
— | ||
|
11925
|
11925
11945-16E01 PULLEY-POWER STEERING1984-07-01 ~ ; VG30E; , |
11945-16E01 |
US $171.36 |
||
|
11925
|
11925
01323-00031 WASHER-WAVE1984-07-01 ~ 1986-10-01; *VG30E; F/AIR CON |
01323-00031 |
US $1.73 |
||
|
11925
|
11925
089153401A Washer-Spring1986-10-01 ~ ; *VG30E; F/AIR CON |
089153401A |
US $0.63 |
||
|
11925
|
11925
1192516E01 PULLEY ASSY-IDLER,COMPRESSOR1984-07-01 ~ ; *VG30E; F/AIR CON |
1192516E01 |
US $169.92 |
||
|
11940
|
11940
11940-16E01 Bracket-Power Steering Oil Pump1984-07-01 ~ ; VG30E; , |
11940-16E01 |
US $137.66 |
||
|
11940
|
11940
01323-00031 WASHER-WAVE1984-07-01 ~ ; VG30E; , |
01323-00031 |
US $1.73 |
||
|
11940E
|
11940E
01323-00031 WASHER-WAVE1984-07-01 ~ ; VG30E; , |
01323-00031 |
US $1.73 |
||
|
11940E
|
11940E
01323-00031 WASHER-WAVE1984-07-01 ~ ; VG30E; , |
01323-00031 |
US $1.73 |
||
|
11940E
|
11940E
01323-00031 WASHER-WAVE1984-07-01 ~ ; VG30E; , |
01323-00031 |
US $1.73 |
||
|
11950
|
11950
11950-16E00
BELT-POWER STEERING OIL PUMP
1984-07-01 ~ ; VG30E; BANDO L=1035 |
11950-16E00 |
— | ||
| replacement | |||||
|
11950
|
11950
11950-16E11
Belt-power steering oil pump
1984-07-01 ~ ; VG30E; BANDO L=1035 |
11950-16E11 |
— | ||
|
11950
|
11950
11950-16E10
BELT-POWER STEERING OIL PUMP
1984-07-01 ~ ; VG30E; MITSUBOSI L=1035 |
11950-16E10 |
— | ||
| replacement | |||||
|
11950
|
11950
11950-16E11
Belt-power steering oil pump
1984-07-01 ~ ; VG30E; MITSUBOSI L=1035 |
11950-16E11 |
— | ||
|
11950
|
11950
11950-16E10
BELT-POWER STEERING OIL PUMP
1984-07-01 ~ ; VG30E; L=1035 MITSUBOSHI |
11950-16E10 |
— | ||
| replacement | |||||
|
11950
|
11950
11950-16E11
Belt-power steering oil pump
1984-07-01 ~ ; VG30E; L=1035 MITSUBOSHI |
11950-16E11 |
— | ||
|
13038M
|
13038M
11922-16E00 COVER-POWER STEERING BELT1984-07-01 ~ ; VG30E; , |
11922-16E00 |
US $110.59 |
||
|
49110
|
49110
4911015E01 PUMP ASSY-POWER STEERING1984-07-01 ~ 1985-09-01; VG30E; , |
4911015E01 |
US $1,526 |
||
|
49110
|
49110
49110-16E00
Pump assy-power steering
1985-09-01 ~ 1986-01-01; VG30E.MT.F5 +S.VG30E.AT.F4; , |
49110-16E00 |
— | ||
|
49110
|
49110
49128-04R26 Seal Kit-O Ring, Power Steering Pump1984-07-01 ~ 1985-09-01; VG30E; , |
49128-04R26 |
US $11.09 |
||
|
49110
|
49110
49128-04R87 Seal Kit-Power Steering Pump1984-07-01 ~ 1985-09-01; VG30E; , |
49128-04R87 |
US $14.83 |
||
|
49110
|
49110
4959150L27 Seal Kit-Power Steering Pump1985-09-01 ~ ; VG30E.MT.F5 +S.VG30E.AT.F4; , |
4959150L27 |
US $15.25 |
||
|
49110K
|
49110K
49128-04R26 Seal Kit-O Ring, Power Steering Pump1984-07-01 ~ 1985-09-01; VG30E; , |
49128-04R26 |
US $11.09 |
||
|
49110K
|
49110K
49128-04R87 Seal Kit-Power Steering Pump1984-07-01 ~ 1985-09-01; VG30E; , |
49128-04R87 |
US $14.83 |
||
|
49110K
|
49110K
4959150L27 Seal Kit-Power Steering Pump1985-09-01 ~ ; VG30E.MT.F5 +S.VG30E.AT.F4; , |
4959150L27 |
US $15.25 |
||
|
49111
|
49111
49586-15E01 PULLEY-POWER STEERING PUMP1984-07-01 ~ 1985-09-01; VG30E; , |
49586-15E01 |
US $94.61 |
||
|
49111
|
49111
49586-26E00 PULLEY-POWER STEERING PUMP1985-09-01 ~ 1986-01-01; VG30E.MT.F5 +S.VG30E.AT.F4; , |
49586-26E00 |
US $108.29 |
||
|
49151
|
49151
4911950L25 Seal Set-Drive Shaft1985-09-01 ~ ; VG30E.MT.F5 +S.VG30E.AT.F4; , |
4911950L25 |
from US $10.69 |
||
|
49155
|
49155
4958926E00 WASHER-COPPER1985-09-01 ~ 1986-01-01; VG30E.MT.F5 +S.VG30E.AT.F4; , |
4958926E00 |
from US $4.63 |
||
|
49155
|
49155
49589-R8200 Washer-Copper1984-07-01 ~ 1985-09-01; VG30E; , |
49589-R8200 |
US $3.46 |
||
| replacement | |||||
|
49155
|
49155
49726Y0100 Washer-Copper1984-07-01 ~ 1985-09-01; VG30E; , |
49726Y0100 |
from US $1.72 |
||
|
49155
|
49155
49726Y0100 Washer-Copper1984-07-01 ~ 1985-09-01; VG30E; , |
49726Y0100 |
from US $1.72 |
||
|
49155
|
49155
4958926E00 WASHER-COPPER1985-09-01 ~ 1986-01-01; VG30E.MT.F5 +S.VG30E.AT.F4; , |
4958926E00 |
from US $4.63 |
||
|
49155
|
49155
49589-R8200 Washer-Copper1984-07-01 ~ 1985-09-01; VG30E; , |
49589-R8200 |
US $3.46 |
||
| replacement | |||||
|
49155
|
49155
49726Y0100 Washer-Copper1984-07-01 ~ 1985-09-01; VG30E; , |
49726Y0100 |
from US $1.72 |
||
|
49155
|
49155
49726Y0100 Washer-Copper1984-07-01 ~ 1985-09-01; VG30E; , |
49726Y0100 |
from US $1.72 |
||
|
49171N
|
49171N
49590-01E01 BOLT-CONNECTOR1984-07-01 ~ 1985-09-01; VG30E; , |
49590-01E01 |
US $17.86 |
||
|
49570K
|
49570K
49580-01E00 PIPE KIT-SUCTION,POWER STEERING PUMP1984-07-01 ~ ; VG30E; , |
49580-01E00 |
US $20.16 |
||
|
49587
|
49587
49587-26E00 CONNECTOR1985-09-01 ~ 1986-01-01; VG30E.MT.F5 +S.VG30E.AT.F4; , |
49587-26E00 |
US $142.85 |
||
|
49587
|
49587
49587-37M00 Connector1984-07-01 ~ 1985-09-01; VG30E; , |
49587-37M00 |
US $142.85 |
||
