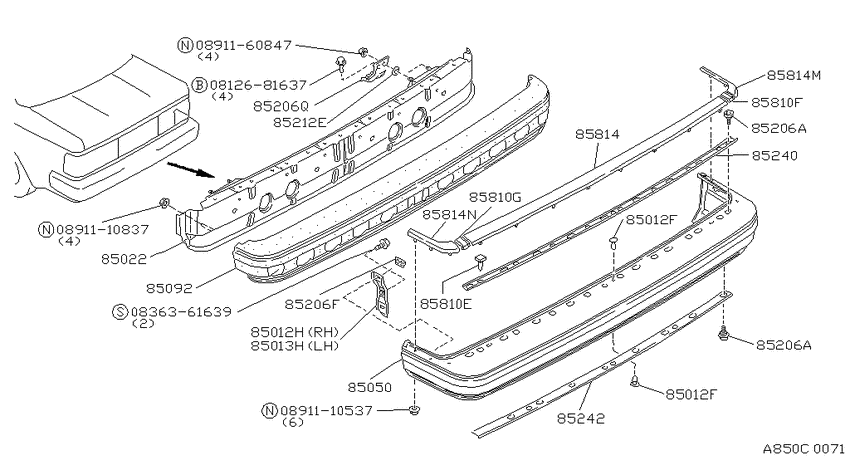

Rear bumper (1984-07-01 ~ 1986-01-01; S) Diagram Nissan MAXIMA
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- AT
- body
- S
- trim lvl
- SE
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812681637
|
0812681637
08126-81637
Bolt-hexagon
|
08126-81637 |
— | ||
|
0836361639
|
0836361639
0836361639
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836361639 |
— | ||
|
0891110537
|
0891110537
0891110537 NUT |
0891110537 |
US $1.73 |
||
|
0891110837
|
0891110837
08911-10837
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-10837 |
— | ||
| replacement | |||||
|
0891110837
|
0891110837
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
0891160847
|
0891160847
08911-60847
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-60847 |
— | ||
|
85012F
|
85012F
01553-00741 CLIP1984-07-01 ~ 1986-01-01; S; F/FACE TO REINF |
01553-00741 |
US $1.73 |
||
|
85012F
|
85012F
0155301121 CLIP1986-01-01 ~ ; S; , |
0155301121 |
US $1.73 |
||
|
85012F
|
85012F
01553-00741 CLIP1984-07-01 ~ 1986-01-01; S; F/FACE TO REINF |
01553-00741 |
US $1.73 |
||
|
85012F
|
85012F
0155301121 CLIP1986-01-01 ~ ; S; , |
0155301121 |
US $1.73 |
||
|
85012H
|
85012H
85220-03E00 BRACKET-REAR BUMPER SIDE,RH1984-07-01 ~ 1986-01-01; S; , |
85220-03E00 |
US $24.05 |
||
|
85012H
|
85012H
85220-32E10 BRACKET-REAR BUMPER SIDE,RH1986-01-01 ~ ; S; , |
85220-32E10 |
US $67.97 |
||
|
85013H
|
85013H
85221-03E00 BRACKET-REAR BUMPER SIDE,LH1984-07-01 ~ 1986-01-01; S; , |
85221-03E00 |
US $24.05 |
||
|
85013H
|
85013H
85221-32E10 BRACKET-REAR BUMPER SIDE,LH1986-01-01 ~ ; S; , |
85221-32E10 |
US $67.97 |
||
|
85022
|
85022
85030-15E30
Reinforce-inner rear bumper center
1984-07-01 ~ 1986-01-01; S; , |
85030-15E30 |
— | ||
|
85022
|
85022
85030-32E30 REINFORCE-INNER,REAR BUMPER CENTER1986-01-01 ~ ; S; , |
85030-32E30 |
US $598.97 |
||
|
85050
|
85050
85022-32E26
FASCIA-REAR BUMPER
1986-01-01 ~ 1987-05-01; S; , |
85022-32E26 |
— | ||
|
85050
|
85050
85022-38E25
Fascia-rear bumper
1987-05-01 ~ ; S; PAINT LESS |
85022-38E25 |
— | ||
|
85050
|
85050
85050-03E26
Fascia-rear bumper
1984-07-01 ~ 1986-01-01; S; , |
85050-03E26 |
— | ||
|
85092
|
85092
85090-03E10 HONEYCOMB-REAR BUMPER,CENTER1984-07-01 ~ 1986-01-01; S; , |
85090-03E10 |
US $233.28 |
||
|
85092
|
85092
85090-32E00 HONEYCOMB-REAR BUMPER,CENTER1986-01-01 ~ ; S; , |
85090-32E00 |
US $233.28 |
||
|
85206A
|
85206A
01111-00621 BOLT1984-07-01 ~ 1986-01-01; S; F/LWR |
01111-00621 |
US $3.46 |
||
|
85206A
|
85206A
01136-00011 BOLT1984-07-01 ~ 1986-01-01; S; F/UPR |
01136-00011 |
US $1.73 |
||
|
85206A
|
85206A
01111-00621 BOLT1984-07-01 ~ 1986-01-01; S; F/LWR |
01111-00621 |
US $3.46 |
||
|
85206A
|
85206A
01136-00011 BOLT1984-07-01 ~ 1986-01-01; S; F/UPR |
01136-00011 |
US $1.73 |
||
|
85206F
|
85206F
62228-03E01
CLIP
1984-07-01 ~ 1986-01-01; S; , |
62228-03E01 |
— | ||
|
85206F
|
85206F
62228-32E10 CLIP-FRONT BUMPER RUBBER1986-01-01 ~ ; S; , |
62228-32E10 |
US $0.86 |
||
|
85206Q
|
85206Q
85214-15E00
Bracket-rear bumper,lower
1984-07-01 ~ 1986-01-01; S; , |
85214-15E00 |
— | ||
|
85212E
|
85212E
62685-73000 Washer-Rubber1984-07-01 ~ 1986-01-01; S; , |
62685-73000 |
US $1.15 |
||
|
85240
|
85240
85060-03E00 RETAINER-REAR BUMPER,UPPER1984-07-01 ~ 1986-01-01; S; UPR |
85060-03E00 |
US $55.15 |
||
|
85240
|
85240
85240-32E00 RETAINER-REAR BUMPER,UPPER1986-01-01 ~ ; S; , |
85240-32E00 |
US $53.14 |
||
|
85242
|
85242
85062-03E00 RETAINER-REAR BUMPER,LOWER1984-07-01 ~ 1986-01-01; S; LWR |
85062-03E00 |
US $55.15 |
||
|
85242
|
85242
85242-32E00 RETAINER-REAR BUMPER,LOWER1986-01-01 ~ ; S; , |
85242-32E00 |
US $53.14 |
||
|
85810E
|
85810E
62068-15E00
CLIP
1984-07-01 ~ 1986-01-01; S; , |
62068-15E00 |
— | ||
|
85810F
|
85810F
85046-15E05 ｽﾍﾟ-ｻ-,ｱﾂﾊﾟ- rh1984-07-01 ~ 1986-01-01; S.SE; , |
85046-15E05 |
US $13.68 |
||
|
85810G
|
85810G
85047-15E05 ｽﾍﾟ-ｻ-,ｱﾂﾊﾟ- lh1984-07-01 ~ 1986-01-01; S.SE; , |
85047-15E05 |
US $13.68 |
||
|
85814
|
85814
85042-15E05 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ﾊﾞﾝﾊﾟ- ｶﾞ-ﾄﾞ1984-07-01 ~ 1986-01-01; S.SE; W/CLIP |
85042-15E05 |
US $128.16 |
||
|
85814
|
85814
8507032E00 MOULDING-FRONT BUMPER1986-01-01 ~ ; S; BRIGHT |
8507032E00 |
US $128.16 |
||
|
85814
|
85814
85070-32E01 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ﾊﾞﾝﾊﾟ- ｶﾞ-ﾄﾞ1986-01-01 ~ ; S; BLACK |
85070-32E01 |
US $128.16 |
||
|
85814
|
85814
85070-38E02
Moulding-front bumper
1988-01-01 ~ ; S.SE; WHITE |
85070-38E02 |
— | ||
|
85814
|
85814
85048-15E05 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾝﾊﾟ- ｻｲﾄﾞ ﾘﾔ1984-07-01 ~ 1986-01-01; S.SE; RH |
85048-15E05 |
US $36.43 |
||
|
85814
|
85814
85049-15E05 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾝﾊﾟ- ｻｲﾄﾞ ﾘﾔ1984-07-01 ~ 1986-01-01; S.SE; LH |
85049-15E05 |
US $36.43 |
||
|
85814M
|
85814M
85048-15E05 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾝﾊﾟ- ｻｲﾄﾞ ﾘﾔ1984-07-01 ~ 1986-01-01; S.SE; RH |
85048-15E05 |
US $36.43 |
||
|
85814N
|
85814N
85049-15E05 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾝﾊﾟ- ｻｲﾄﾞ ﾘﾔ1984-07-01 ~ 1986-01-01; S.SE; LH |
85049-15E05 |
US $36.43 |
||
