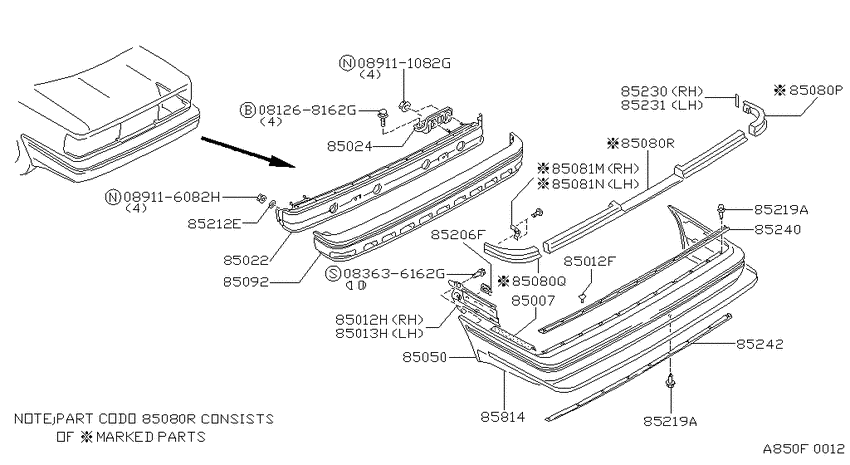

Rear bumper (1986-01-01 ~ ; S) Diagram Nissan MAXIMA
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- AT
- body
- S
- trim lvl
- SE
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268162G
|
081268162G
08126-8162G
Bolt-hexagon
|
08126-8162G |
— | ||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089116082H
|
089116082H
089116082H NUTHEX |
089116082H |
US $3.64 |
||
|
85007
|
85007
76862-D4000 ｽﾍﾟ-ｻ-,ﾘﾔ ﾊﾞﾝﾊﾟ- ｻｲﾄﾞ1986-01-01 ~ ; S; , |
76862-D4000 |
US $7.92 |
||
|
85012F
|
85012F
01553-00741 CLIP1984-07-01 ~ 1986-01-01; S; F/FACE TO REINF |
01553-00741 |
US $1.73 |
||
|
85012F
|
85012F
0155301121 CLIP1986-01-01 ~ ; S; , |
0155301121 |
US $1.73 |
||
|
85012H
|
85012H
85220-03E00 BRACKET-REAR BUMPER SIDE,RH1984-07-01 ~ 1986-01-01; S; , |
85220-03E00 |
US $24.05 |
||
|
85012H
|
85012H
85220-32E10 BRACKET-REAR BUMPER SIDE,RH1986-01-01 ~ ; S; , |
85220-32E10 |
US $67.97 |
||
|
85013H
|
85013H
85221-03E00 BRACKET-REAR BUMPER SIDE,LH1984-07-01 ~ 1986-01-01; S; , |
85221-03E00 |
US $24.05 |
||
|
85013H
|
85013H
85221-32E10 BRACKET-REAR BUMPER SIDE,LH1986-01-01 ~ ; S; , |
85221-32E10 |
US $67.97 |
||
|
85022
|
85022
85030-15E30
Reinforce-inner rear bumper center
1984-07-01 ~ 1986-01-01; S; , |
85030-15E30 |
— | ||
|
85022
|
85022
85030-32E30 REINFORCE-INNER,REAR BUMPER CENTER1986-01-01 ~ ; S; , |
85030-32E30 |
US $598.97 |
||
|
85024
|
85024
85250-38E00
Reinforce-side rear bumper,rh
1986-01-01 ~ ; S; , |
85250-38E00 |
— | ||
|
85050
|
85050
85022-32E26
FASCIA-REAR BUMPER
1986-01-01 ~ 1987-05-01; S; , |
85022-32E26 |
— | ||
|
85050
|
85050
85022-38E25
Fascia-rear bumper
1987-05-01 ~ ; S; PAINT LESS |
85022-38E25 |
— | ||
|
85050
|
85050
85050-03E26
Fascia-rear bumper
1984-07-01 ~ 1986-01-01; S; , |
85050-03E26 |
— | ||
|
85080P
|
85080P
85234-28E00 SHIELD-SIGHT,REAR BUMPER RH1986-01-01 ~ ; S; , |
85234-28E00 |
US $67.97 |
||
|
85080Q
|
85080Q
85235-28E00 SHIELD-SIGHT,REAR BUMPER LH1986-01-01 ~ ; S; , |
85235-28E00 |
US $67.97 |
||
|
85080R
|
85080R
85230-28E00
Shield-sight,rear bumper center
1986-01-01 ~ 1986-12-01; S; , |
85230-28E00 |
— | ||
|
85080R
|
85080R
85230-28E10
Shield-sight,rear bumper center
1986-12-01 ~ 1988-01-01; S; , |
85230-28E10 |
— | ||
|
85080R
|
85080R
85232-28E00 SHIELD-SIGHT,REAR BUMPER CENTER1988-01-01 ~ ; S; , |
85232-28E00 |
US $184.32 |
||
|
85080R
|
85080R
85230-28E00
Shield-sight,rear bumper center
1986-01-01 ~ 1986-12-01; S; , |
85230-28E00 |
— | ||
|
85080R
|
85080R
85230-28E10
Shield-sight,rear bumper center
1986-12-01 ~ 1988-01-01; S; , |
85230-28E10 |
— | ||
|
85080R
|
85080R
85232-28E00 SHIELD-SIGHT,REAR BUMPER CENTER1988-01-01 ~ ; S; , |
85232-28E00 |
US $184.32 |
||
|
85081M
|
85081M
85238-28E00 ﾘﾃ-ﾅ-,ｻｲﾄ ｼ-ﾙﾄﾞ1986-01-01 ~ ; S; , |
85238-28E00 |
US $14.11 |
||
|
85081N
|
85081N
85239-28E00 ﾘﾃ-ﾅ-,ｻｲﾄ ｼ-ﾙﾄﾞ1986-01-01 ~ ; S; , |
85239-28E00 |
US $14.11 |
||
|
85092
|
85092
85090-03E10 HONEYCOMB-REAR BUMPER,CENTER1984-07-01 ~ 1986-01-01; S; , |
85090-03E10 |
US $233.28 |
||
|
85092
|
85092
85090-32E00 HONEYCOMB-REAR BUMPER,CENTER1986-01-01 ~ ; S; , |
85090-32E00 |
US $233.28 |
||
|
85206F
|
85206F
62228-03E01
CLIP
1984-07-01 ~ 1986-01-01; S; , |
62228-03E01 |
— | ||
|
85206F
|
85206F
62228-32E10 CLIP-FRONT BUMPER RUBBER1986-01-01 ~ ; S; , |
62228-32E10 |
US $0.86 |
||
|
85212E
|
85212E
62685-73000 Washer-Rubber1984-07-01 ~ 1986-01-01; S; , |
62685-73000 |
US $1.15 |
||
|
85219A
|
85219A
01125-00761 BOLT1986-01-01 ~ ; S; , |
01125-00761 |
US $2.45 |
||
|
85219A
|
85219A
01125-00761 BOLT1986-01-01 ~ ; S; , |
01125-00761 |
US $2.45 |
||
|
85230
|
85230
85282-28E00 SHIELD-SIGHT,REAR BUMPER RH1986-01-01 ~ ; S; , |
85282-28E00 |
US $8.50 |
||
|
85231
|
85231
85283-28E00 SHIELD-SIGHT,REAR BUMPER LH1986-01-01 ~ ; S; , |
85283-28E00 |
US $8.50 |
||
|
85240
|
85240
85060-03E00 RETAINER-REAR BUMPER,UPPER1984-07-01 ~ 1986-01-01; S; UPR |
85060-03E00 |
US $55.15 |
||
|
85240
|
85240
85240-32E00 RETAINER-REAR BUMPER,UPPER1986-01-01 ~ ; S; , |
85240-32E00 |
US $53.14 |
||
|
85242
|
85242
85062-03E00 RETAINER-REAR BUMPER,LOWER1984-07-01 ~ 1986-01-01; S; LWR |
85062-03E00 |
US $55.15 |
||
|
85242
|
85242
85242-32E00 RETAINER-REAR BUMPER,LOWER1986-01-01 ~ ; S; , |
85242-32E00 |
US $53.14 |
||
|
85814
|
85814
85042-15E05 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ﾊﾞﾝﾊﾟ- ｶﾞ-ﾄﾞ1984-07-01 ~ 1986-01-01; S.SE; W/CLIP |
85042-15E05 |
US $128.16 |
||
|
85814
|
85814
8507032E00 MOULDING-FRONT BUMPER1986-01-01 ~ ; S; BRIGHT |
8507032E00 |
US $128.16 |
||
|
85814
|
85814
85070-32E01 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾘﾔ ﾊﾞﾝﾊﾟ- ｶﾞ-ﾄﾞ1986-01-01 ~ ; S; BLACK |
85070-32E01 |
US $128.16 |
||
|
85814
|
85814
85070-38E02
Moulding-front bumper
1988-01-01 ~ ; S.SE; WHITE |
85070-38E02 |
— | ||
|
85814
|
85814
85048-15E05 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾝﾊﾟ- ｻｲﾄﾞ ﾘﾔ1984-07-01 ~ 1986-01-01; S.SE; RH |
85048-15E05 |
US $36.43 |
||
|
85814
|
85814
85049-15E05 ﾓ-ﾙﾃﾞｲﾝｸﾞ,ﾊﾞﾝﾊﾟ- ｻｲﾄﾞ ﾘﾔ1984-07-01 ~ 1986-01-01; S.SE; LH |
85049-15E05 |
US $36.43 |
