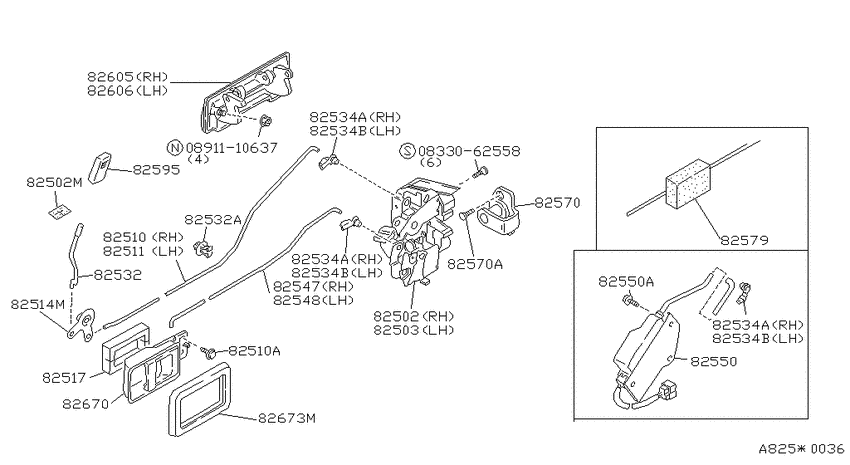

Rear door lock & handle (1984-07-01 ~ ; ALL) Diagram Nissan MAXIMA
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- AT
- body
- S
- trim lvl
- SE
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0833062558
|
0833062558
08330-62558
ｽｸﾘﾕ-,ﾏｼﾝ
|
08330-62558 |
— | ||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
82502
|
82502
82502-01E01 LOCK ASSY-REAR DOOR,RH1984-07-01 ~ 1986-01-01; S +W; , |
82502-01E01 |
US $97.34 |
||
|
82502
|
82502
82502-01E60
LOCK ASSY-REAR DOOR,RH
1986-01-01 ~ ; S +W; , |
82502-01E60 |
— | ||
|
82502
|
82502
80882-01E00 RUBBER-SEATING,DOOR LOCK RH1984-07-01 ~ ; S +W; F/DOOR LOCK KNOB |
80882-01E00 |
US $2.02 |
||
|
82502M
|
82502M
80882-01E00 RUBBER-SEATING,DOOR LOCK RH1984-07-01 ~ ; S +W; F/DOOR LOCK KNOB |
80882-01E00 |
US $2.02 |
||
|
82503
|
82503
82503-01E01 LOCK ASSY-REAR DOOR,LH1984-07-01 ~ ; S +W; , |
82503-01E01 |
US $97.34 |
||
|
82503
|
82503
82503-01E60
LOCK ASSY-REAR DOOR,LH
1984-07-01 ~ ; S +W; , |
82503-01E60 |
— | ||
|
82510
|
82510
82510-01E01 ROD ASSY-LOCK KNOB,RH1984-07-01 ~ ; S +W; , |
82510-01E01 |
US $19.01 |
||
|
82510
|
82510
01461-00061 SCREW1984-07-01 ~ ; S +W; , |
01461-00061 |
US $2.21 |
||
|
82510A
|
82510A
01461-00061 SCREW1984-07-01 ~ ; S +W; , |
01461-00061 |
US $2.21 |
||
|
82511
|
82511
82511-01E01 ROD ASSY-LOCK KNOB,LH1984-07-01 ~ ; S +W; , |
82511-01E01 |
US $19.01 |
||
|
82514M
|
82514M
82514-01E01 BELL CRANK-REAR DOOR LOCK,RH1984-07-01 ~ ; S +W; RH&LH |
82514-01E01 |
US $7.63 |
||
|
82517
|
82517
80886-01E99
SHIELD-INSIDE HANDLE
1984-07-01 ~ ; S +W; , |
80886-01E99 |
— | ||
|
82517
|
82517
82886-01E00 SHIELD-INSIDE HANDLE1984-07-01 ~ ; S +W; , |
82886-01E00 |
US $6.19 |
||
|
82532
|
82532
82512-01E00 ROD-LOCK1984-07-01 ~ ; S +W; , |
82512-01E00 |
US $7.20 |
||
|
82532
|
82532
8052001F00 Holder-Rod1984-07-01 ~ ; S +W; , |
8052001F00 |
US $2.74 |
||
|
82532A
|
82532A
8052001F00 Holder-Rod1984-07-01 ~ ; S +W; , |
8052001F00 |
US $2.74 |
||
|
82534A
|
82534A
80532Q0100 Holder-Rod, Rh1984-07-01 ~ ; S +W; RH |
80532Q0100 |
US $1.73 |
||
|
82534A
|
82534A
80532Q0100 Holder-Rod, Rh1984-07-01 ~ ; S +W; RH |
80532Q0100 |
US $1.73 |
||
|
82534A
|
82534A
80532Q0100 Holder-Rod, Rh1984-07-01 ~ ; S +W; RH |
80532Q0100 |
US $1.73 |
||
|
82534B
|
82534B
80533-Q0100 Holder-Rod, Lh1984-07-01 ~ ; S +W; LH |
80533-Q0100 |
US $2.74 |
||
|
82534B
|
82534B
80533-Q0100 Holder-Rod, Lh1984-07-01 ~ ; S +W; LH |
80533-Q0100 |
US $2.74 |
||
|
82534B
|
82534B
80533-Q0100 Holder-Rod, Lh1984-07-01 ~ ; S +W; LH |
80533-Q0100 |
US $2.74 |
||
|
82547
|
82547
82504-01E01 ROD-DOOR LOCK,RH1984-07-01 ~ ; S +W; , |
82504-01E01 |
US $19.01 |
||
|
82548
|
82548
82505-01E01 ROD-DOOR LOCK,LH1984-07-01 ~ ; S +W; , |
82505-01E01 |
US $19.01 |
||
|
82550
|
82550
82550-16E10 SOLENOID VALVE ASSY-REAR DOOR LOCK1984-07-01 ~ ; S +W; POWER DOOR LOCK RH |
82550-16E10 |
US $288.86 |
||
| replacement | |||||
|
82550
|
82550
H2550-16E10
Solenoid assy-door lock
1984-07-01 ~ ; S +W; POWER DOOR LOCK RH |
H2550-16E10 |
— | ||
|
82550
|
82550
82551-16E10 SOLENOID VALVE ASSY-REAR DOOR LOCK1984-07-01 ~ ; S +W; POWER DOOR LOCK LH |
82551-16E10 |
US $288.86 |
||
| replacement | |||||
|
82550
|
82550
H2551-16E10
Solenoid assy-door lock
1984-07-01 ~ ; S +W; POWER DOOR LOCK LH |
H2551-16E10 |
— | ||
|
82550
|
82550
82552-16E00
SOLENOID VALVE ASSY-REAR DOOR LOCK
1984-07-01 ~ ; S +W; POWER DOOR LOCK RH |
82552-16E00 |
— | ||
|
82550
|
82550
82553-16E00
SOLENOID VALVE ASSY-REAR DOOR LOCK
1984-07-01 ~ ; S +W; POWER DOOR LOCK LH |
82553-16E00 |
— | ||
|
82550
|
82550
01125-00092 SCREW1984-01-01 ~ ; S +W; F/REG |
01125-00092 |
US $1.73 |
||
|
82550A
|
82550A
01125-00092 SCREW1984-01-01 ~ ; S +W; F/REG |
01125-00092 |
US $1.73 |
||
|
82570
|
82570
80570-01E00 STRIKER ASSY-FRONT DOOR LOCK,RH1986-08-01 ~ 1986-10-01; S; RH&LH |
80570-01E00 |
US $21.17 |
||
|
82570
|
82570
80570-01L00
Striker Assy-Front Door Lock, Rh
1984-07-01 ~ 1985-07-01; S +W; RH & LH |
80570-01L00 |
— | ||
| replacement | |||||
|
82570
|
82570
8057041L00 Striker Assy-Front Door Lock, Rh1984-07-01 ~ 1985-07-01; S +W; RH & LH |
8057041L00 |
from US $20.52 |
||
|
82570
|
82570
80570-04E00 STRIKER ASSY-FRONT DOOR LOCK,RH1986-10-01 ~ ; S; RH&LH |
80570-04E00 |
US $28.14 |
||
|
82570
|
82570
8057041L00 Striker Assy-Front Door Lock, Rh1984-07-01 ~ 1985-07-01; S +W; RH & LH |
8057041L00 |
from US $20.52 |
||
|
82570
|
82570
01432-00051 SCREW1984-07-01 ~ ; S +W; F/STRIKER |
01432-00051 |
from US $0.80 |
||
|
82570A
|
82570A
01432-00051 SCREW1984-07-01 ~ ; S +W; F/STRIKER |
01432-00051 |
from US $0.80 |
||
|
82579
|
82579
80845D0100 Insulator-Remote Control Rod1984-07-01 ~ ; S +W; , |
80845D0100 |
from US $3.79 |
||
| replacement | |||||
|
82579
|
82579
80845-01R00
Spacer
1984-07-01 ~ ; S +W; , |
80845-01R00 |
— | ||
|
82595
|
82595
80595-01E00 KNOB-DOOR LOCK1984-07-01 ~ ; S +W; (K) RH&LH |
80595-01E00 |
US $6.34 |
||
|
82595
|
82595
80595-01E01 KNOB-DOOR LOCK1984-07-01 ~ ; S +W; (C) RH&LH |
80595-01E01 |
US $6.34 |
||
|
82595
|
82595
80595-01E02 KNOB-DOOR LOCK1984-07-01 ~ ; S +W; (B) RH&LH |
80595-01E02 |
US $6.34 |
||
|
82605
|
82605
82604-16E01
Handle assy-rear door outside,rh
1984-07-01 ~ ; S.SE; (#210) SILVER |
82604-16E01 |
— | ||
|
82605
|
82605
82604-16E02
Handle assy-rear door outside,rh
1984-07-01 ~ ; S.SE; (#218) DARK GRAY DARK GRAY |
82604-16E02 |
— | ||
|
82605
|
82605
82604-16E03
Handle assy-rear door outside,rh
1984-07-01 ~ ; S.SE; (#505) BLACK |
82604-16E03 |
— | ||
|
82605
|
82605
82604-34E07
Handle assy-rear door outside,rh
1986-01-01 ~ ; S.SE; (#329)DARK RED METAL IC |
82604-34E07 |
— | ||
|
82605
|
82605
82604-38E09
Handle assy-rear door outside,rh
1986-01-01 ~ ; S.SE; (#326)SUPER WHITE |
82604-38E09 |
— | ||
|
82605
|
82605
82604-42E00
Handle assy-rear door outside,rh
1986-08-01 ~ ; S.SE; (#449)BEIGE(M) |
82604-42E00 |
— | ||
|
82605
|
82605
82604-42E01
Handle assy-rear door outside,rh
1986-08-01 ~ ; S.SE; (#465) |
82604-42E01 |
— | ||
|
82605
|
82605
82604-42E02
Handle assy-rear door outside,rh
1986-08-01 ~ ; S.SE; (#418) |
82604-42E02 |
— | ||
|
82605
|
82605
82604-42E04
Handle assy-rear door outside,rh
1986-08-01 ~ ; S.SE; (#656)LIGHT G0LD |
82604-42E04 |
— | ||
|
82606
|
82606
82605-16E01
Handle assy-rear door outside,lh
1984-07-01 ~ ; S.SE; (#210) SILVER |
82605-16E01 |
— | ||
|
82606
|
82606
82605-16E02
Handle assy-rear door outside,lh
1984-07-01 ~ ; S.SE; DARK GRAY |
82605-16E02 |
— | ||
|
82606
|
82606
82605-16E03
Handle assy-rear door outside,lh
1984-07-01 ~ ; S.SE; (#505) BLACK |
82605-16E03 |
— | ||
|
82606
|
82606
82605-34E07
Handle assy-rear door outside,lh
1986-01-01 ~ ; S.SE; (#329)DARK RED METAL IC |
82605-34E07 |
— | ||
|
82606
|
82606
82605-38E09
Handle assy-rear door outside,lh
1986-01-01 ~ ; S.SE; (#326)SUPER WHITE |
82605-38E09 |
— | ||
|
82606
|
82606
82605-42E00
Handle assy-rear door outside,lh
1986-08-01 ~ ; S.SE; (#449)BEIGE(M) |
82605-42E00 |
— | ||
|
82606
|
82606
82605-42E01
Handle assy-rear door outside,lh
1986-08-01 ~ ; S.SE; (#465) |
82605-42E01 |
— | ||
|
82606
|
82606
82605-42E02
Handle assy-rear door outside,lh
1986-08-01 ~ ; S.SE; (#418) |
82605-42E02 |
— | ||
|
82606
|
82606
82605-42E04
Handle assy-rear door outside,lh
1986-08-01 ~ ; S.SE; (#656)BEIGE |
82605-42E04 |
— | ||
|
82670
|
82670
80670-01E10 HANDLE ASSY-DOOR INSIDE,RH1984-07-01 ~ ; S +W; (C) |
80670-01E10 |
US $30.82 |
||
|
82670
|
82670
80670-01E11 HANDLE ASSY-DOOR INSIDE,RH1984-07-01 ~ ; S +W; (B) |
80670-01E11 |
US $29.38 |
||
|
82670
|
82670
80670-01E12 HANDLE ASSY-DOOR INSIDE,RH1984-07-01 ~ ; S +W; (K) |
80670-01E12 |
US $29.38 |
||
|
82670
|
82670
80670-V5010
Handle Assy-Rear Door Inside, Rh
1984-07-01 ~ ; S +W; (K) |
80670-V5010 |
— | ||
| replacement | |||||
|
82670
|
82670
80670-01E12 HANDLE ASSY-DOOR INSIDE,RH1984-07-01 ~ ; S +W; (K) |
80670-01E12 |
US $29.38 |
||
|
82673M
|
82673M
80682-01E16 ESCUTCHEON-INSIDE HANDLE,RH1984-07-01 ~ ; S +W; (B) |
80682-01E16 |
US $14.11 |
||
|
82673M
|
82673M
80682-01E17 ESCUTCHEON-INSIDE HANDLE,RH1984-07-01 ~ ; S +W; (C) |
80682-01E17 |
US $14.11 |
||
|
82673M
|
82673M
80682-V5015 Escutcheon-Inside Handle, Rh1984-07-01 ~ ; S +W; (K) |
80682-V5015 |
US $22.05 |
||
