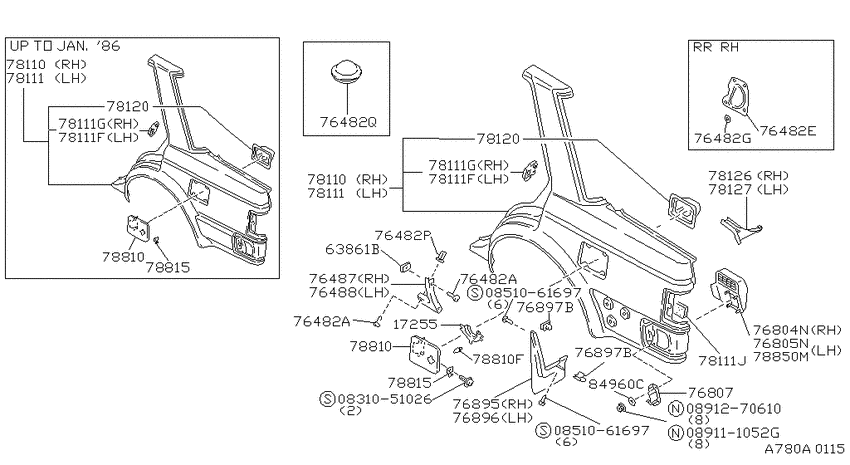

Rear fender & fitting (1984-07-01 ~ ; SEDAN) Diagram Nissan MAXIMA
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- AT
- body
- S
- trim lvl
- SE
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831051026
|
0831051026
08310-51026
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-51026 |
— | ||
| replacement | |||||
|
0831051026
|
0831051026
08360-5102D ｽｸﾘﾕ-,ﾏｼﾝ |
08360-5102D |
US $1.93 |
||
|
0851061697
|
0851061697
08510-61697
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08510-61697 |
— | ||
|
0851061697
|
0851061697
08510-61697
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08510-61697 |
— | ||
|
089111052G
|
089111052G
089111052G Nut |
089111052G |
from US $0.52 |
||
|
17255
|
17255
1725501G00 Holder-Filler Cap1986-01-01 ~ ; S; , |
1725501G00 |
from US $0.74 |
||
|
63861B
|
63861B
63848-F2700 Nut-Spring1984-07-01 ~ ; S; F/SILL END |
63848-F2700 |
US $5.90 |
||
|
76482A
|
76482A
01434-00041 SCREW1984-07-01 ~ ; S; , |
01434-00041 |
US $1.73 |
||
|
76482A
|
76482A
01434-00041 SCREW1984-07-01 ~ ; S; , |
01434-00041 |
US $1.73 |
||
|
76482E
|
76482E
78866-28E00 SPACER-SILL MOULDING1986-01-01 ~ ; S; , |
78866-28E00 |
US $36.86 |
||
|
76482G
|
76482G
34533-73700
Washer-Plain
1986-01-01 ~ ; S; , |
34533-73700 |
— | ||
|
76482P
|
76482P
0128100072 GROMMET-SCREW1984-07-01 ~ ; S; , |
0128100072 |
US $1.73 |
||
|
76482Q
|
76482Q
01658-00192 PLUG-RUBBER1986-01-01 ~ ; S; , |
01658-00192 |
US $2.08 |
||
|
76487
|
76487
78812-01E00 COVER-END,SILL MOULDING RH1984-07-01 ~ 1985-10-01; S; , |
78812-01E00 |
US $55.15 |
||
|
76487
|
76487
78812-15E00 COVER-END,SILL MOULDING RH1985-10-01 ~ ; S; , |
78812-15E00 |
US $55.15 |
||
|
76487
|
76487
78816-42E00
Cover-end,sill moulding rh
1988-01-01 ~ ; *S.SE; WHITE |
78816-42E00 |
— | ||
|
76488
|
76488
78813-01E00 COVER-END,SILL MOULDING LH1984-07-01 ~ 1985-10-01; S; , |
78813-01E00 |
US $55.15 |
||
|
76488
|
76488
78813-15E00 COVER-END,SILL MOULDING LH1985-10-01 ~ ; S; , |
78813-15E00 |
US $55.15 |
||
|
76488
|
76488
78817-42E00
Cover-end,sill moulding lh
1988-01-01 ~ ; *S.SE; WHITE |
78817-42E00 |
— | ||
|
76804N
|
76804N
78850-01E00 DUCT-DRAFTER,RH1984-07-01 ~ 1986-01-01; S; , |
78850-01E00 |
US $73.30 |
||
|
76805N
|
76805N
78851-01E00 DUCT-DRAFTER,LH1984-07-01 ~ 1986-01-01; S; , |
78851-01E00 |
US $73.30 |
||
|
76807
|
76807
78852-01E00 SEAL-AIR DRAFTER1984-07-01 ~ ; S; SEAL RUB,RH |
78852-01E00 |
US $14.11 |
||
|
76807
|
76807
78853-01E00 SEAL-AIR DRAFTER1984-07-01 ~ ; S; SEAL RUB,LH |
78853-01E00 |
US $14.11 |
||
|
76895
|
76895
78812-28E26
MUDGUARD SET-REAR,RH
1986-01-01 ~ ; S; BLACK |
78812-28E26 |
— | ||
|
76895
|
76895
78812-28E29 ﾏﾂﾄﾞｶﾞ-ﾄﾞ ｾﾂﾄ,ﾘﾔ rh1987-08-01 ~ ; *S.FED; (#656)BEIGE F/COLD |
78812-28E29 |
US $115.20 |
||
|
76895
|
76895
78812-28E86
Mudguard set-rear,rh
1986-01-01 ~ ; *S.FED; (#449) BEIGE M F/COLD |
78812-28E86 |
— | ||
|
76895
|
76895
78812-28E87
Mudguard set-rear,rh
1986-01-01 ~ ; *S.FED; (#123) GRAISH BLUE M F/COLD |
78812-28E87 |
— | ||
|
76895
|
76895
78812-28E88
Mudguard set-rear,rh
1986-01-01 ~ ; *S.FED; (#210) BROWNISH SILV ER M F/COLD |
78812-28E88 |
— | ||
|
76895
|
76895
78812-28E94
Mudguard set-rear,rh
1987-08-01 ~ ; *S.FED; (#LG1)PURPUL(M) F/COLD |
78812-28E94 |
— | ||
|
76895
|
76895
G8812-28E89 ﾏﾂﾄﾞｶﾞ-ﾄﾞ ｾﾂﾄ,ﾘﾔ rh1988-01-01 ~ ; S; (#326) WHITE |
G8812-28E89 |
US $95.04 |
||
|
76896
|
76896
78813-28E26
MUDGUARD SET-REAR,LH
1986-01-01 ~ ; S; , |
78813-28E26 |
— | ||
|
76896
|
76896
78813-28E29 ﾏﾂﾄﾞｶﾞ-ﾄﾞ ｾﾂﾄ,ﾘﾔ lh1987-08-01 ~ ; *S.FED; (#656)BEIGE F/COLD |
78813-28E29 |
US $115.20 |
||
|
76896
|
76896
78813-28E86
Mudguard set-rear,lh
1986-01-01 ~ ; *S.FED; (#449) BEIGE M F/COLD |
78813-28E86 |
— | ||
|
76896
|
76896
78813-28E87
Mudguard set-rear,lh
1986-01-01 ~ ; *S.FED; (#123) GRAISH BLUE M F/COLD |
78813-28E87 |
— | ||
|
76896
|
76896
78813-28E88
Mudguard set-rear,lh
1986-01-01 ~ ; *S.FED; (#210) BROWNISH SILV ER M F/COLD |
78813-28E88 |
— | ||
|
76896
|
76896
78813-28E94
Mudguard set-rear,lh
1987-08-01 ~ ; *S.FED; (#LG1)PURPUL(M) F/COLD |
78813-28E94 |
— | ||
|
76896
|
76896
G8813-28E89 ﾏﾂﾄﾞｶﾞ-ﾄﾞ ｾﾂﾄ,ﾘﾔ lh1988-01-01 ~ ; S; (#326) WHITE |
G8813-28E89 |
US $95.04 |
||
|
78110
|
78110
78112-13E38 FENDER-REAR,RH1984-07-01 ~ 1986-01-01; S; , |
78112-13E38 |
US $886.42 |
||
|
78110
|
78110
78112-28E35 FENDER-REAR,RH1986-01-01 ~ ; S; W/ANTENA HOLE |
78112-28E35 |
US $886.42 |
||
|
78110
|
78110
78112-13E38 FENDER-REAR,RH1984-07-01 ~ 1986-01-01; S; , |
78112-13E38 |
US $886.42 |
||
|
78110
|
78110
78112-28E35 FENDER-REAR,RH1986-01-01 ~ ; S; W/ANTENA HOLE |
78112-28E35 |
US $886.42 |
||
|
78111
|
78111
78113-13E30
FENDER-REAR,LH
1984-07-01 ~ 1986-01-01; S; , |
78113-13E30 |
— | ||
|
78111
|
78111
78113-28E35 FENDER-REAR,LH1986-01-01 ~ ; S; W/ANTENA HOLE |
78113-28E35 |
US $886.42 |
||
|
78111
|
78111
78113-28E36
FENDER-REAR,LH
1986-01-01 ~ ; S; W/ANTENA HOLE |
78113-28E36 |
— | ||
|
78111
|
78111
76691-01E00 RETAINER-TAPPING,STRIKER LH1984-07-01 ~ ; S; , |
76691-01E00 |
US $9.07 |
||
| replacement | |||||
|
78111
|
78111
76691-41L01 Retainer-Tapping, Striker Lh1984-07-01 ~ ; S; , |
76691-41L01 |
US $9.94 |
||
|
78111
|
78111
76690-01E00 RETAINER-TAPPING,STRIKER1984-07-01 ~ ; S; , |
76690-01E00 |
US $9.07 |
||
| replacement | |||||
|
78111
|
78111
76690-41L01 Retainer-Tapping, Striker Rh1984-07-01 ~ ; S; , |
76690-41L01 |
US $9.94 |
||
|
78111
|
78111
73810-W2900 Insulator-Roof1984-07-01 ~ ; S; , |
73810-W2900 |
US $53.28 |
||
| replacement | |||||
|
78111
|
78111
G3810W2900
ｲﾝｼﾕﾚ-ﾀ-,ﾙ-ﾌ
1984-07-01 ~ ; S; , |
G3810W2900 |
— | ||
|
78111
|
78111
78164-01E00
INSULATOR-REAR FENDER
1984-07-01 ~ ; S; , |
78164-01E00 |
— | ||
| replacement | |||||
|
78111
|
78111
G3810W2900
ｲﾝｼﾕﾚ-ﾀ-,ﾙ-ﾌ
1984-07-01 ~ ; S; , |
G3810W2900 |
— | ||
|
78111
|
78111
78113-13E30
FENDER-REAR,LH
1984-07-01 ~ 1986-01-01; S; , |
78113-13E30 |
— | ||
|
78111
|
78111
78113-28E35 FENDER-REAR,LH1986-01-01 ~ ; S; W/ANTENA HOLE |
78113-28E35 |
US $886.42 |
||
|
78111
|
78111
78113-28E36
FENDER-REAR,LH
1986-01-01 ~ ; S; W/ANTENA HOLE |
78113-28E36 |
— | ||
|
78111
|
78111
76691-01E00 RETAINER-TAPPING,STRIKER LH1984-07-01 ~ ; S; , |
76691-01E00 |
US $9.07 |
||
| replacement | |||||
|
78111
|
78111
76691-41L01 Retainer-Tapping, Striker Lh1984-07-01 ~ ; S; , |
76691-41L01 |
US $9.94 |
||
|
78111
|
78111
76690-01E00 RETAINER-TAPPING,STRIKER1984-07-01 ~ ; S; , |
76690-01E00 |
US $9.07 |
||
| replacement | |||||
|
78111
|
78111
76690-41L01 Retainer-Tapping, Striker Rh1984-07-01 ~ ; S; , |
76690-41L01 |
US $9.94 |
||
|
78111
|
78111
73810-W2900 Insulator-Roof1984-07-01 ~ ; S; , |
73810-W2900 |
US $53.28 |
||
| replacement | |||||
|
78111
|
78111
G3810W2900
ｲﾝｼﾕﾚ-ﾀ-,ﾙ-ﾌ
1984-07-01 ~ ; S; , |
G3810W2900 |
— | ||
|
78111
|
78111
78164-01E00
INSULATOR-REAR FENDER
1984-07-01 ~ ; S; , |
78164-01E00 |
— | ||
| replacement | |||||
|
78111
|
78111
G3810W2900
ｲﾝｼﾕﾚ-ﾀ-,ﾙ-ﾌ
1984-07-01 ~ ; S; , |
G3810W2900 |
— | ||
|
78111F
|
78111F
76691-01E00 RETAINER-TAPPING,STRIKER LH1984-07-01 ~ ; S; , |
76691-01E00 |
US $9.07 |
||
| replacement | |||||
|
78111F
|
78111F
76691-41L01 Retainer-Tapping, Striker Lh1984-07-01 ~ ; S; , |
76691-41L01 |
US $9.94 |
||
|
78111F
|
78111F
76691-01E00 RETAINER-TAPPING,STRIKER LH1984-07-01 ~ ; S; , |
76691-01E00 |
US $9.07 |
||
| replacement | |||||
|
78111F
|
78111F
76691-41L01 Retainer-Tapping, Striker Lh1984-07-01 ~ ; S; , |
76691-41L01 |
US $9.94 |
||
|
78111G
|
78111G
76690-01E00 RETAINER-TAPPING,STRIKER1984-07-01 ~ ; S; , |
76690-01E00 |
US $9.07 |
||
| replacement | |||||
|
78111G
|
78111G
76690-41L01 Retainer-Tapping, Striker Rh1984-07-01 ~ ; S; , |
76690-41L01 |
US $9.94 |
||
|
78111G
|
78111G
76690-01E00 RETAINER-TAPPING,STRIKER1984-07-01 ~ ; S; , |
76690-01E00 |
US $9.07 |
||
| replacement | |||||
|
78111G
|
78111G
76690-41L01 Retainer-Tapping, Striker Rh1984-07-01 ~ ; S; , |
76690-41L01 |
US $9.94 |
||
|
78111J
|
78111J
73810-W2900 Insulator-Roof1984-07-01 ~ ; S; , |
73810-W2900 |
US $53.28 |
||
| replacement | |||||
|
78111J
|
78111J
G3810W2900
ｲﾝｼﾕﾚ-ﾀ-,ﾙ-ﾌ
1984-07-01 ~ ; S; , |
G3810W2900 |
— | ||
|
78111J
|
78111J
78164-01E00
INSULATOR-REAR FENDER
1984-07-01 ~ ; S; , |
78164-01E00 |
— | ||
| replacement | |||||
|
78111J
|
78111J
G3810W2900
ｲﾝｼﾕﾚ-ﾀ-,ﾙ-ﾌ
1984-07-01 ~ ; S; , |
G3810W2900 |
— | ||
|
78120
|
78120
78120-01E00 BASE ASSY-FUEL FILLER1984-07-01 ~ ; S; , |
78120-01E00 |
US $44.06 |
||
|
78120
|
78120
78120-01E00 BASE ASSY-FUEL FILLER1984-07-01 ~ ; S; , |
78120-01E00 |
US $44.06 |
||
|
78126
|
78126
78134-28E00 CORNER-REAR FENDER,RH1986-01-01 ~ ; S; , |
78134-28E00 |
US $39.60 |
||
|
78127
|
78127
78135-28E00 CORNER-REAR FENDER,LH1986-01-01 ~ ; S; , |
78135-28E00 |
US $39.60 |
||
|
78810
|
78810
78830-01E01 LID ASSY-FUEL FILLER1984-07-01 ~ 1986-01-01; S; , |
78830-01E01 |
US $73.30 |
||
|
78810
|
78810
78830-28E10 ﾘﾂﾄﾞ,ｶﾞｽ ﾌｲﾗ-1986-01-01 ~ ; S; , |
78830-28E10 |
US $104.69 |
||
|
78810
|
78810
01658-00371 BUMPER-LID1984-07-01 ~ ; S; , |
01658-00371 |
from US $3.46 |
||
|
78810
|
78810
78830-01E01 LID ASSY-FUEL FILLER1984-07-01 ~ 1986-01-01; S; , |
78830-01E01 |
US $73.30 |
||
|
78810
|
78810
78830-28E10 ﾘﾂﾄﾞ,ｶﾞｽ ﾌｲﾗ-1986-01-01 ~ ; S; , |
78830-28E10 |
US $104.69 |
||
|
78810
|
78810
01658-00371 BUMPER-LID1984-07-01 ~ ; S; , |
01658-00371 |
from US $3.46 |
||
|
78810F
|
78810F
01658-00371 BUMPER-LID1984-07-01 ~ ; S; , |
01658-00371 |
from US $3.46 |
||
|
78815
|
78815
78836-03E01 SPRING-GAS FILLER LID1984-07-01 ~ 1986-01-01; S; , |
78836-03E01 |
US $5.33 |
||
|
78815
|
78815
78836-03E02 SPRING-GAS FILLER LID1988-04-01 ~ ; S; , |
78836-03E02 |
US $4.32 |
||
|
78815
|
78815
78836-D4000 Spring-Gas Filler Lid1986-01-01 ~ 1988-04-01; S; , |
78836-D4000 |
US $3.17 |
||
|
78815
|
78815
78836-03E01 SPRING-GAS FILLER LID1984-07-01 ~ 1986-01-01; S; , |
78836-03E01 |
US $5.33 |
||
|
78815
|
78815
78836-03E02 SPRING-GAS FILLER LID1988-04-01 ~ ; S; , |
78836-03E02 |
US $4.32 |
||
|
78815
|
78815
78836-D4000 Spring-Gas Filler Lid1986-01-01 ~ 1988-04-01; S; , |
78836-D4000 |
US $3.17 |
||
|
78850M
|
78850M
78857-28E00 DUCT ASSY-DRAFTER1986-01-01 ~ ; S; , |
78857-28E00 |
US $79.92 |
||
|
84960C
|
84960C
41212-0501P Washer-Plain1984-07-01 ~ ; S; F/SIDE BOX |
41212-0501P |
US $1.73 |
||
