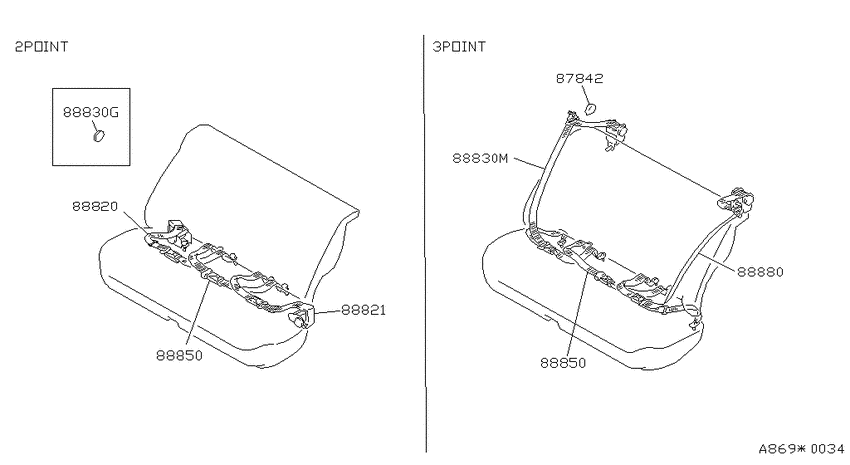

Rear seat belt (1984-07-01 ~ ; REAR; ALL) Diagram Nissan MAXIMA
- Year
- 1983 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- AT
- body
- S
- trim lvl
- SE
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87842
|
87842
87840-13E01
Cover-shoulder anchor,rh
1986-01-01 ~ ; *S; (C)RH RR SEAT BELT 3PX2 |
87840-13E01 |
— | ||
|
87842
|
87842
87840-13E03
COVER-SHOULDER ANCHOR,RH
1986-01-01 ~ ; S +W; (B) RR BELT RH |
87840-13E03 |
— | ||
|
87842
|
87842
87840-37E01
COVER-SHOULDER ANCHOR,RH
1986-01-01 ~ ; S +W; (C) RR BELT RH |
87840-37E01 |
— | ||
|
87842
|
87842
87840-V5102
Cover-Shoulder Anchor, Rh
1986-01-01 ~ ; S +W; (K) RR BELT RH |
87840-V5102 |
— | ||
|
87842
|
87842
87841-13E01
Cover-shoulder anchor,rh
1986-01-01 ~ ; *S; (C)LH RR SEAT BELT 3PX2 |
87841-13E01 |
— | ||
|
87842
|
87842
87841-13E03
COVER-SHOULDER ANCHOR,RH
1986-01-01 ~ ; S +W; (B) RR BELT LH |
87841-13E03 |
— | ||
|
87842
|
87842
87841-37E01
COVER-SHOULDER ANCHOR,RH
1986-01-01 ~ ; S +W; (C) RR BELT LH |
87841-37E01 |
— | ||
|
87842
|
87842
87841-V5102
Cover-Shoulder Anchor, Rh
1986-01-01 ~ ; S +W; (K) RR BELT LH |
87841-V5102 |
— | ||
|
88820
|
88820
88820-01E00
Belt set-rear seat,2 point rh
1985-07-01 ~ ; S.(SE+GL); (K) |
88820-01E00 |
— | ||
|
88820
|
88820
88820-01E01
Belt set-rear seat,2 point rh
1985-07-01 ~ ; S.(SE+GL); (C) |
88820-01E01 |
— | ||
|
88820
|
88820
88820-01E03
Belt set-rear seat,2 point rh
1985-07-01 ~ ; S.(SE+GL); (B) |
88820-01E03 |
— | ||
|
88821
|
88821
88821-01E00
Belt set-rear seat,2 point lh
1985-07-01 ~ ; S.(SE+GL); (K) LH |
88821-01E00 |
— | ||
|
88821
|
88821
88821-01E01
Belt set-rear seat,2 point lh
1985-07-01 ~ ; S.(SE+GL); (C) LH |
88821-01E01 |
— | ||
|
88821
|
88821
88821-01E03
Belt set-rear seat,2 point lh
1985-07-01 ~ ; S.(SE+GL); (B) LH |
88821-01E03 |
— | ||
|
88830G
|
88830G
01553-01441 PLUG-ANCHOR HOLE1985-07-01 ~ ; S.(SE+GL); , |
01553-01441 |
US $1.73 |
||
|
88830G
|
88830G
0155304121 CLIP1985-07-01 ~ ; S.(SE+GL); , |
0155304121 |
US $1.73 |
||
|
88830M
|
88830M
88840-37E00
Belt set-rear seat,3 point rh
1986-01-01 ~ ; S; (K) |
88840-37E00 |
— | ||
|
88830M
|
88830M
88840-37E01
Belt set-rear seat,3 point rh
1986-01-01 ~ ; S; (C) |
88840-37E01 |
— | ||
|
88830M
|
88830M
88840-37E03
Belt set-rear seat,3 point rh
1986-01-01 ~ ; S; (B) |
88840-37E03 |
— | ||
|
88830M
|
88830M
H8840-13E10
Belt set-rear seat,3 point rh
1984-11-01 ~ ; *S; (K)RH RR SEAT BELT 3PX2 |
H8840-13E10 |
— | ||
|
88830M
|
88830M
H8840-13E11
Belt set-rear seat,3 point rh
1984-11-01 ~ ; *S; (C)RH RR SEAT BELT 3PX2 |
H8840-13E11 |
— | ||
| replacement | |||||
|
88830M
|
88830M
88840-37E11
Belt set-rear seat,3 point rh
1984-11-01 ~ ; *S; (C)RH RR SEAT BELT 3PX2 |
88840-37E11 |
— | ||
|
88830M
|
88830M
H8840-13E13
Belt set-rear seat,3 point rh
1984-11-01 ~ ; *S; (B)RH RR SEAT BELT 3PX2 |
H8840-13E13 |
— | ||
|
88850
|
88850
88850-01E00
ﾍﾞﾙﾄ ｾﾂﾄ,ｾﾝﾀ- ﾘﾔ ｼ-ﾄ
1985-07-01 ~ 1985-10-01; S.(SE+GL); (K) |
88850-01E00 |
— | ||
|
88850
|
88850
88850-01E01
ﾍﾞﾙﾄ ｾﾂﾄ,ｾﾝﾀ- ﾘﾔ ｼ-ﾄ
1985-07-01 ~ 1985-10-01; S.(SE+GL); (C) |
88850-01E01 |
— | ||
|
88850
|
88850
88850-01E03
ﾍﾞﾙﾄ ｾﾂﾄ,ｾﾝﾀ- ﾘﾔ ｼ-ﾄ
1985-07-01 ~ 1985-10-01; S.(SE+GL); (B) |
88850-01E03 |
— | ||
|
88850
|
88850
88850-01E10
ﾍﾞﾙﾄ ｾﾂﾄ,ｾﾝﾀ- ﾘﾔ ｼ-ﾄ
1985-10-01 ~ ; S.(SE+GL); (K) |
88850-01E10 |
— | ||
|
88850
|
88850
88850-01E11
Belt set-rear seat,center
1985-10-01 ~ 1986-01-01; S.(SE+GL); (C) |
88850-01E11 |
— | ||
|
88850
|
88850
88850-01E13
ﾍﾞﾙﾄ ｾﾂﾄ,ｾﾝﾀ- ﾘﾔ ｼ-ﾄ
1985-10-01 ~ ; S.(SE+GL); (B) |
88850-01E13 |
— | ||
|
88850
|
88850
88850-28E01
ﾍﾞﾙﾄ ｾﾂﾄ,ｾﾝﾀ- ﾘﾔ ｼ-ﾄ
1986-01-01 ~ ; S.(SE+GL); (C) |
88850-28E01 |
— | ||
|
88850
|
88850
88850-01E00
ﾍﾞﾙﾄ ｾﾂﾄ,ｾﾝﾀ- ﾘﾔ ｼ-ﾄ
1985-07-01 ~ 1985-10-01; S.(SE+GL); (K) |
88850-01E00 |
— | ||
|
88850
|
88850
88850-01E01
ﾍﾞﾙﾄ ｾﾂﾄ,ｾﾝﾀ- ﾘﾔ ｼ-ﾄ
1985-07-01 ~ 1985-10-01; S.(SE+GL); (C) |
88850-01E01 |
— | ||
|
88850
|
88850
88850-01E03
ﾍﾞﾙﾄ ｾﾂﾄ,ｾﾝﾀ- ﾘﾔ ｼ-ﾄ
1985-07-01 ~ 1985-10-01; S.(SE+GL); (B) |
88850-01E03 |
— | ||
|
88850
|
88850
88850-01E10
ﾍﾞﾙﾄ ｾﾂﾄ,ｾﾝﾀ- ﾘﾔ ｼ-ﾄ
1985-10-01 ~ ; S.(SE+GL); (K) |
88850-01E10 |
— | ||
|
88850
|
88850
88850-01E11
Belt set-rear seat,center
1985-10-01 ~ 1986-01-01; S.(SE+GL); (C) |
88850-01E11 |
— | ||
|
88850
|
88850
88850-01E13
ﾍﾞﾙﾄ ｾﾂﾄ,ｾﾝﾀ- ﾘﾔ ｼ-ﾄ
1985-10-01 ~ ; S.(SE+GL); (B) |
88850-01E13 |
— | ||
|
88850
|
88850
88850-28E01
ﾍﾞﾙﾄ ｾﾂﾄ,ｾﾝﾀ- ﾘﾔ ｼ-ﾄ
1986-01-01 ~ ; S.(SE+GL); (C) |
88850-28E01 |
— | ||
|
88880
|
88880
88841-37E00
Belt set-rear seat,3 point lh
1986-01-01 ~ ; S; (K) |
88841-37E00 |
— | ||
|
88880
|
88880
88841-37E01
Belt set-rear seat,3 point lh
1986-01-01 ~ ; S; (C) |
88841-37E01 |
— | ||
|
88880
|
88880
88841-37E03
Belt set-rear seat,3 point lh
1986-01-01 ~ ; S; (B) |
88841-37E03 |
— | ||
|
88880
|
88880
H8841-13E10
Belt set-rear seat,3 point lh
1984-11-01 ~ ; *S; (K)LH RR SEAT BELT 3PX2 |
H8841-13E10 |
— | ||
|
88880
|
88880
H8841-13E11
Belt set-rear seat,3 point lh
1984-11-01 ~ ; *S; (C)LH RR SEAT BELT 3PX2 |
H8841-13E11 |
— | ||
| replacement | |||||
|
88880
|
88880
88841-37E11
Belt set-rear seat,3 point lh
1984-11-01 ~ ; *S; (C)LH RR SEAT BELT 3PX2 |
88841-37E11 |
— | ||
|
88880
|
88880
H8841-13E13
Belt set-rear seat,3 point lh
1984-11-01 ~ ; *S; (B)LH RR SEAT BELT 3PX2 |
H8841-13E13 |
— | ||
