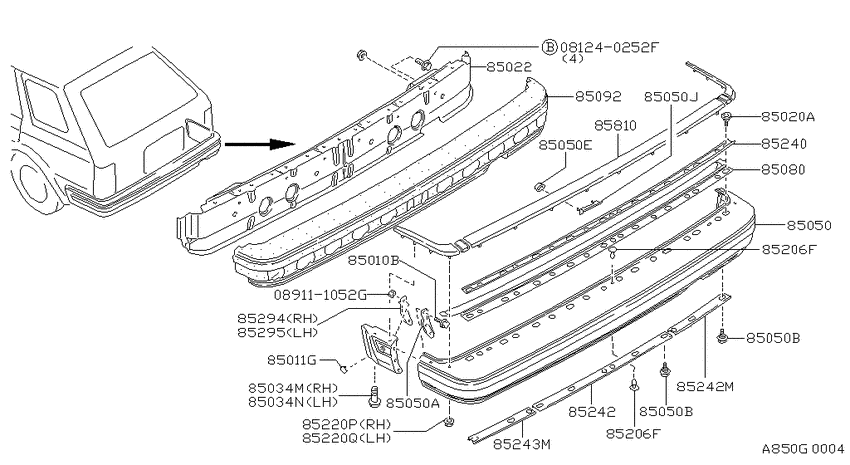

Rear bumper (1986-01-01 ~ ; W) Diagram Nissan MAXIMA
- Year
- 1984 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- AT
- body
- W
- trim lvl
- DX
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081240252F
|
081240252F
081240252F Bolt-hexagon |
081240252F |
US $3.18 |
||
|
089111052G
|
089111052G
089111052G Nut |
089111052G |
from US $0.52 |
||
|
85010B
|
85010B
01111-00641 Bolt1986-01-01 ~ ; W; , |
01111-00641 |
US $1.73 |
||
|
85011G
|
85011G
85070-17E00
END CAP-REAR BUMPER
1986-01-01 ~ ; W; , |
85070-17E00 |
— | ||
|
85020A
|
85020A
85065-17E00
Bolt
1986-01-01 ~ ; W; , |
85065-17E00 |
— | ||
|
85022
|
85022
85030-17E00
REINFORCE-INNER,REAR BUMPER CENTER
1984-07-01 ~ 1986-01-01; W; , |
85030-17E00 |
— | ||
|
85022
|
85022
85030-17E60
REINFORCE-INNER,REAR BUMPER CENTER
1986-01-01 ~ ; W; , |
85030-17E60 |
— | ||
|
85034M
|
85034M
85066-17E60
PROTECTOR-REAR BUMPER
1986-01-01 ~ ; W; , |
85066-17E60 |
— | ||
|
85034N
|
85034N
85067-17E60
PROTECTOR-REAR BUMPER
1986-01-01 ~ ; W; , |
85067-17E60 |
— | ||
|
85050
|
85050
85022-39E30
FASCIA-REAR BUMPER
1986-01-01 ~ ; W; , |
85022-39E30 |
— | ||
| replacement | |||||
|
85050
|
85050
85022-39E50
Fascia-rear bumper
1986-01-01 ~ ; W; , |
85022-39E50 |
— | ||
|
85050
|
85050
85050-17E55
FASCIA-REAR BUMPER
1984-07-01 ~ 1986-01-01; W; , |
85050-17E55 |
— | ||
|
85050
|
85050
01436-00671 SCREW1986-01-01 ~ ; W; , |
01436-00671 |
US $1.73 |
||
|
85050
|
85050
01125-00811
BOLT
1986-01-01 ~ ; W; , |
01125-00811 |
— | ||
|
85050
|
85050
01553-00741 CLIP1984-07-01 ~ 1986-01-01; W; , |
01553-00741 |
US $1.73 |
||
|
85050
|
85050
85086-17E00
CLIP
1986-01-01 ~ ; W; , |
85086-17E00 |
— | ||
|
85050
|
85050
85085-17E00
BRACKET-REAR BUMPER,UPPER
1986-01-01 ~ ; W; , |
85085-17E00 |
— | ||
|
85050A
|
85050A
01436-00671 SCREW1986-01-01 ~ ; W; , |
01436-00671 |
US $1.73 |
||
|
85050B
|
85050B
01125-00811
BOLT
1986-01-01 ~ ; W; , |
01125-00811 |
— | ||
|
85050B
|
85050B
01125-00811
BOLT
1986-01-01 ~ ; W; , |
01125-00811 |
— | ||
|
85050E
|
85050E
01553-00741 CLIP1984-07-01 ~ 1986-01-01; W; , |
01553-00741 |
US $1.73 |
||
|
85050E
|
85050E
85086-17E00
CLIP
1986-01-01 ~ ; W; , |
85086-17E00 |
— | ||
|
85050J
|
85050J
85085-17E00
BRACKET-REAR BUMPER,UPPER
1986-01-01 ~ ; W; , |
85085-17E00 |
— | ||
|
85080
|
85080
85080-17E00
SHIELD-SIGHT,REAR BUMPER
1986-01-01 ~ ; W; , |
85080-17E00 |
— | ||
|
85092
|
85092
85090-17E00
HONEYCOMB-REAR BUMPER,CENTER
1984-07-01 ~ 1986-01-01; W; , |
85090-17E00 |
— | ||
|
85092
|
85092
85090-17E60
HONEYCOMB-REAR BUMPER,CENTER
1986-01-01 ~ ; W; , |
85090-17E60 |
— | ||
|
85206F
|
85206F
01553-00741 CLIP1986-01-01 ~ ; W; , |
01553-00741 |
US $1.73 |
||
|
85206F
|
85206F
85086-17E00
CLIP
1984-07-01 ~ 1986-01-01; W; , |
85086-17E00 |
— | ||
|
85206F
|
85206F
01553-00741 CLIP1986-01-01 ~ ; W; , |
01553-00741 |
US $1.73 |
||
|
85206F
|
85206F
85086-17E00
CLIP
1984-07-01 ~ 1986-01-01; W; , |
85086-17E00 |
— | ||
|
85220P
|
85220P
85044-17E60
BRACKET-BUMPER MOUNTING,RH
1986-01-01 ~ ; W; , |
85044-17E60 |
— | ||
|
85220Q
|
85220Q
85045-17E60
BRACKET-BUMPER MOUNTING,LH
1986-01-01 ~ ; W; , |
85045-17E60 |
— | ||
|
85240
|
85240
85060-03E00 RETAINER-REAR BUMPER,UPPER1986-01-01 ~ ; W; , |
85060-03E00 |
US $55.15 |
||
|
85240
|
85240
01111-00641 Bolt1984-07-01 ~ ; W; , |
01111-00641 |
US $1.73 |
||
|
85242
|
85242
85092-17E00
RETAINER-REAR BUMPER,LOWER
1984-07-01 ~ 1986-01-01; W; LOWER(A) |
85092-17E00 |
— | ||
|
85242
|
85242
85299-17E60
RETAINER-REAR BUMPER,LOWER
1986-01-01 ~ ; W; , |
85299-17E60 |
— | ||
|
85242
|
85242
85292-17E60
RETAINER-REAR BUMPER,LOWER RH
1986-01-01 ~ ; W; , |
85292-17E60 |
— | ||
|
85242
|
85242
85093-17E00
RETAINER-REAR BUMPER LOWER CENTER
1984-07-01 ~ 1986-01-01; W; LOWER(B) |
85093-17E00 |
— | ||
|
85242M
|
85242M
85292-17E60
RETAINER-REAR BUMPER,LOWER RH
1986-01-01 ~ ; W; , |
85292-17E60 |
— | ||
|
85243M
|
85243M
85293-17E60
RETAINER-REAR BUMPER,LOWER LH
1986-01-01 ~ ; W; , |
85293-17E60 |
— | ||
|
85294
|
85294
85046-17E60
Retainer assy-rear bumper side,rh
1986-01-01 ~ ; W; , |
85046-17E60 |
— | ||
|
85295
|
85295
85047-17E60
Retainer assy-rear bumper side,lh
1986-01-01 ~ ; W; , |
85047-17E60 |
— | ||
|
85810
|
85810
85042-17E00
MOULDING-REAR BUMPER GUARD
1986-01-01 ~ ; W; , |
85042-17E00 |
— | ||
|
85810
|
85810
85054-17E00
J nut
1984-07-01 ~ 1986-01-01; W; , |
85054-17E00 |
— | ||
|
85810
|
85810
85053-17E00
Clip
1984-07-01 ~ 1986-01-01; W; , |
85053-17E00 |
— | ||
|
85810
|
85810
85046-17E00
JOINT-REAR BUMPER MOULDING,RH
1984-07-01 ~ 1986-01-01; W; , |
85046-17E00 |
— | ||
|
85810
|
85810
85046-17E01
JOINT-REAR BUMPER MOULDING,RH
1984-07-01 ~ 1986-01-01; W; , |
85046-17E01 |
— | ||
|
85810
|
85810
85047-17E00
JOINT-REAR BUMPER MOULDING,LH
1984-07-01 ~ 1986-01-01; W; , |
85047-17E00 |
— | ||
|
85810
|
85810
85047-17E01
JOINT-REAR BUMPER MOULDING,LH
1984-07-01 ~ 1986-01-01; W; , |
85047-17E01 |
— | ||
