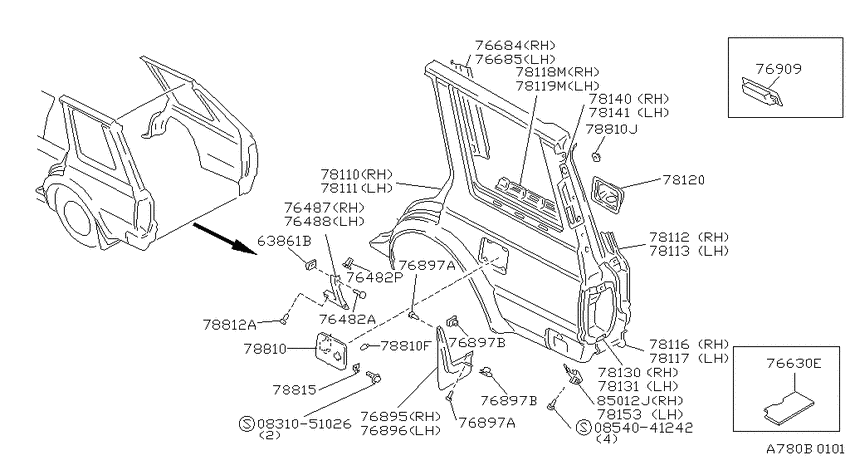

Rear fender & fitting (1984-07-01 ~ ; WAGON) Diagram Nissan MAXIMA
- Year
- 1984 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- AT
- body
- W
- trim lvl
- DX
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0831051026
|
0831051026
08310-51026
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-51026 |
— | ||
| replacement | |||||
|
0831051026
|
0831051026
08360-5102D ｽｸﾘﾕ-,ﾏｼﾝ |
08360-5102D |
US $1.93 |
||
|
0854041242
|
0854041242
08540-41242
ｽｸﾘﾕ-
|
08540-41242 |
— | ||
|
63861B
|
63861B
63848-F2700 Nut-Spring1984-07-01 ~ 1986-08-01; W; F/SILL END |
63848-F2700 |
US $5.90 |
||
|
63861B
|
63861B
76882-D4000 Nut-Spring1986-08-01 ~ ; W; SILL LWR |
76882-D4000 |
US $1.73 |
||
|
76482A
|
76482A
01434-00041 SCREW1984-07-01 ~ ; W; , |
01434-00041 |
US $1.73 |
||
|
76482P
|
76482P
0128100072 GROMMET-SCREW1984-07-01 ~ ; W; , |
0128100072 |
US $1.73 |
||
|
76487
|
76487
78812-01E00 COVER-END,SILL MOULDING RH1984-07-01 ~ ; W; , |
78812-01E00 |
US $55.15 |
||
|
76488
|
76488
78813-01E00 COVER-END,SILL MOULDING LH1984-07-01 ~ ; W; , |
78813-01E00 |
US $55.15 |
||
|
76630E
|
76630E
24271-U0105 Protector-Flat Wire1986-01-01 ~ ; W; FOR/FENDER-REAR |
24271-U0105 |
US $5.04 |
||
|
76684
|
76684
76620-10E00 REINFORCE ASSY-SEAT BELT ANCHOR,RH1984-07-01 ~ ; W; , |
76620-10E00 |
US $53.86 |
||
|
76685
|
76685
76621-10E00 REINFORCE ASSY-SEAT BELT ANCHOR,LH1984-07-01 ~ ; W; , |
76621-10E00 |
US $53.86 |
||
|
76895
|
76895
78810-01E25
MUDGUARD SET-REAR,RH
1985-07-01 ~ ; *W; BLACK F/SPLASH GUARD |
78810-01E25 |
— | ||
|
76895
|
76895
78810-01E88
Mudguard set-rear,rh
1985-07-01 ~ ; *W; SILVER M F/SPLASH GUARD |
78810-01E88 |
— | ||
|
76895
|
76895
78812-28E86
Mudguard set-rear,rh
1986-01-01 ~ ; *W.FED; (#449) BEIGE M F/SPLASH GUARD |
78812-28E86 |
— | ||
|
76895
|
76895
78812-28E87
Mudguard set-rear,rh
1986-01-01 ~ ; *W.FED; (#123) F/SPLASH GUARD |
78812-28E87 |
— | ||
|
76896
|
76896
78811-01E25
MUDGUARD SET-REAR,LH
1985-07-01 ~ ; *W; BLACK F/SPLASH GUARD |
78811-01E25 |
— | ||
|
76896
|
76896
78811-01E88
Mudguard set-rear,lh
1985-07-01 ~ ; *W; SILVER M F/SPLASH GUARD |
78811-01E88 |
— | ||
|
76896
|
76896
78813-28E86
Mudguard set-rear,lh
1986-01-01 ~ ; *W.FED; (#449) BEIGE M F/SPLASH GUARD |
78813-28E86 |
— | ||
|
76896
|
76896
78813-28E87
Mudguard set-rear,lh
1986-01-01 ~ ; *W.FED; (#123) F/SPLASH GUARD |
78813-28E87 |
— | ||
|
76897A
|
76897A
01641-00341
SCREW
1985-07-01 ~ ; *W; F/SPLASH GUARD |
01641-00341 |
— | ||
|
76897A
|
76897A
01641-00341
SCREW
1985-07-01 ~ ; *W; F/SPLASH GUARD |
01641-00341 |
— | ||
|
76897B
|
76897B
01241-00551
NUT-RETAINER
1984-07-01 ~ ; *W; , |
01241-00551 |
— | ||
|
76897B
|
76897B
63848-D0100
Nut-Retainer
1985-07-01 ~ ; *W; F/SPLASH GUARD |
63848-D0100 |
— | ||
| replacement | |||||
|
76897B
|
76897B
76882D4001 Clip1985-07-01 ~ ; *W; F/SPLASH GUARD |
76882D4001 |
US $2.91 |
||
|
76897B
|
76897B
01241-00551
NUT-RETAINER
1984-07-01 ~ ; *W; , |
01241-00551 |
— | ||
|
76897B
|
76897B
63848-D0100
Nut-Retainer
1985-07-01 ~ ; *W; F/SPLASH GUARD |
63848-D0100 |
— | ||
| replacement | |||||
|
76897B
|
76897B
76882D4001 Clip1985-07-01 ~ ; *W; F/SPLASH GUARD |
76882D4001 |
US $2.91 |
||
|
76909
|
76909
78880-10E00 COVER-BODY SIDE1984-07-01 ~ ; W; , |
78880-10E00 |
US $17.57 |
||
|
78110
|
78110
78112-17E00
Fender-rear,rh
1984-07-01 ~ ; W; , |
78112-17E00 |
— | ||
|
78111
|
78111
78113-17E00
Fender-rear,lh
1984-07-01 ~ ; W; , |
78113-17E00 |
— | ||
|
78112
|
78112
77640-09E00 CONNECTOR-REAR FENDER,RH1984-07-01 ~ ; W; , |
77640-09E00 |
US $106.85 |
||
|
78113
|
78113
77641-09E00 CONNECTOR-REAR FENDER,LH1984-07-01 ~ ; W; , |
77641-09E00 |
US $106.85 |
||
|
78116
|
78116
78116-17E00
EXTENSION-REAR FENDER,RH
1984-07-01 ~ ; W; , |
78116-17E00 |
— | ||
|
78117
|
78117
78117-17E00
EXTENSION-REAR FENDER,LH
1984-07-01 ~ ; W; , |
78117-17E00 |
— | ||
|
78118M
|
78118M
78146-10E00 REINFORCE-REAR FENDER RH1984-07-01 ~ ; W; , |
78146-10E00 |
US $20.02 |
||
|
78119M
|
78119M
78147-10E00 REINFORCE-REAR FENDER LH1984-07-01 ~ ; W; , |
78147-10E00 |
US $20.02 |
||
|
78120
|
78120
78120-01E00 BASE ASSY-FUEL FILLER1984-07-01 ~ ; W; , |
78120-01E00 |
US $44.06 |
||
|
78130
|
78130
78130-09E00 CASE ASSY-TAIL LAMP,RH1984-07-01 ~ ; W; , |
78130-09E00 |
US $89.14 |
||
|
78131
|
78131
78131-09E00 CASE ASSY-TAIL LAMP,LH1984-07-01 ~ ; W; , |
78131-09E00 |
US $89.14 |
||
|
78140
|
78140
78142-09E00 PLATE-DRAFTER,RH1984-07-01 ~ ; W; , |
78142-09E00 |
US $27.22 |
||
|
78141
|
78141
78143-17E00 ﾌﾟﾚ-ﾄ,ﾄﾞﾗﾌﾀ- lh1984-07-01 ~ ; W; , |
78143-17E00 |
US $27.22 |
||
|
78153
|
78153
85221-17E00
BRACKET-BUMPER,REAR SIDE LH
1984-07-01 ~ ; W; F/UPPER |
85221-17E00 |
— | ||
|
78810
|
78810
78830-01E01 LID ASSY-FUEL FILLER1984-07-01 ~ 1986-01-01; W; , |
78830-01E01 |
US $73.30 |
||
|
78810
|
78810
78830-28E10 ﾘﾂﾄﾞ,ｶﾞｽ ﾌｲﾗ-1986-01-01 ~ ; W; , |
78830-28E10 |
US $104.69 |
||
|
78810
|
78810
01658-00371 BUMPER-LID1984-07-01 ~ ; W; , |
01658-00371 |
from US $3.46 |
||
|
78810
|
78810
83832-09E00 PLATE-PROTECTOR,GAS FILLER1984-07-01 ~ 1985-10-01; W; , |
83832-09E00 |
US $5.18 |
||
|
78810F
|
78810F
01658-00371 BUMPER-LID1984-07-01 ~ ; W; , |
01658-00371 |
from US $3.46 |
||
|
78810J
|
78810J
83832-09E00 PLATE-PROTECTOR,GAS FILLER1984-07-01 ~ 1985-10-01; W; , |
83832-09E00 |
US $5.18 |
||
|
78812A
|
78812A
01454-00131 SCREW1984-07-01 ~ ; W; , |
01454-00131 |
US $1.73 |
||
|
78815
|
78815
78836-03E01 SPRING-GAS FILLER LID1984-07-01 ~ 1988-04-01; W; , |
78836-03E01 |
US $5.33 |
||
|
78815
|
78815
78836-03E02 SPRING-GAS FILLER LID1988-04-01 ~ ; W; , |
78836-03E02 |
US $4.32 |
||
|
85012J
|
85012J
85220-17E00
BRACKET-REAR BUMPER SIDE,RH
1984-01-01 ~ ; W; F/UPPER |
85220-17E00 |
— | ||
