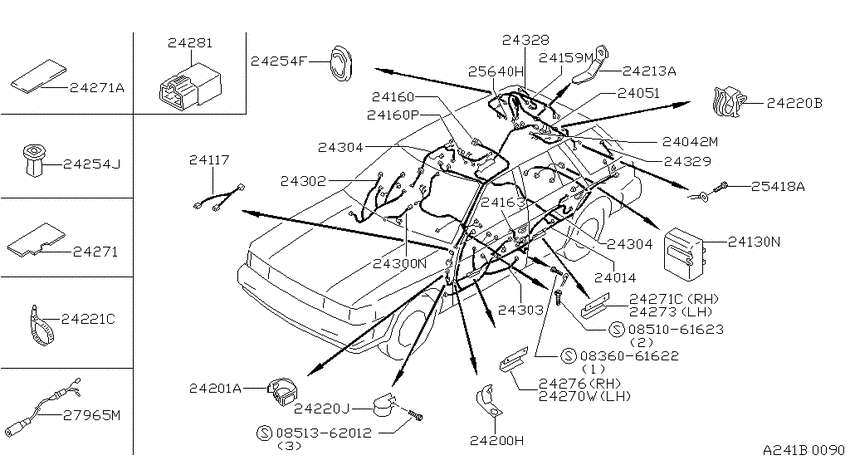

Wiring (body) (1984-07-01 ~ ; WAGON) Diagram Nissan MAXIMA
- Year
- 1984 - 2011
- Sales region
- U.S.A.
- Engine
- VG30E
- transmission
- AT
- body
- W
- trim lvl
- DX
- emission
- FED
- gears/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836061622
|
0836061622
08360-61622
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61622 |
— | ||
|
0851061623
|
0851061623
08510-61623
SCREWTAPPING
|
08510-61623 |
— | ||
|
0851362012
|
0851362012
08513-62012
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-62012 |
— | ||
|
24014
|
24014
24014-17E01
HARNESS-BODY
1984-07-01 ~ 1985-07-01; W; , |
24014-17E01 |
— | ||
|
24014
|
24014
24014-35E01
HARNESS-BODY
1985-07-01 ~ 1986-01-01; W; , |
24014-35E01 |
— | ||
|
24014
|
24014
24014-39E00
HARNESS-BODY
1986-01-01 ~ 1986-08-01; W; , |
24014-39E00 |
— | ||
|
24014
|
24014
24014-43E01
HARNESS-BODY
1986-08-01 ~ 1987-01-01; W.DX; , |
24014-43E01 |
— | ||
|
24014
|
24014
24014-43E10
HARNESS-BODY
1987-01-01 ~ 1987-08-01; W; , |
24014-43E10 |
— | ||
|
24014
|
24014
24014-43E21
HARNESS-BODY
1987-08-01 ~ ; W; , |
24014-43E21 |
— | ||
|
24014
|
24014
01436-00471 SCREW1984-07-01 ~ ; S +W; , |
01436-00471 |
US $2.45 |
||
|
24042M
|
24042M
24148-17E00
HARNESS-SUB
1984-07-01 ~ ; *W; F/SPEAKER LH |
24148-17E00 |
— | ||
|
24051
|
24051
24064-35E00
HARNESS-BACK DOOR
1985-07-01 ~ ; W; FOR H/M STOP LAMP |
24064-35E00 |
— | ||
|
24051
|
24051
24145-17E00
HARNESS-BACK DOOR
1984-01-01 ~ ; W; BODY H TO W/MOTOR& LIC LAMP |
24145-17E00 |
— | ||
|
24051
|
24051
24145-17E01
HARNESS-BACK DOOR
1984-01-01 ~ 1985-07-01; W; BODY H TO D/L SW |
24145-17E01 |
— | ||
|
24051
|
24051
24145-35E00
HARNESS-BACK DOOR
1985-07-01 ~ ; W; BODY H TO D/L SW |
24145-35E00 |
— | ||
|
24117
|
24117
28366-38E60
HARNESS ASSY-BONDING
1986-04-01 ~ ; W; , |
28366-38E60 |
— | ||
|
24130N
|
24130N
24335V5000 Diode1986-08-01 ~ 1987-08-01; W; , |
24335V5000 |
US $17.32 |
||
|
24159M
|
24159M
24148-12E02 HARNESS-TRUNK ROOM SUB1986-01-01 ~ ; W; , |
24148-12E02 |
US $20.02 |
||
|
24160
|
24160
24160-08E00 HARNESS ASSY-ROOM LAMP1984-07-01 ~ 1984-08-01; W; , |
24160-08E00 |
US $70.13 |
||
|
24160
|
24160
24160-12E00 HARNESS ASSY-ROOM LAMP1984-08-01 ~ 1986-08-01; W; , |
24160-12E00 |
US $83.66 |
||
|
24160
|
24160
24160-16E00
HARNESS ASSY-ROOM LAMP
1984-07-01 ~ 1986-01-01; *W; F/SUNROOF |
24160-16E00 |
— | ||
|
24160
|
24160
24160-37E00
HARNESS-ROOM LAMP
1986-01-01 ~ 1986-08-01; *W; F/SUNROOF |
24160-37E00 |
— | ||
|
24160
|
24160
24160-42E00
HARNESS-ROOM LAMP
1986-08-01 ~ ; W; , |
24160-42E00 |
— | ||
|
24160
|
24160
24160-42E10
HARNESS-ROOM LAMP
1986-08-01 ~ ; *W; F/SUNROOF |
24160-42E10 |
— | ||
|
24160
|
24160
24065-03E60 HARNESS-SUNROOF1986-01-01 ~ ; *W; F/SUNROOF |
24065-03E60 |
US $73.73 |
||
|
24160
|
24160
24161-16E00
HARNESS-SUNROOF
1984-07-01 ~ 1986-01-01; *W; F/SUNROOF |
24161-16E00 |
— | ||
|
24160P
|
24160P
24065-03E60 HARNESS-SUNROOF1986-01-01 ~ ; *W; F/SUNROOF |
24065-03E60 |
US $73.73 |
||
|
24160P
|
24160P
24161-16E00
HARNESS-SUNROOF
1984-07-01 ~ 1986-01-01; *W; F/SUNROOF |
24161-16E00 |
— | ||
|
24163
|
24163
24027-42E00
HARNESS-BELT SWITCH,A
1986-08-01 ~ ; W; , |
24027-42E00 |
— | ||
|
24200H
|
24200H
24200-02E00 CLIP-WIRING HARNESS1984-07-01 ~ ; W; , |
24200-02E00 |
US $4.03 |
||
|
24201A
|
24201A
24224-89923 Clip-Wiring Harness1984-07-01 ~ ; W; , |
24224-89923 |
US $2.45 |
||
|
24213A
|
24213A
24210-89968 Clip1984-07-01 ~ ; W; , |
24210-89968 |
US $2.45 |
||
|
24213A
|
24213A
24210-F2701 Clip1984-07-01 ~ ; W; , |
24210-F2701 |
US $2.45 |
||
|
24220B
|
24220B
24220-H6600 Clip1984-07-01 ~ ; W; , |
24220-H6600 |
US $2.49 |
||
|
24220J
|
24220J
24220-H8503 Clip-Wiring Harness1984-07-01 ~ ; W; , |
24220-H8503 |
US $3.31 |
||
|
24221C
|
24221C
01552-00043
CLIP
1984-07-01 ~ ; *W; F/SUNROOF |
01552-00043 |
— | ||
| replacement | |||||
|
24221C
|
24221C
2421610Y80 Clamp1984-07-01 ~ ; *W; F/SUNROOF |
2421610Y80 |
from US $4.42 |
||
|
24221C
|
24221C
01552-00411
CLAMP-HOSE
1984-07-01 ~ ; *W; F/SUNROOF |
01552-00411 |
— | ||
| replacement | |||||
|
24221C
|
24221C
2421610Y80 Clamp1984-07-01 ~ ; *W; F/SUNROOF |
2421610Y80 |
from US $4.42 |
||
|
24221C
|
24221C
01552-00481
CLAMP
1984-07-01 ~ ; *W; F/SUNROOF |
01552-00481 |
— | ||
|
24254F
|
24254F
24250-09E00 PLUG1984-07-01 ~ ; W; , |
24250-09E00 |
US $3.74 |
||
|
24254F
|
24254F
90895-P7100 Plug-Rubber1983-11-01 ~ 1984-07-01; W; , |
90895-P7100 |
US $2.74 |
||
|
24254J
|
24254J
01651-00491 GROMMET-SCREW1984-07-01 ~ ; W; , |
01651-00491 |
US $1.73 |
||
|
24270W
|
24270W
24282-01E60 PROTECTOR-HARNESS1984-07-01 ~ ; W; FLOOR LH |
24282-01E60 |
US $11.81 |
||
|
24271
|
24271
24271-U0105 Protector-Flat Wire1984-07-01 ~ ; *W; F/SUNROOF |
24271-U0105 |
US $5.04 |
||
|
24271
|
24271
24271-B7900 Protector1984-07-01 ~ ; W; $500X60 F/MICRO COMPU W/DIGI FUEL MTR |
24271-B7900 |
US $4.18 |
||
|
24271
|
24271
24271-H7200 Protector-Harness1984-07-01 ~ ; W; $80X120 F/MICRO COMPU W/DIGI FUEL MTR |
24271-H7200 |
US $0.97 |
||
|
24271
|
24271
24282-01E20 PROTECTOR-HARNESS1984-07-01 ~ ; W; RR FLOOR RH |
24282-01E20 |
US $9.50 |
||
|
24271
|
24271
68140-F2720 Protector-Harness1984-07-01 ~ ; S +W; L=60 |
68140-F2720 |
US $3.46 |
||
|
24271
|
24271
68140-V0100 Protector-Harness1984-07-01 ~ ; S +W; L=105 |
68140-V0100 |
US $3.46 |
||
|
24271
|
24271
68140-W1000 Protector-Harness1984-07-01 ~ ; S +W; L=105 |
68140-W1000 |
US $3.60 |
||
|
24271
|
24271
68140-16E00
PROTECTOR-HARNESS
1984-07-01 ~ ; S +W; , |
68140-16E00 |
— | ||
|
24271
|
24271
24282-01E00 PROTECTOR-HARNESS1984-07-01 ~ ; S +W; , |
24282-01E00 |
US $6.48 |
||
|
24271A
|
24271A
24271-B7900 Protector1984-07-01 ~ ; W; $500X60 F/MICRO COMPU W/DIGI FUEL MTR |
24271-B7900 |
US $4.18 |
||
|
24271A
|
24271A
24271-H7200 Protector-Harness1984-07-01 ~ ; W; $80X120 F/MICRO COMPU W/DIGI FUEL MTR |
24271-H7200 |
US $0.97 |
||
|
24271C
|
24271C
24282-01E20 PROTECTOR-HARNESS1984-07-01 ~ ; W; RR FLOOR RH |
24282-01E20 |
US $9.50 |
||
|
24273
|
24273
24282-01E65 PROTECTOR-HARNESS1984-07-01 ~ ; W; RR FLOOR LH |
24282-01E65 |
US $6.34 |
||
|
24276
|
24276
24282-01E00 PROTECTOR-HARNESS1984-07-01 ~ ; W; FLOOR RH |
24282-01E00 |
US $6.48 |
||
|
24276
|
24276
24277-32E00 PROTECTOR-HARNESS1986-01-01 ~ ; S +W; RH |
24277-32E00 |
US $7.34 |
||
|
24276
|
24276
24277-32E05 PROTECTOR-HARNESS1986-01-01 ~ ; S +W; LH |
24277-32E05 |
US $6.34 |
||
|
24276
|
24276
24280-16E00
PROTECTOR-HARNESS
1986-01-01 ~ ; S +W; , |
24280-16E00 |
— | ||
|
24281
|
24281
24281-01L05 Box-Diode1984-07-01 ~ ; W; 4POLE GRAY |
24281-01L05 |
US $24.05 |
||
|
24300N
|
24300N
24124-17E10
HARNESS ASSY-DOOR,C
1984-07-01 ~ ; W; SPEAKER HARNESS |
24124-17E10 |
— | ||
|
24302
|
24302
24125-16E15
HARNESS-FRONT DOOR,RH
1984-07-01 ~ 1986-01-01; W.DX; F/ASSIST |
24125-16E15 |
— | ||
|
24302
|
24302
24125-42E10
HARNESS-FRONT DOOR,RH
1986-08-01 ~ 1987-08-01; W; F/ASSIST |
24125-42E10 |
— | ||
| replacement | |||||
|
24302
|
24302
B4125-42E00
Harness assy-door,front rh
1986-08-01 ~ 1987-08-01; W; F/ASSIST |
B4125-42E00 |
— | ||
|
24302
|
24302
24125-42E11
HARNESS-FRONT DOOR,RH
1987-08-01 ~ ; W; F/ASSIST |
24125-42E11 |
— | ||
|
24303
|
24303
24124-16E00
HARNESS-FRONT DOOR,LH
1984-07-01 ~ 1985-12-01; W; , |
24124-16E00 |
— | ||
|
24303
|
24303
24124-16E15
HARNESS-FRONT DOOR,LH
1984-07-01 ~ 1985-12-01; W.DX; F/DRIVER |
24124-16E15 |
— | ||
|
24303
|
24303
24124-16E17
HARNESS-FRONT DOOR,LH
1985-12-01 ~ 1986-01-01; W.DX; F/DRIVER |
24124-16E17 |
— | ||
|
24303
|
24303
24124-38E00
HARNESS-FRONT DOOR,LH
1986-01-01 ~ 1986-08-01; W; , |
24124-38E00 |
— | ||
|
24303
|
24303
24124-42E10
HARNESS-FRONT DOOR,LH
1986-08-01 ~ 1987-08-01; W; F/DRIVER |
24124-42E10 |
— | ||
| replacement | |||||
|
24303
|
24303
B4124-42E01
Harness assy-door,front
1986-08-01 ~ 1987-08-01; W; F/DRIVER |
B4124-42E01 |
— | ||
|
24303
|
24303
24124-42E11
HARNESS-FRONT DOOR,LH
1987-08-01 ~ ; W; F/DRIVER |
24124-42E11 |
— | ||
| replacement | |||||
|
24303
|
24303
B4124-42E11
Harness assy-door,front
1987-08-01 ~ ; W; F/DRIVER |
B4124-42E11 |
— | ||
|
24304
|
24304
24126-16E00 HARNESS ASSY-DOOR,REAR1984-07-01 ~ ; W; , |
24126-16E00 |
US $104.11 |
||
|
24304
|
24304
24126-16E00 HARNESS ASSY-DOOR,REAR1984-07-01 ~ ; W; , |
24126-16E00 |
US $104.11 |
||
|
24328
|
24328
24328-17E00
HARNESS ASSY-REAR DEFOGGER,A
1984-07-01 ~ ; W; , |
24328-17E00 |
— | ||
|
24329
|
24329
24329-17E00 HARNESS ASSY-REAR DEFOGGER,B1984-07-01 ~ ; W; , |
24329-17E00 |
US $13.68 |
||
|
25418A
|
25418A
01452-00011
SCREW
1984-07-01 ~ ; W; , |
01452-00011 |
— | ||
|
25640H
|
25640H
24148-17E01
HARNESS ASSY
1984-07-01 ~ ; *W; F/SPEAKER RH |
24148-17E01 |
— | ||
|
27965M
|
27965M
24145-17E01
HARNESS-BACK DOOR
1984-07-01 ~ ; W; SUB F/BACK DOOR HARN |
24145-17E01 |
— | ||
|
27965M
|
27965M
28242-17E00
CORD-ANTENNA,SUB
1984-07-01 ~ 1984-08-01; W; , |
28242-17E00 |
— | ||
|
27965M
|
27965M
28242-17E01 CORD-ANTENNA1984-08-01 ~ ; W; , |
28242-17E01 |
US $33.12 |
||
