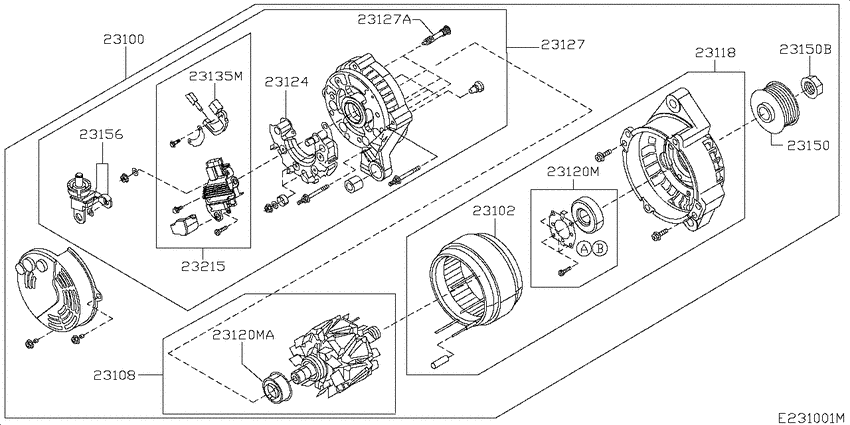

Alternator (2007-04-01 ~ ; オルターネータ; HR16DE) Diagram Nissan MICRA C+C
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- HR16DE
- drive
- 2WD
- transmission
- F5
- grade
- MICRA
- body
- 2DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-BC00A Alternator Assy0704--01 ~ ; HR16DE |
23100-BC00A |
US $1,188.02 |
||
|
23100
|
23100
0122100381 NUT0704--01 ~ ; HR16DE |
0122100381 |
from US $4.27 |
||
|
23102
|
23102
23102-BC40A Stator Assy0704--01 ~ ; HR16DE |
23102-BC40A |
US $514.01 |
||
|
23108
|
23108
23108-BC40A Rotor Assy0704--01 ~ ; HR16DE |
23108-BC40A |
US $346.92 |
||
|
23118
|
23118
23118-BC40A Cover Assy-Front0704--01 ~ ; HR16DE |
23118-BC40A |
US $113.04 |
||
|
23120M
|
23120M
23120-22J20 Bearing-Ball0704--01 ~ ; HR16DE |
23120-22J20 |
from US $22.31 |
||
|
23120M
|
23120M
23120-30R10
Bearing-Ball
0704--01 ~ ; HR16DE |
23120-30R10 |
— | ||
| replacement | |||||
|
23120M
|
23120M
2312051E10 BEARING-BALL0704--01 ~ ; HR16DE |
2312051E10 |
from US $34.67 |
||
|
23120MA
|
23120MA
23120-30R10
Bearing-Ball
0704--01 ~ ; HR16DE |
23120-30R10 |
— | ||
| replacement | |||||
|
23120MA
|
23120MA
2312051E10 BEARING-BALL0704--01 ~ ; HR16DE |
2312051E10 |
from US $34.67 |
||
|
23124
|
23124
23124-BC40A Rectifier Assy0704--01 ~ ; HR16DE |
23124-BC40A |
US $341.26 |
||
|
23127
|
23127
23127-BC40A Cover Assy-Rear0704--01 ~ ; HR16DE |
23127-BC40A |
US $512.59 |
||
|
23127
|
23127
23131-20P10 Bolt-Through0704--01 ~ ; HR16DE |
23131-20P10 |
US $5.04 |
||
|
23127A
|
23127A
23131-20P10 Bolt-Through0704--01 ~ ; HR16DE |
23131-20P10 |
US $5.04 |
||
|
23135M
|
23135M
23142-EG910 Brush-F0704--01 ~ ; HR16DE |
23142-EG910 |
from US $8.45 |
||
|
23150
|
23150
23150BC40A Pulley Assy0704--01 ~ ; HR16DE |
23150BC40A |
from US $101.66 |
||
|
23150
|
23150
23153-70T12 Plate-Terminal0704--01 ~ ; HR16DE |
23153-70T12 |
US $4.42 |
||
|
23150B
|
23150B
23153-70T12 Plate-Terminal0704--01 ~ ; HR16DE |
23153-70T12 |
US $4.42 |
||
|
23156
|
23156
23156-BC40A Terminal Assy-B0704--01 ~ ; HR16DE |
23156-BC40A |
US $9.22 |
||
|
23215
|
23215
23215-BC40A Regulator Assy-Ic0704--01 ~ ; HR16DE |
23215-BC40A |
US $277.22 |
||
