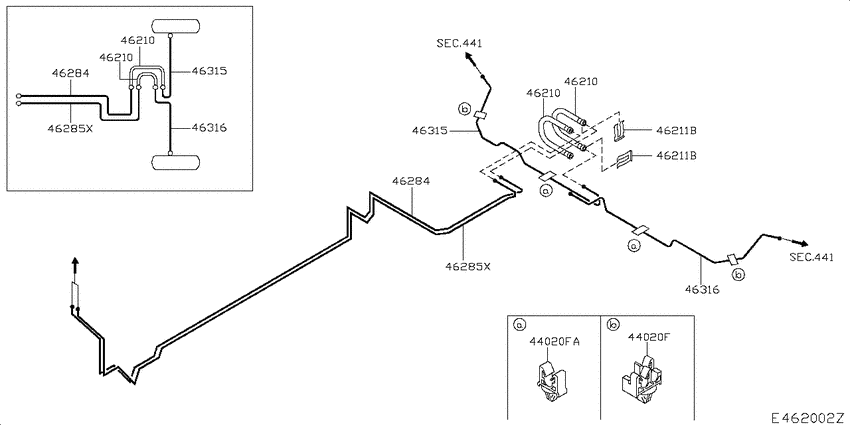

Brake piping & control (2007-04-01 ~ ; クランプ &インシュレーター; 2DR) Diagram Nissan MICRA C+C
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- HR16DE
- drive
- 2WD
- transmission
- F5
- grade
- MICRA
- body
- 2DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44020F
|
44020F
46271-00QAG Clamp0704--01 ~ ; 2DR |
46271-00QAG |
from US $7.06 |
||
|
44020F
|
44020F
46271-00QAF Clamp0704--01 ~ ; 2DR |
46271-00QAF |
US $7.06 |
||
|
44020FA
|
44020FA
46271-00QAF Clamp0704--01 ~ ; 2DR |
46271-00QAF |
US $7.06 |
||
|
441
|
Rear brake
441
|
||||
|
441
|
Rear brake
441
|
||||
|
46210
|
46210
46214-9U00A Hose Assy-Brake, Rear0704--01 ~ ; 2DR |
46214-9U00A |
US $20.88 |
||
|
46210
|
46210
46214-9U00A Hose Assy-Brake, Rear0704--01 ~ ; 2DR |
46214-9U00A |
US $20.88 |
||
|
46210
|
46210
46214-9U00A Hose Assy-Brake, Rear0704--01 ~ ; 2DR |
46214-9U00A |
US $20.88 |
||
|
46210
|
46210
46214-9U00A Hose Assy-Brake, Rear0704--01 ~ ; 2DR |
46214-9U00A |
US $20.88 |
||
|
46211B
|
46211B
462062J00A Spring-Lock, Brake Hose0704--01 ~ ; 2DR |
462062J00A |
from US $0.76 |
||
|
46211B
|
46211B
462062J00A Spring-Lock, Brake Hose0704--01 ~ ; 2DR |
462062J00A |
from US $0.76 |
||
|
46284
|
46284
46284-AX615 Tube Assy-Brake, Rear0704--01 ~ ; 2DR |
46284-AX615 |
US $23.76 |
||
|
46284
|
46284
46284-AX615 Tube Assy-Brake, Rear0704--01 ~ ; 2DR |
46284-AX615 |
US $23.76 |
||
|
46285X
|
46285X
46285-AX615 Tube Assy-Brake, Rear0704--01 ~ ; 2DR |
46285-AX615 |
US $19.01 |
||
|
46285X
|
46285X
46285-AX615 Tube Assy-Brake, Rear0704--01 ~ ; 2DR |
46285-AX615 |
US $19.01 |
||
|
46315
|
46315
46315-9U00A Tube Assy-Brake Rear, Rh0704--01 ~ ; 2DR |
46315-9U00A |
US $9.94 |
||
|
46315
|
46315
46315-9U00A Tube Assy-Brake Rear, Rh0704--01 ~ ; 2DR |
46315-9U00A |
US $9.94 |
||
|
46316
|
46316
46316-9U00A Tube Assy-Brake Rear, Lh0704--01 ~ ; 2DR |
46316-9U00A |
US $9.94 |
||
|
46316
|
46316
46316-9U00A Tube Assy-Brake Rear, Lh0704--01 ~ ; 2DR |
46316-9U00A |
US $9.94 |
||
