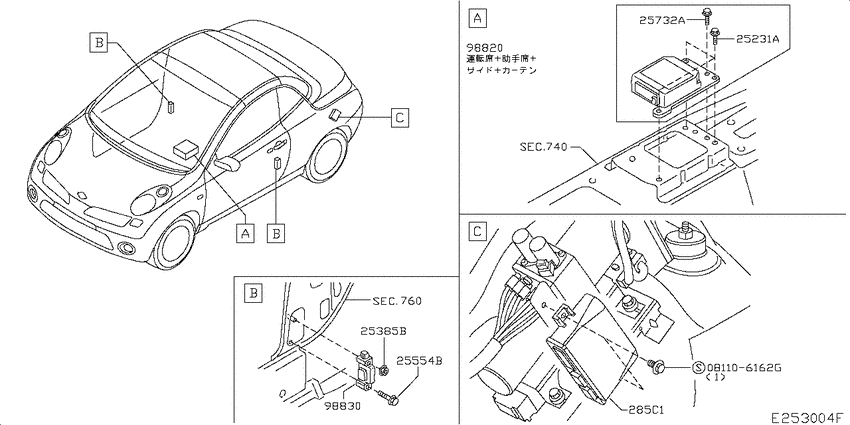

Electrical unit (2007-04-01 ~ ; AIRBAG SENSORS; 2DR) Diagram Nissan MICRA C+C
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- HR16DE
- drive
- 2WD
- transmission
- F5
- grade
- MICRA
- body
- 2DR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081106162G
|
081106162G
08110-6162G
ﾎﾞﾙﾄ,ﾍｸｻｺﾞﾝ
|
08110-6162G |
— | ||
|
25231A
|
25231A
98589EN00A Bolt0704--01 ~ ; 2DR |
98589EN00A |
from US $0.19 |
||
|
25385B
|
25385B
01221-00Q0B Nut0704--01 ~ ; 2DR |
01221-00Q0B |
US $1.73 |
||
|
25554B
|
25554B
01125-S618E Bolt0704--01 ~ ; 2DR |
01125-S618E |
US $1.73 |
||
|
25732A
|
25732A
01456-S603E Screw0704--01 ~ ; 2DR |
01456-S603E |
US $2.45 |
||
|
285C1
|
285C1
285C1BC00A Control Unit-Folding Roof0704--01 ~ ; 2DR |
285C1BC00A |
US $800.04 |
||
|
740
|
Floor panel
740
|
||||
|
760
|
Body side panel
760
|
||||
|
98820
|
98820
K8820-BC20A
ｾﾝｻ-,ｻｲﾄﾞ ｴｱ- ﾊﾞﾂｸ ｾﾝﾀ-
0704--01 ~ ; 2DR |
K8820-BC20A |
— | ||
|
98830
|
98830
K8830-AY00A
ｾﾝｻ-,ｻｲﾄﾞ ｴｱ- ﾊﾞﾂｸrh
0704--01 ~ ; 2DR |
K8830-AY00A |
— | ||
